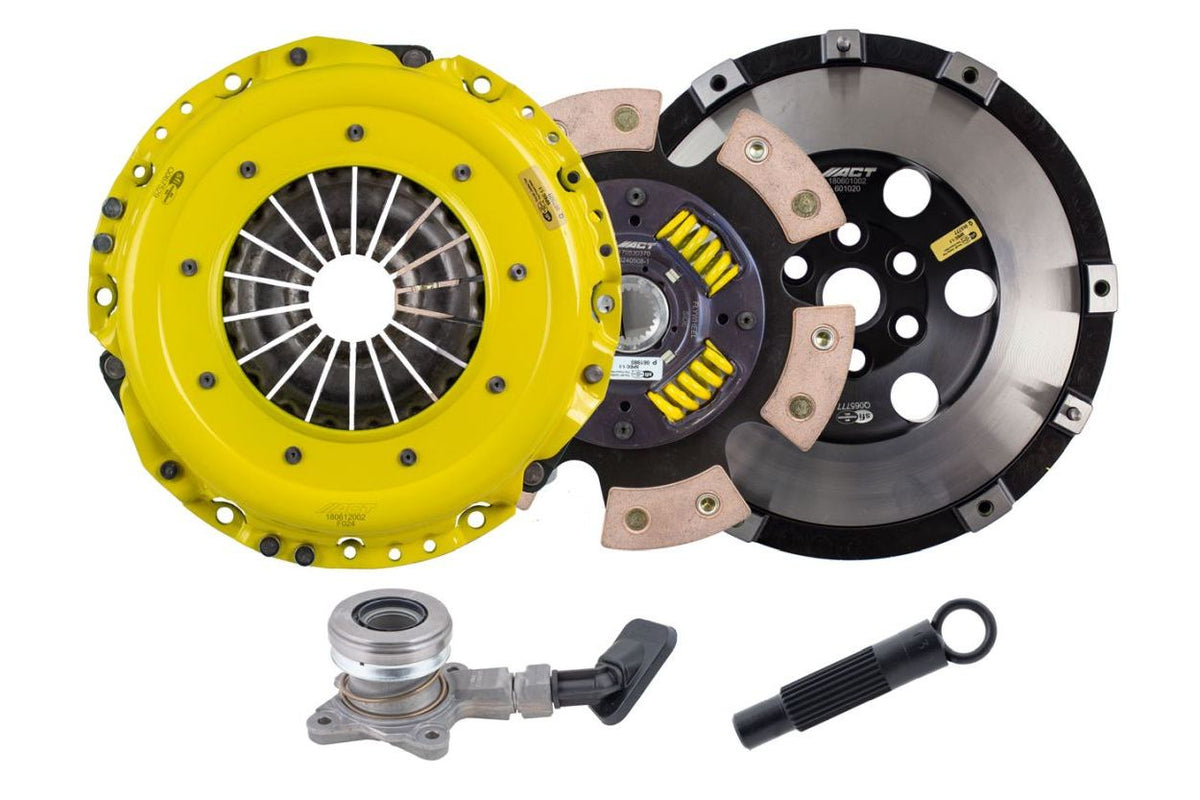

Advanced Clutch FF5-HDG6 ACT Heavy Duty Race Sprung 6 Pad Clutch Kit
Advanced Clutch FF5-HDG6 ACT Heavy Duty Race Sprung 6 Pad Clutch Kit
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Advanced Clutch FF5-HDG6 ACT Heavy Duty Race Sprung 6 Pad Clutch Kit
FF5-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
| Flywheel Included | Yes |
| Pilot Bushing Included | No |
| Pressure Plate Type | Heavy Duty |
| Release Bearing Included | Yes |
| Clutch Disc Diameter | 240 |
| Disc Material | Ceramic |
| Input Spline Quantity | 23 |
| Input Shaft Diameter | 1 |
| Alignment Tool Included | Yes |
| Disc Type Sprung Solid | Sprung |
| Pressure Plate Bolts Included | Yes |
| Grease Included | Yes |
| Grade Type | Performance |
| Clutch Slave Cylinder Included | No |
| Flywheel Bolts Included | No |
| Pilot Bearing Included | No |
| Clutch Master Cylinder Included | No |
| Flywheel Type | Streetlite |
| Part Fitment Requirement | Must be used with the ACT flywheel (included in kit). Gear Rattle is expected when using the ACT single mass flywheel. Pressure plate bolts included (M8-1.25 x 20mm). |
| Product Weight (lbs.) | 30.1 |
| Torque Capacity (ft/lbs.) | 640 |
| Torque Capacity Over OE | 73% |
Packaging Information
Weight: 37 lbs
Dimensions: 18 x 18 x 6 IN
Safety
Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Installation Instructions
Share
Vehicle Fitment
Vehicle Fitment
- 2016-2018 Ford Focus RS
- 2013-2018 Ford Focus ST
