Advanced Clutch

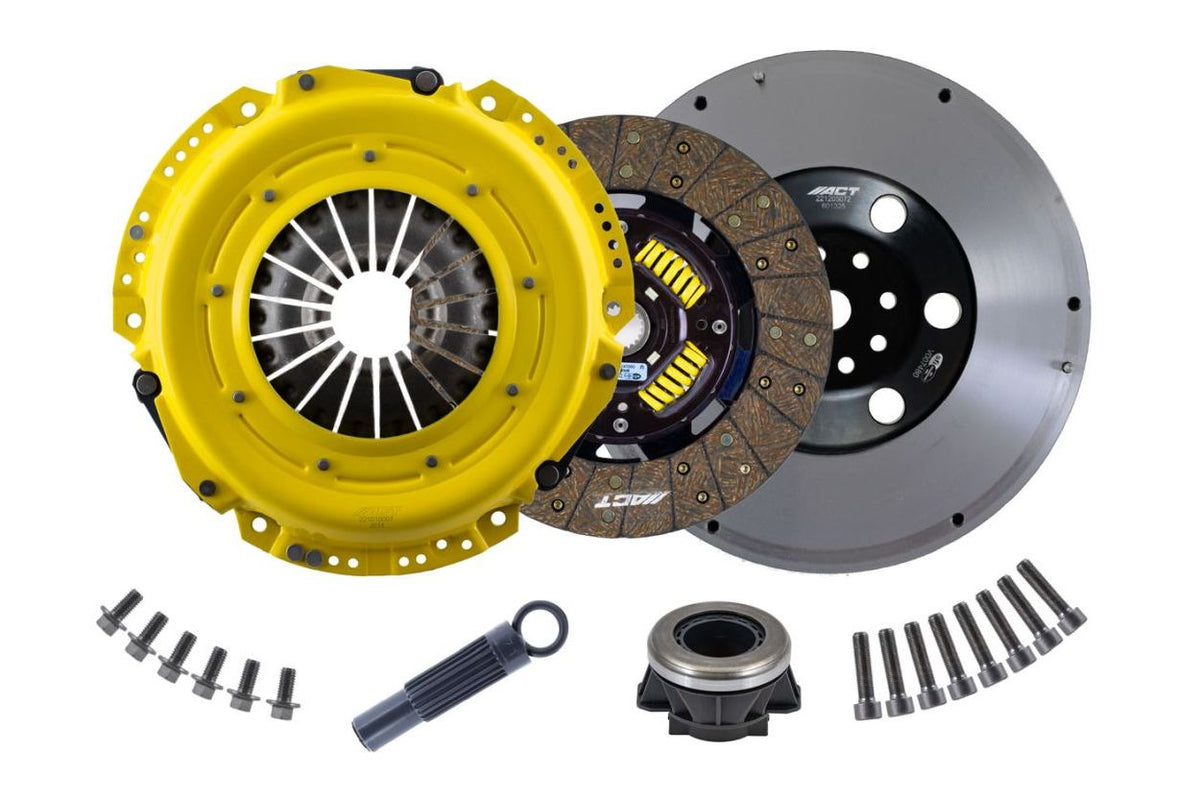

Advanced Clutch JP6-HDSS ACT Heavy Duty Off-Road Performance Street Sprung Clutch Kit

$1,371.00 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

Advanced Clutch JP6-HDSS ACT Heavy Duty Off-Road Performance Street Sprung Clutch Kit

JP6-HDSS kit features ACT's highly regarded Heavy Duty pressure plate and most popular street disc delivering generous torque capacity, smooth precise feel, quiet operation and increased toughness to withstand the rigors of spirited street and off-road use. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s performance street discs boast quality parts throughout with robust center sections, premium organic friction materials for exceptional wear and improved heat capacity which are steel-backed for greater burst strength and durability.

"Excellence in Performance", backed by the best one-year warranty in the industry!

Specifications

Input Shaft Diameter	1.125
Clutch Disc Diameter	280
Input Spline Quantity	21
Pressure Plate Type	Heavy Duty
Disc Material	Organic
Flywheel Included	Yes
Release Bearing Included	Yes
Alignment Tool Included	Yes
Disc Type Sprung Solid	Sprung
Clutch Slave Cylinder Included	No
Flywheel Bolts Included	Yes
Clutch Master Cylinder Included	No
Pressure Plate Bolts Included	Yes
Grease Included	Yes
Grade Type	Performance
Flywheel Type	Pro-Mass
Part Fitment Requirement	Conversion Kit. Includes ACT Pro-Mass flywheel. Flywheel bolts included (M10-1.00 x 40mm). Pressure plate bolts included (M8-1.25 x 16mm).
Product Weight (lbs.)	62.6
Torque Capacity (ft/lbs.)	479
Torque Capacity Over OE	32%

Packaging Information

Weight: 66.1 lbs
Dimensions: 14 x 14 x 5 IN

Safety

Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Warranty

12 Month Warranty

View Warranty (PDF)

Installation Instructions

View Installation Instructions (PDF)
