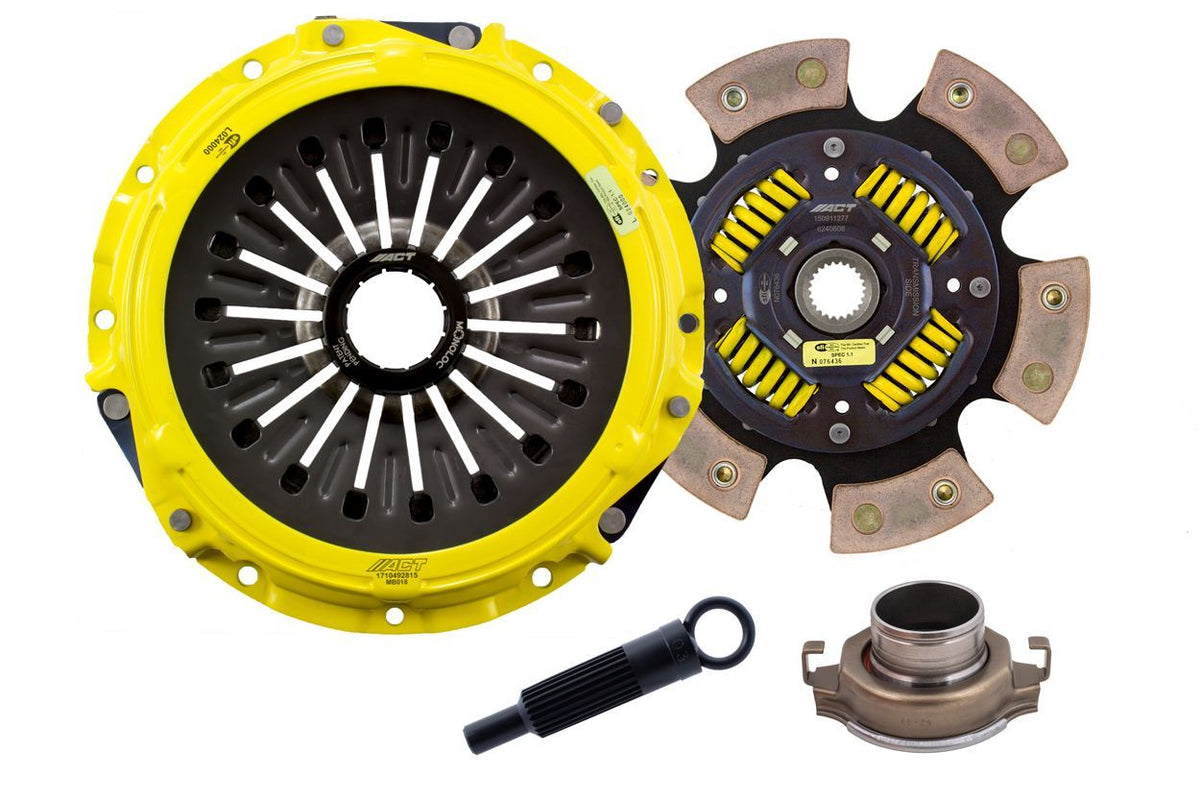

Advanced Clutch ME3-HDG6 ACT Heavy Duty Race Sprung 6 Pad Clutch Kit with Monoloc
Advanced Clutch ME3-HDG6 ACT Heavy Duty Race Sprung 6 Pad Clutch Kit with Monoloc
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Advanced Clutch ME3-HDG6 ACT Heavy Duty Race Sprung 6 Pad Clutch Kit with Monoloc
ME3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
| Flywheel Included | No |
| Pilot Bushing Included | No |
| Pressure Plate Type | Heavy Duty |
| Release Bearing Included | Yes |
| Clutch Disc Diameter | 240 |
| Disc Material | Ceramic |
| Input Spline Quantity | 23 |
| Input Shaft Diameter | 1 |
| Alignment Tool Included | Yes |
| Disc Type Sprung Solid | Sprung |
| Pressure Plate Bolts Included | No |
| Grease Included | Yes |
| Grade Type | Performance |
| Clutch Slave Cylinder Included | No |
| Flywheel Bolts Included | No |
| Pilot Bearing Included | No |
| Clutch Master Cylinder Included | No |
| Part Fitment Requirement | Includes ACT Monoloc. |
| Product Weight (lbs.) | 17.7 |
| Torque Capacity (ft/lbs.) | 678 |
| Torque Capacity Over OE | 85% |
Packaging Information
Weight: 21.2 lbs
Dimensions: 14 x 14 x 5 IN
Safety
Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Installation Instructions
Share
Vehicle Fitment
Vehicle Fitment
- 2014 Mitsubishi Lancer Evolution
- 2015 Mitsubishi Lancer Evolution Final Edition
- 2008-2015 Mitsubishi Lancer Evolution GSR
- 2009 Mitsubishi Lancer Evolution RS
