Baja Designs
Baja Designs 257811 Squadron SAE LED Auxiliary Light Pod Pair
Baja Designs 257811 Squadron SAE LED Auxiliary Light Pod Pair
10 in stock
Couldn't load pickup availability
Description & Features

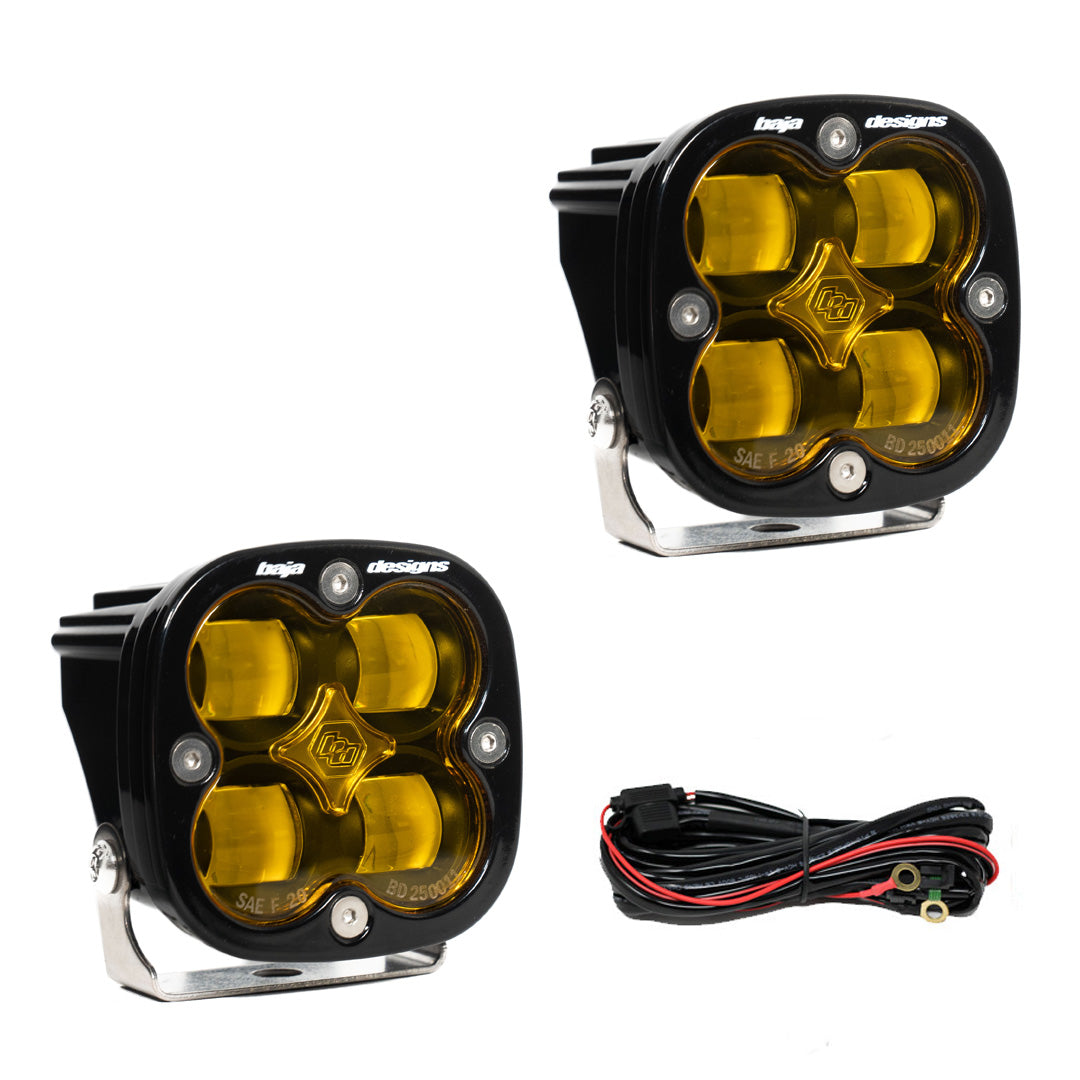

Baja Designs 257811 Squadron SAE LED Auxiliary Light Pod Pair
Baja Designs next generation Squadron(R) SAE is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model. The all-new Squadron(R) SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts. Keeping you safe on the road or trails, the Squadron(R) SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron(R) SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. USPTO Reg No. 5,766,659
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- NOTE: uService(R) is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
Specifications
| Add-On | Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
| Amperage Rating (A) | 2.1 |
| Average Rated Life (hr.) | 49930 |
| Beam Pattern | SAE Fog |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2420 |
| Description | SAE Fog; Amber; Pair |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Forward Projecting |
| Lighting Type | Cree LED |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron SAE LED Light Pod Pair w/ Wiring Harness |
| Wattage (W) | 29 |
| Wiring Harness Included | Yes |
| DOT Approved | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (SAE) | SAE Standard J583 |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Street Legal | Yes |
| DES | Squadron SAE LED Auxiliary Light Pod Pair |
| EXT | Squadron SAE LED Light Pod Pair (SAE Fog; Baja Amber) |
| TLE | Squadron SAE LED Light Pod Pair (SAE Fog; Baja Amber) |
Packaging Information
Weight: 3 lbs
Dimensions: 7 x 7 x 5 IN
Warranty
Limited Lifetime Warranty
