Baja Designs 451003 OnX6+ Straight LED Light Bar
Baja Designs 451003 OnX6+ Straight LED Light Bar
10 in stock
Couldn't load pickup availability
Description & Features

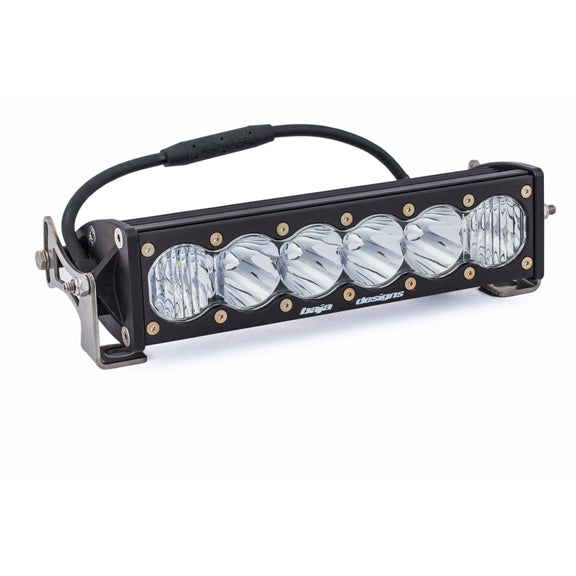

Baja Designs 451003 OnX6+ Straight LED Light Bar
At an impressive 39,430 lumens, the brightest just got up to 69 percent brighter than our previous generation. The OnX6 plus LED light bar also integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- NOTE: *This light does NOT come with a harness, the applicable harness is 640115 On/Off OnX6+ wiring harness is only applicable for 10-20in.
Specifications
| Add-On | Compatible Products-640163-Harness/Splitter (Hi Beam) |
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.250 |
| Amperage Rating (A) | 7.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| DES | OnX6+ Straight LED Light Bar |
| EXT | OnX6+ Straight LED Light Bar (10 Inch; Driving/Combo; Clear) |
| TLE | OnX6+ Straight LED Light Bar (10 Inch; Driving/Combo; Clear) |
Packaging Information
Weight: 5 lbs
Dimensions: 16 x 5 x 7 IN
Warranty
Limited Lifetime Warranty
