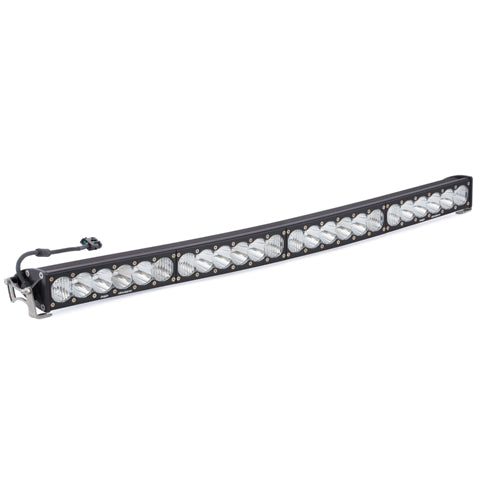

Baja Designs 524003 OnX6 Arc LED Light Bar
Baja Designs 524003 OnX6 Arc LED Light Bar
Low stock: 3 left
Couldn't load pickup availability
Description & Features
Baja Designs 524003 OnX6 Arc LED Light Bar
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
- The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility
- We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue
- Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar
- NOTE: *This light does NOT come with a harness, the applicable harness is 640119*
Specifications
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 40 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 340 (High); 284 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| DES | OnX6 Arc LED Light Bar |
| EXT | OnX6 Arc LED Light Bar (40 Inch; Driving/Combo; Clear) |
| TLE | OnX6 Arc LED Light Bar (40 Inch; Driving/Combo; Clear) |
| Add-On | Compatible Products-640163-Harness/Splitter (Hi Beam) |
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 40 |
| Weight (lbs.) | 15.05 |
| Amperage Rating (A) | 26.8 (High); 22.4 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,220 (High); 32,760 (Low) |
| Description | Arc; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
Packaging Information
Weight: 15 lbs
Dimensions: 48 x 8 x 8 IN
Warranty
Limited Lifetime Warranty
