Baja Designs
Baja Designs 704003 S8 Straight LED Light Bar
Baja Designs 704003 S8 Straight LED Light Bar
10 in stock
Couldn't load pickup availability
Description & Features

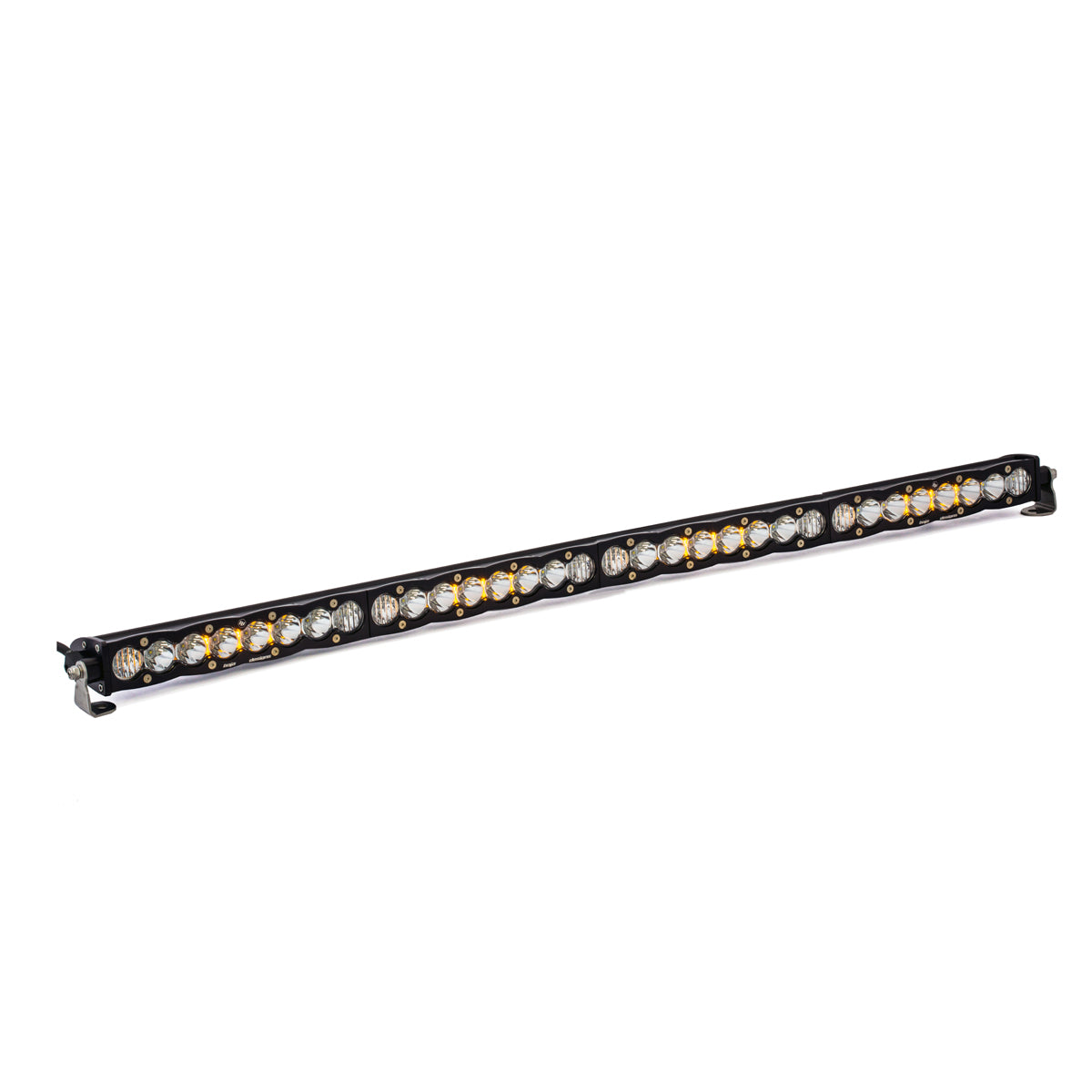

Baja Designs 704003 S8 Straight LED Light Bar
The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle. The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30").
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle
- The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness
- The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30")
- NOTE: *This light does NOT come with a harness, The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10?-30?).
Specifications
| Add-On | Compatible Products-613608-Harness Splitter |
| Depth (in.) | 3 |
| Height (in.) | 1.6 |
| Length (in.) | 40 |
| Weight (lbs.) | 8.65 |
| Amperage Rating (A) | 16.0 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 25,400 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 32 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S8 40 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 240 |
| Wiring Harness Included | No |
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| DES | S8 Straight LED Light Bar |
| EXT | S8 Straight LED Light Bar (40 Inch; Driving/Combo; Clear) |
| TLE | S8 Straight LED Light Bar (40 Inch; Driving/Combo; Clear) |
Packaging Information
Weight: 13 lbs
Dimensions: 48 x 5 x 5 IN
Warranty
Limited Lifetime Warranty
