Bilstein 24-143806 B6 4600 - Suspension Shock Absorber
Bilstein 24-143806 B6 4600 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features

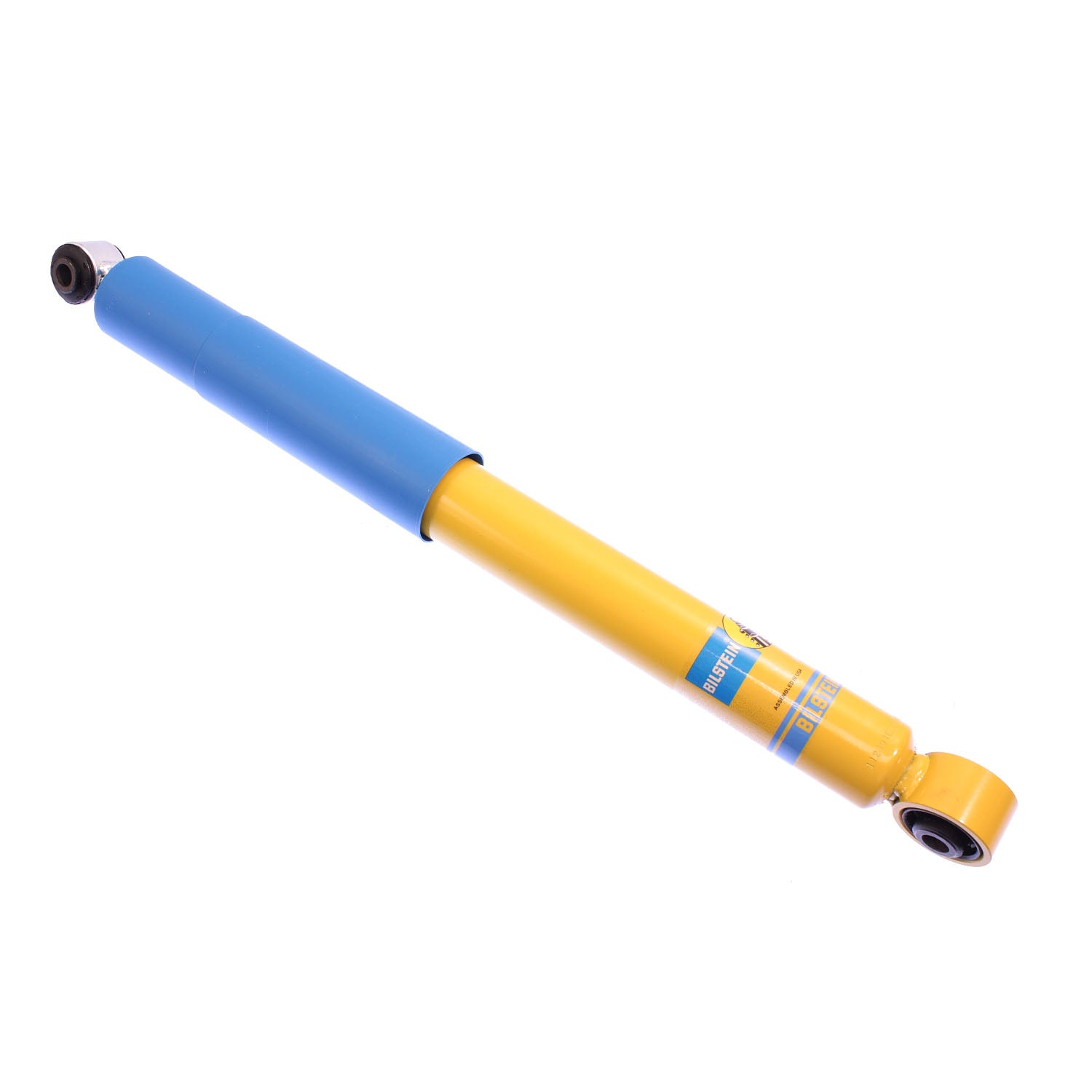

Bilstein 24-143806 B6 4600 - Suspension Shock Absorber
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Specific tuning for stock height vehicles
- Uses OEM springs and mounting hardware
Specifications
| Extended Length (mm) | 609.7 |
| Collapsed Length (IN) | 15.47 |
| Lower Mount Type | Eye 14.1mm |
| Upper Mount Type | Eye 14.1mm |
| Adjustable Damping | Non-Adjustable |
| Series | B6 4600 |
| Collapsed Length (mm) | 393.0 |
| Reservoir | No |
| Boot Included | Blue Straight |
| Extended Length (IN) | 24.00 |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Spring Seat Included | No |
| Segment | Light Truck |
Packaging Information
Weight: 5.09 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Without Z55 Autoride Suspension Package; If vehicle is equipped with ZW7 Premium Smooth Ride Nivomat Suspension you must purchase Bilstein spring part number 199020 in addition to the damper
- Without Z55 Autoride Suspension Package; Without Police Package; If vehicle is equipped with ZW7 Premium Smooth Ride Nivomat Suspension you must purchase Bilstein spring part number 199021 in addition to the damper
- Without Z55 Autoride Suspension Package
Share
Vehicle Fitment
Vehicle Fitment
- 2013 Chevrolet Avalanche Black Diamond LS — Rear
- 2013 Chevrolet Avalanche Black Diamond LT — Rear
- 2007-2012 Chevrolet Avalanche LS — Rear
- 2007-2012 Chevrolet Avalanche LT — Rear
- 2000-2001 Chevrolet Suburban 1500 Base — Rear
- 2006 Chevrolet Suburban 1500 Base — Rear
- 2000-2006 Chevrolet Suburban 1500 LS — Rear
- 2000-2006 Chevrolet Suburban 1500 LT — Rear
- 2006 Chevrolet Suburban 1500 LTZ — Rear
- 2004-2006 Chevrolet Suburban 1500 Z71 — Rear
- 2000-2001 Chevrolet Tahoe Base — Rear
- 2006 Chevrolet Tahoe Base — Rear
- 2000-2006 Chevrolet Tahoe LS — Rear
- 2000-2006 Chevrolet Tahoe LT — Rear
- 2003-2006 Chevrolet Tahoe Z71 — Rear
- 2006 GMC Yukon SL — Rear
- 2000-2006 GMC Yukon SLE — Rear
- 2000-2006 GMC Yukon SLT — Rear
- 2006 GMC Yukon XL 1500 SL — Rear
- 2000-2006 GMC Yukon XL 1500 SLE — Rear
- 2000-2006 GMC Yukon XL 1500 SLT — Rear
