Bilstein

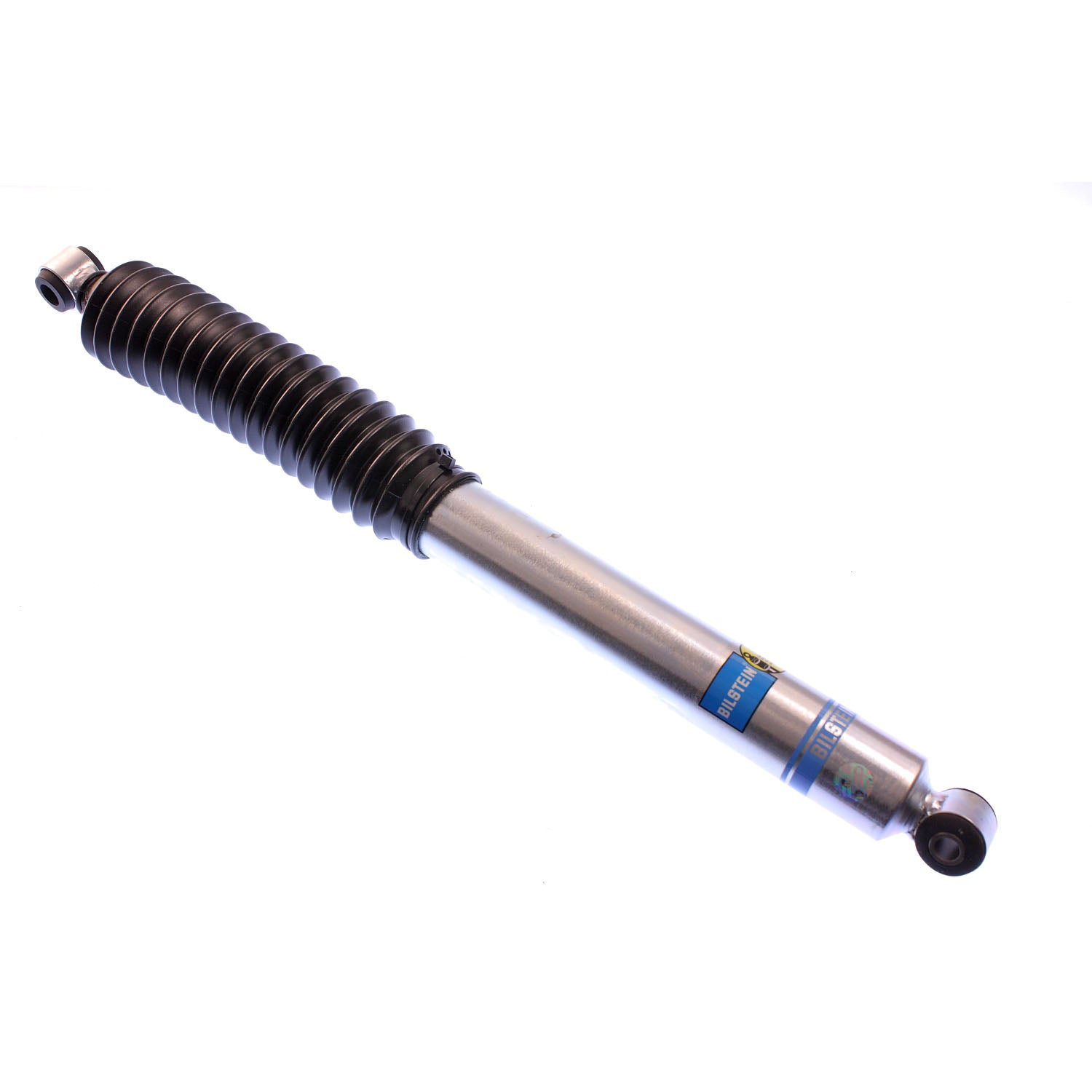

Bilstein 24-186223 B8 5100 - Suspension Shock Absorber
Bilstein 24-186223 B8 5100 - Suspension Shock Absorber
Low stock: 2 left
Couldn't load pickup availability
Description & Features
Bilstein 24-186223 B8 5100 - Suspension Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Body Design | Smooth Body (Non-Coilover) |
| Extended Length (MM) | 624.5 |
| Extended Length (IN) | 24.59 |
| Collapsed Length (IN) | 15.48 |
| Stroke/Travel Length (IN) | 9.11 |
| Finish | Zinc Plated |
| Lower Mount Type | Eye 12.2mm |
| Upper Mount Type | Eye 16mm |
| Stroke/Travel Length (mm) | 231.4 |
| Internal Design | Monotube |
| Adjustable Damping | Non-Adjustable |
| Series | B8 5100 |
| Collapsed Length (MM) | 393.3 |
| Reservoir | No |
| Spring Seat Included | No |
| Piston Diameter | 46mm |
| Boot Included | Black Bellows |
| Shaft Diameter | 14mm |
| Segment | Light Truck |
Packaging Information
Weight: 4.64 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Fits Vehicles With 3-4" Rear Lift
Share
Vehicle Fitment
Vehicle Fitment
- 1998 Jeep Grand Cherokee 5.9 Limited — Rear
- 1993 Jeep Grand Cherokee Base — Rear
- 1993-1998 Jeep Grand Cherokee Laredo — Rear
- 1993-1998 Jeep Grand Cherokee Limited — Rear
- 1995 Jeep Grand Cherokee Orvis — Rear
- 1997 Jeep Grand Cherokee Orvis — Rear
- 1994-1995 Jeep Grand Cherokee SE — Rear
- 1997-1998 Jeep Grand Cherokee TSi — Rear
- 1993 Jeep Grand Wagoneer Base — Rear
