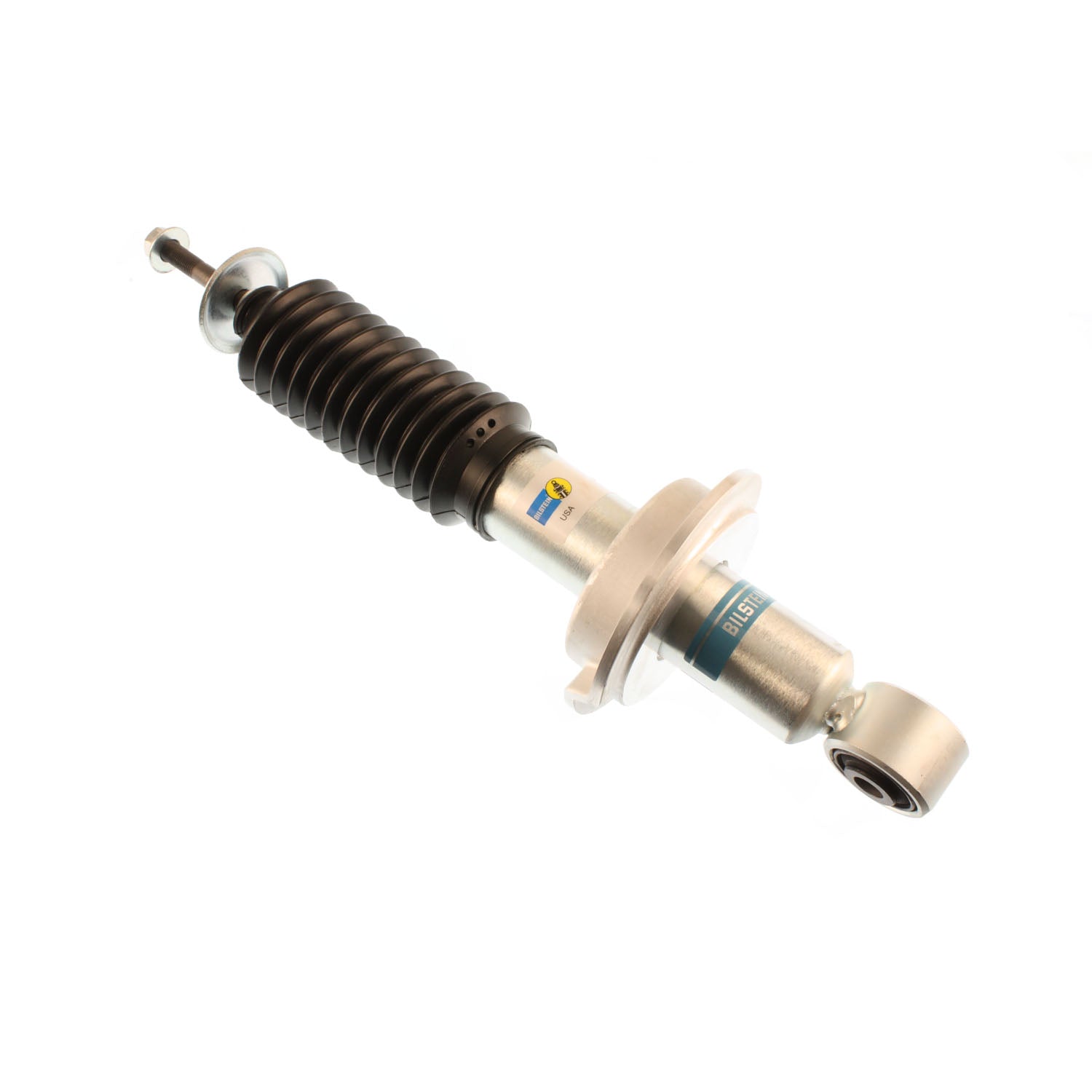

Bilstein 24-197649 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Bilstein 24-197649 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 24-197649 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Body Design | Snap Ring Grooved Body (Coilover) |
| Stroke/Travel Length (IN) | 4.24 |
| Finish | Zinc Plated |
| Upper Mount Type | Stem |
| Stroke/Travel Length (mm) | 107.7 |
| Series | B8 5100 (Ride Height Adjustable) |
| Boot Included | Black Bellows |
| Adjustable Damping | Non-Adjustable |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Collapsed Length (IN) | 11.19 |
| Extended Length (IN) | 15.43 |
| Lower Mount Type | Eye 14.2mm |
| Internal Design | Monotube |
| Collapsed Length (MM) | 284.2 |
| Reservoir | No |
| Spring Seat Included | Yes |
| Extended Length (MM) | 392.0 |
| Segment | Light Truck |
Packaging Information
Weight: 6.59 lbs
Dimensions: 26.8 x 6.1 x 6.1 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Provides 0-2" Front Lift
Share
Vehicle Fitment
Vehicle Fitment
- 2004-2010 INFINITI QX56 Base — Front
- 2005-2009 Nissan Armada LE — Front
- 2010-2015 Nissan Armada Platinum — Front
- 2005-2010 Nissan Armada SE — Front
- 2005-2006 Nissan Armada SE Off-Road — Front
- 2011-2015 Nissan Armada SL — Front
- 2011-2015 Nissan Armada SV — Front
- 2010 Nissan Armada Titanium — Front
- 2004 Nissan Pathfinder Armada LE — Front
- 2004 Nissan Pathfinder Armada SE — Front
- 2004-2010 Nissan TITAN LE — Front
- 2008-2015 Nissan TITAN PRO-4X — Front
- 2011-2015 Nissan TITAN S — Front
- 2004-2010 Nissan TITAN SE — Front
- 2011-2015 Nissan TITAN SL — Front
- 2011-2015 Nissan TITAN SV — Front
- 2004-2010 Nissan TITAN XE — Front
