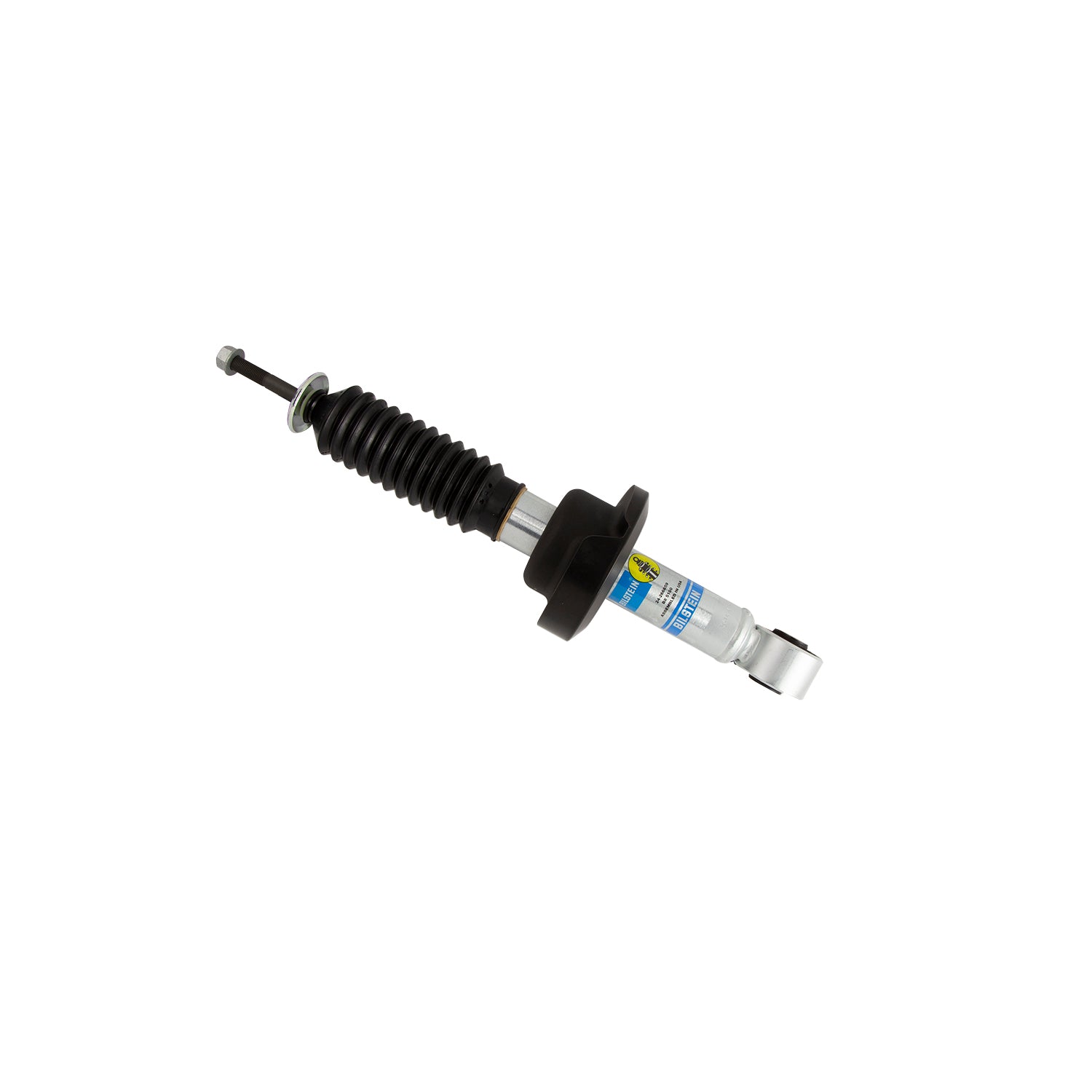

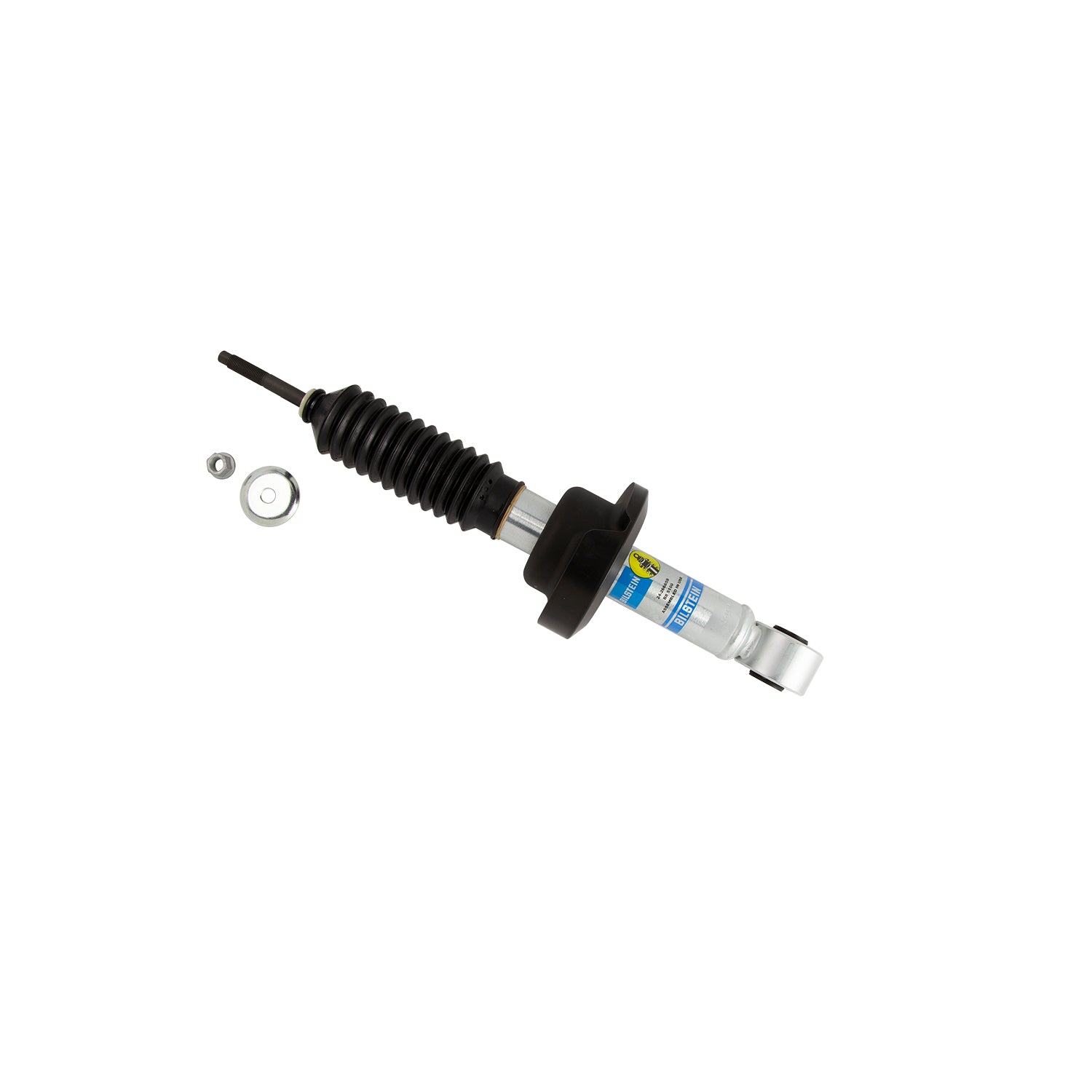

Bilstein 24-266659 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

$181.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Bilstein 24-266659 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

46mm monotube design ensures consistent, fade-free performance in all conditions
Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift, depending on the application

Specifications

Collapsed Length (IN)	14.61
Finish	Zinc Plated
Upper Mount Type	Stem
Extended Length (MM)	473.0
Reservoir	No
Spring Seat Included	Yes
Shaft Diameter	14mm
Segment	Light Truck
Stroke/Travel Length (IN)	5.15
Extended Length (IN)	18.62
Lower Mount Type	Eye 16mm
Stroke/Travel Length (mm)	130.8
Internal Design	Monotube
Series	B8 5100 (Ride Height Adjustable)
Boot Included	Black Bellows
Adjustable Damping	Non-Adjustable
Collapsed Length (MM)	371.2
Piston Diameter	46mm
Body Design	Snap Ring Grooved Body (Coilover)
