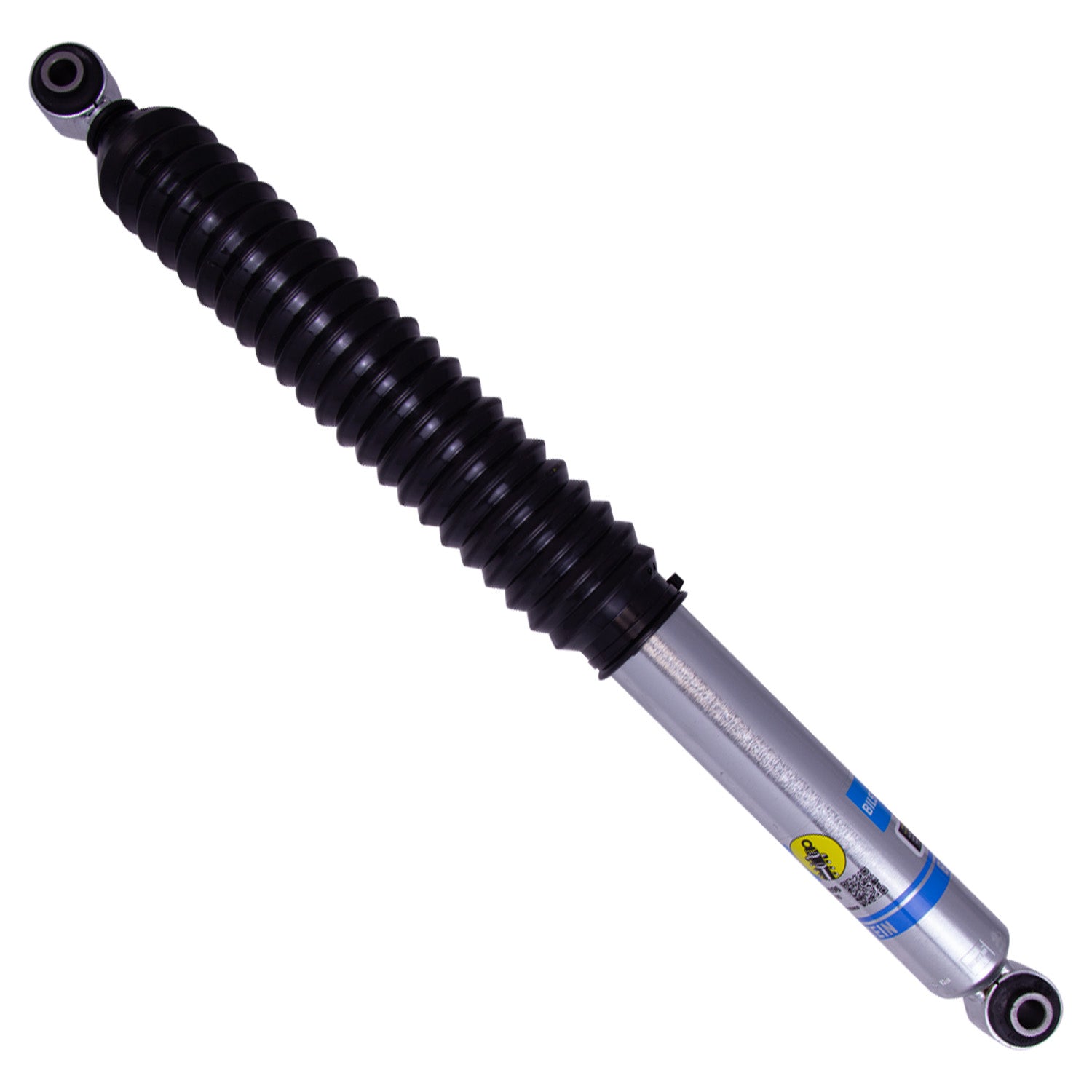

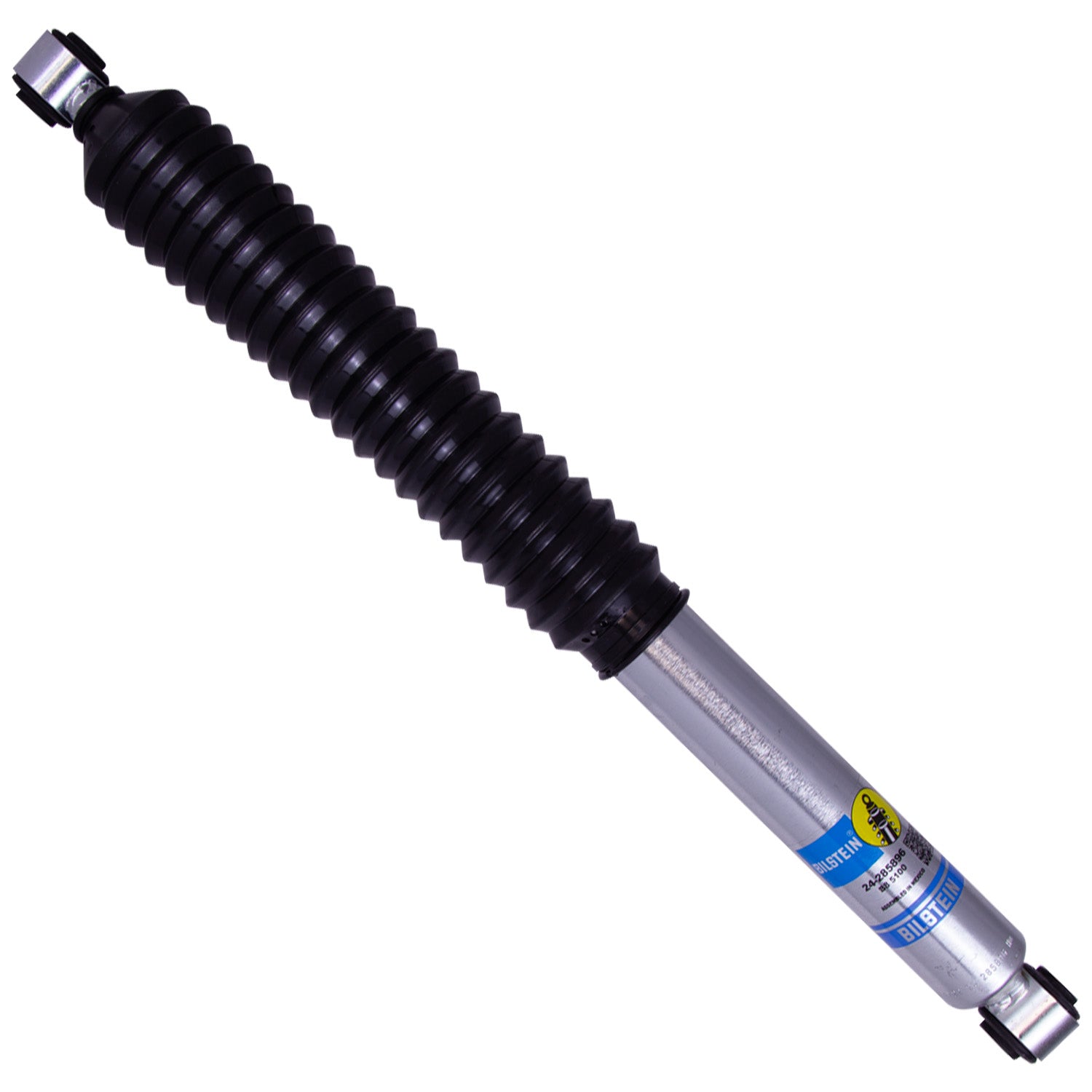

Bilstein 24-285896 B8 5100 - Suspension Shock Absorber
Bilstein 24-285896 B8 5100 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 24-285896 B8 5100 - Suspension Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Segment | Light Truck |
| Stroke/Travel Length (IN) | 9.63 |
| Finish | Zinc Plated |
| Extended Length (IN) | 26.20 |
| Upper Mount Type | Eye 14.1mm |
| Lower Mount Type | Eye 14.1mm |
| Stroke/Travel Length (mm) | 244.6 |
| Extended Length (MM) | 665.5 |
| Internal Design | Monotube |
| Series | B8 5100 |
| Collapsed Length (MM) | 420.8 |
| Piston Diameter | 46mm |
| Body Design | Smooth Body (Non-coilover) |
| Shaft Diameter | 14mm |
| Boot Included | Black Bellows |
| Reservoir | No |
| Spring Seat Included | No |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (IN) | 16.57 |
Packaging Information
Weight: 5.5 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Fits Vehicles With 2" Rear Lift
- Fits Vehicles With 2" Rear Lift; For Sierra 1500 Limited only – same as 2014-2018 body style
- Fits Vehicles With 2" Rear Lift; For Silverado 1500 LD only – same as 2014-2018 body style
Share
Vehicle Fitment
Vehicle Fitment
- 2016-2018 Chevrolet Silverado 1500 Custom — Rear
- 2014-2018 Chevrolet Silverado 1500 High Country — Rear
- 2019 Chevrolet Silverado 1500 LD Custom — Rear
- 2019 Chevrolet Silverado 1500 LD LT — Rear
- 2019 Chevrolet Silverado 1500 LD WT — Rear
- 2015-2018 Chevrolet Silverado 1500 LS — Rear
- 2014-2018 Chevrolet Silverado 1500 LT — Rear
- 2014-2018 Chevrolet Silverado 1500 LTZ — Rear
- 2014-2018 Chevrolet Silverado 1500 WT — Rear
- 2014-2018 GMC Sierra 1500 Base — Rear
- 2014 GMC Sierra 1500 Denali — Rear
- 2019 GMC Sierra 1500 Limited Base — Rear
- 2019 GMC Sierra 1500 Limited SLE — Rear
- 2014-2018 GMC Sierra 1500 SLE — Rear
- 2014-2018 GMC Sierra 1500 SLT — Rear
