Bilstein

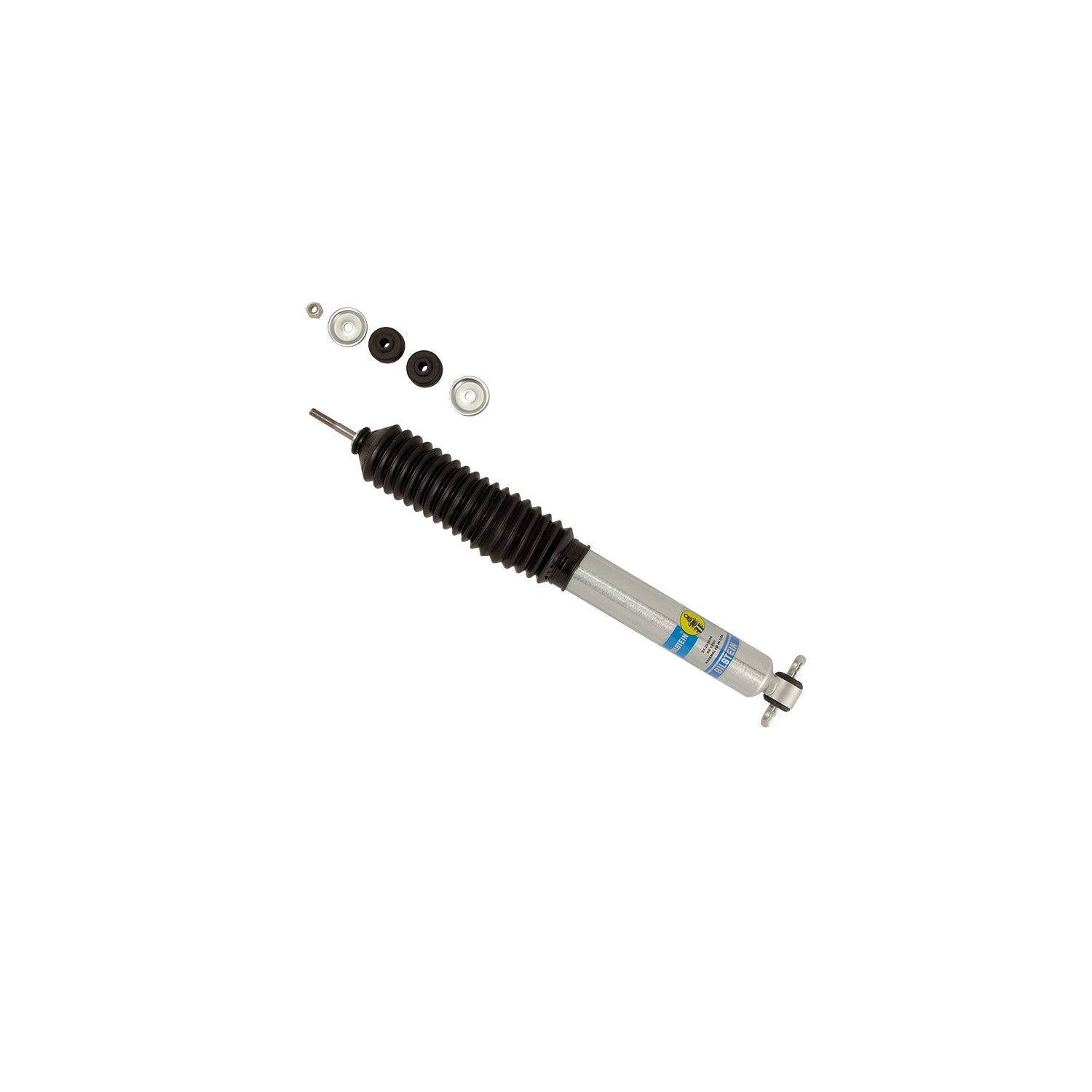

Bilstein 24-293099 B8 5100 - Suspension Shock Absorber

$123.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Bilstein 24-293099 B8 5100 - Suspension Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

46mm monotube design ensures consistent, fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

Specifications

Segment	Light Truck
Lower Mount Type	Bar Pin
Upper Mount Type	Stem
Finish	Zinc Plated
Extended Length (MM)	532.0
Boot Included	Black Bellows
Reservoir	No
Spring Seat Included	No
Adjustable Damping	Non-Adjustable
Shaft Diameter	14mm
Stroke/Travel Length (IN)	7.88
Extended Length (IN)	20.94
Stroke/Travel Length (mm)	200.2
Internal Design	Monotube
Series	B8 5100
Collapsed Length (IN)	13.06
Collapsed Length (MM)	331.8
Piston Diameter	46mm
Body Design	Smooth Body (Non-coilover)
