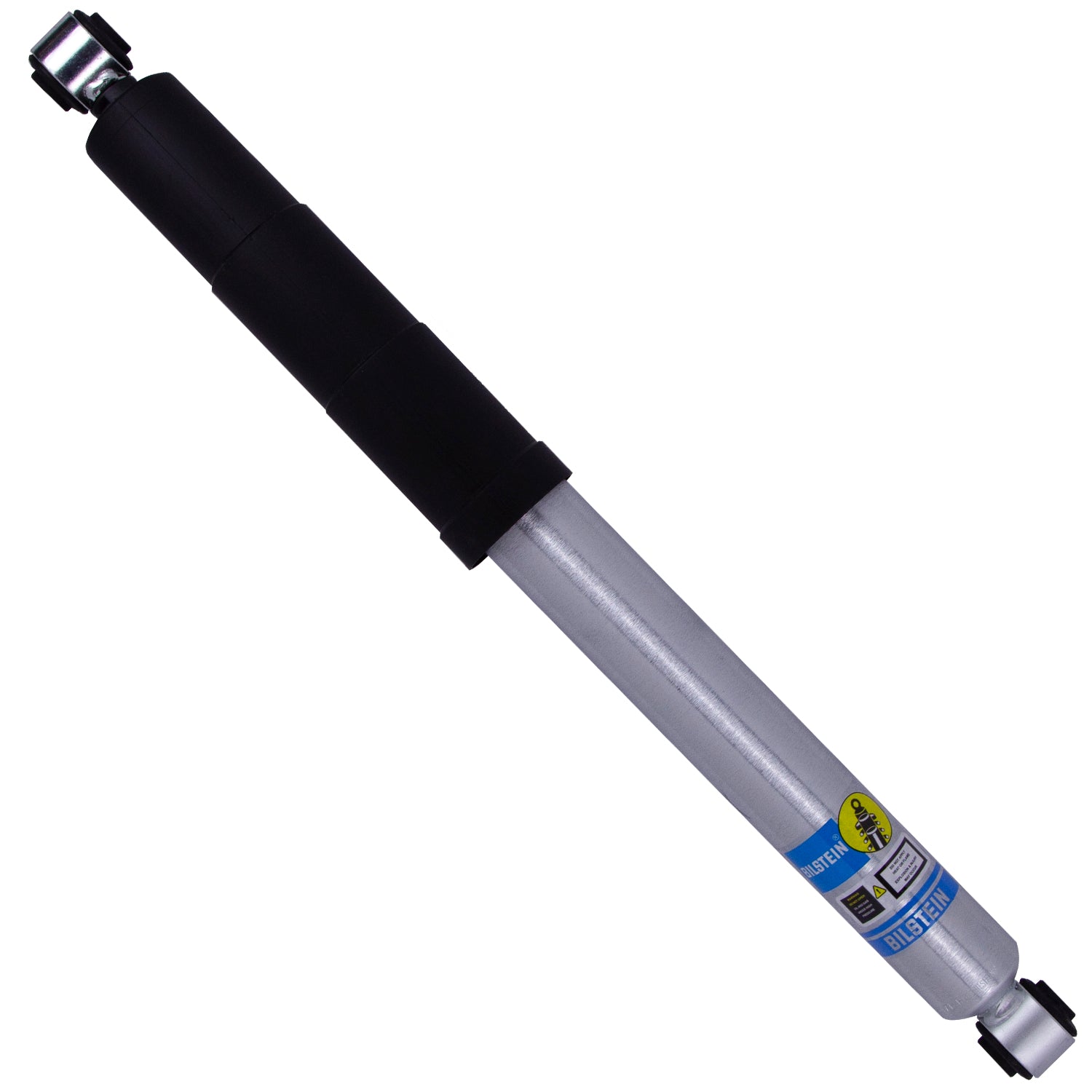

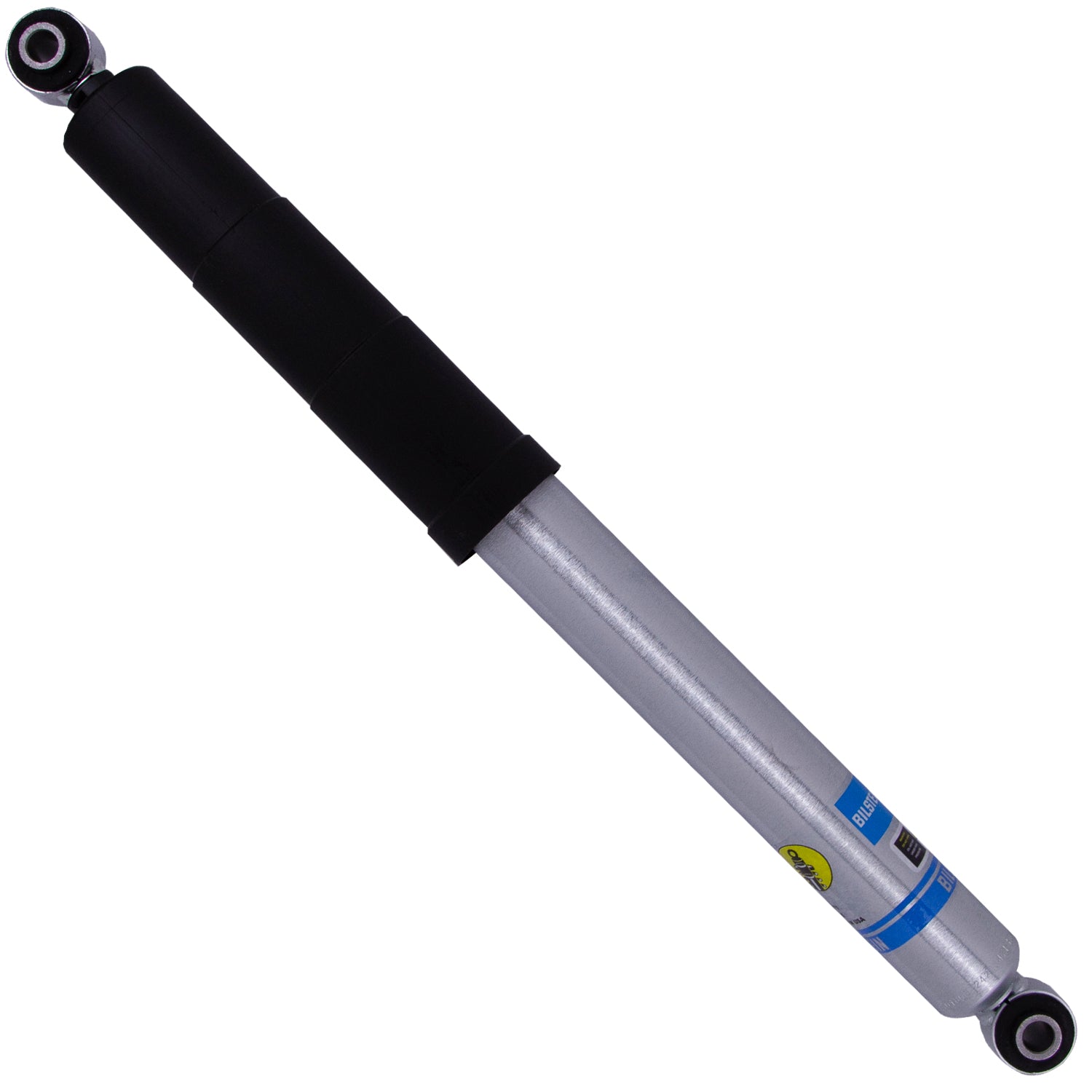

Bilstein 24-293471 B8 5100 - Suspension Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

46mm monotube design ensures consistent, fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

Specifications

Segment	Light Truck
Stroke/Travel Length (IN)	9.22
Extended Length (IN)	24.93
Upper Mount Type	Eye 14.12mm
Lower Mount Type	Eye 14.12mm
Finish	Zinc Plated
Stroke/Travel Length (mm)	234.2
Extended Length (MM)	633.2
Internal Design	Monotube
Series	B8 5100
Boot Included	Black Straight
Reservoir	No
Collapsed Length (MM)	399.0
Spring Seat Included	No
Piston Diameter	46mm
Body Design	Smooth Body (Non-coilover)
Adjustable Damping	Non-Adjustable
Collapsed Length (IN)	15.71
Shaft Diameter	14mm
