Bilstein
Bilstein 24-302074 B6 4600 - Suspension Shock Absorber
Bilstein 24-302074 B6 4600 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features

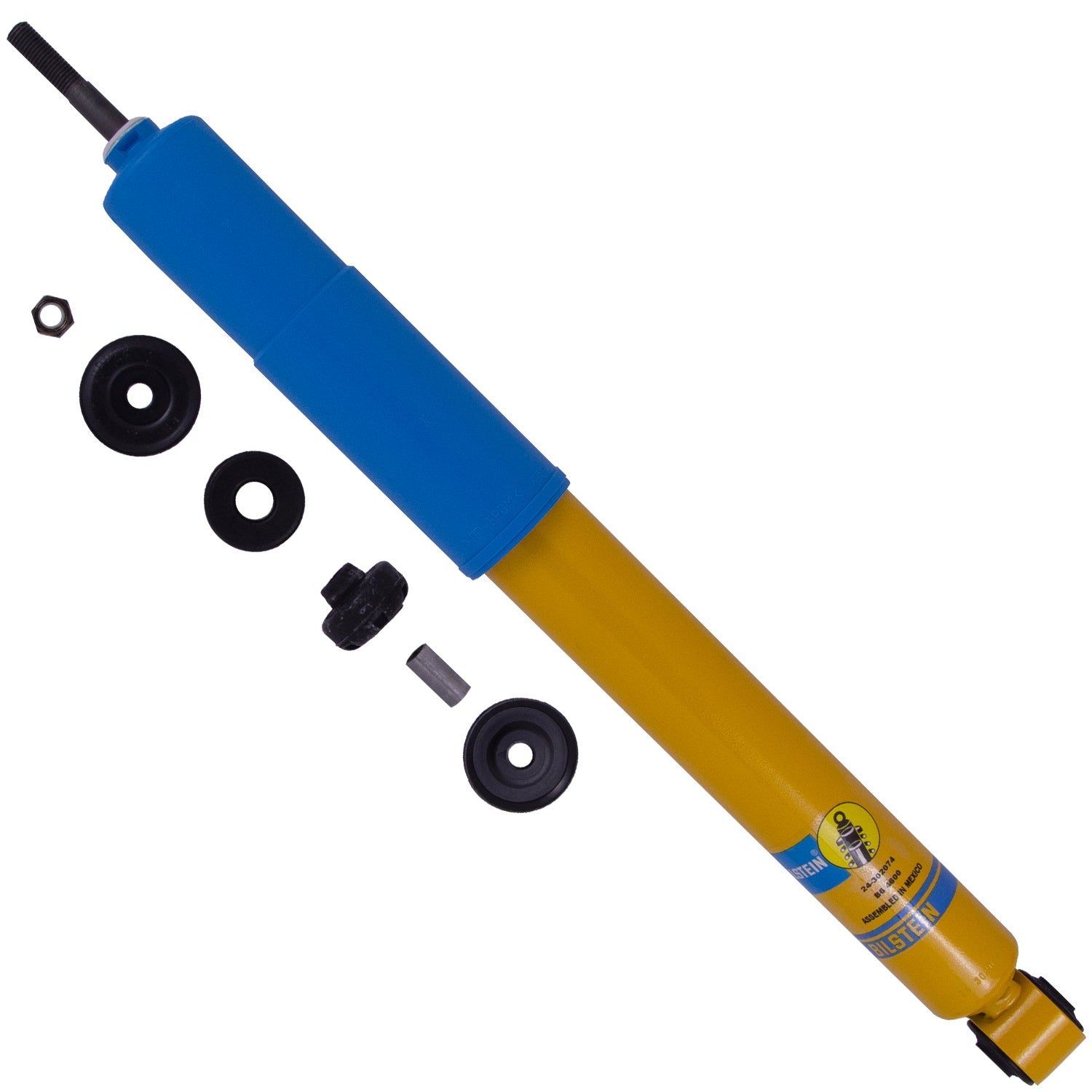

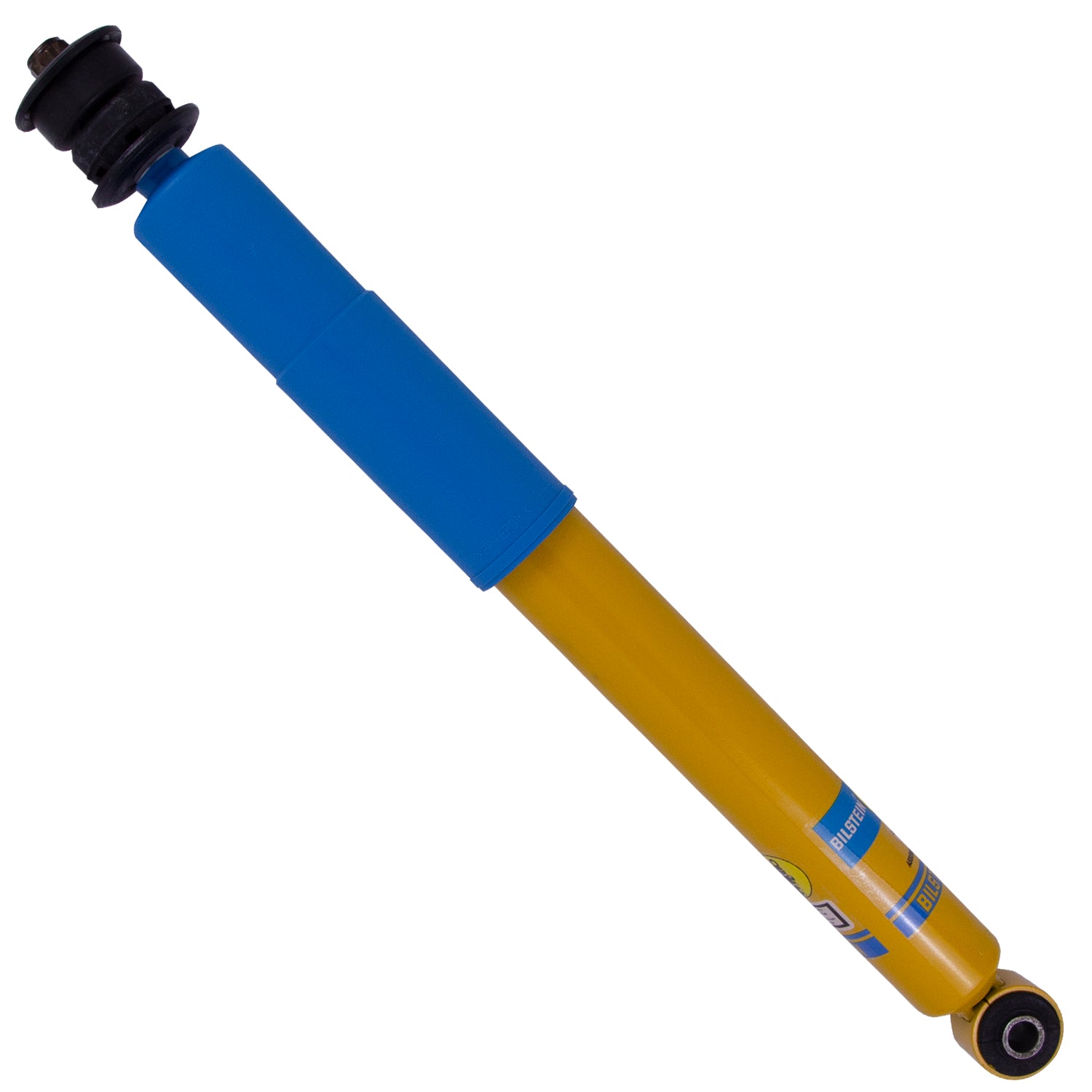

Bilstein 24-302074 B6 4600 - Suspension Shock Absorber
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Specific tuning for stock height vehicles

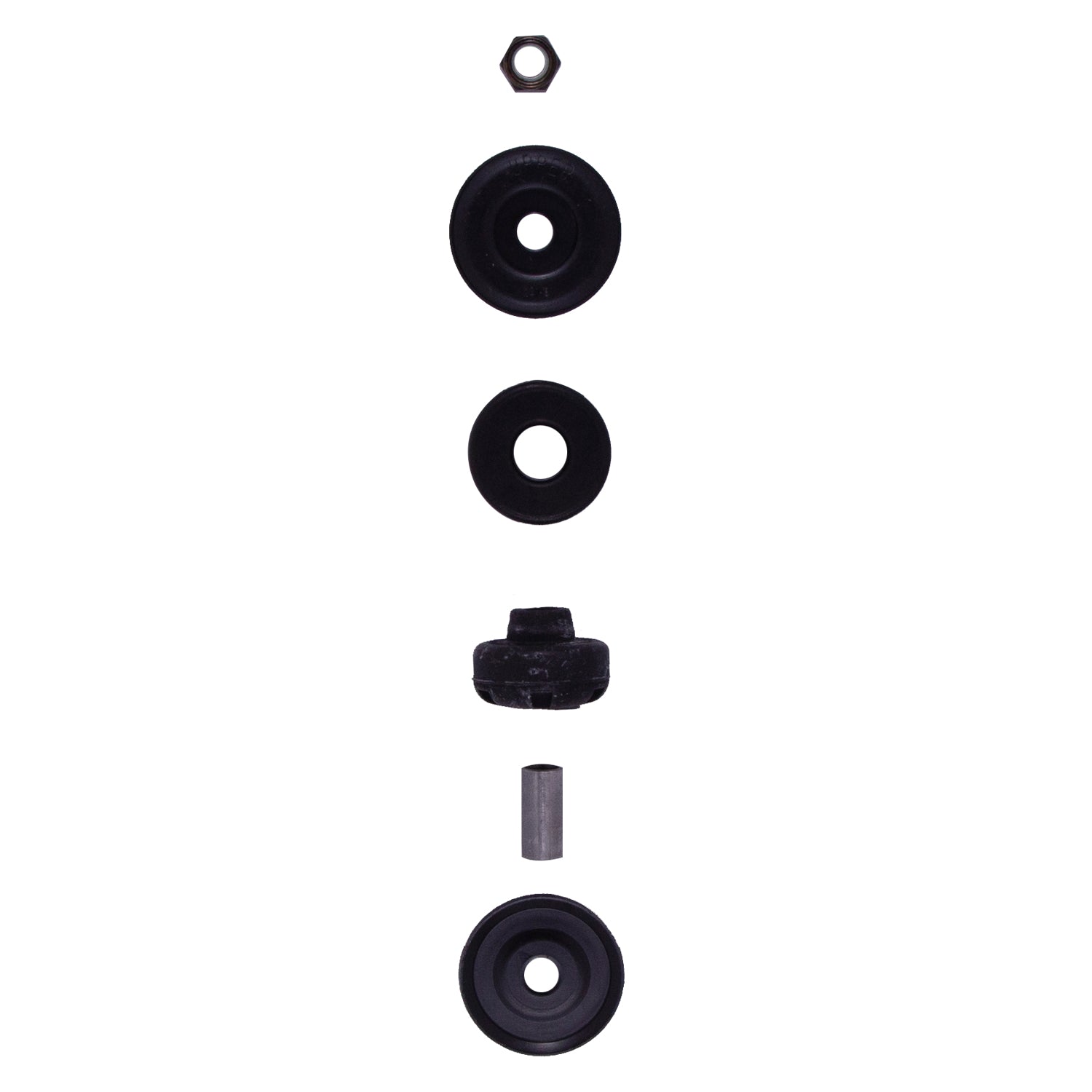

- Uses OEM springs and mounting hardware
Specifications
| Collapsed Length (IN) | 14.65 |
| Collapsed Length (mm) | 372.0 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 6.80 |
| Upper Mount Type | Stem |
| Stroke/Travel Length (mm) | 172.7 |
| Internal Design | Monotube |
| Series | B6 4600 |
| Boot Included | Blue Straight |
| Reservoir | No |
| Spring Seat Included | No |
| Body Design | Smooth Body (Non-coilover) |
| Segment | Light Truck |
| Extended Length (IN) | 21.45 |
| Lower Mount Type | Eye 14.4mm |
| Finish | Yellow Paint |
| Extended Length (mm) | 545.0 |
| Adjustable Damping | Non-Adjustable |
Packaging Information
Weight: 5 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Share
Vehicle Fitment
Vehicle Fitment
- 2019-2026 Ram 2500 Big Horn — Front
- 2019-2026 Ram 2500 Laramie — Front
- 2019-2021 Ram 2500 Laramie Longhorn — Front
- 2019-2026 Ram 2500 Limited — Front
- 2021-2026 Ram 2500 Limited Longhorn — Front
- 2019-2026 Ram 2500 Lone Star — Front
- 2023-2026 Ram 2500 Rebel — Front
- 2019-2026 Ram 2500 Tradesman — Front
- 2026 Ram 2500 Warlock — Front
