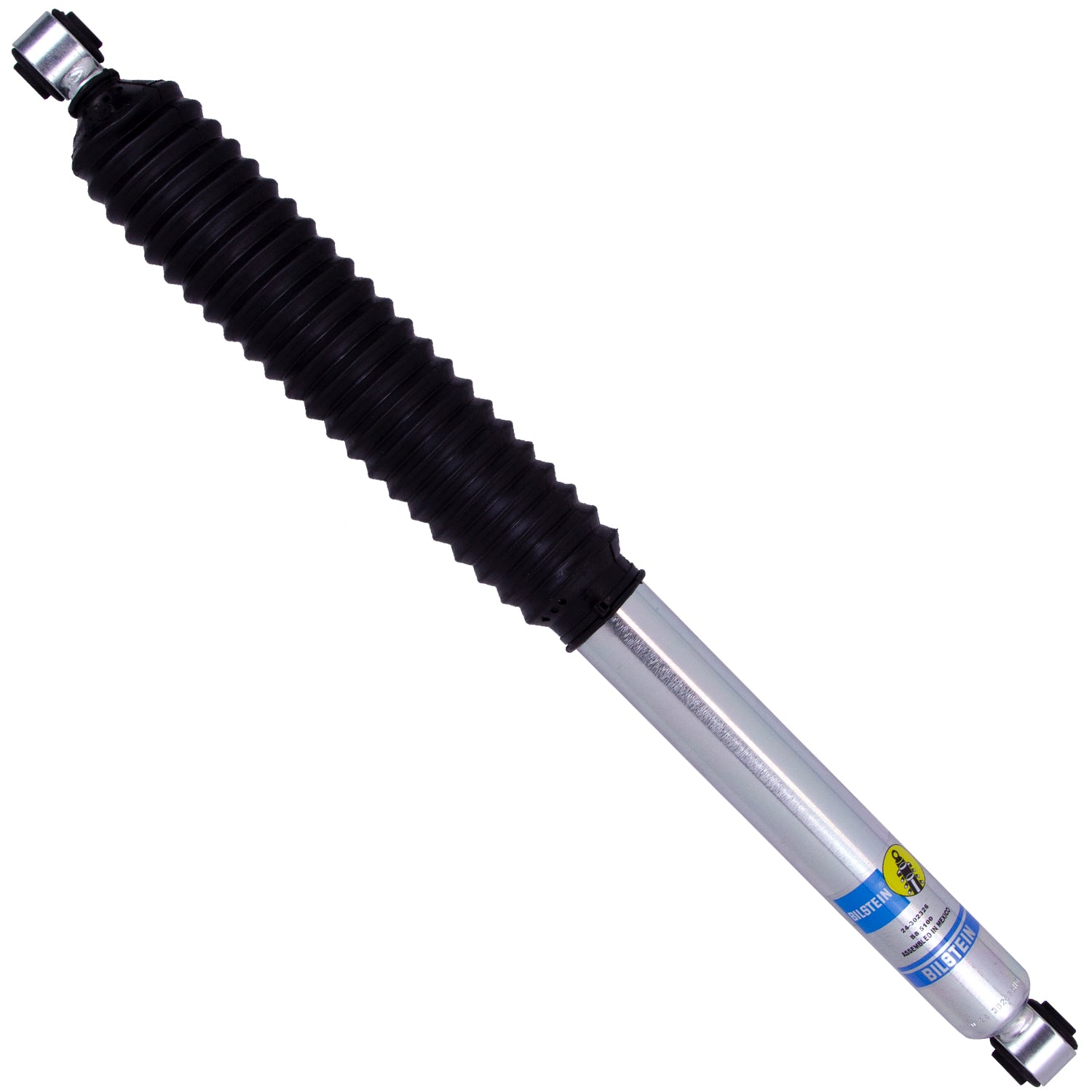

Bilstein 24-302326 B8 5100 - Suspension Shock Absorber
Bilstein 24-302326 B8 5100 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 24-302326 B8 5100 - Suspension Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Segment | Light Truck |
| Stroke/Travel Length (IN) | 11.13 |
| Extended Length (IN) | 29.38 |
| Upper Mount Type | Eye 14.1mm |
| Lower Mount Type | Eye 14.1mm |
| Finish | Zinc Plated |
| Stroke/Travel Length (mm) | 282.7 |
| Extended Length (MM) | 746.2 |
| Internal Design | Monotube |
| Adjustable Damping | Non-Adjustable |
| Series | B8 5100 |
| Collapsed Length (IN) | 18.25 |
| Boot Included | Black Bellows |
| Reservoir | No |
| Collapsed Length (MM) | 463.5 |
| Spring Seat Included | No |
| Piston Diameter | 46mm |
| Body Design | Smooth Body (Non-coilover) |
| Shaft Diameter | 14mm |
Packaging Information
Weight: 5.9 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
Share
Vehicle Fitment
Vehicle Fitment
- 2013-2026 Ram 3500 Big Horn — Rear
- 2013-2026 Ram 3500 Laramie — Rear
- 2014-2015 Ram 3500 Laramie Limited — Rear
- 2013-2020 Ram 3500 Laramie Longhorn — Rear
- 2016-2026 Ram 3500 Limited — Rear
- 2021-2026 Ram 3500 Limited Longhorn — Rear
- 2013-2015 Ram 3500 Lone Star — Rear
- 2017 Ram 3500 Lone Star — Rear
- 2019-2022 Ram 3500 Lone Star — Rear
- 2013-2018 Ram 3500 SLT — Rear
- 2013 Ram 3500 ST — Rear
- 2013-2026 Ram 3500 Tradesman — Rear
