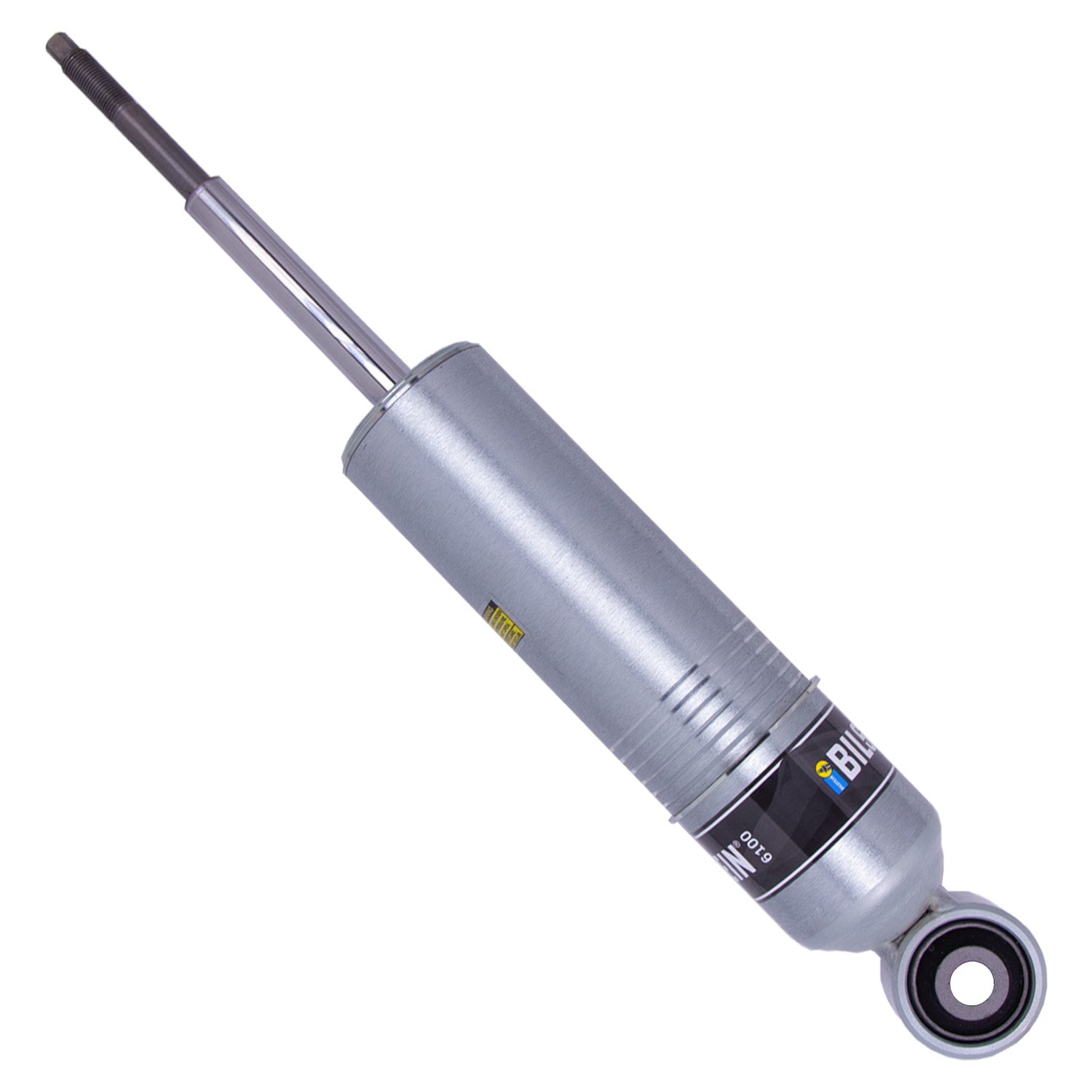

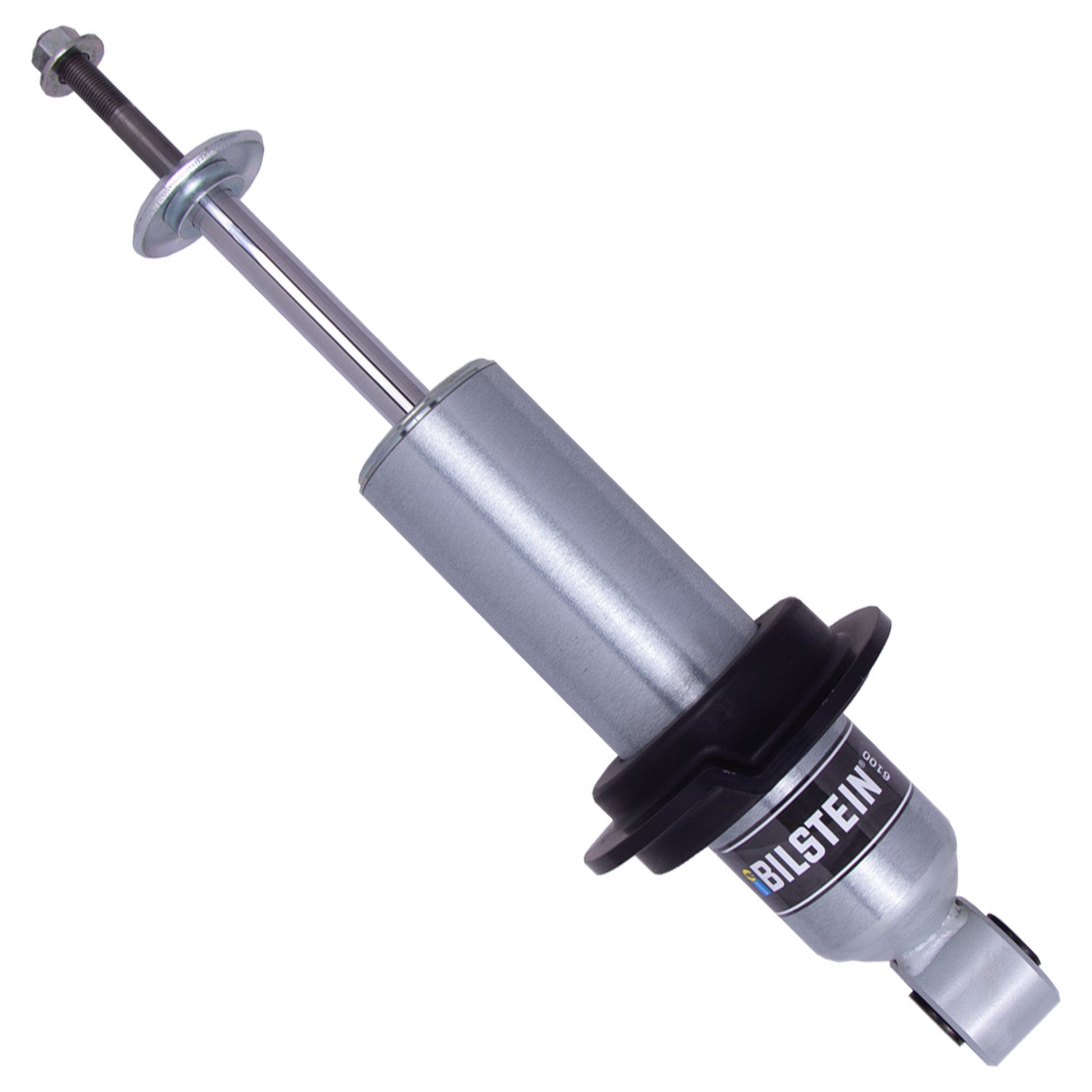

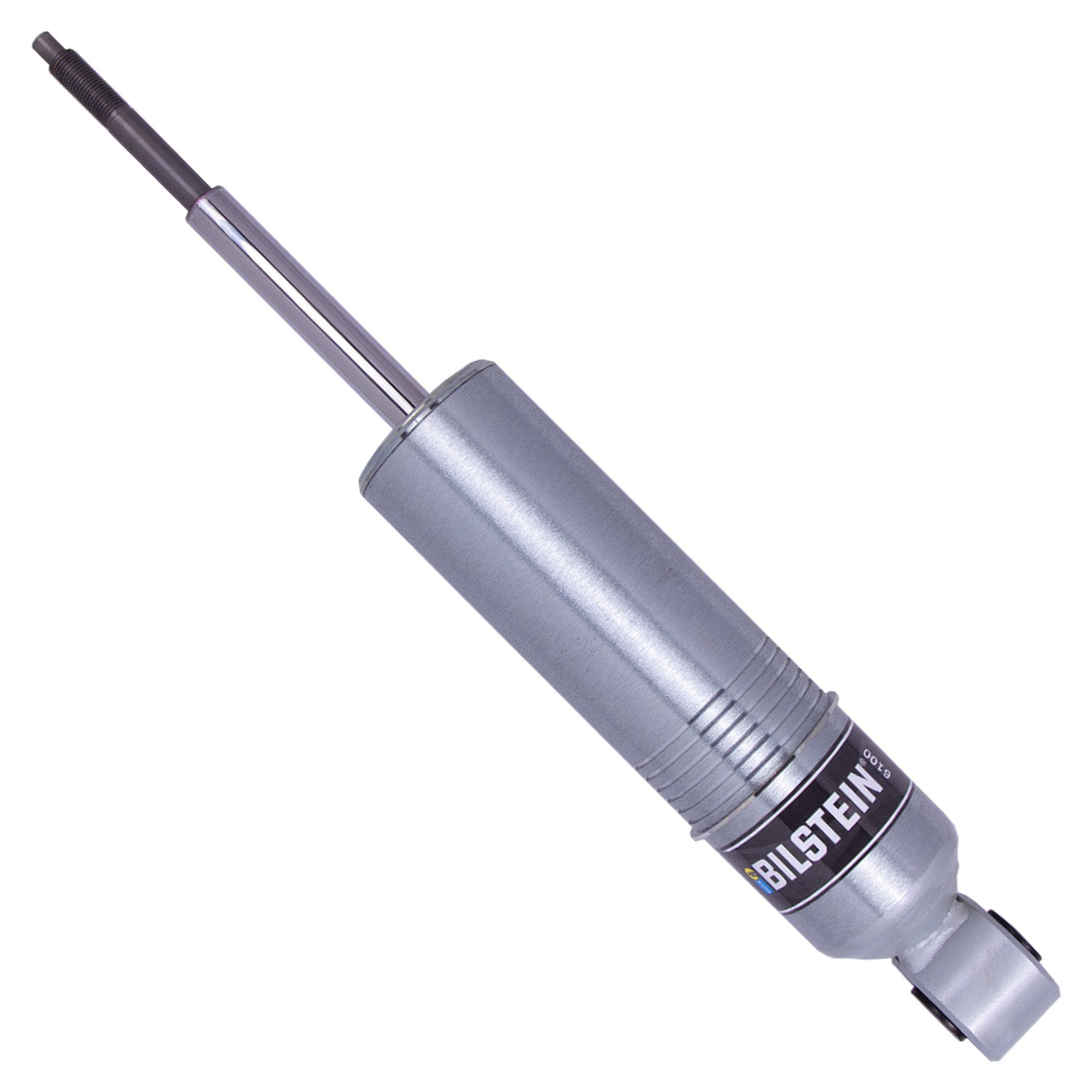

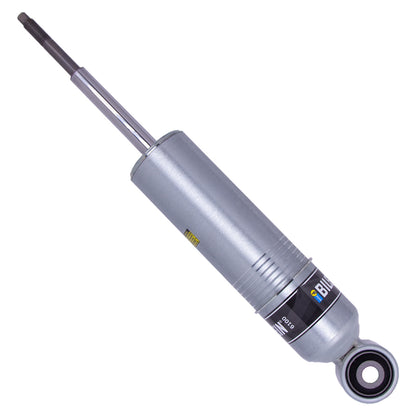

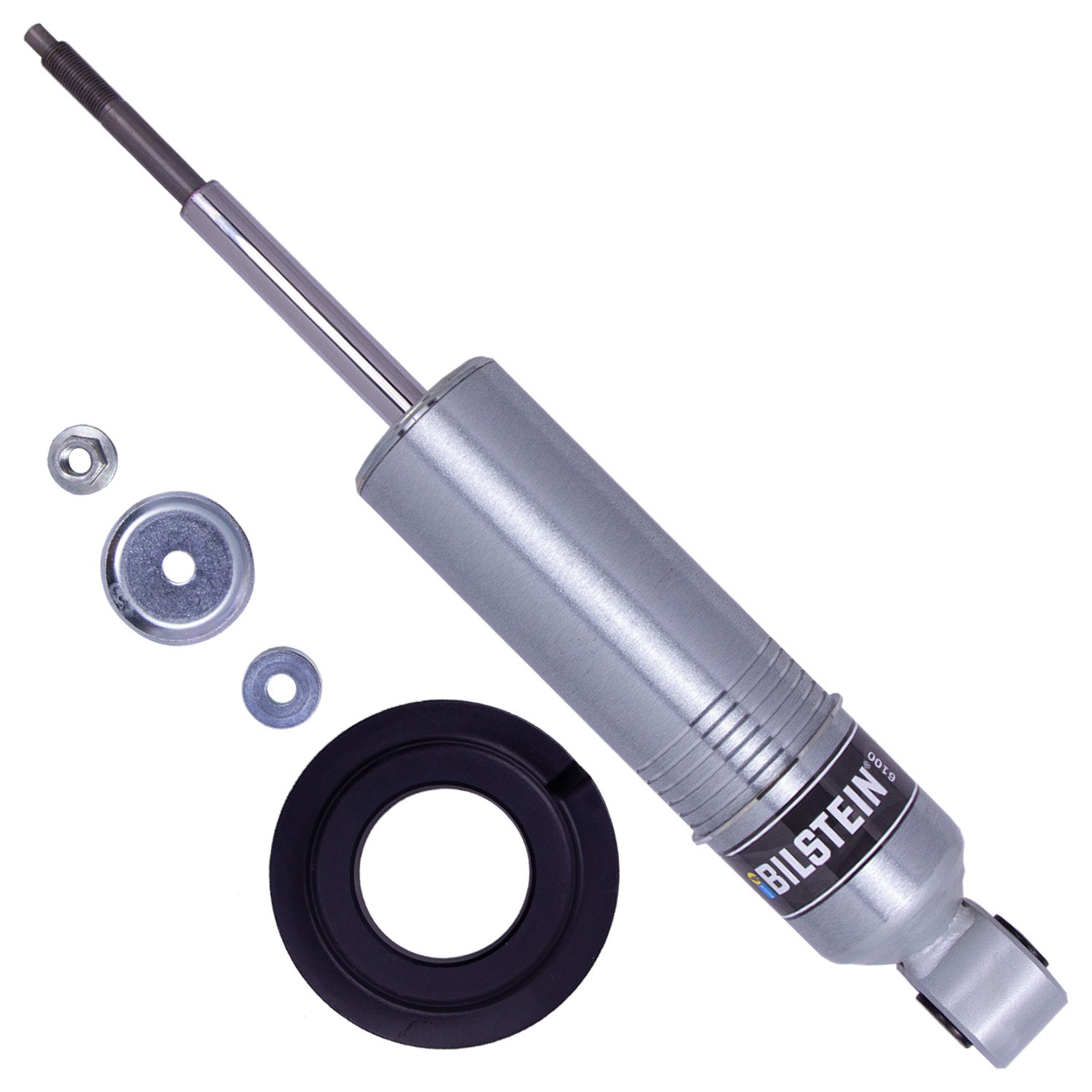

Bilstein 24-311137 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
Bilstein 24-311137 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Bilstein 24-311137 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Collapsed Length (IN) | 11.07 |
| Collapsed Length (MM) | 281.2 |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
| Stroke/Travel Length (IN) | 4.07 |
| Upper Mount Type | Stem |
| Stroke/Travel Length (mm) | 103.4 |
| Internal Design | Monotube |
| Series | B8 6100 (Ride Height Adjustable) |
| Boot Included | No |
| Reservoir | No |

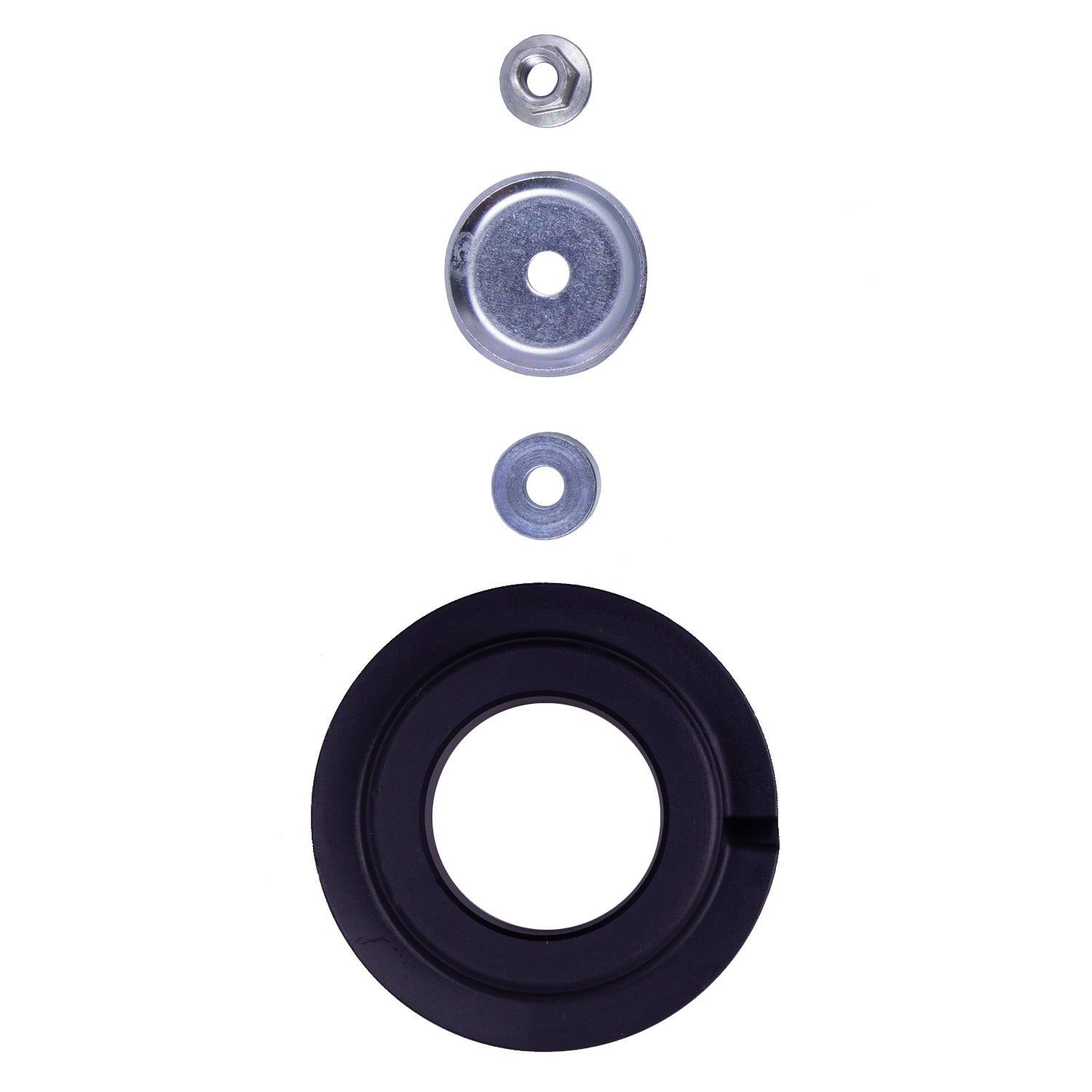

| Spring Seat Included | Yes |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Segment | Light Truck |
| Extended Length (IN) | 15.14 |
| Lower Mount Type | Eye 14.2mm |
| Finish | Zinc Plated |
| Extended Length (MM) | 384.5 |
| Adjustable Damping | Non-Adjustable |
Packaging Information
Weight: 8.6 lbs
Dimensions: 26.8 x 4.15 x 4.15 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Provides 0-2" Front Lift
- Provides 0-1.2" Front Lift
- Provides 0-2" Front Lift - For OE Spring PN 54010-7S300; Provides 0-1.2" Front Lift - For OE Spring PN 54010-ZR400A
Share
Vehicle Fitment
Vehicle Fitment
- 2004-2010 Nissan TITAN LE — Front
- 2008-2015 Nissan TITAN PRO-4X — Front
- 2011-2015 Nissan TITAN S — Front
- 2004-2010 Nissan TITAN SE — Front
- 2011-2015 Nissan TITAN SL — Front
- 2011-2015 Nissan TITAN SV — Front
- 2004-2010 Nissan TITAN XE — Front
