Bilstein

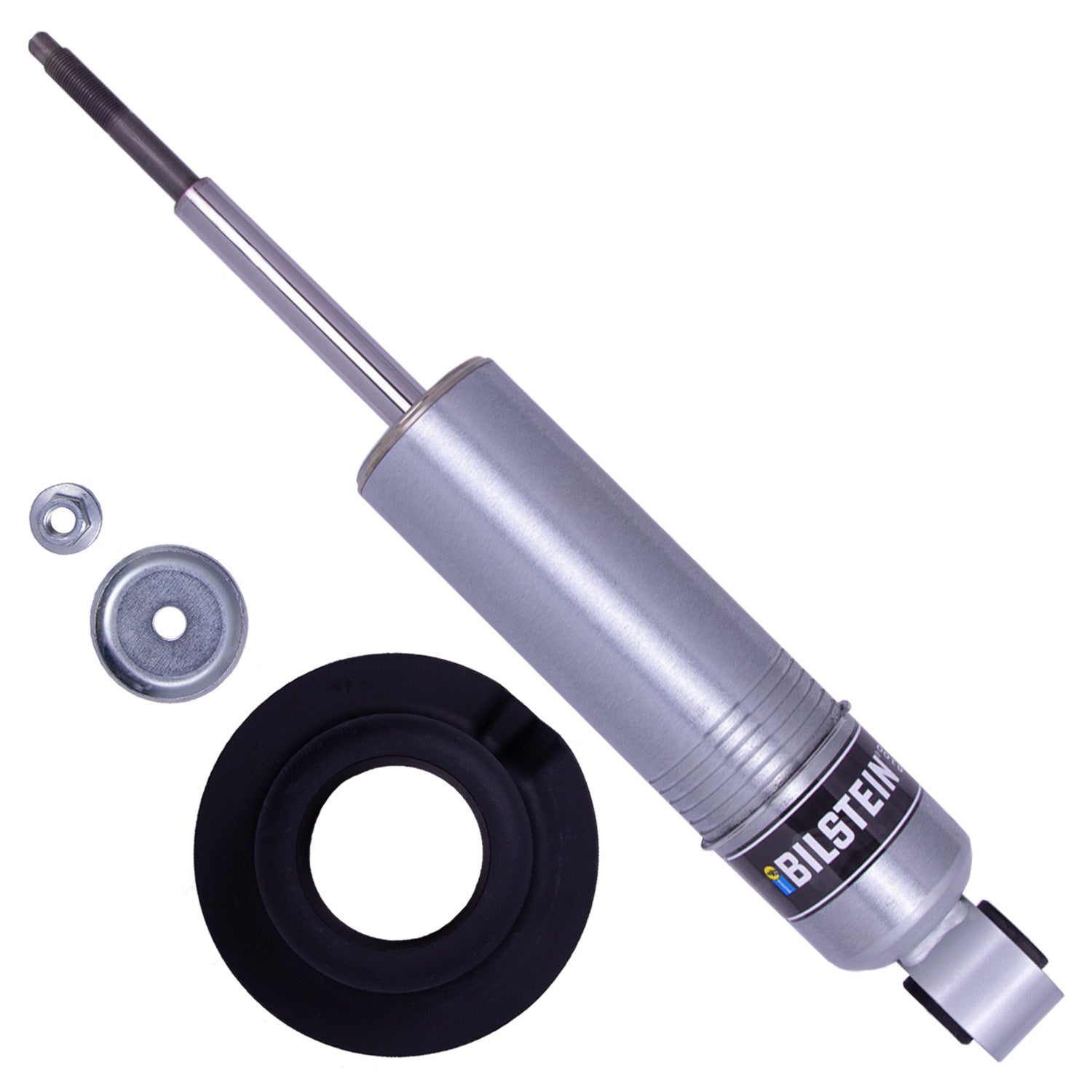

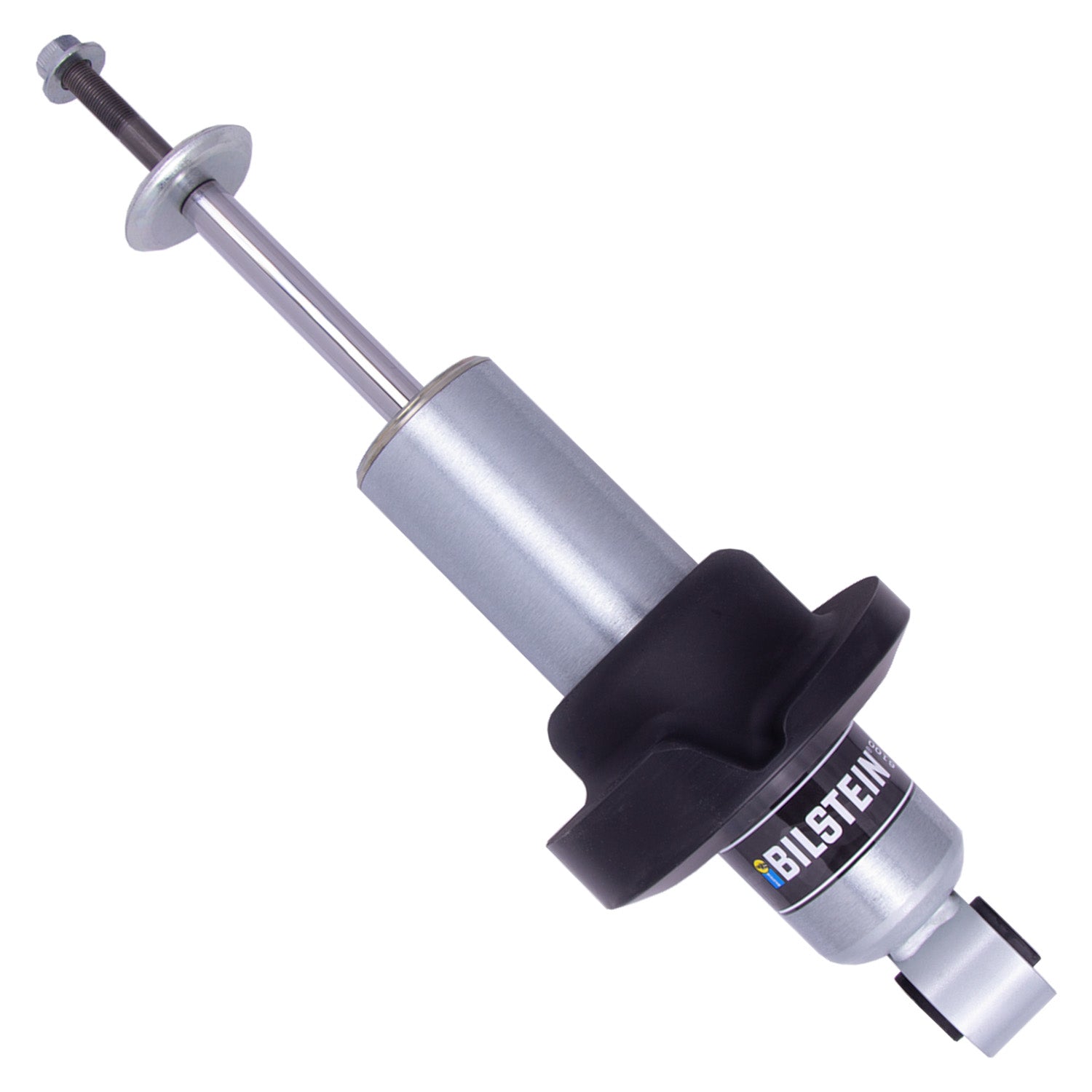

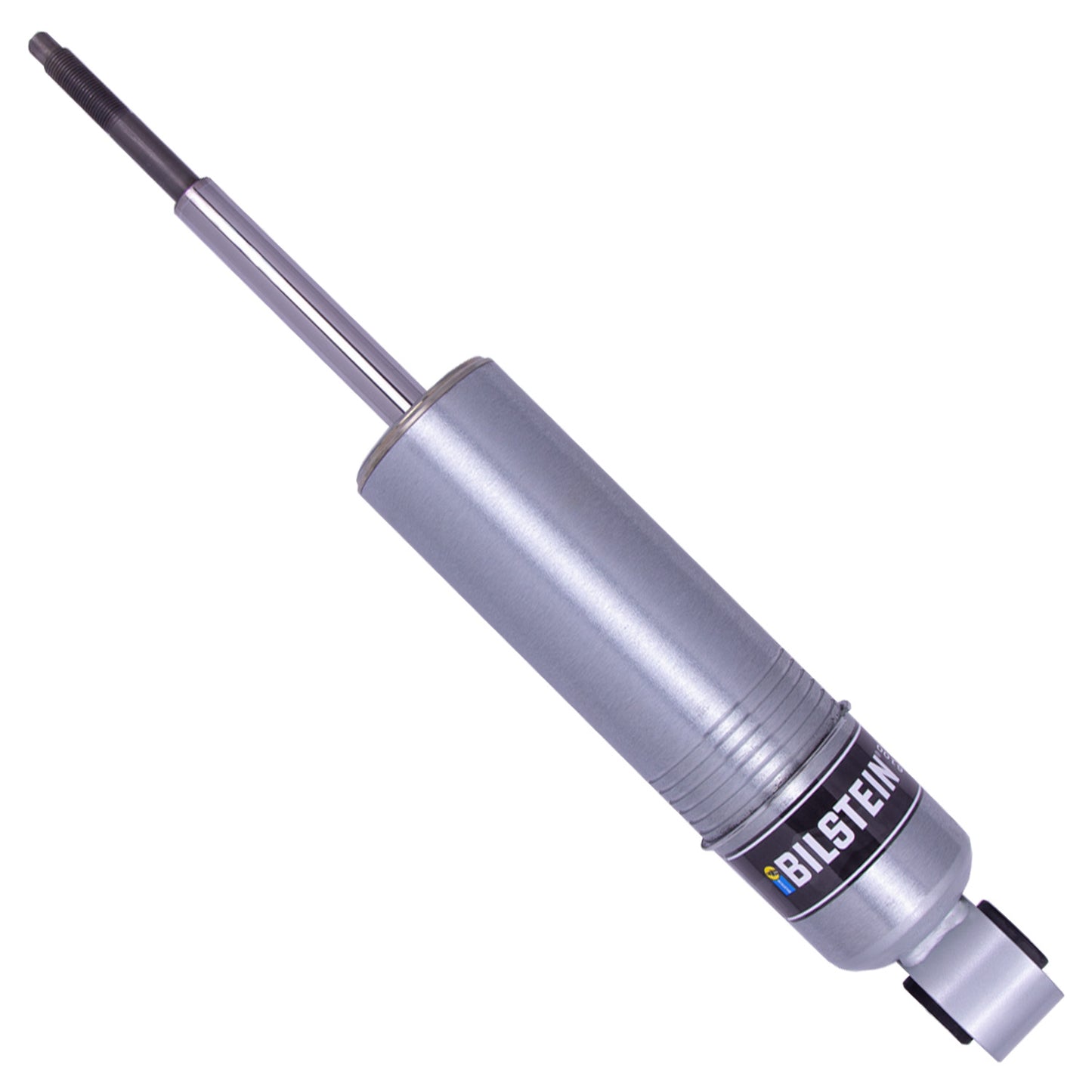

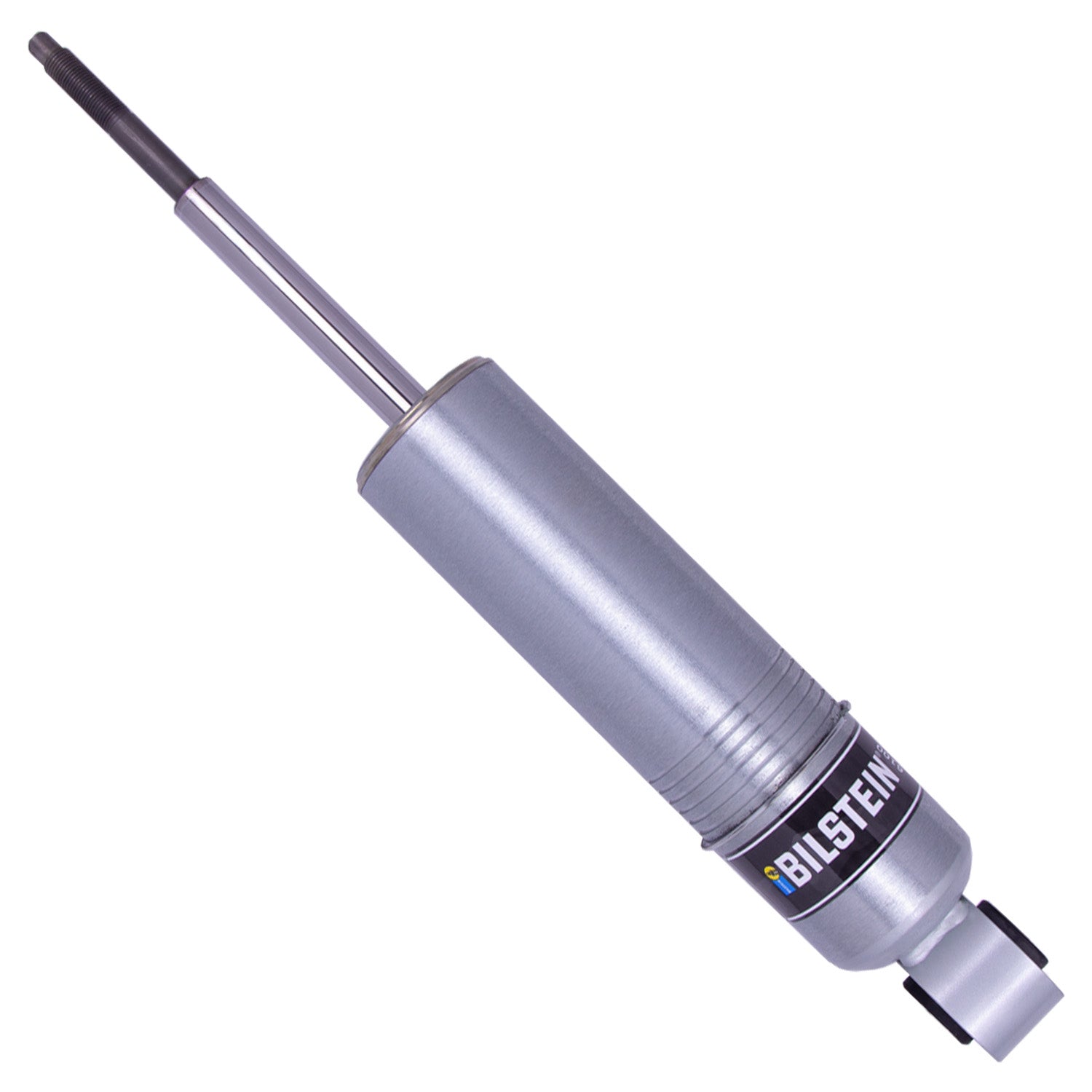

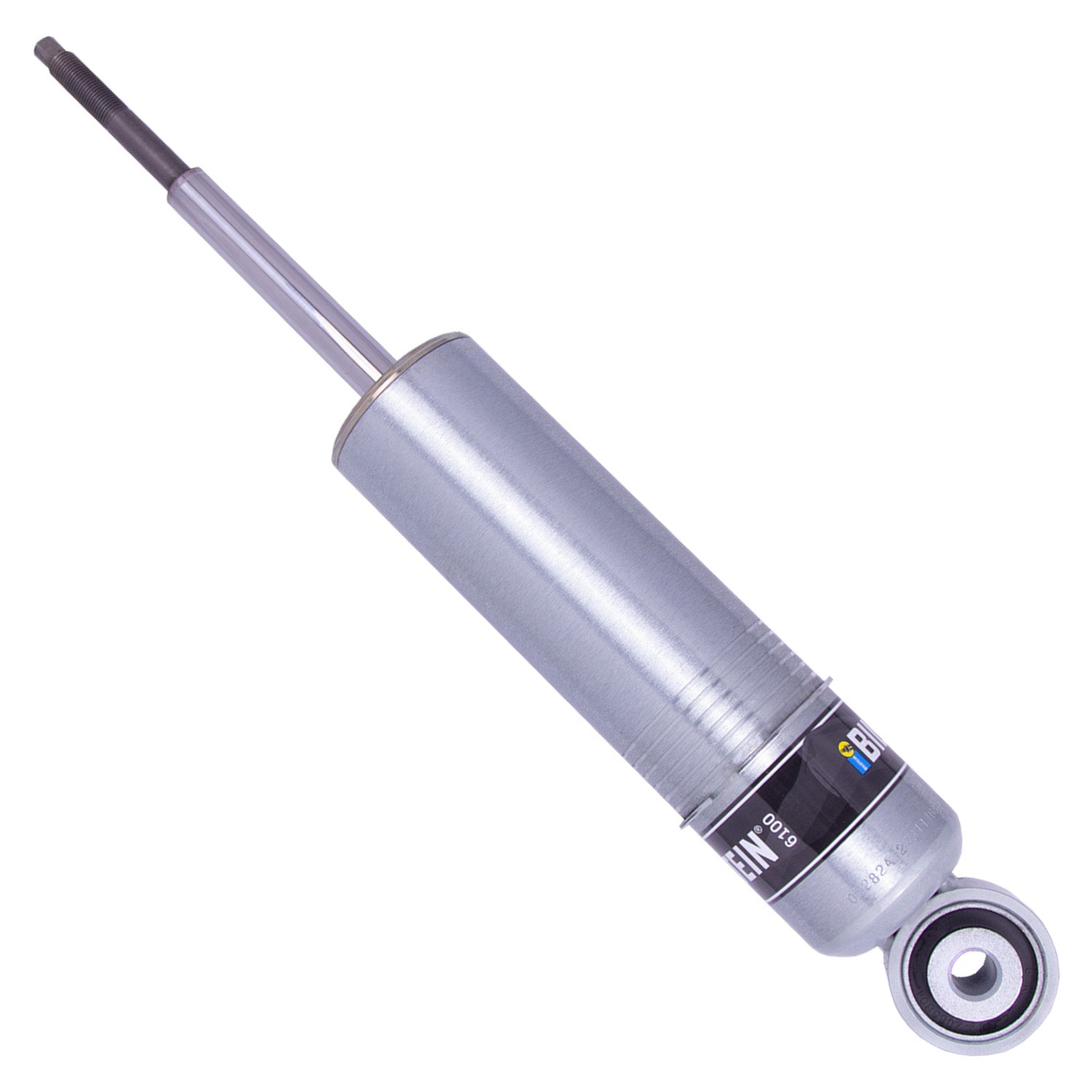

Bilstein 24-311168 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber

$339.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 3 left

Description & Features

Bilstein 24-311168 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

Large 60mm body for increased oil capacity, cooling, and long-term durability
60mm digressive piston improves ride comfort and control over rough terrain
Vehicle specific tuning

Specifications

Segment	Light Truck
Extended Length (IN)	15.31
Lower Mount Type	Eye 14.1mm
Finish	Zinc Plated
Extended Length (MM)	389.0
Adjustable Damping	Non-Adjustable
Series	B8 6100 (Ride Height Adjustable)
Boot Included	No
Reservoir	No
Spring Seat Included	Yes
Body Design	Snap Ring Grooved Body (Coilover)
Shaft Diameter	18mm
Stroke/Travel Length (IN)	4.37
Upper Mount Type	Stem
Stroke/Travel Length (mm)	111.0
Internal Design	Monotube
Collapsed Length (MM)	278.0
Piston Diameter	60mm
Collapsed Length (IN)	10.94
