Bilstein

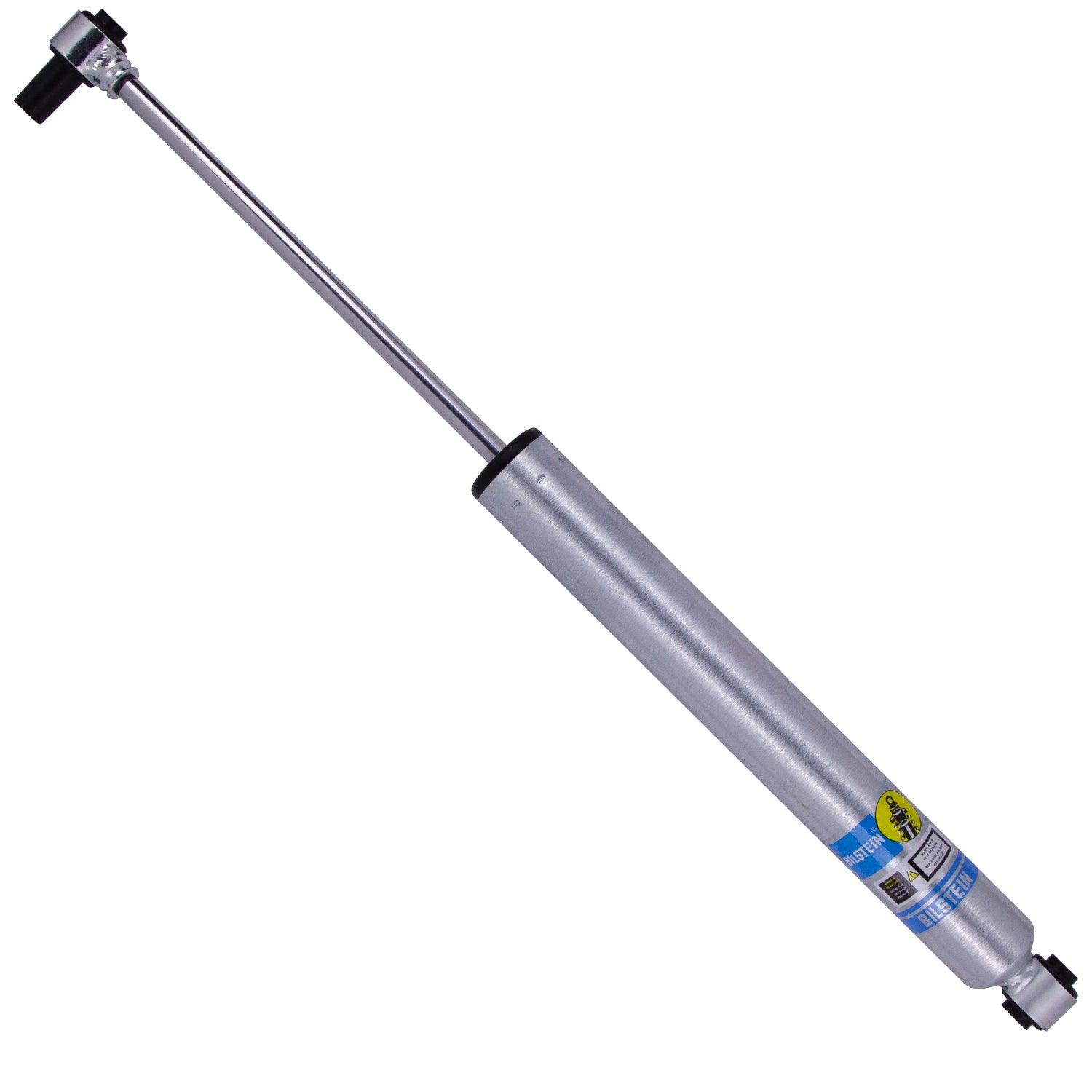

Bilstein 24-315067 B8 5100 - Suspension Shock Absorber
Bilstein 24-315067 B8 5100 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 24-315067 B8 5100 - Suspension Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Segment | Light Truck |
| Extended Length (IN) | 28.76 |
| Lower Mount Type | Eye 12.8mm |
| Finish | Zinc Plated |
| Extended Length (MM) | 730.5 |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (IN) | 18.52 |
| Collapsed Length (MM) | 470.5 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 10.24 |
| Upper Mount Type | Eye 12.8mm |
| Stroke/Travel Length (mm) | 260.1 |
| Internal Design | Monotube |
| Series | B8 5100 |
| Boot Included | No |
| Reservoir | No |
| Spring Seat Included | No |
| Body Design | Smooth Body (Non-coilover) |
Packaging Information
Weight: 5.2 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Fits Vehicles With 3-4.5" Front Lift; Requires appropriate bump stop extensions and aftermarket driveshaft
Share
Vehicle Fitment
Vehicle Fitment
- 2021 Jeep Gladiator 80th Anniversary — Front
- 2020 Jeep Gladiator Altitude — Front
- 2022 Jeep Gladiator Altitude — Front
- 2023 Jeep Gladiator Freedom — Front
- 2021-2023 Jeep Gladiator High Altitude — Front
- 2024-2025 Jeep Gladiator High Tide — Front
- 2024 Jeep Gladiator Jeep Beach — Front
- 2020 Jeep Gladiator Launch Edition — Front
- 2024-2025 Jeep Gladiator NightHawk — Front
- 2020-2023 Jeep Gladiator Overland — Front
- 2020-2026 Jeep Gladiator Rubicon — Front
- 2024-2026 Jeep Gladiator Rubicon X — Front
- 2020-2026 Jeep Gladiator Sport — Front
- 2020-2026 Jeep Gladiator Sport S — Front
- 2022-2026 Jeep Gladiator Texas Trail — Front
- 2021-2026 Jeep Gladiator Willys — Front
- 2021-2023 Jeep Gladiator Willys Sport — Front
