Bilstein

Bilstein 24-317467 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

$176.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

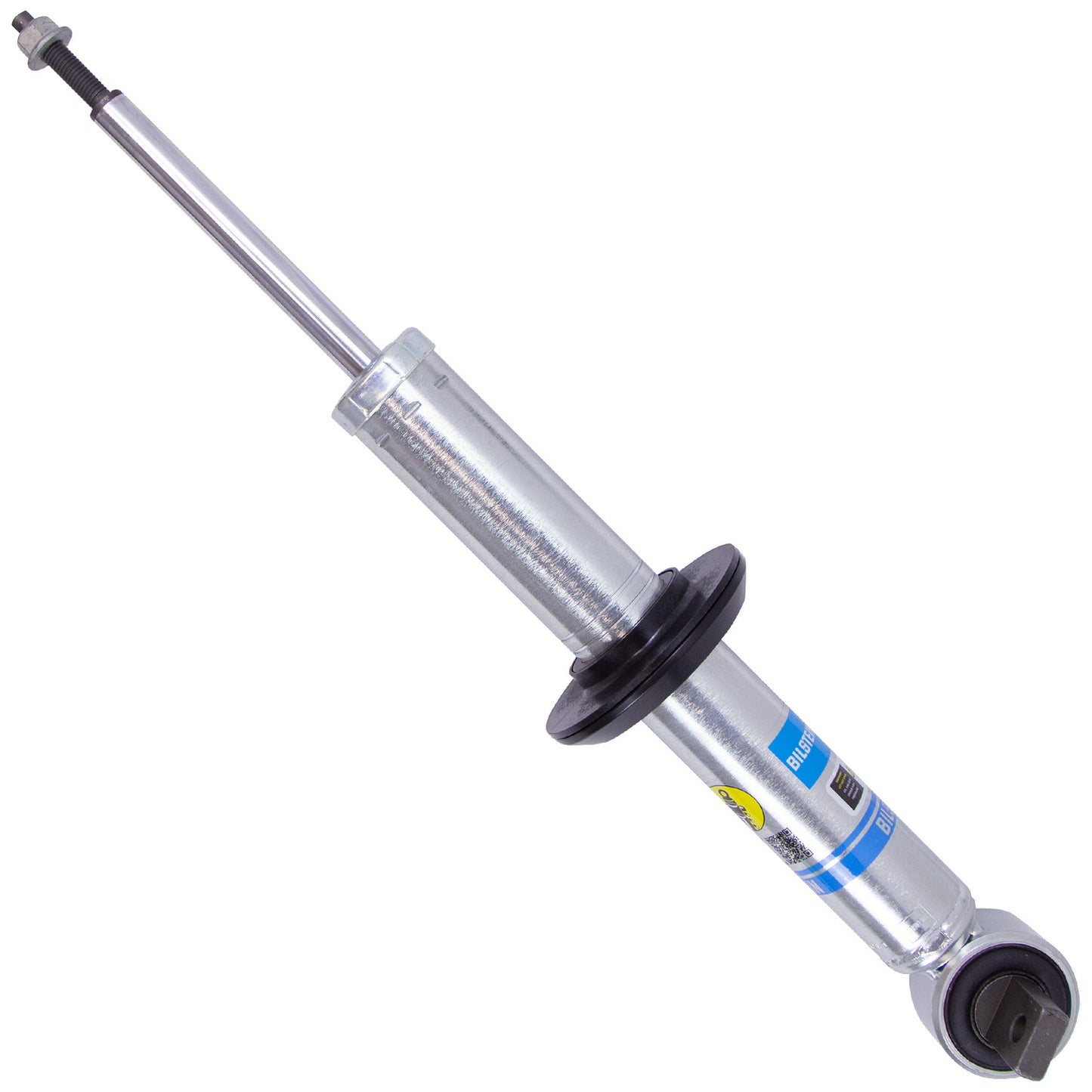

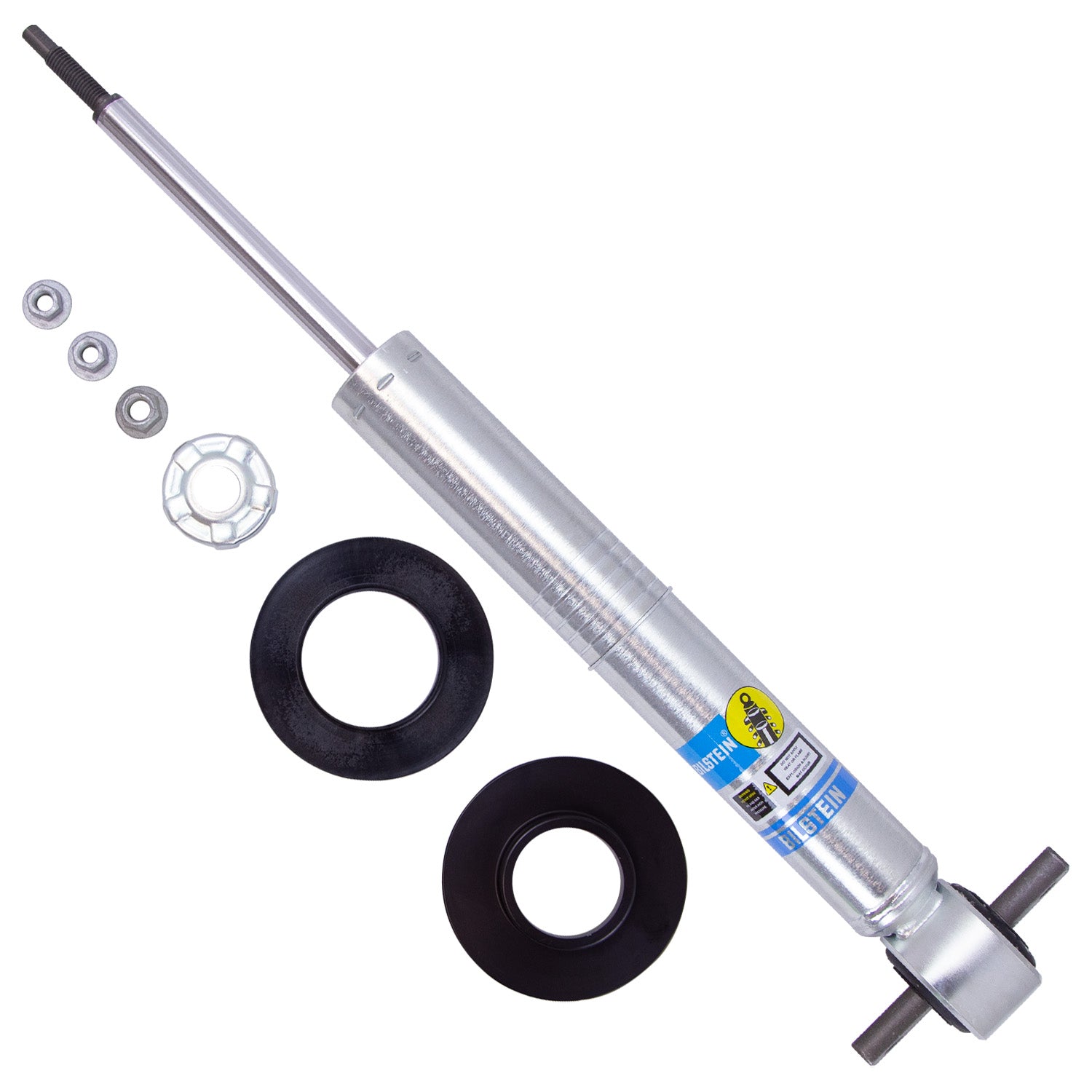

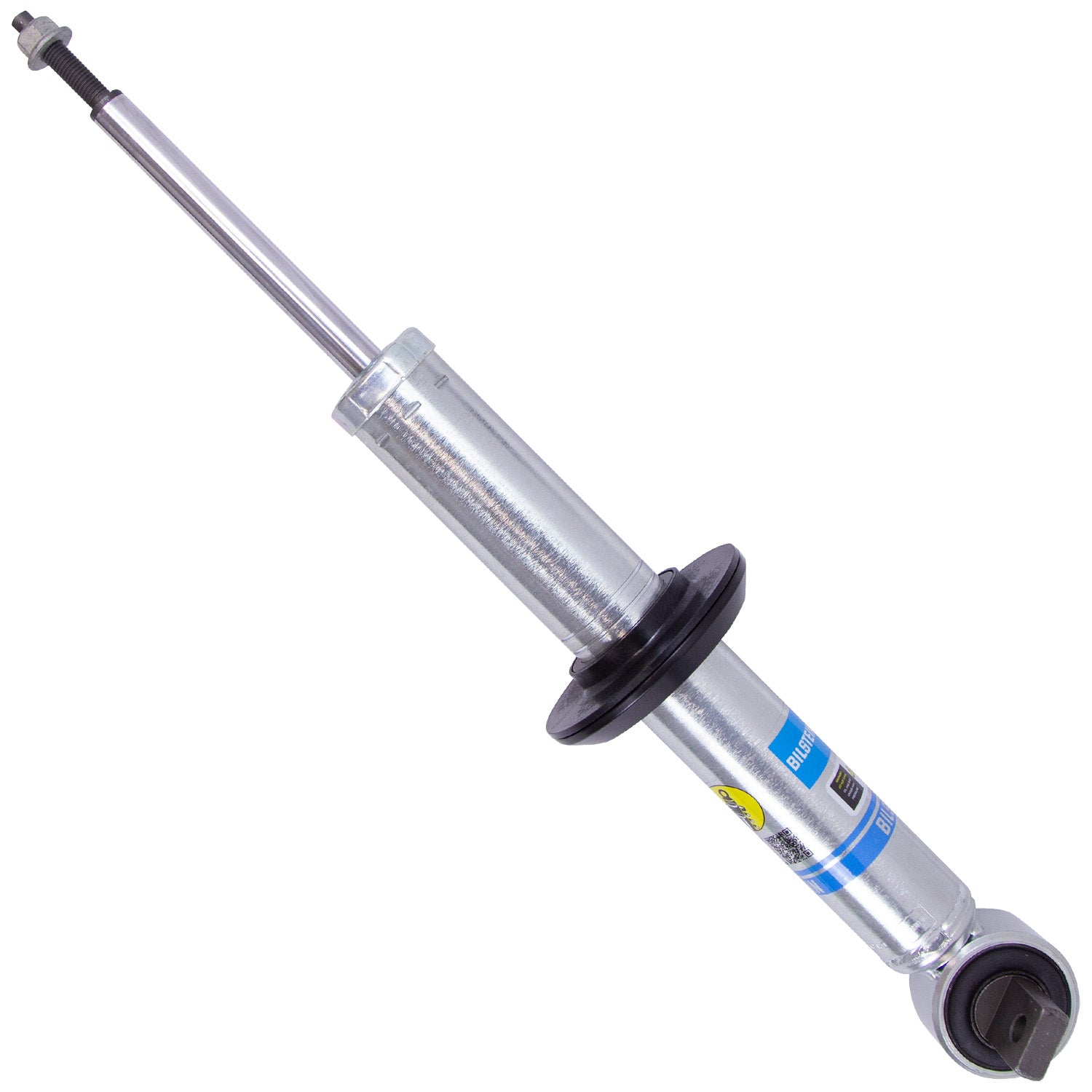

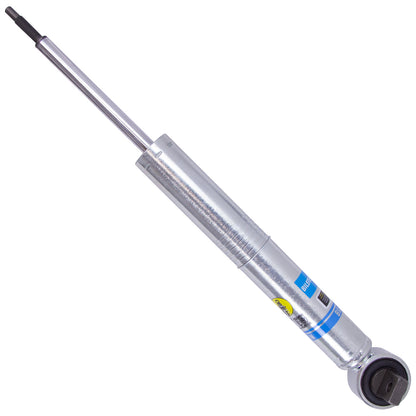

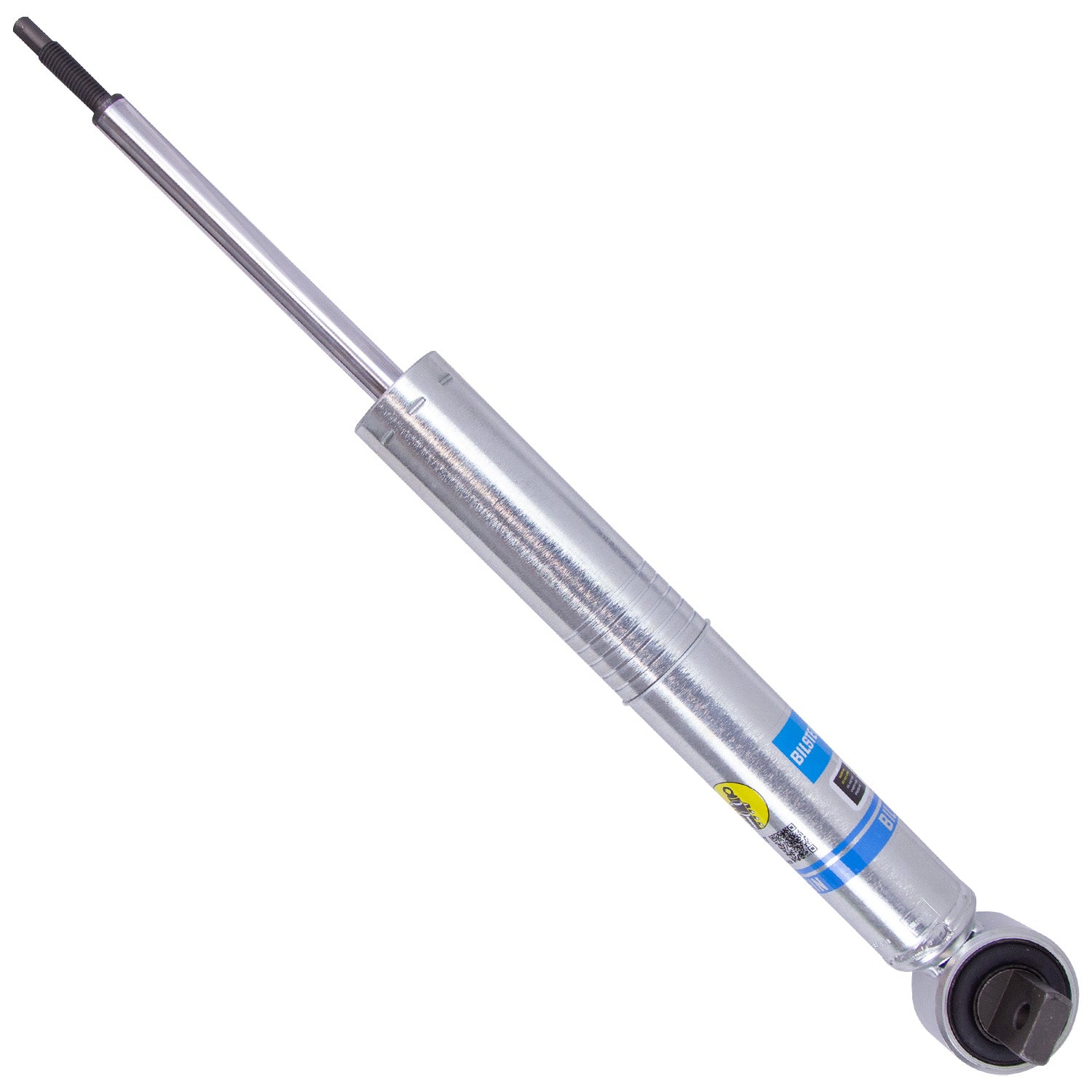

Bilstein 24-317467 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

46mm monotube design ensures consistent, fade-free performance in all conditions
Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift, depending on the application

Specifications

Extended Length (IN)	21.93
Lower Mount Type	Crossbar
Finish	Zinc Plated
Extended Length (MM)	557.0
Adjustable Damping	Non-Adjustable
Collapsed Length (IN)	16.34
Collapsed Length (MM)	415.0
Piston Diameter	46mm
Shaft Diameter	18mm
Segment	Light Truck
Stroke/Travel Length (IN)	5.59
Upper Mount Type	Stem
Stroke/Travel Length (mm)	142.0
Internal Design	Monotube
Series	B8 5100 (Ride Height Adjustable)
Boot Included	No
Reservoir	No

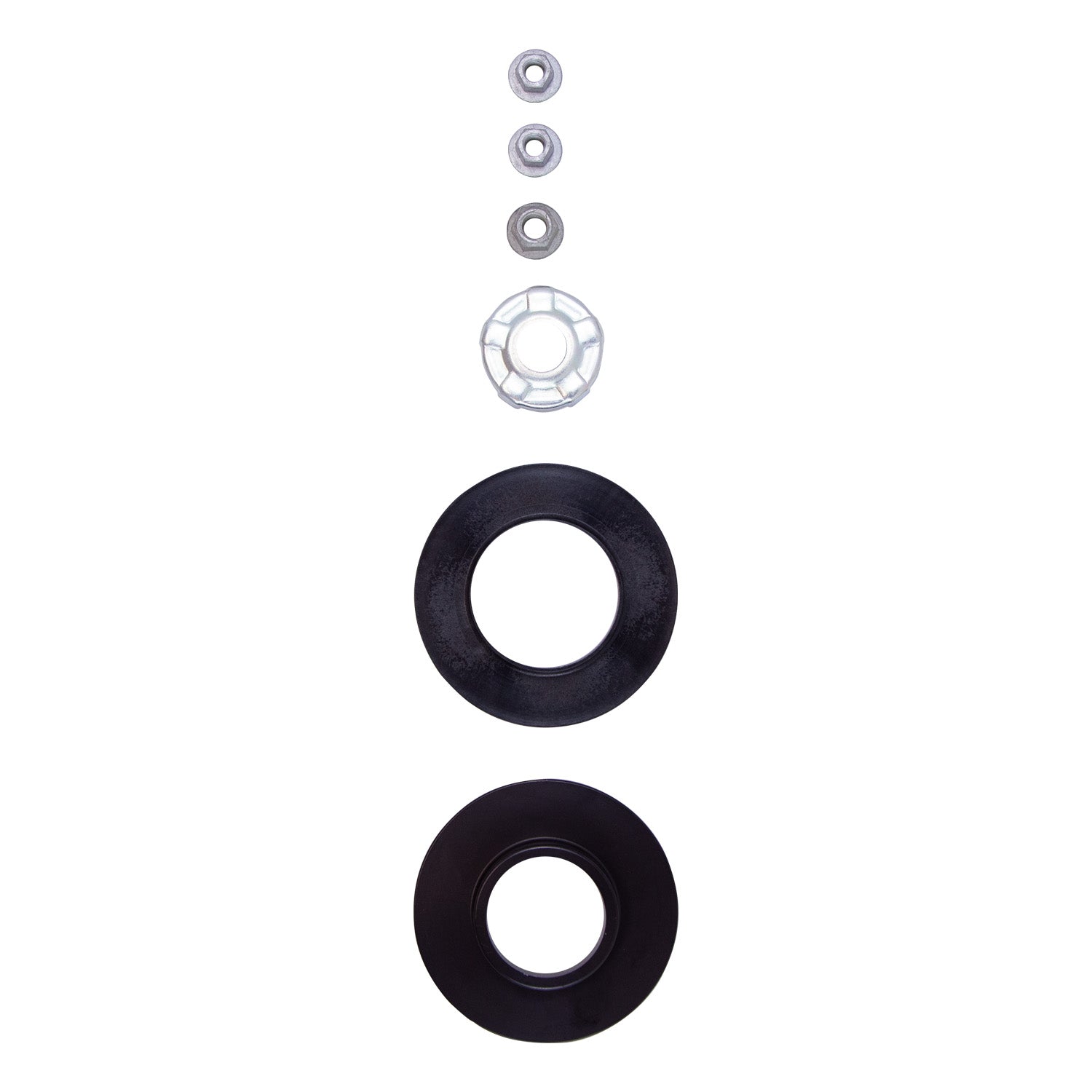

Spring Seat Included	Yes
Body Design	Snap Ring Grooved Body (Coilover)
