Bilstein 24-318594 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
Bilstein 24-318594 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Bilstein 24-318594 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber

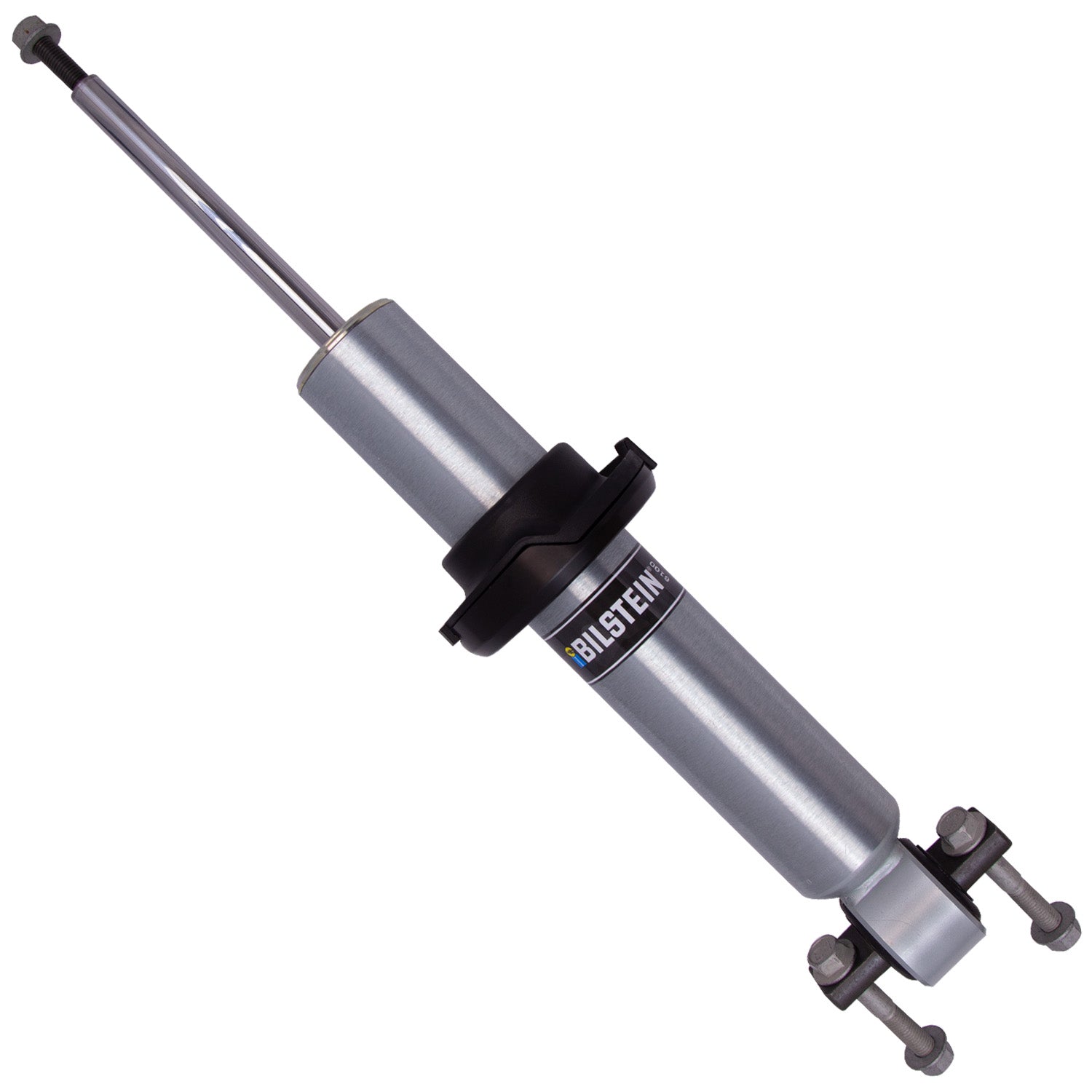

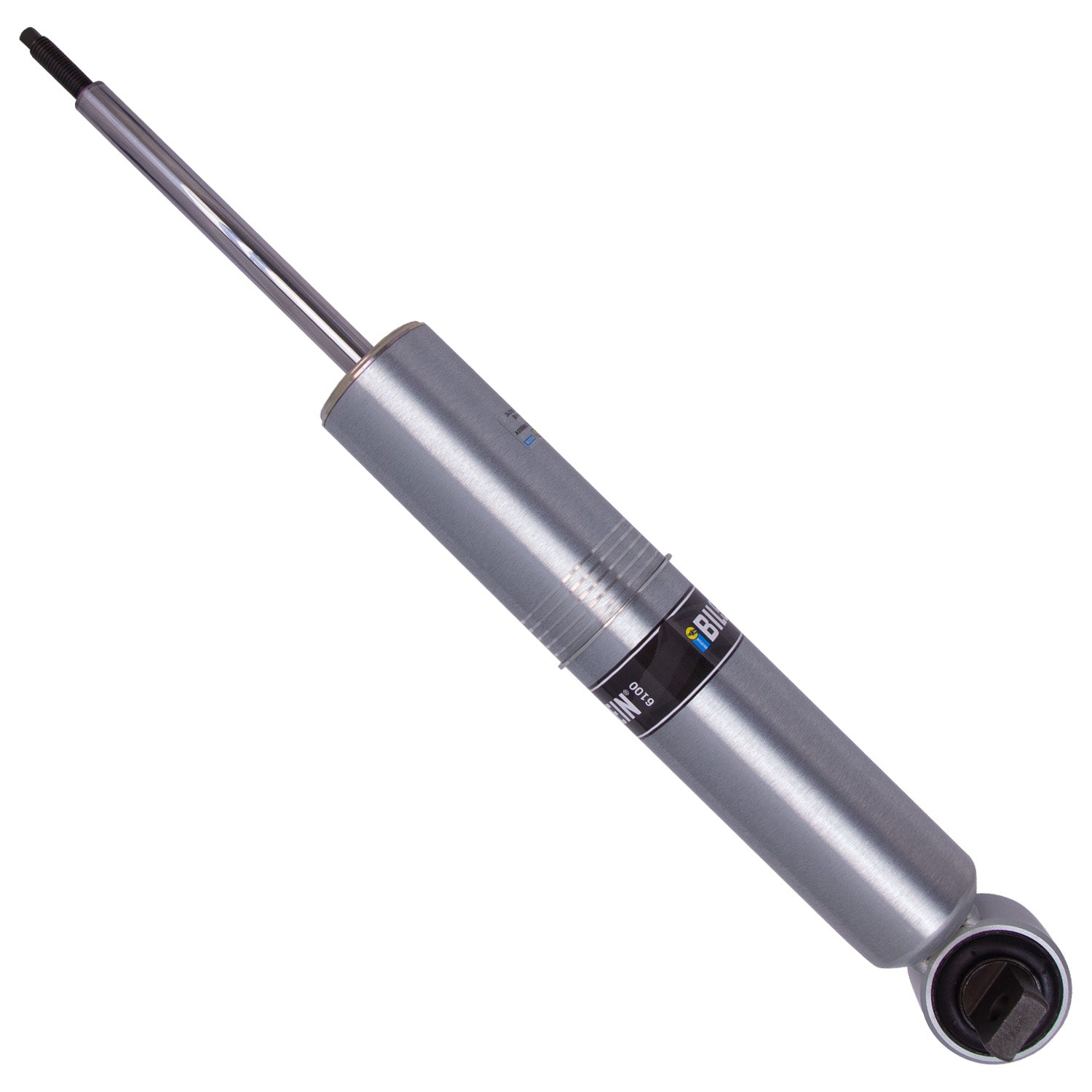

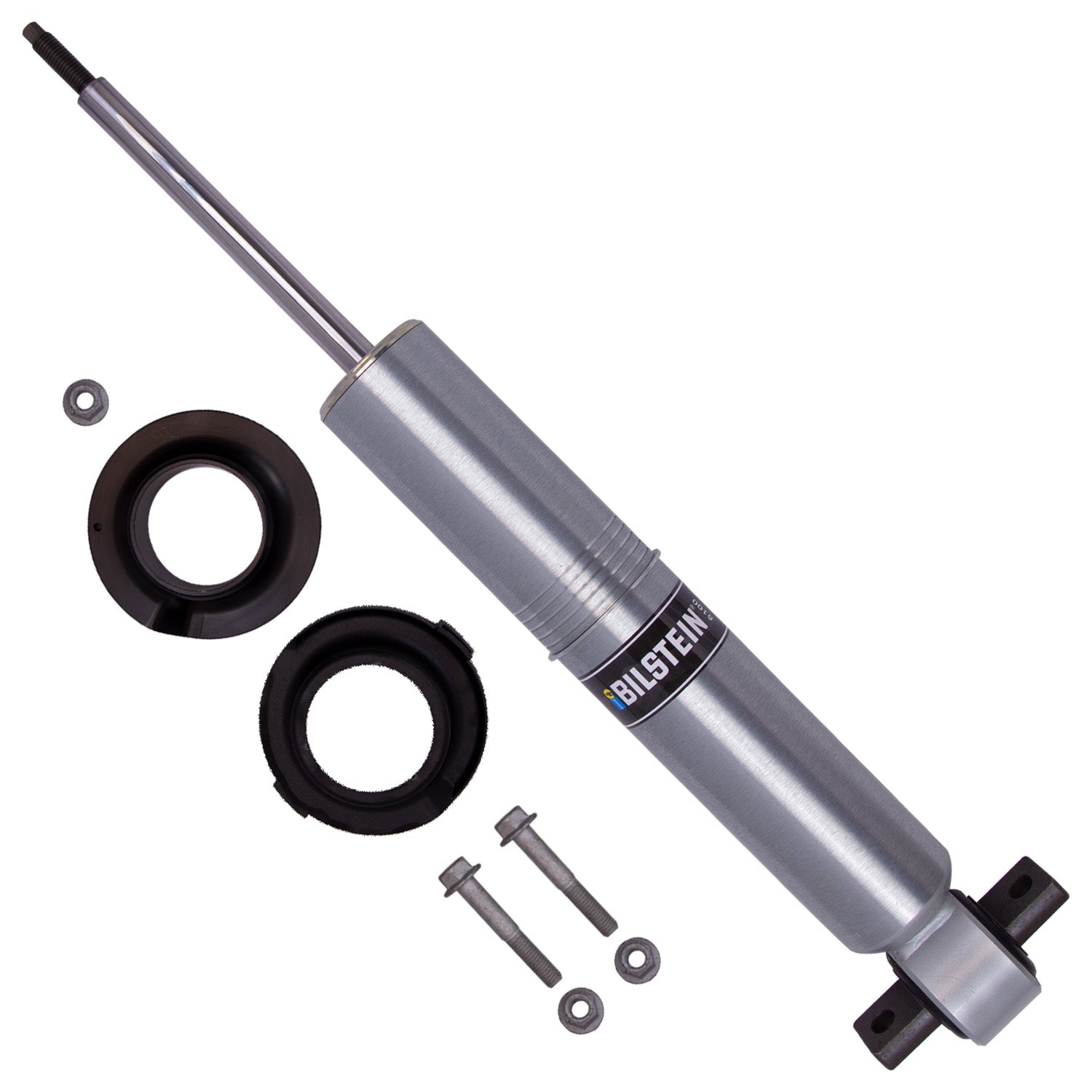

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Segment | Light Truck |
| Extended Length (IN) | 22.80 |
| Lower Mount Type | Crossbar |
| Finish | Zinc Plated |
| Extended Length (MM) | 579.2 |
| Adjustable Damping | Non-Adjustable |
| Boot Included | No |
| Reservoir | No |

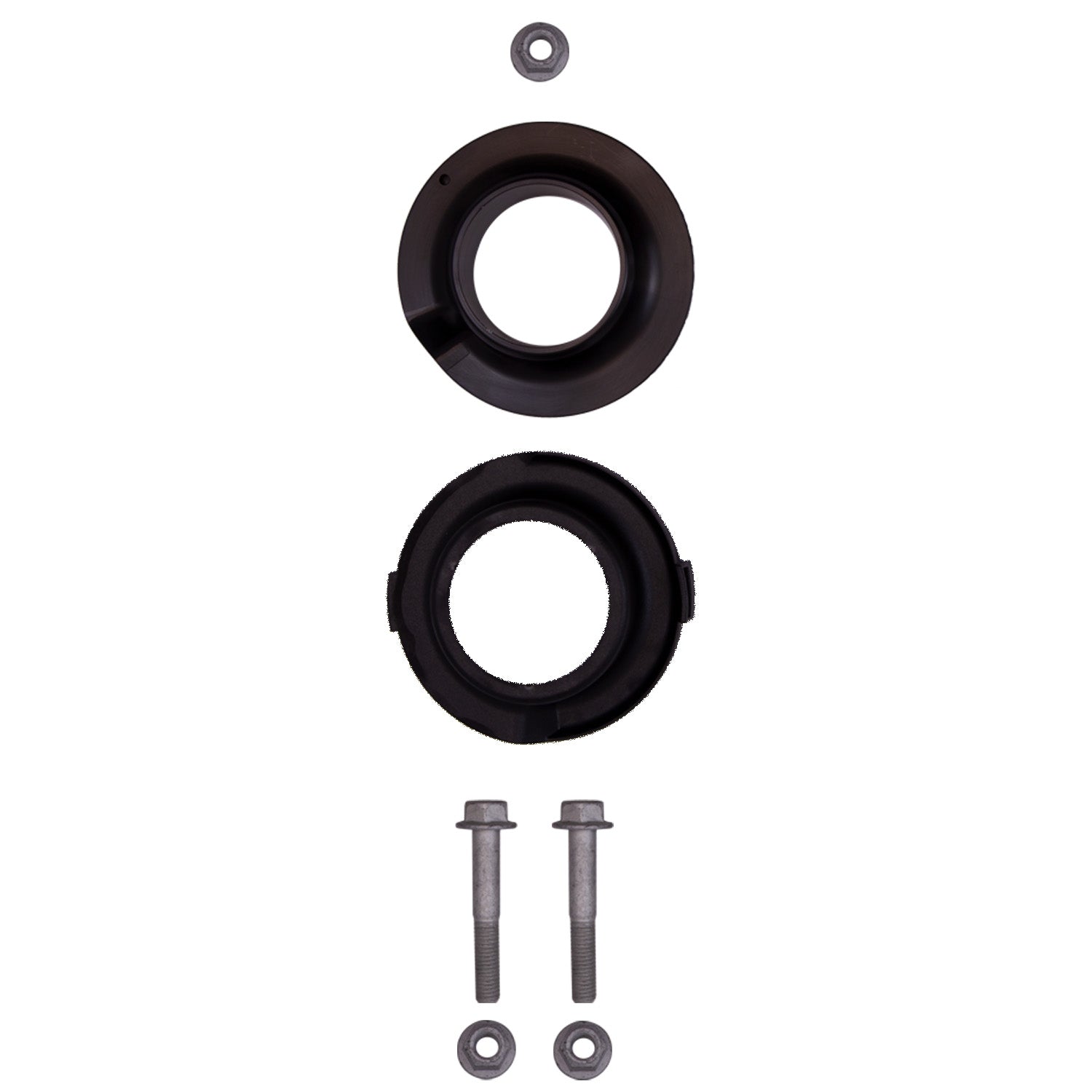

| Spring Seat Included | Yes |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Shaft Diameter | 18mm |
| Stroke/Travel Length (IN) | 6.18 |
| Upper Mount Type | Stem |
| Stroke/Travel Length (mm) | 157.0 |
| Internal Design | Monotube |
| Series | B8 6100 (Ride Height Adjustable) |
| Collapsed Length (MM) | 422.2 |
| Piston Diameter | 60mm |
| Collapsed Length (IN) | 16.62 |
Packaging Information
Weight: 12.3 lbs
Dimensions: 26.8 x 4.15 x 4.15 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Provides 0-1.6" Front Lift; With Sasquatch Package Only
- Provides 0-1.6" Front Lift
- Without HOSS 3.0 Package; Provides 0.7-2.3" Front Lift without Sasquatch package; 0-1.6" Front Lift with Sasquatch package
- Provides 0.7-2.3" Front Lift without Sasquatch package; 0-1.6" Front Lift with Sasquatch package
Share
Vehicle Fitment
Vehicle Fitment
- 2021-2026 Ford Bronco Badlands — Front
- 2021-2023 Ford Bronco Base — Front
- 2025-2026 Ford Bronco Base — Front
- 2021-2026 Ford Bronco Big Bend — Front
- 2021-2024 Ford Bronco Black Diamond — Front
- 2022-2024 Ford Bronco Everglades — Front
- 2021 Ford Bronco First Edition — Front
- 2023-2026 Ford Bronco Heritage Edition — Front
- 2023-2024 Ford Bronco Heritage Limited Edition — Front
- 2021-2026 Ford Bronco Outer Banks — Front
- 2021-2022 Ford Bronco Wildtrak — Front
