Bilstein
Bilstein 24-332958 B8 6100 - Suspension Shock Absorber
Bilstein 24-332958 B8 6100 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features

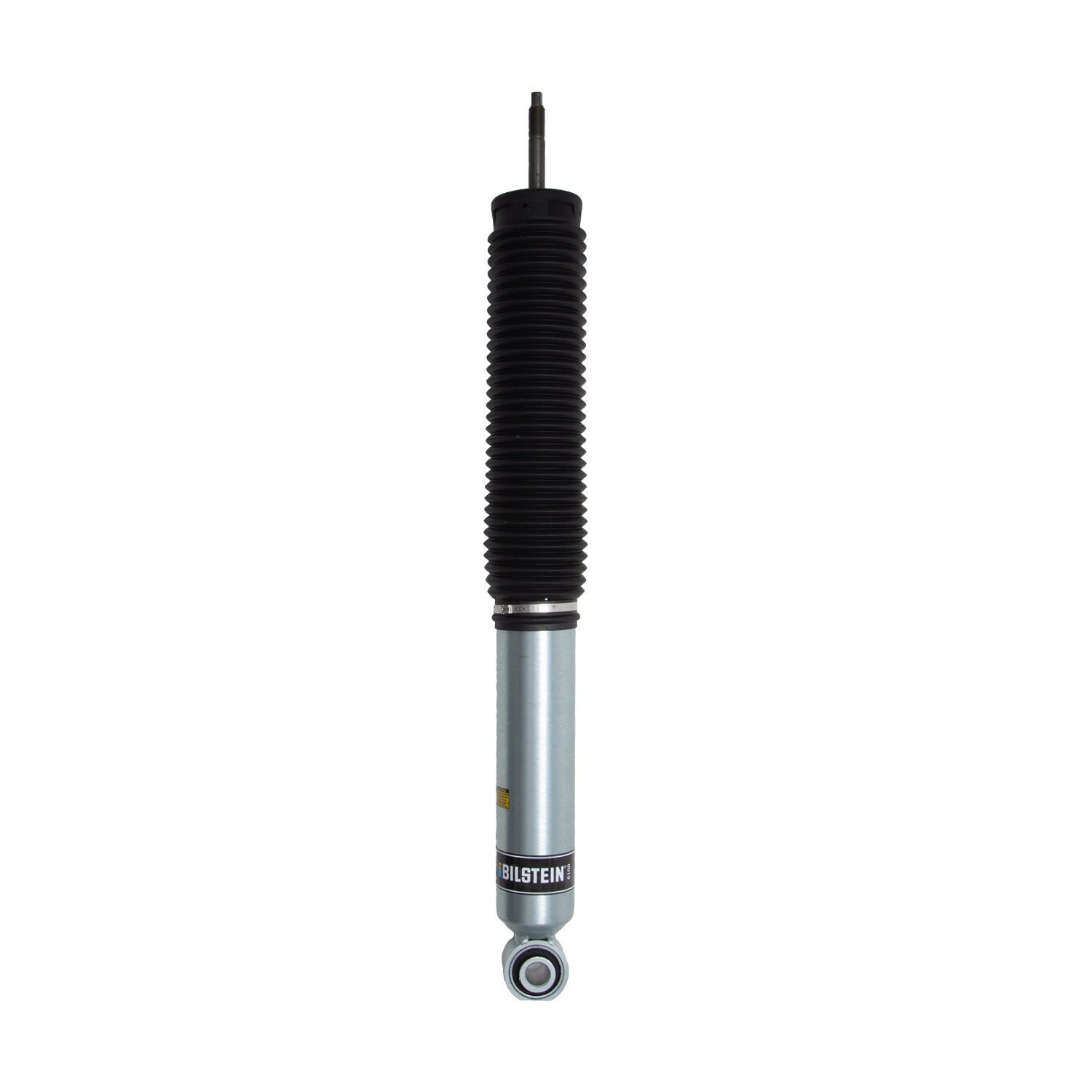

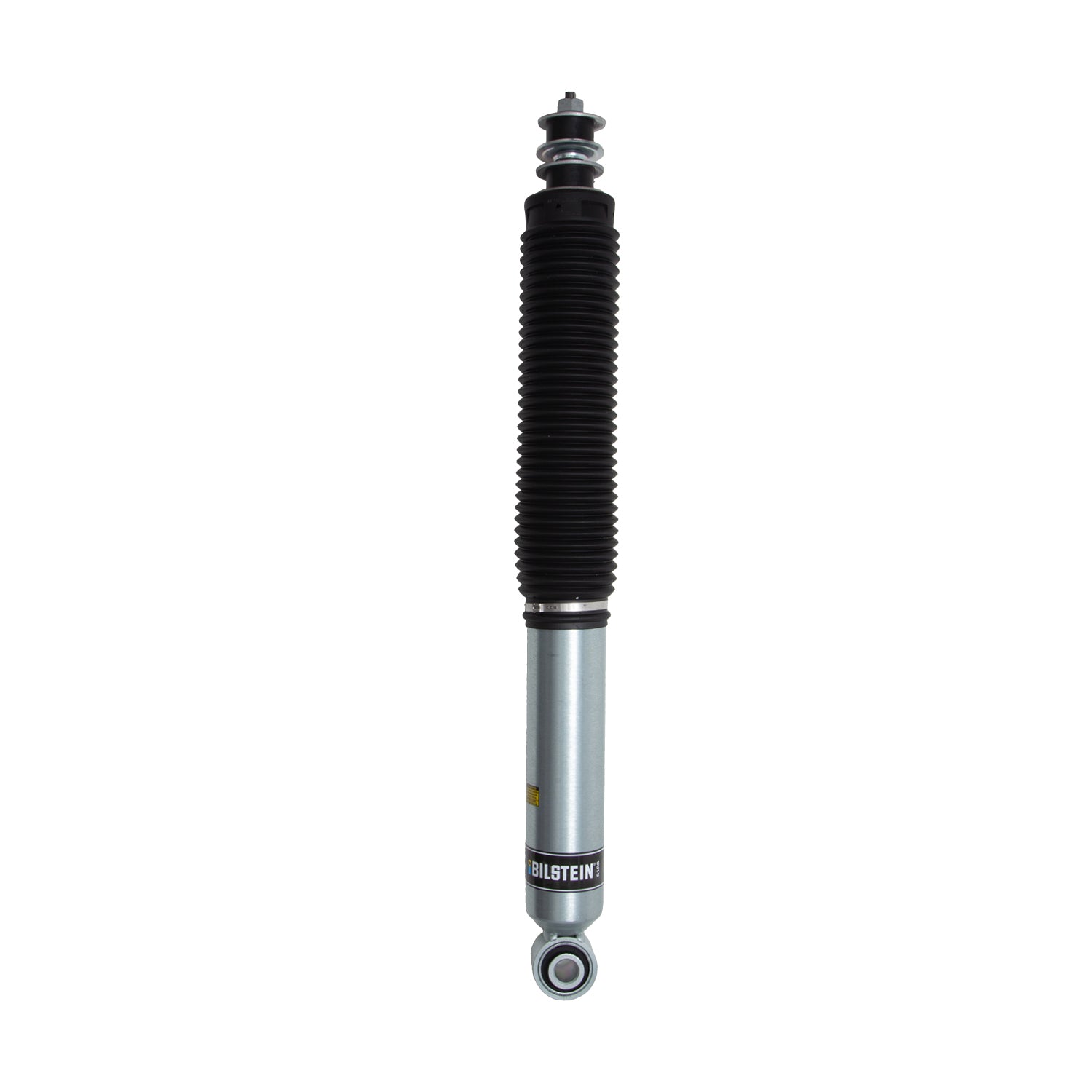

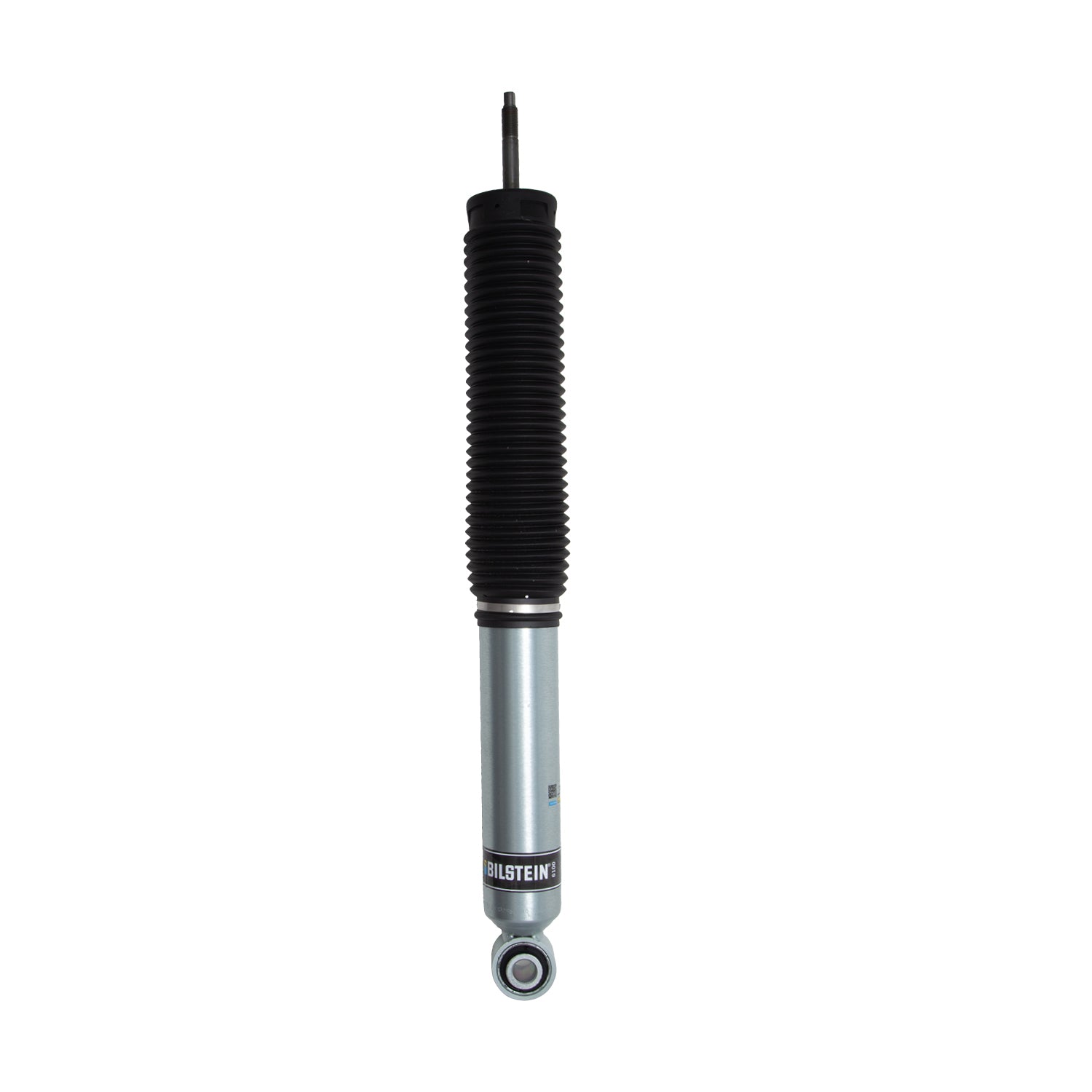

Bilstein 24-332958 B8 6100 - Suspension Shock Absorber
Bilstein B8 6100 shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design with a large 2.65-in OD body and 60mm digressive piston maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while providing a smoother ride and more control over rough terrain. The B8 6100 will provide increased durability, making them perfect for vehicles subjected to rugged roads and harsh conditions.
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Segment | Light Truck |
| Extended Length (IN) | 25.18 |
| Lower Mount Type | Eye 19.1mm |
| Finish | Zinc Plated |
| Extended Length (MM) | 639.5 |
| Adjustable Damping | Non-Adjustable |
| Series | B8 6100 |
| Collapsed Length (MM) | 421.4 |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
| Stroke/Travel Length (IN) | 8.59 |
| Upper Mount Type | Stem |
| Stroke/Travel Length (mm) | 218.2 |
| Internal Design | Monotube |
| Body Design | Smooth Body (Non-coilover) |
| Boot Included | Black Bellows |
| Reservoir | No |
| Spring Seat Included | No |
| Collapsed Length (IN) | 16.59 |
Packaging Information
Weight: 10.48 lbs
Dimensions: 26.8 x 4.15 x 4.15 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Fits Vehicles With 0-1.5" Rear Lift
- Heavy Load Option – 500 lb Constant Rear Weight; Recommended for use with Heavy Load B12 Special spring kit 53-329257; Fits Vehicles With 0-1" Rear Lift; Without Rear Air Suspension
- Heavy Load Option – 500 lb Constant Rear Weight; Recommended for use with Heavy Load B12 Special spring kit 53-329257; Fits Vehicles With 0-1" Rear Lift; Without Rear Air Suspension; Without Adaptive Variable Suspension (AVS)
- Fits Vehicles With 0-1.5" Rear Lift; Without Rear Air Suspension; Without Adaptive Variable Suspension (AVS)
Share
Vehicle Fitment
Vehicle Fitment
- 2025-2026 Toyota Sequoia 1794 Edition — Rear
- 2023-2026 Toyota Sequoia Capstone — Rear
- 2023-2026 Toyota Sequoia Limited — Rear
- 2023-2026 Toyota Sequoia Platinum — Rear
- 2023-2026 Toyota Sequoia SR5 — Rear
- 2022-2026 Toyota Tundra 1794 Edition — Rear
- 2022-2026 Toyota Tundra Capstone — Rear
- 2022-2026 Toyota Tundra Limited — Rear
- 2022-2026 Toyota Tundra Platinum — Rear
- 2022-2026 Toyota Tundra SR — Rear
- 2022-2026 Toyota Tundra SR5 — Rear
