Bilstein

Bilstein 24-347464 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

$176.00 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

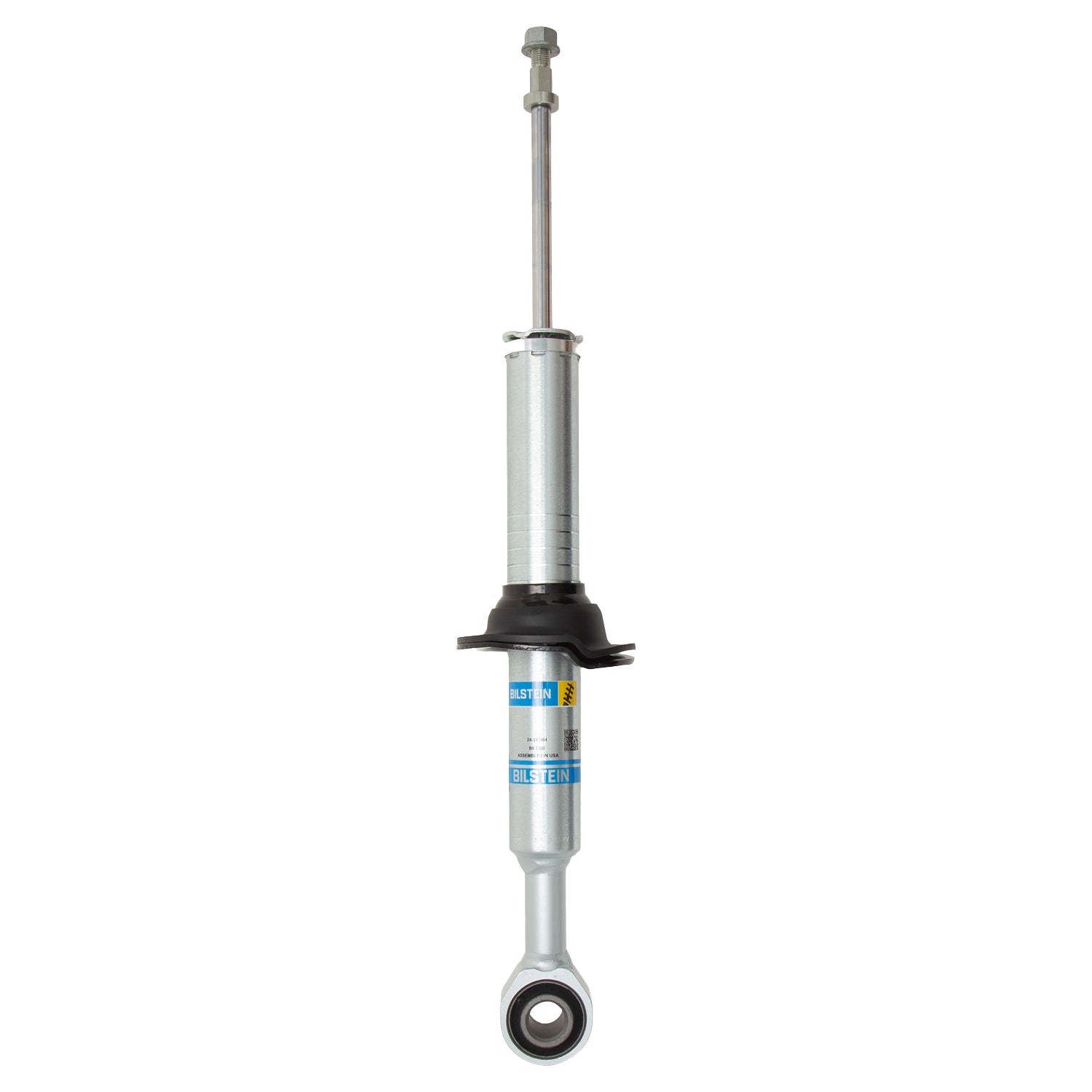

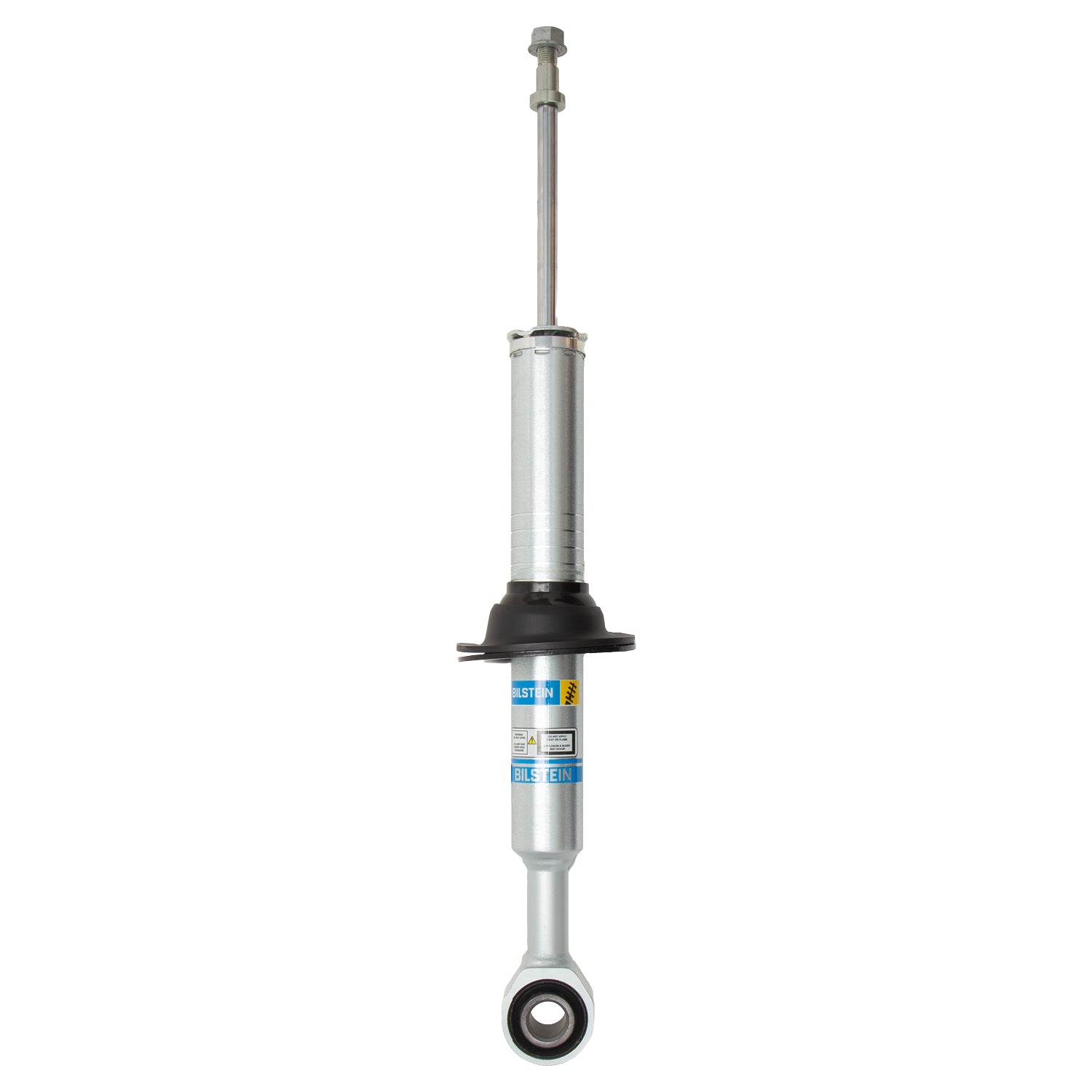

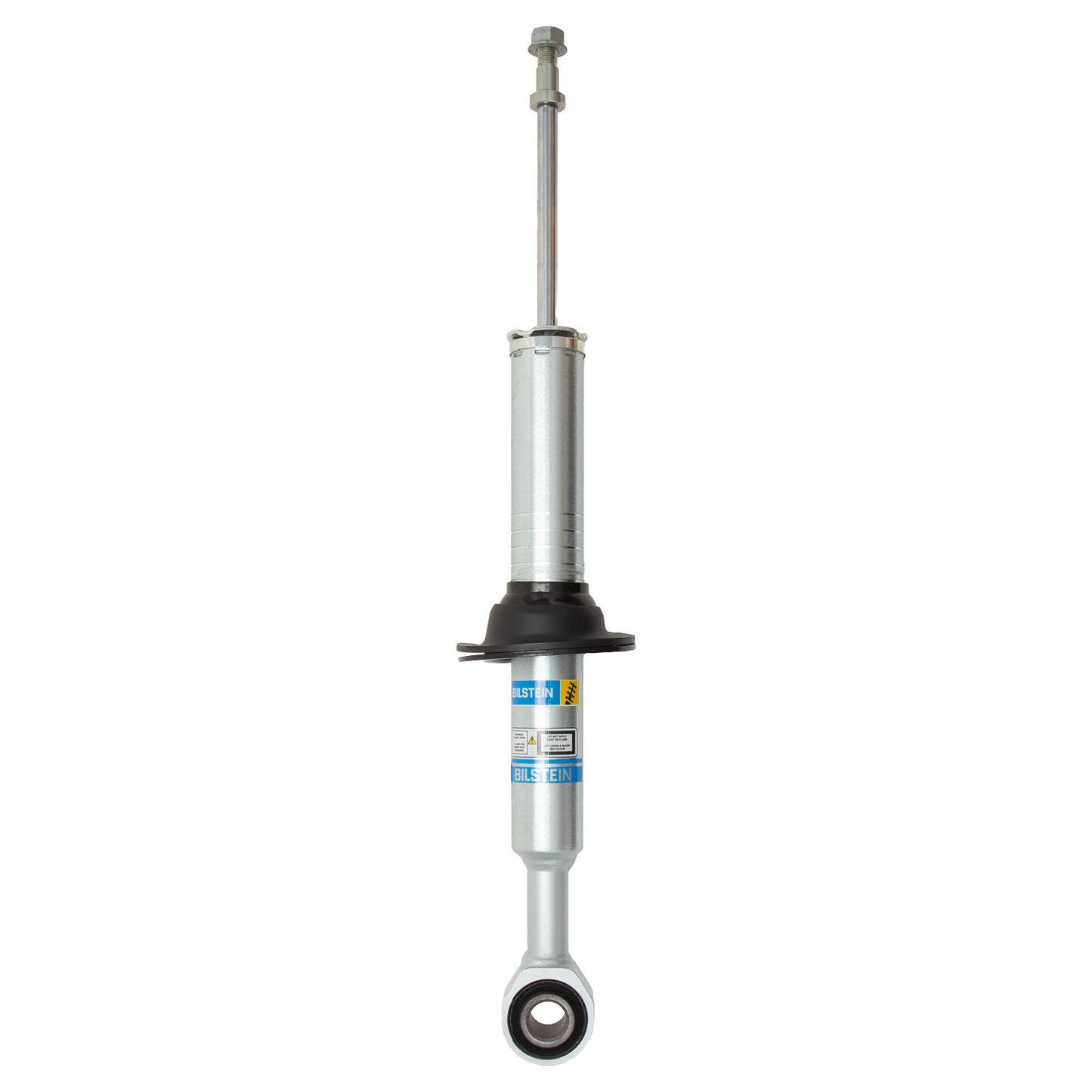

Bilstein 24-347464 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

46mm monotube design ensures consistent, fade-free performance in all conditions
Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift, depending on the application

Specifications

Stroke/Travel Length (IN)	5.50
Upper Mount Type	Stem
Stroke/Travel Length (mm)	139.7
Internal Design	Monotube
Body Design	Snap Ring Grooved Body (Coilover)
Boot Included	No
Reservoir	No
Spring Seat Included	Yes
Collapsed Length (IN)	18.96
Segment	Light Truck
Extended Length (IN)	24.46
Lower Mount Type	Eye 24.3mm
Finish	Zinc Plated
Extended Length (mm)	621.3
Adjustable Damping	Non-Adjustable
Series	B8 5100 (Ride Height Adjustable)
Collapsed Length (mm)	481.7
Piston Diameter	46mm
Shaft Diameter	14mm
