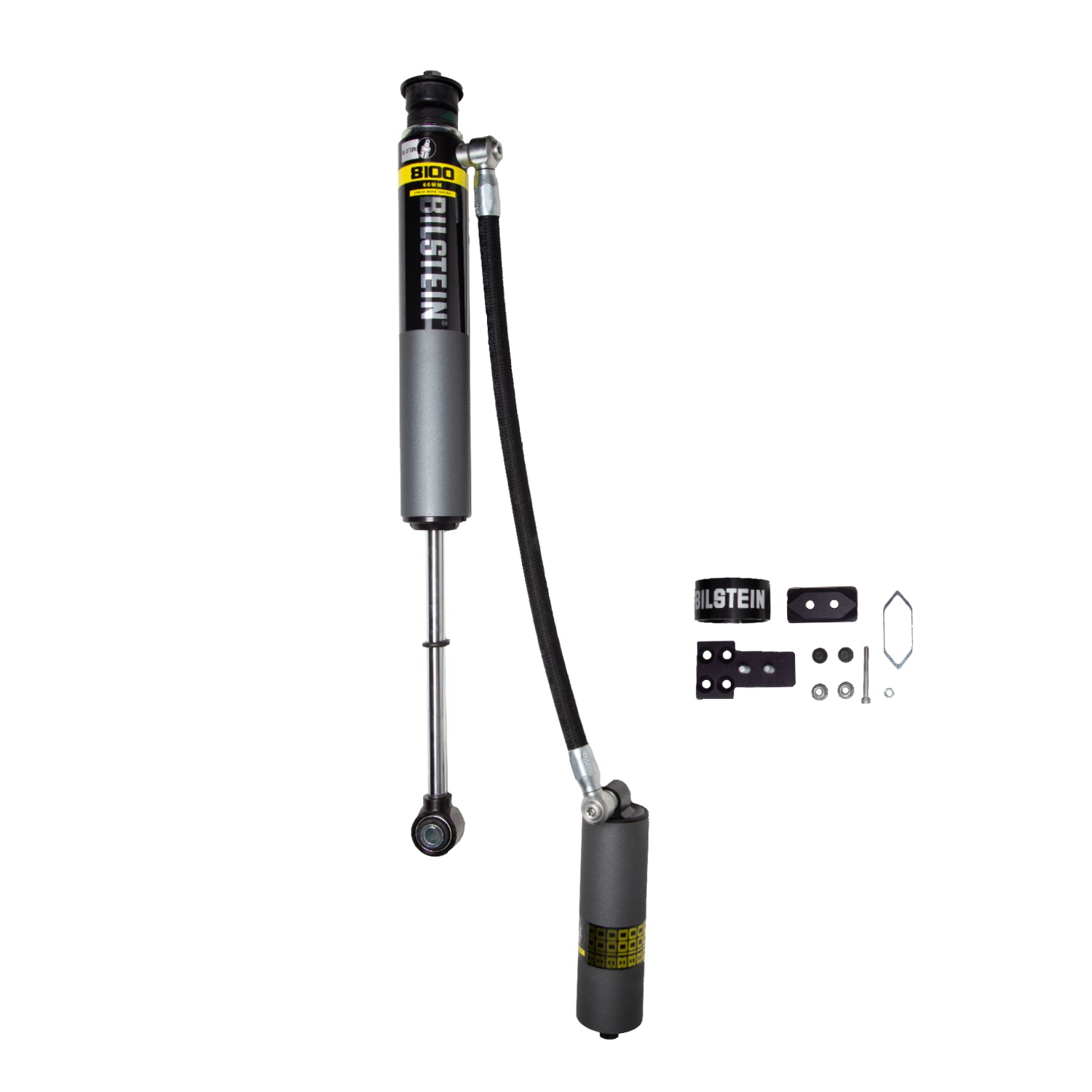

Bilstein 25-281873 B8 8100 - Suspension Shock Absorber
Bilstein 25-281873 B8 8100 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 25-281873 B8 8100 - Suspension Shock Absorber
Bilstein B8 8100 reservoir shock absorbers are a large bore 2.65-in OD direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 2.65-in OD shock body shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation
- 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
| Extended Length (IN) | 25.76 |
| Upper Mount Type | Stem |
| Internal Design | Monotube |
| Series | B8 8100 |
| Boot Included | No |
| Spring Seat Included | No |
| Collapsed Length (IN) | 15.69 |
| Segment | Light Truck |
| Lower Mount Type | Eye 14.1mm |
| Finish | EVO Grey |
| Extended Length (MM) | 654.3 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Collapsed Length (MM) | 398.5 |
| Reservoir | Yes |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
Packaging Information
Weight: 21.2 lbs
Dimensions: 40.5 x 11.75 x 6.75 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
24 Month Warranty
⚠ Fitment Notes
- Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; Without Air Suspension
- Fits Vehicles With 0-1" Rear Lift; Without Air Suspension
- Fits Trucks with 0-1" Rear Lift; Without Air Suspension
Share
Vehicle Fitment
Vehicle Fitment
- 2019-2024 Ram 1500 Big Horn — Rear Right
- 2019-2024 Ram 1500 Laramie — Rear Right
- 2019-2021 Ram 1500 Laramie Longhorn — Rear Right
- 2021-2024 Ram 1500 Limited Longhorn — Rear Right
- 2019-2024 Ram 1500 Lone Star — Rear Right
- 2021 Ram 1500 Longhorn — Rear Right
- 2019-2026 Ram 1500 Rebel — Rear Right
- 2019-2024 Ram 1500 Tradesman — Rear Right
- 2025-2026 Ram 1500 Warlock — Rear Right
