Bilstein 25-291292 B8 8100 (Bypass) - Suspension Shock Absorber

$1,169.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

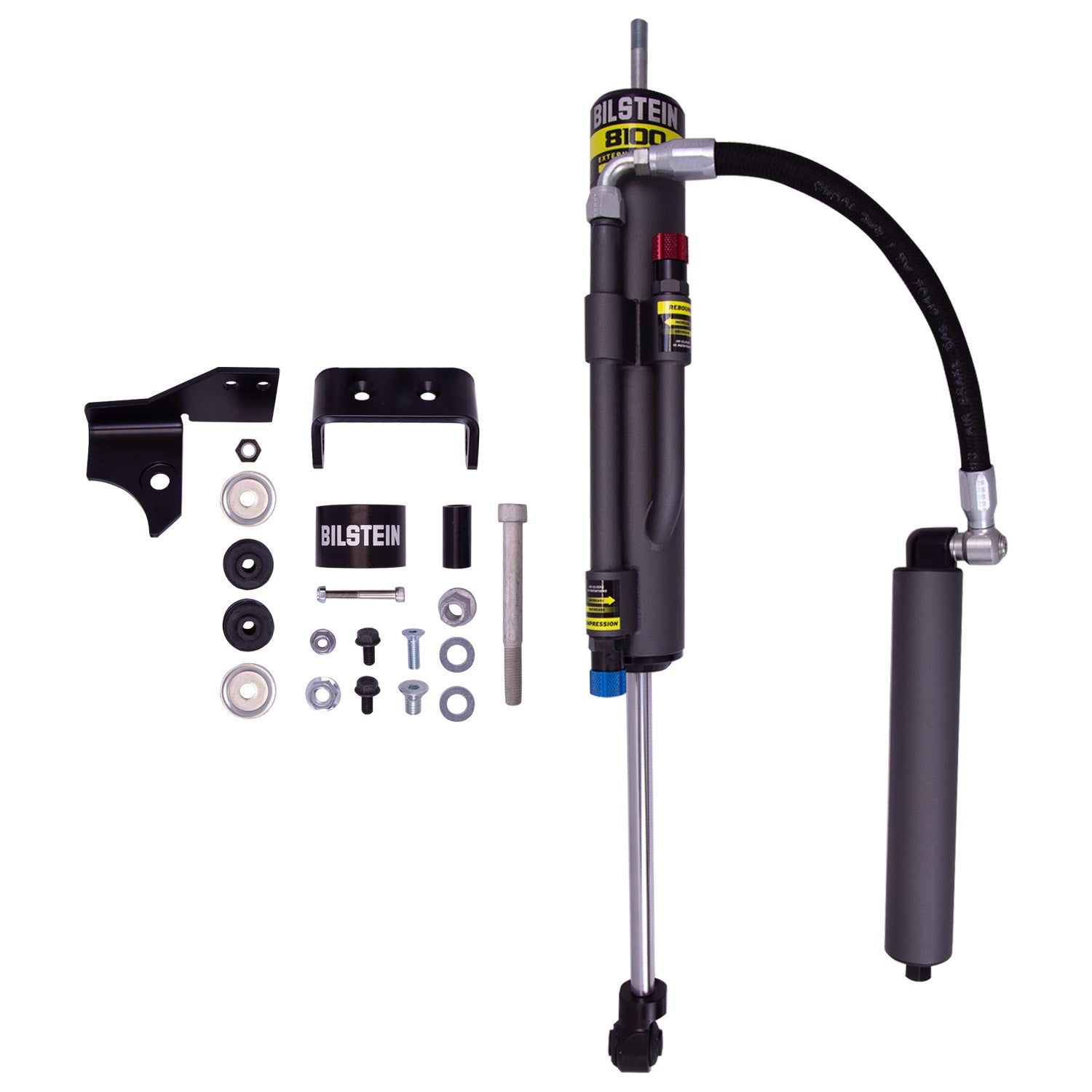

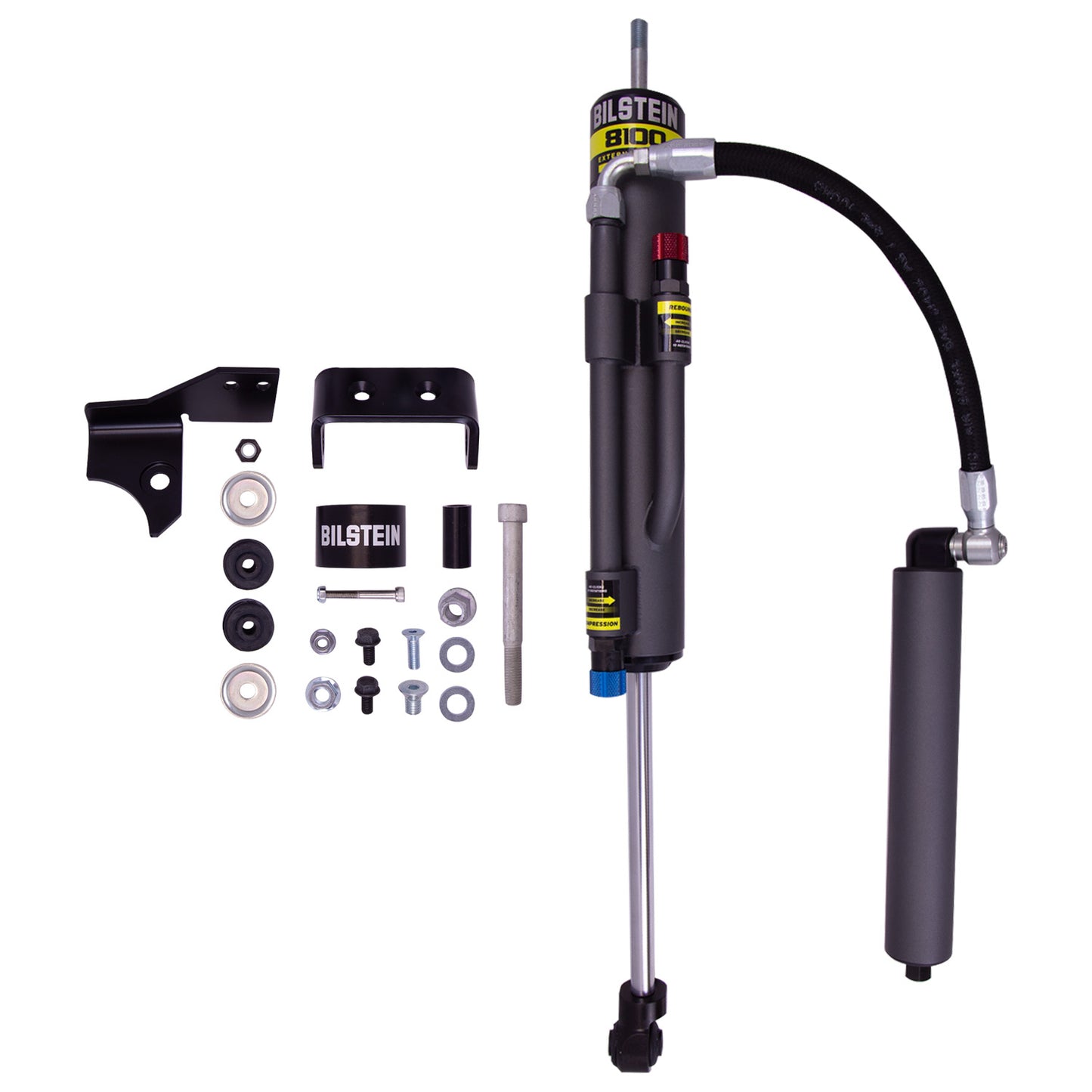

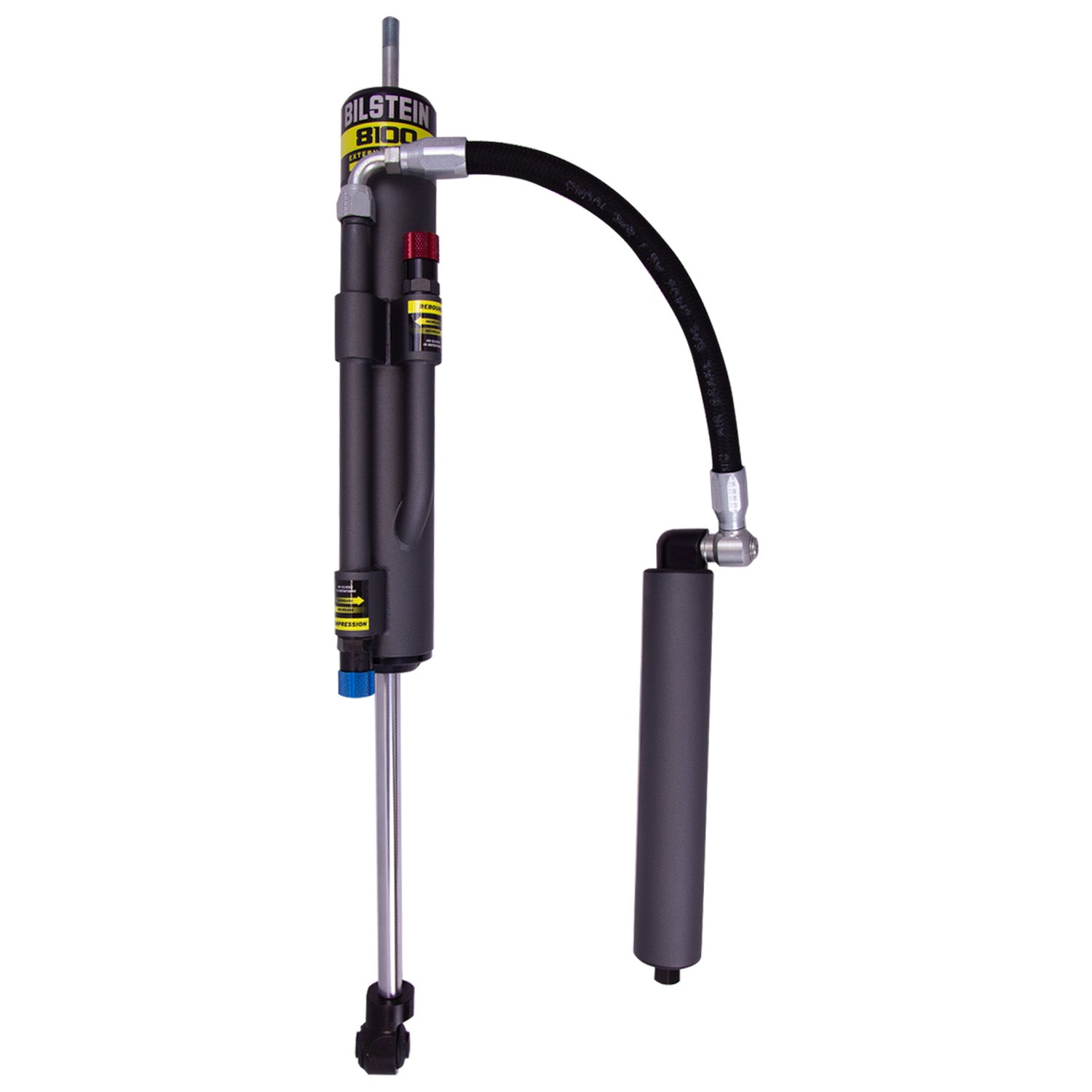

Bilstein 25-291292 B8 8100 (Bypass) - Suspension Shock Absorber

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability

Specifications

Segment	Light Truck
Lower Mount Type	Eye 12.1mm
Adjustable Damping	Double Adjustable Compression and Rebound with Click Adjuster Knobs
Upper Mount Type	Stem
Internal Design	Monotube
Body Design	Bypass Body (Non-Coilover)
Collapsed Length (MM)	437.0
Reservoir	Yes
Piston Diameter	60mm
Shaft Diameter	18mm
Extended Length (IN)	27.03
Finish	EVO Grey
Extended Length (MM)	686.6
Series	B8 8100 (Bypass)
Boot Included	No
Spring Seat Included	No
Collapsed Length (IN)	17.20
