Bilstein

Bilstein 25-305296 B8 5160 Classic - Suspension Shock Absorber

$199.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

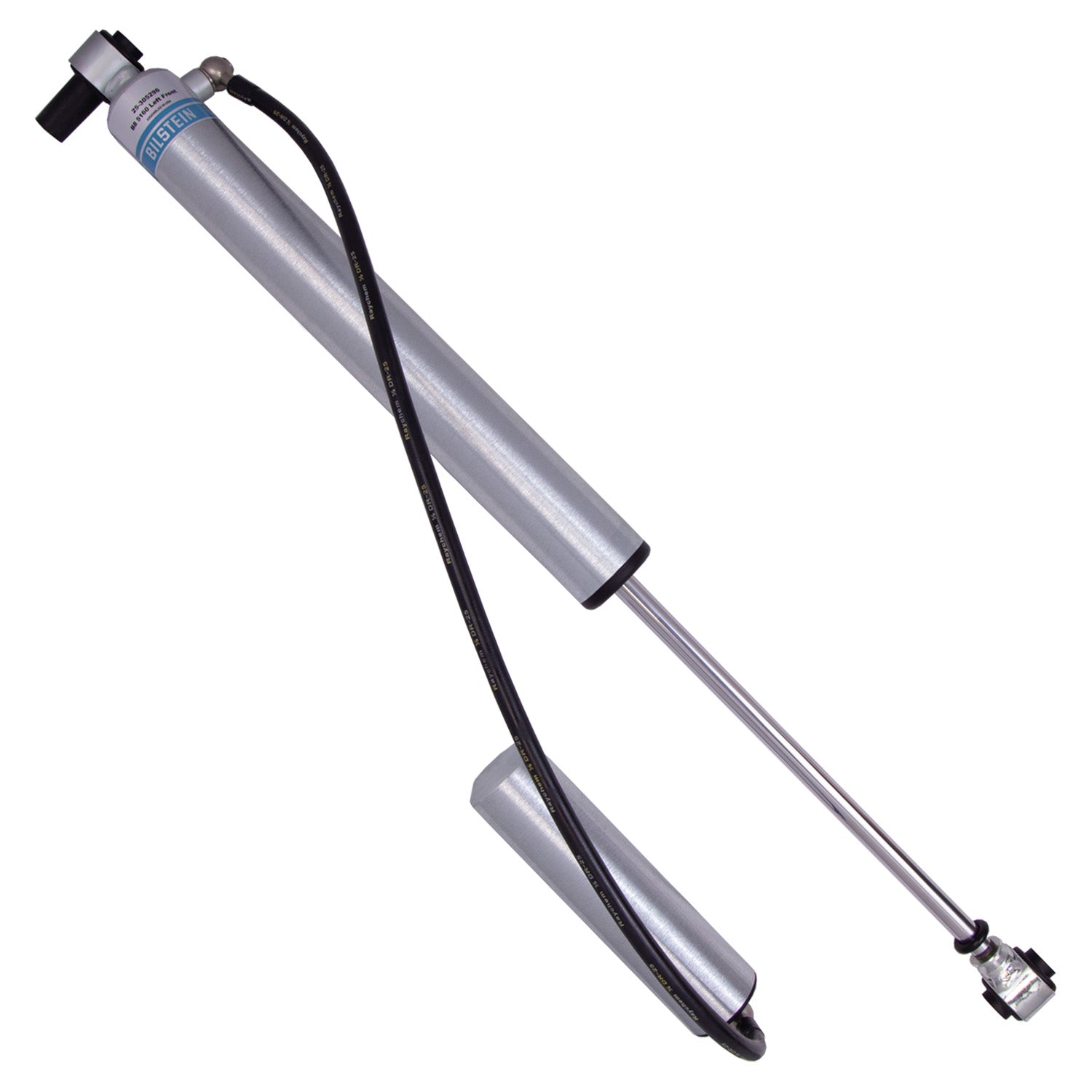

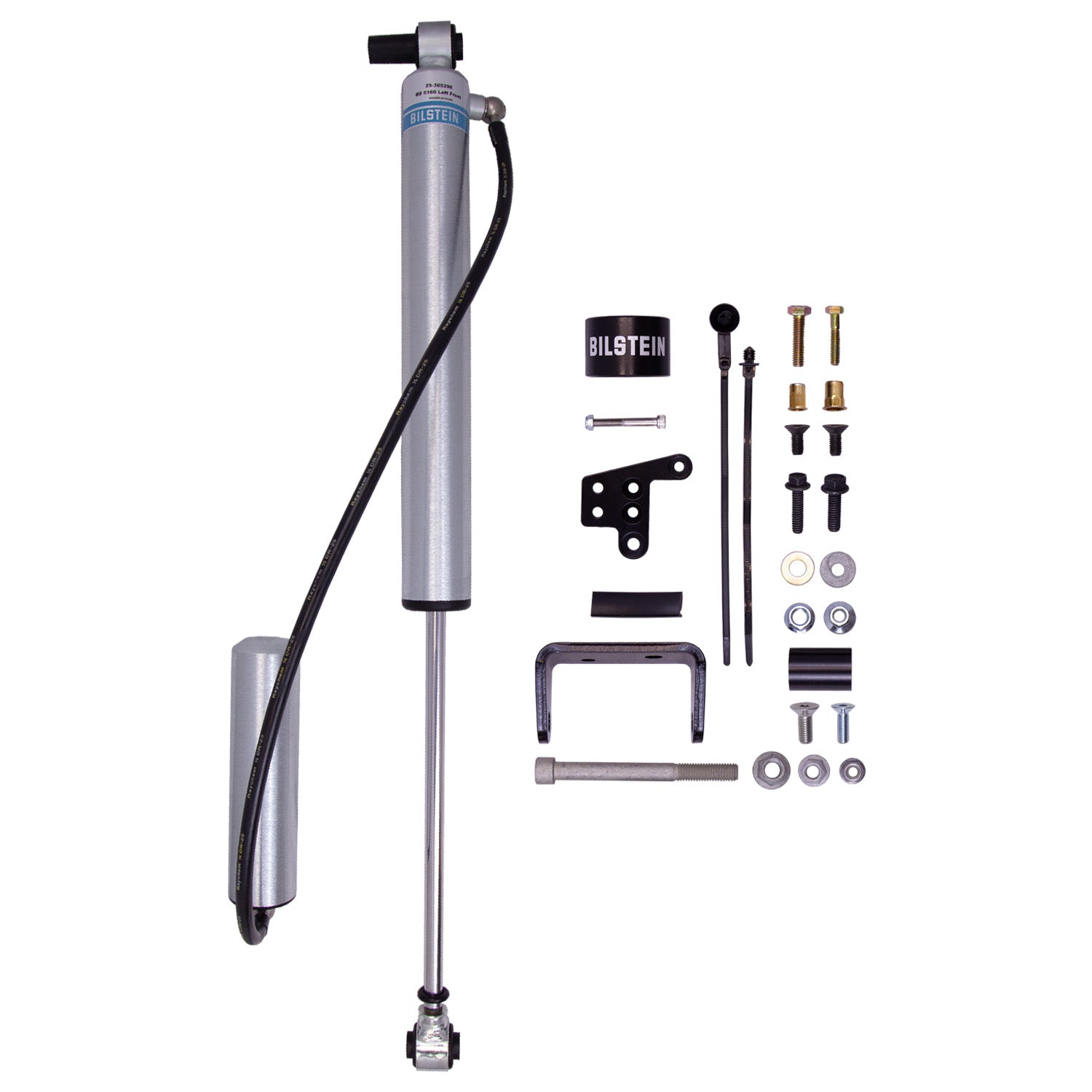

Bilstein 25-305296 B8 5160 Classic - Suspension Shock Absorber

Bilstein B8 5160 Classic remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 Classic remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

46mm monotube design ensures consistent, fade-free performance in all conditions
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Remote reservoir increases shock oil capacity for greater heat dissipation

Specifications

Stroke/Travel Length (IN)	11.82
Extended Length (IN)	29.38
Finish	Zinc Plated
Stroke/Travel Length (mm)	300.2
Internal Design	Monotube
Series	B8 5160
Collapsed Length (MM)	446.0
Reservoir	Yes
Piston Diameter	46mm
Shaft Diameter	14mm
Segment	Light Truck
Boot Included	No
Lower Mount Type	Eye 12.8mm
Adjustable Damping	Non-Adjustable
Upper Mount Type	Eye 12.8mm
Extended Length (MM)	746.2
Billet Reservoir Clamp Included	Yes
Body Design	Smooth Body (Non-Coilover)
Spring Seat Included	No
Collapsed Length (IN)	17.56
