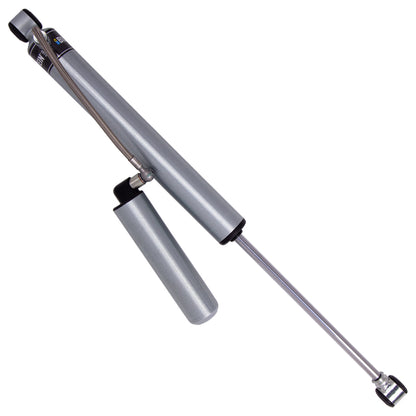

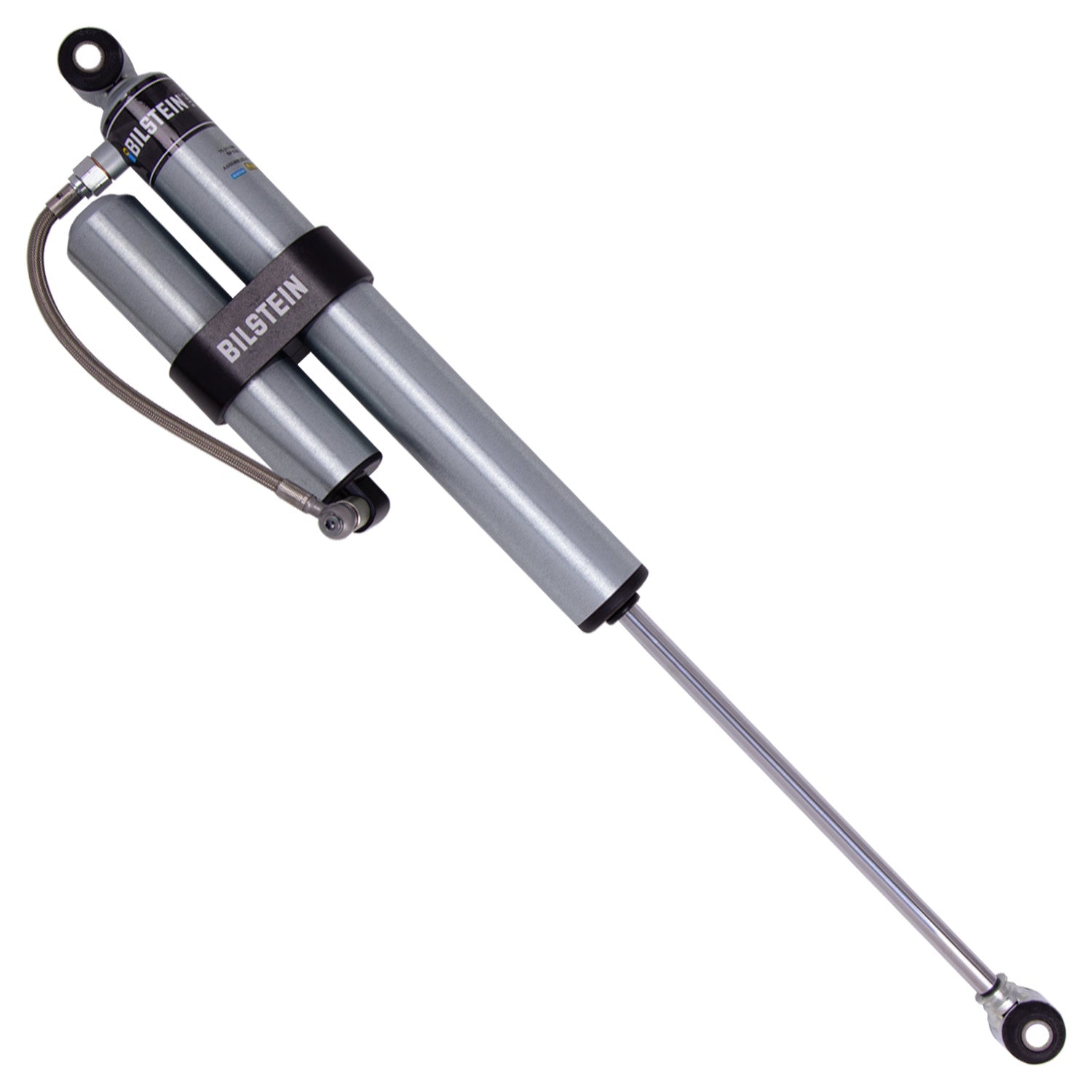

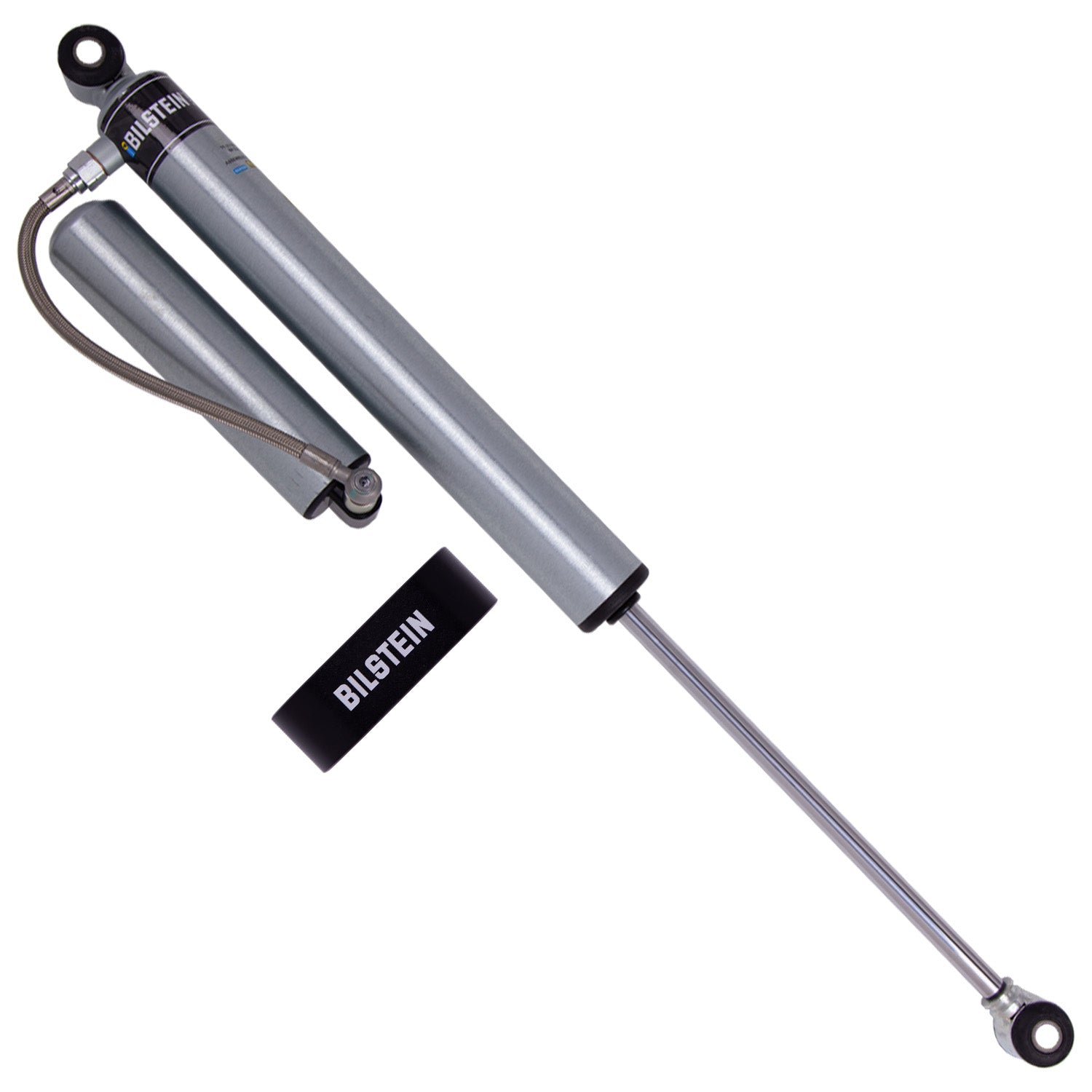

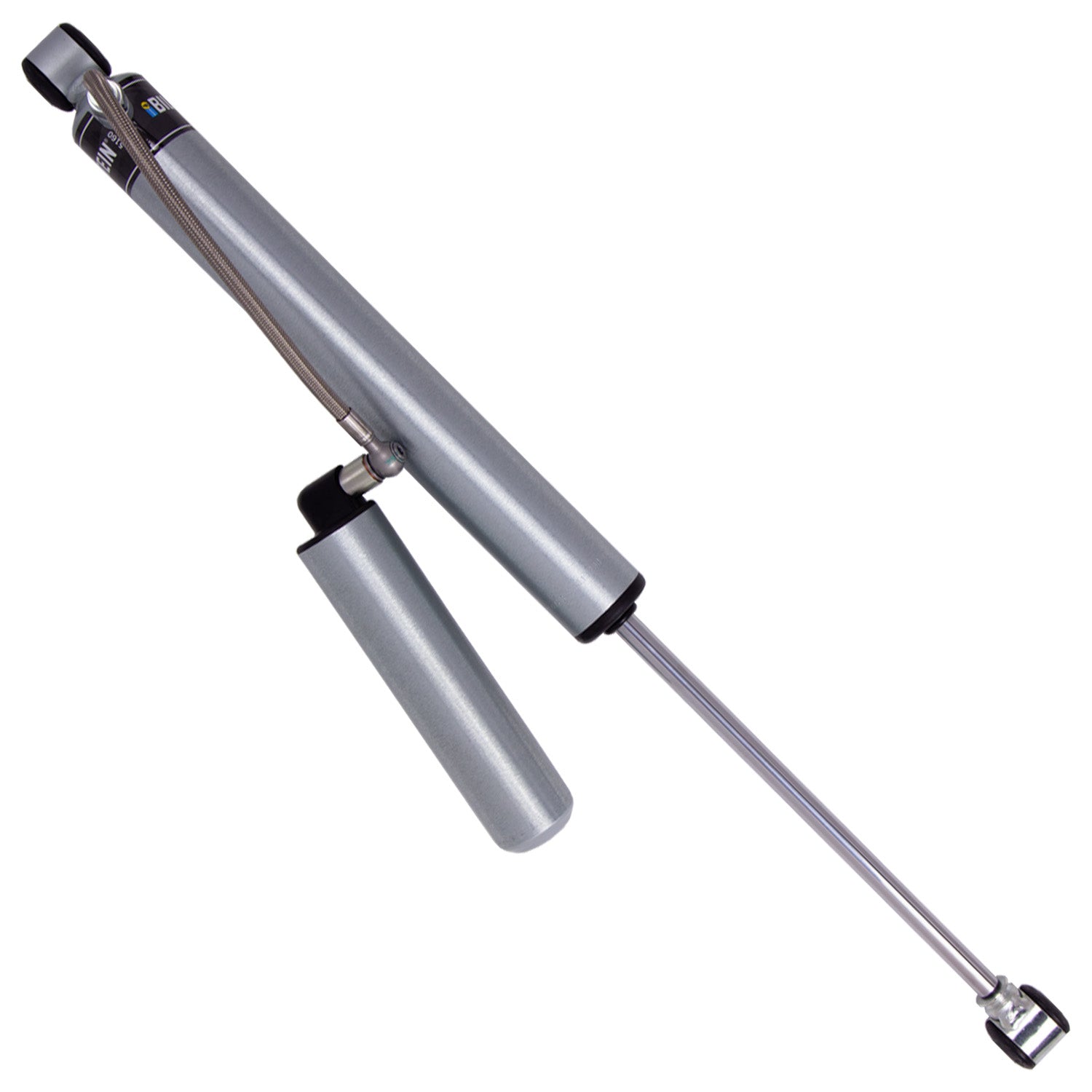

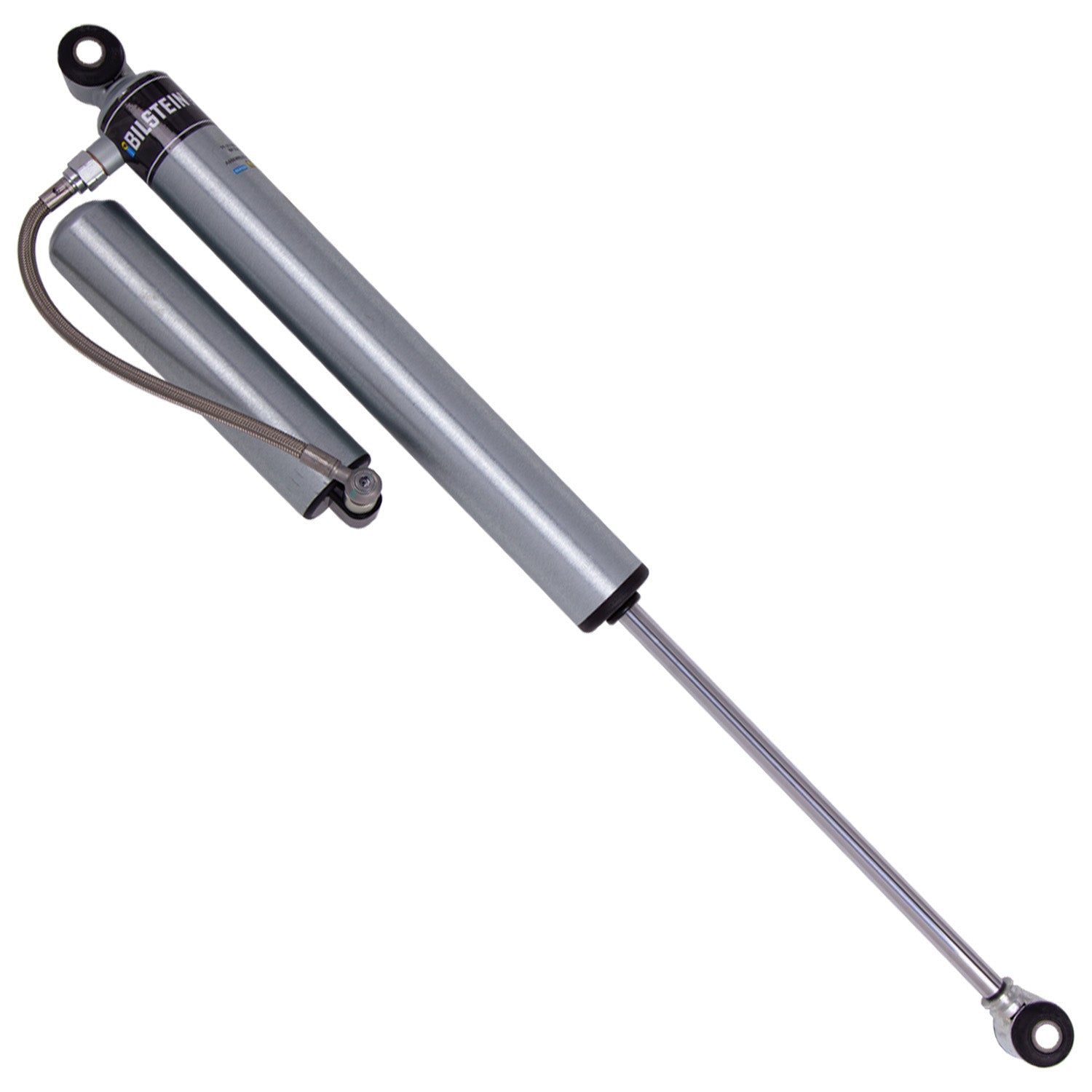

Bilstein 25-311280 B8 5160 - Suspension Shock Absorber

$299.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Bilstein 25-311280 B8 5160 - Suspension Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

46mm monotube design ensures consistent, fade-free performance in all conditions
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Remote reservoir increases shock oil capacity for greater heat dissipation

Specifications

Segment	Light Truck
Stroke/Travel Length (IN)	11.59
Boot Included	No
Extended Length (IN)	28.93
Lower Mount Type	Eye 12mm
Adjustable Damping	Non-Adjustable
Finish	Zinc Plated
Stroke/Travel Length (mm)	294.4
Upper Mount Type	Eye 12mm
Extended Length (MM)	734.7
Internal Design	Monotube

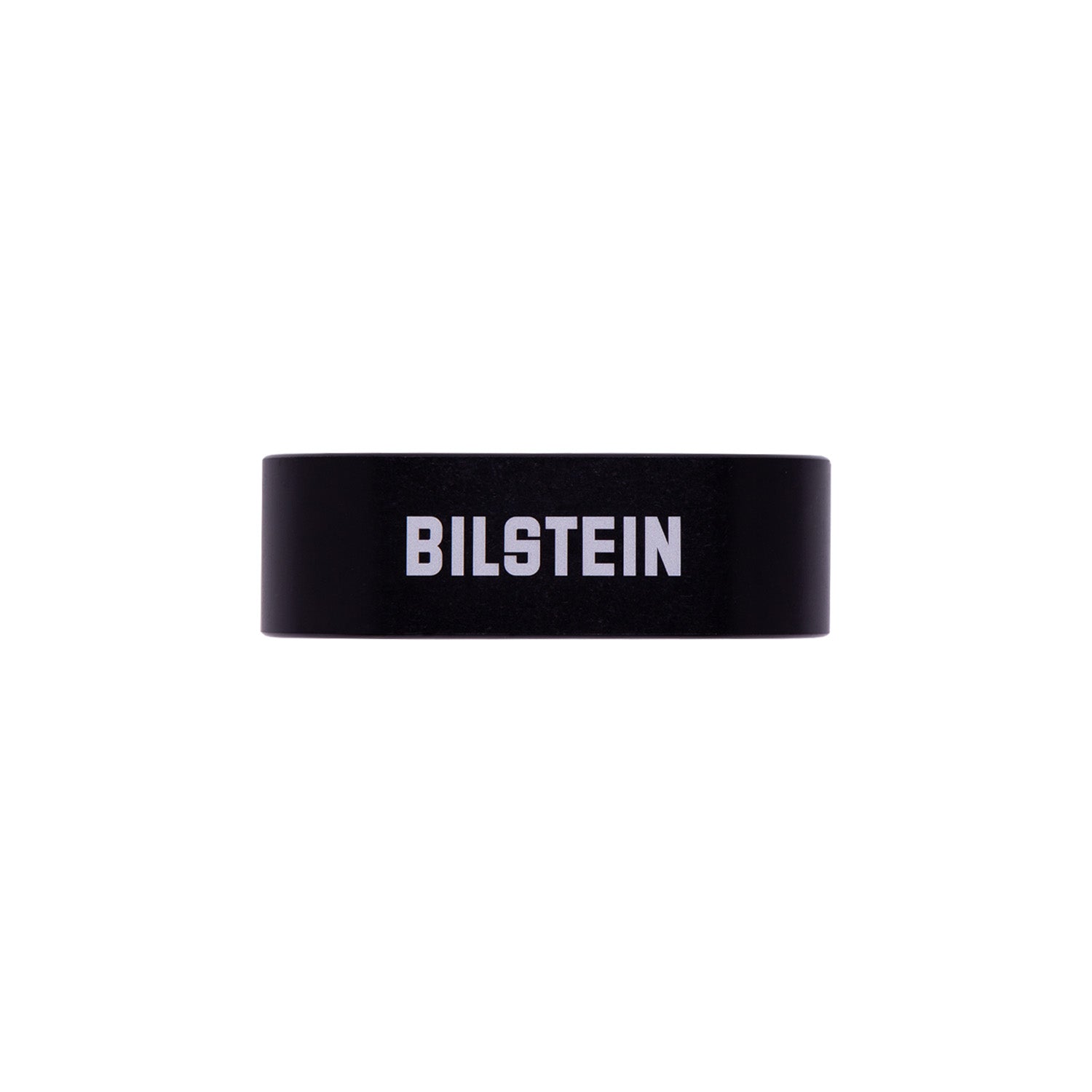

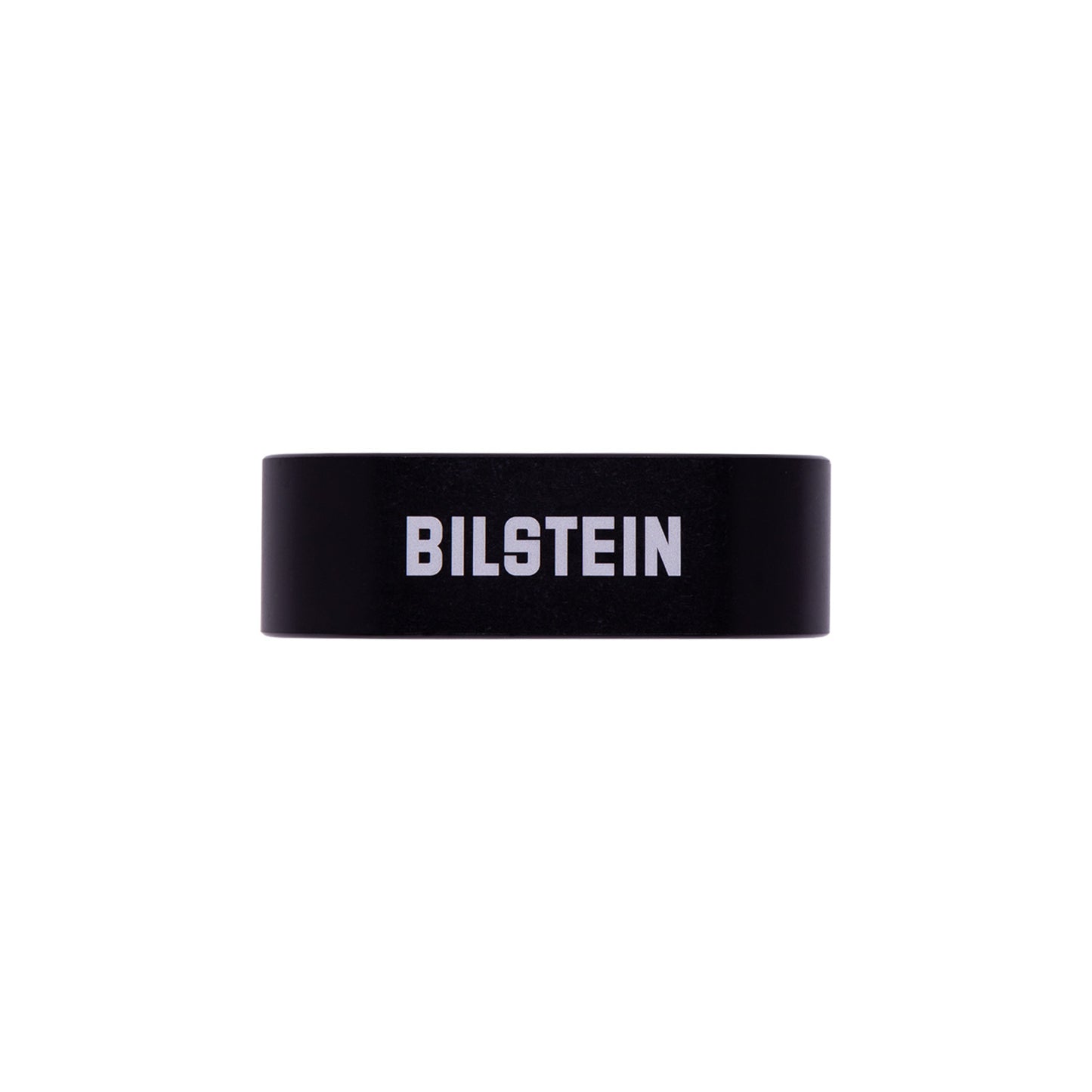

Billet Reservoir Clamp Included	Yes
Series	B8 5160
Body Design	Smooth Body (Non-Coilover)
Reservoir	Yes
Collapsed Length (MM)	440.5
Spring Seat Included	No
Piston Diameter	46mm
Collapsed Length (IN)	17.34
Shaft Diameter	14mm
