Bilstein

Bilstein 25-311815 B8 5160 - Suspension Shock Absorber

$310.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

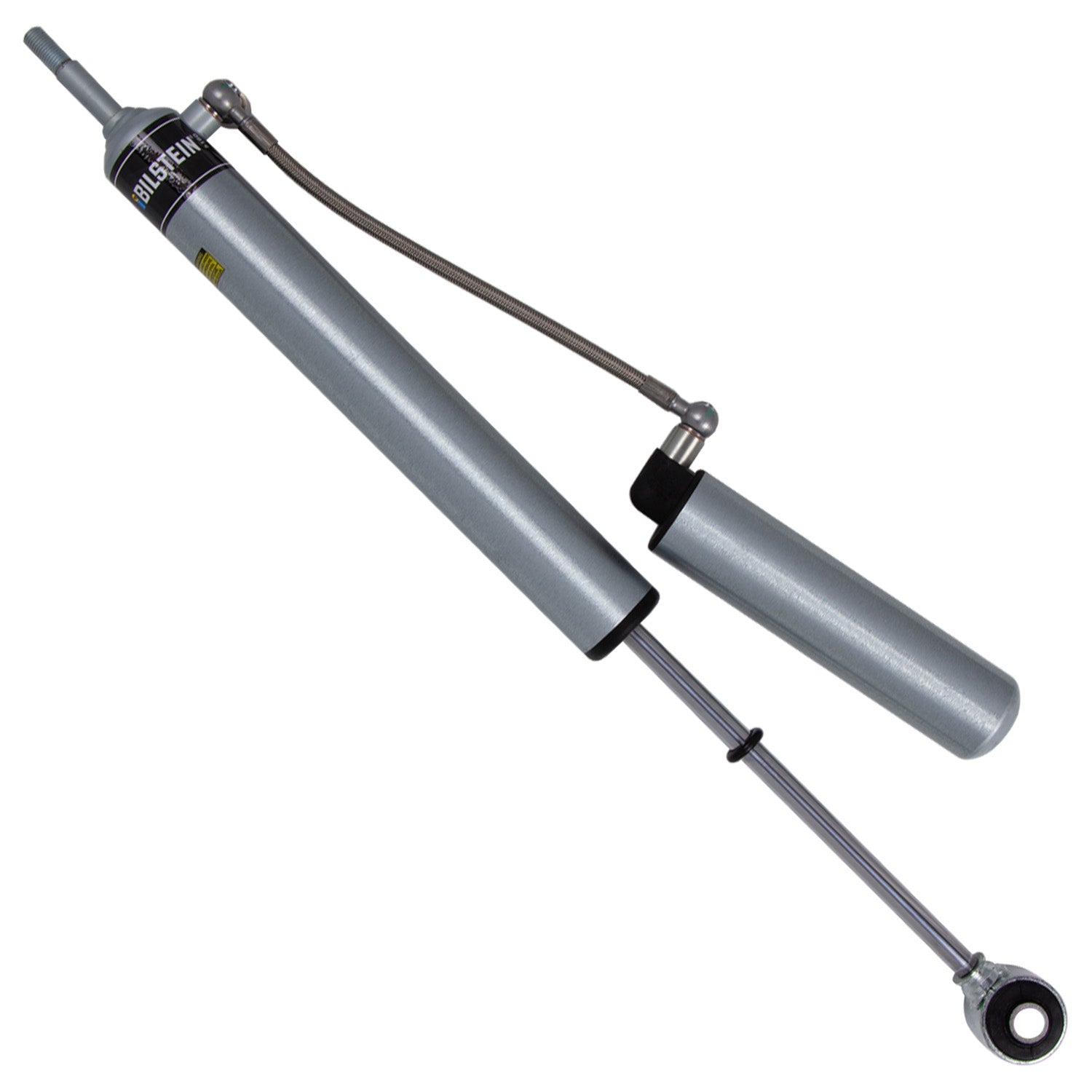

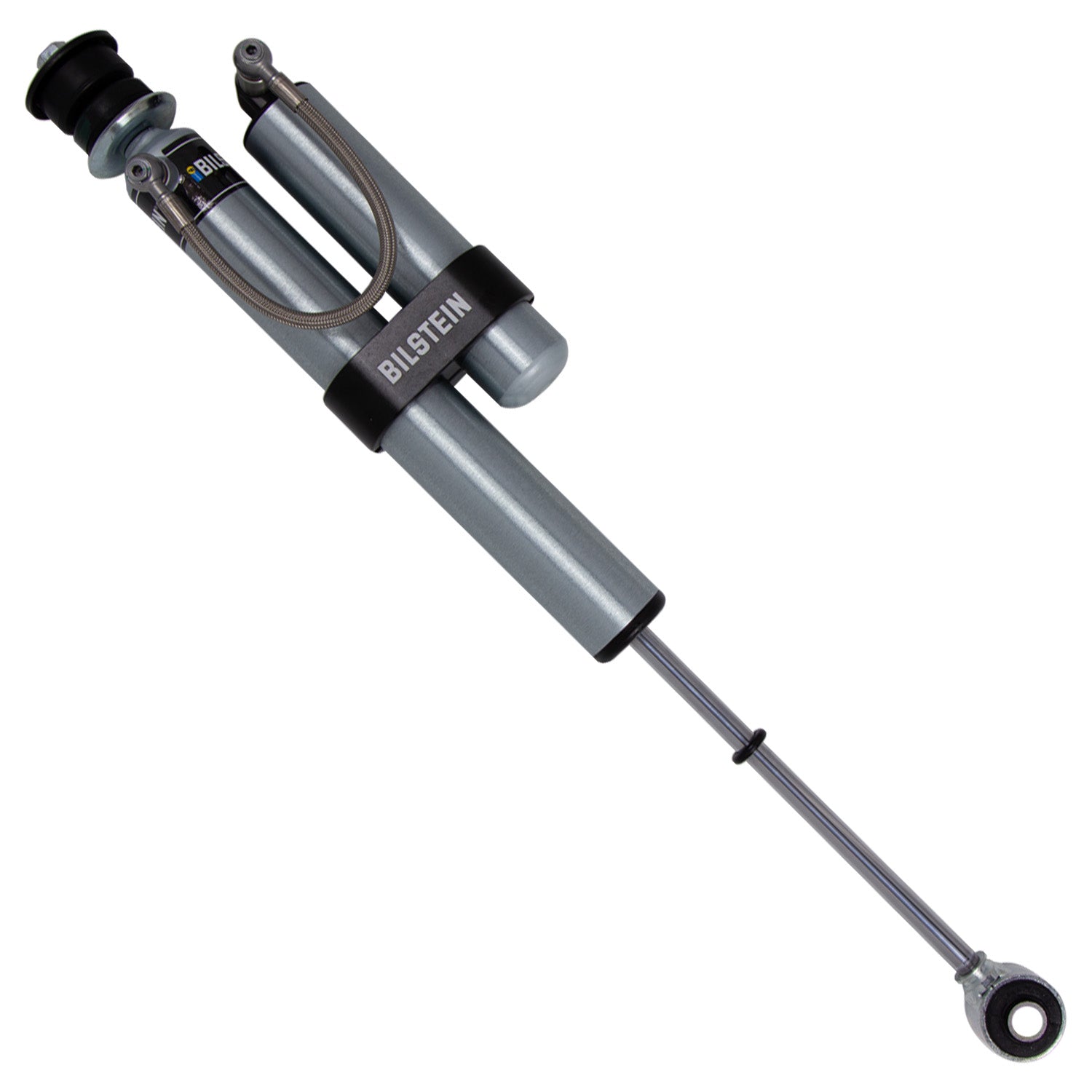

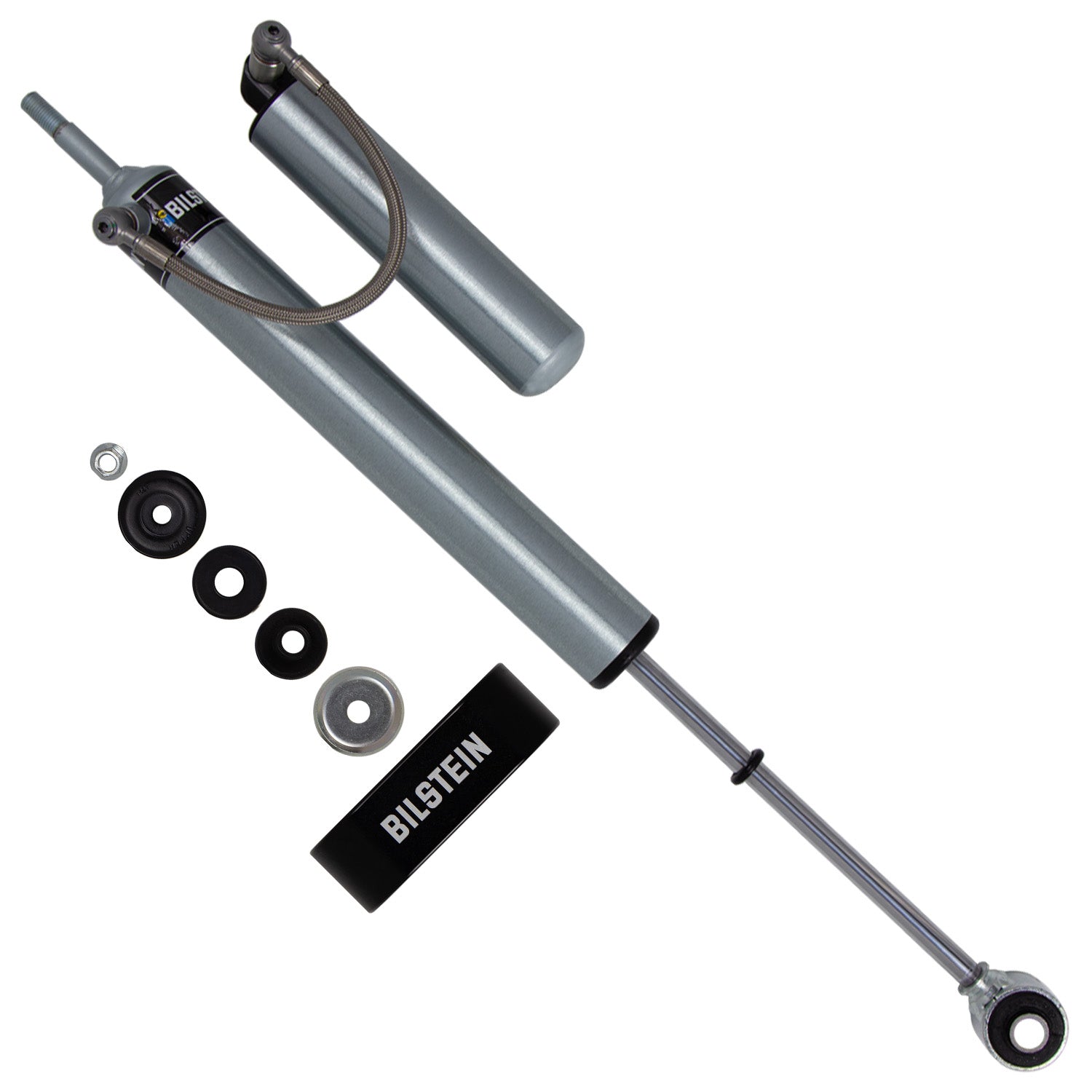

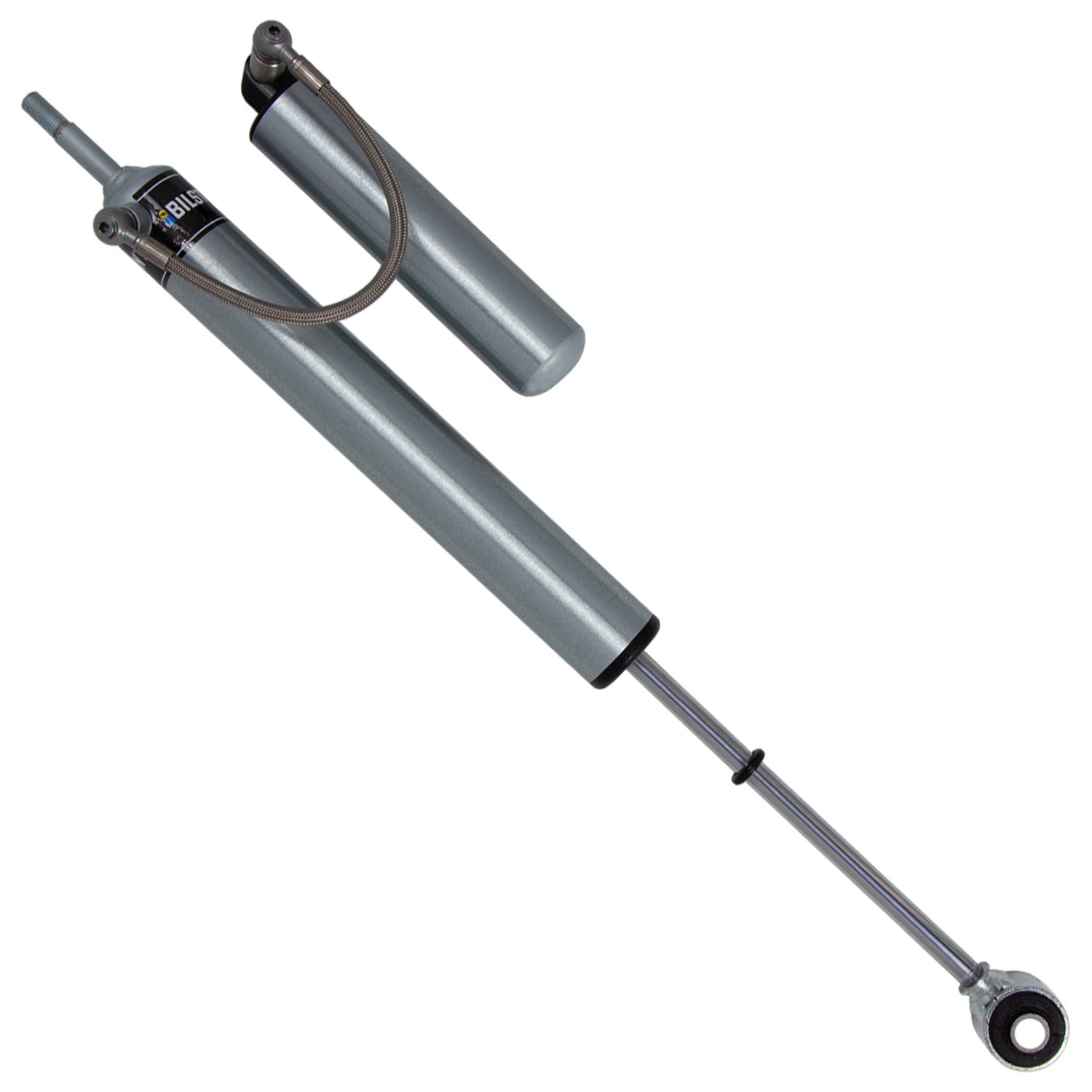

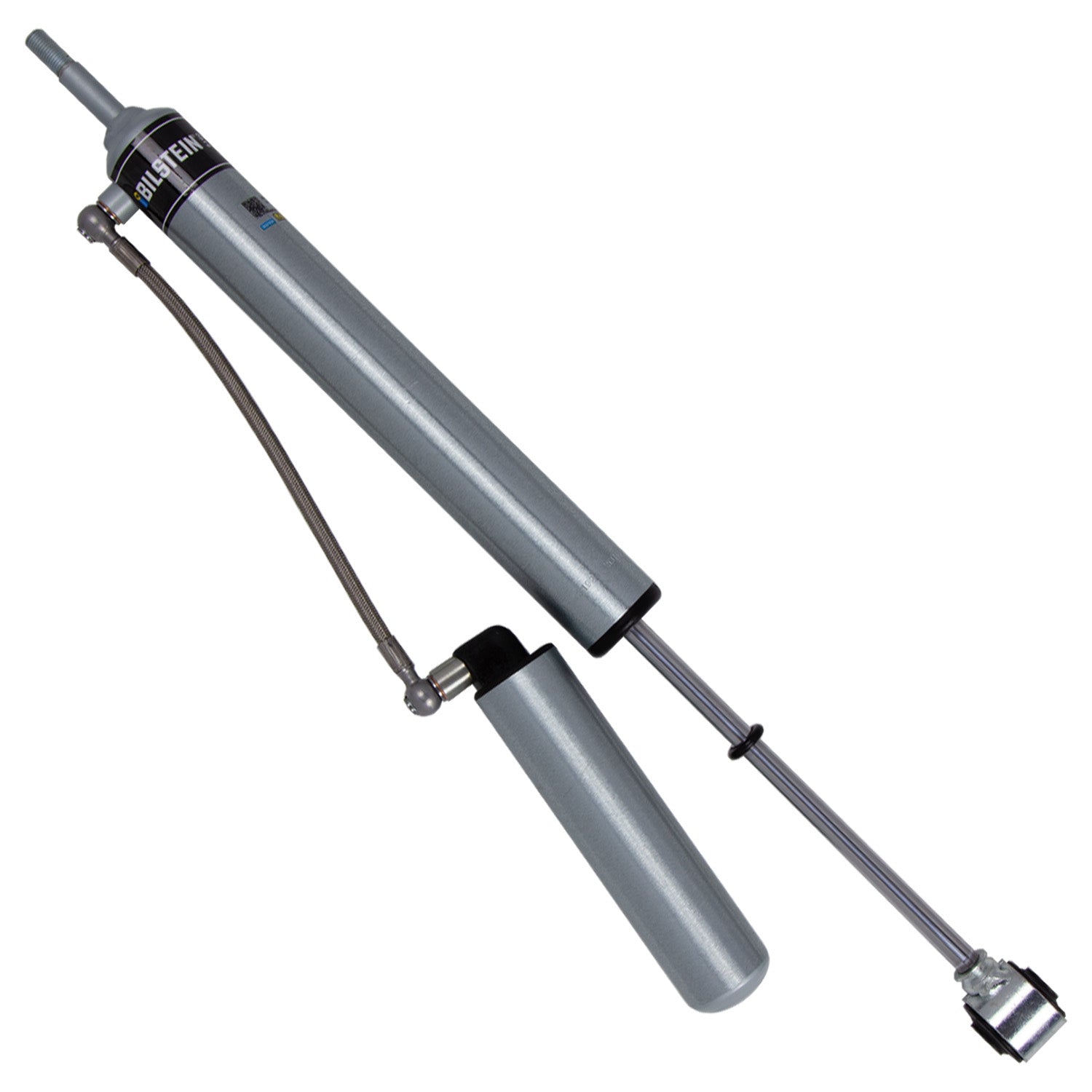

Bilstein 25-311815 B8 5160 - Suspension Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

46mm monotube design ensures consistent, fade-free performance in all conditions
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Remote reservoir increases shock oil capacity for greater heat dissipation

Specifications

Reservoir	Yes
Spring Seat Included	No
Piston Diameter	46mm
Collapsed Length (IN)	15.96
Shaft Diameter	14mm
Segment	Light Truck
Stroke/Travel Length (IN)	9.79
Boot Included	No
Extended Length (IN)	25.75
Lower Mount Type	Eye 14.4mm
Finish	Zinc Plated
Upper Mount Type	Stem
Stroke/Travel Length (mm)	248.7
Extended Length (MM)	654.0
Billet Reservoir Clamp Included	Yes
Internal Design	Monotube
Series	B8 5160
Body Design	Smooth Body (Non-Coilover)
Adjustable Damping	Non-Adjustable
Collapsed Length (MM)	405.4
