Bilstein 25-320459 B8 8100 (Bypass) - Suspension Shock Absorber

$1,218.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

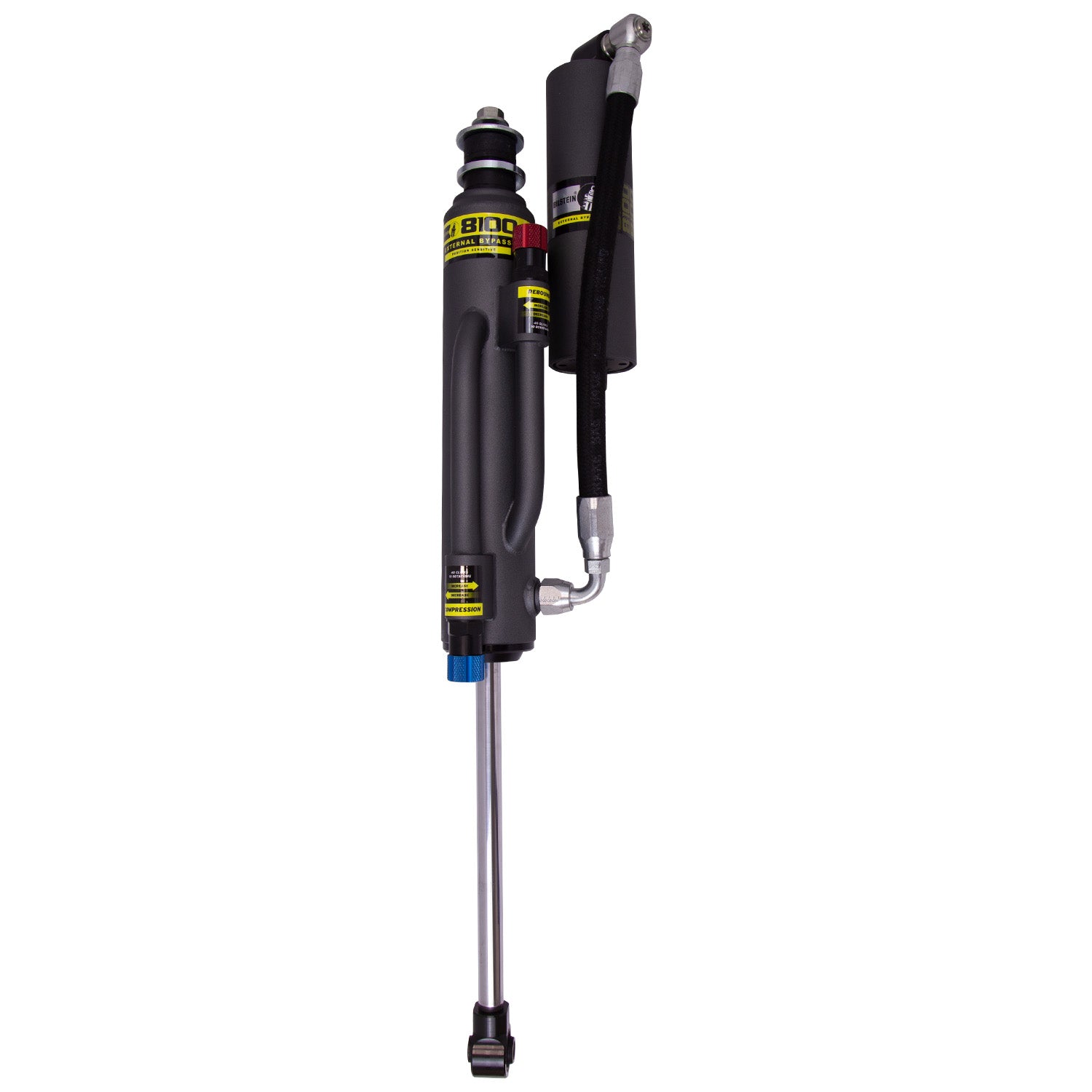

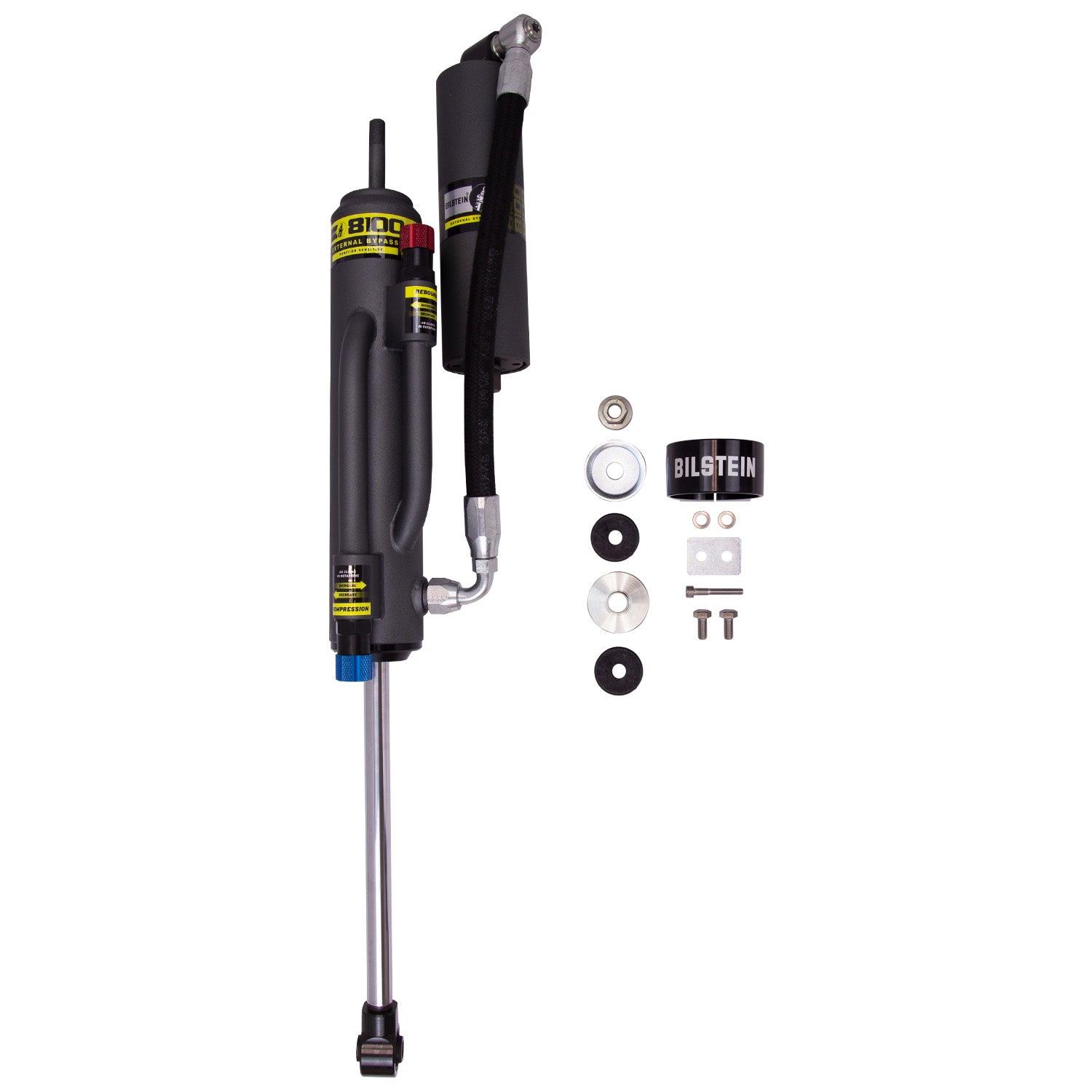

Bilstein 25-320459 B8 8100 (Bypass) - Suspension Shock Absorber

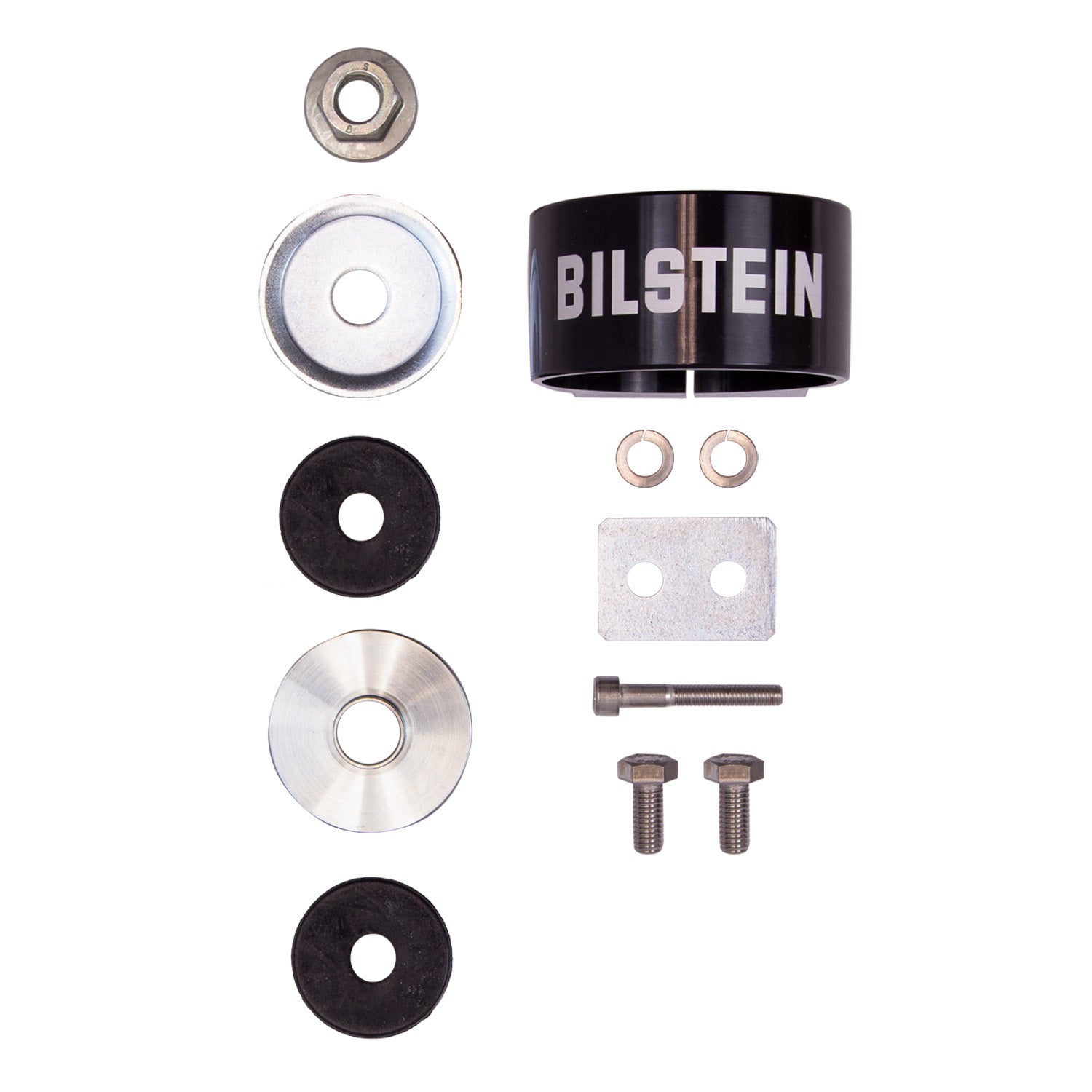

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

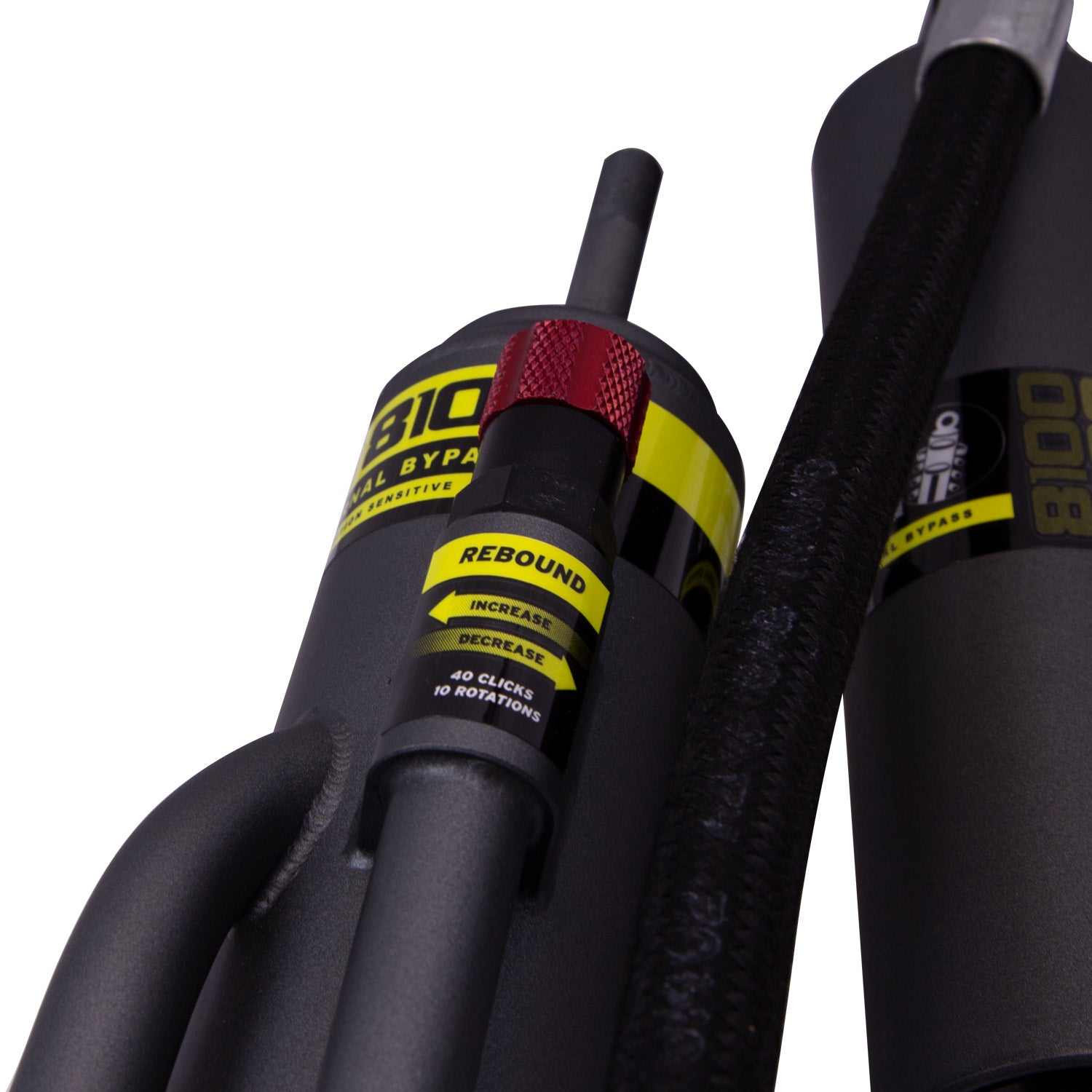

Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression

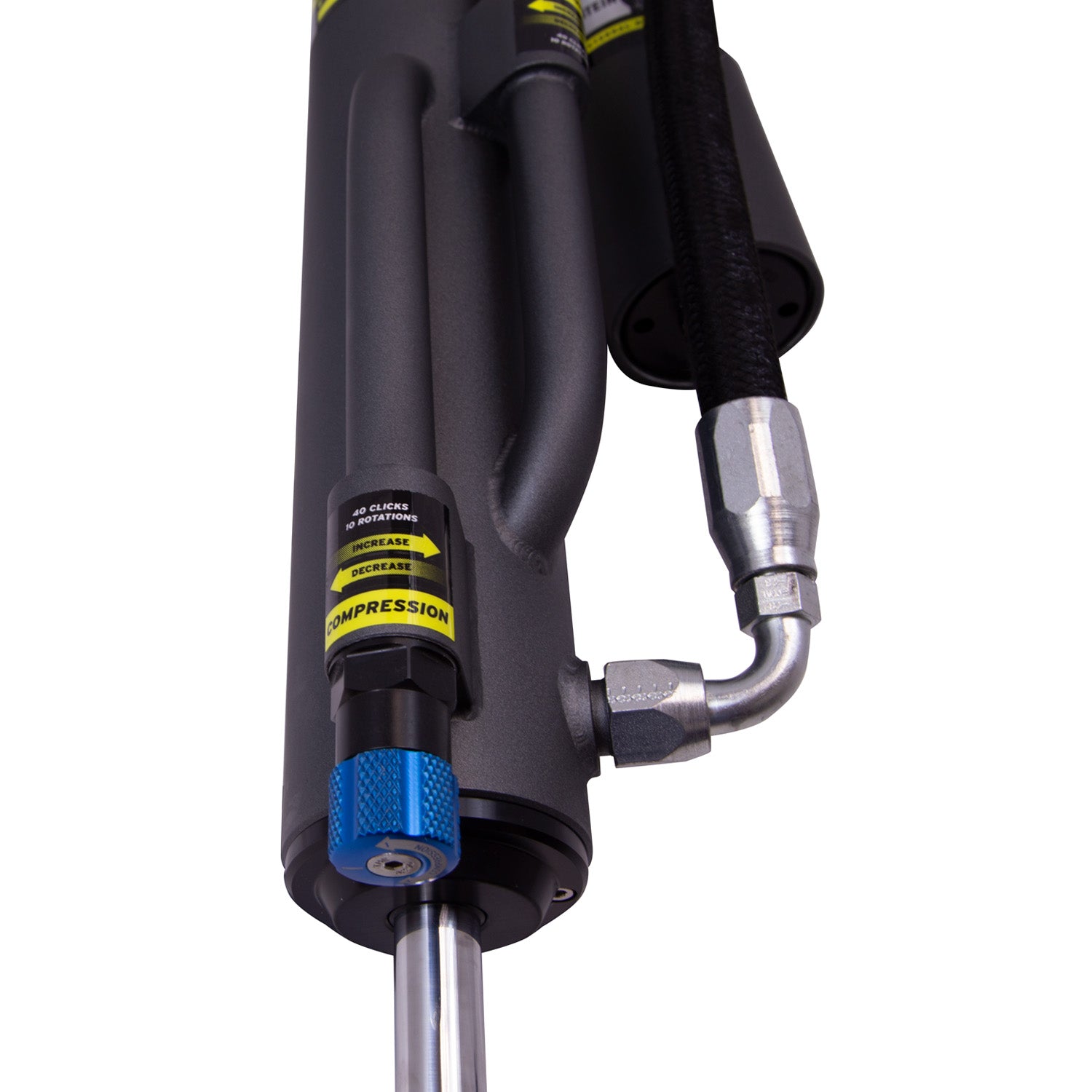

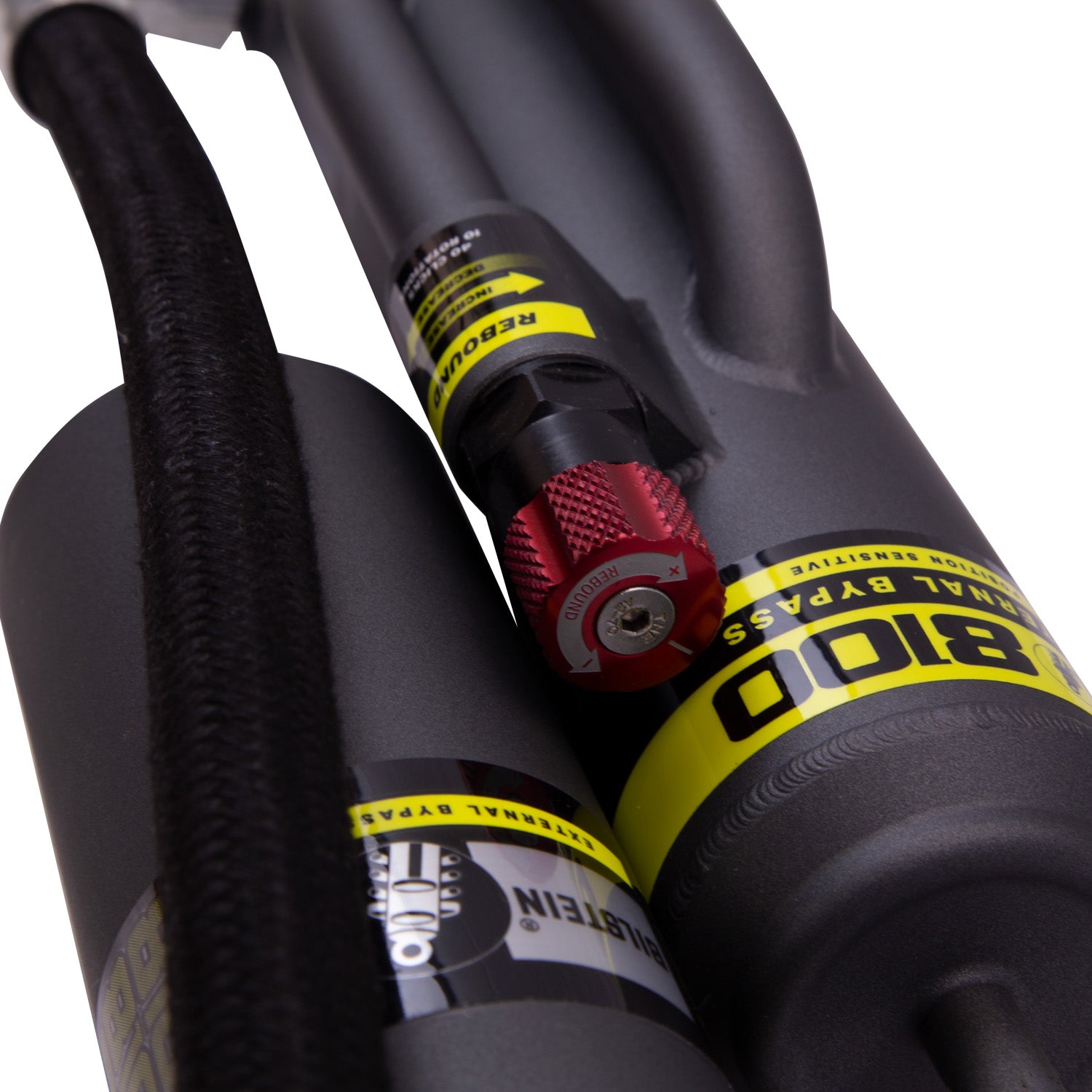

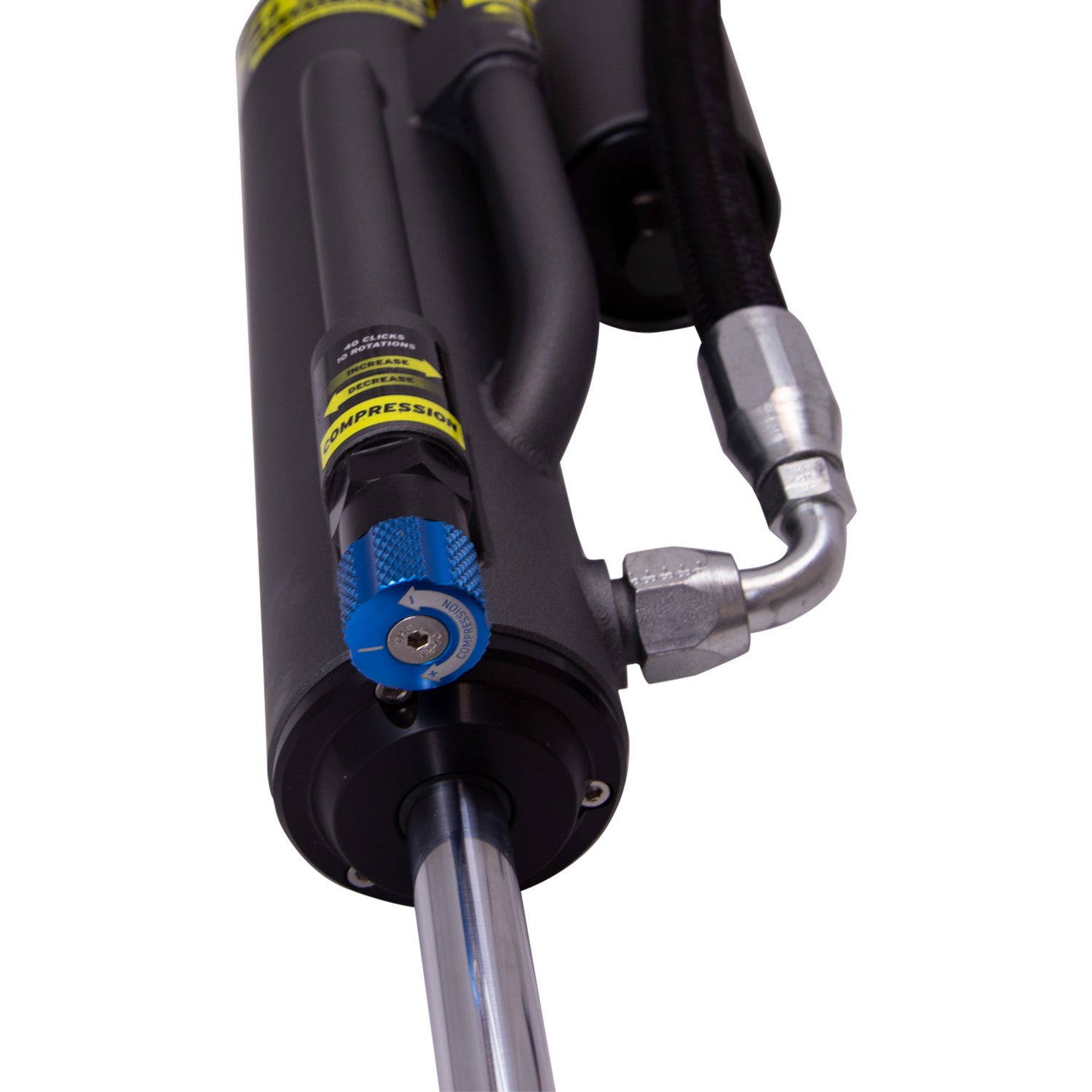

Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability

Specifications

Segment	Light Truck
Boot Included	No
Extended Length (IN)	23.94
Lower Mount Type	Eye 12mm
Finish	EVO Grey
Upper Mount Type	Stem
Extended Length (MM)	608.0
Internal Design	Monotube
Series	B8 8100 (Bypass)
Adjustable Damping	Double Adjustable Compression and Rebound with Click Adjuster Knobs
Collapsed Length (MM)	362.0
Body Design	Bypass Body (Non-Coilover)
Reservoir	Yes
Spring Seat Included	No
Piston Diameter	60mm
Collapsed Length (IN)	14.25
Shaft Diameter	18mm
