Bilstein 25-324075 B8 8100 - Suspension Shock Absorber
Bilstein 25-324075 B8 8100 - Suspension Shock Absorber
Low stock: 4 left
Couldn't load pickup availability
Description & Features
Bilstein 25-324075 B8 8100 - Suspension Shock Absorber

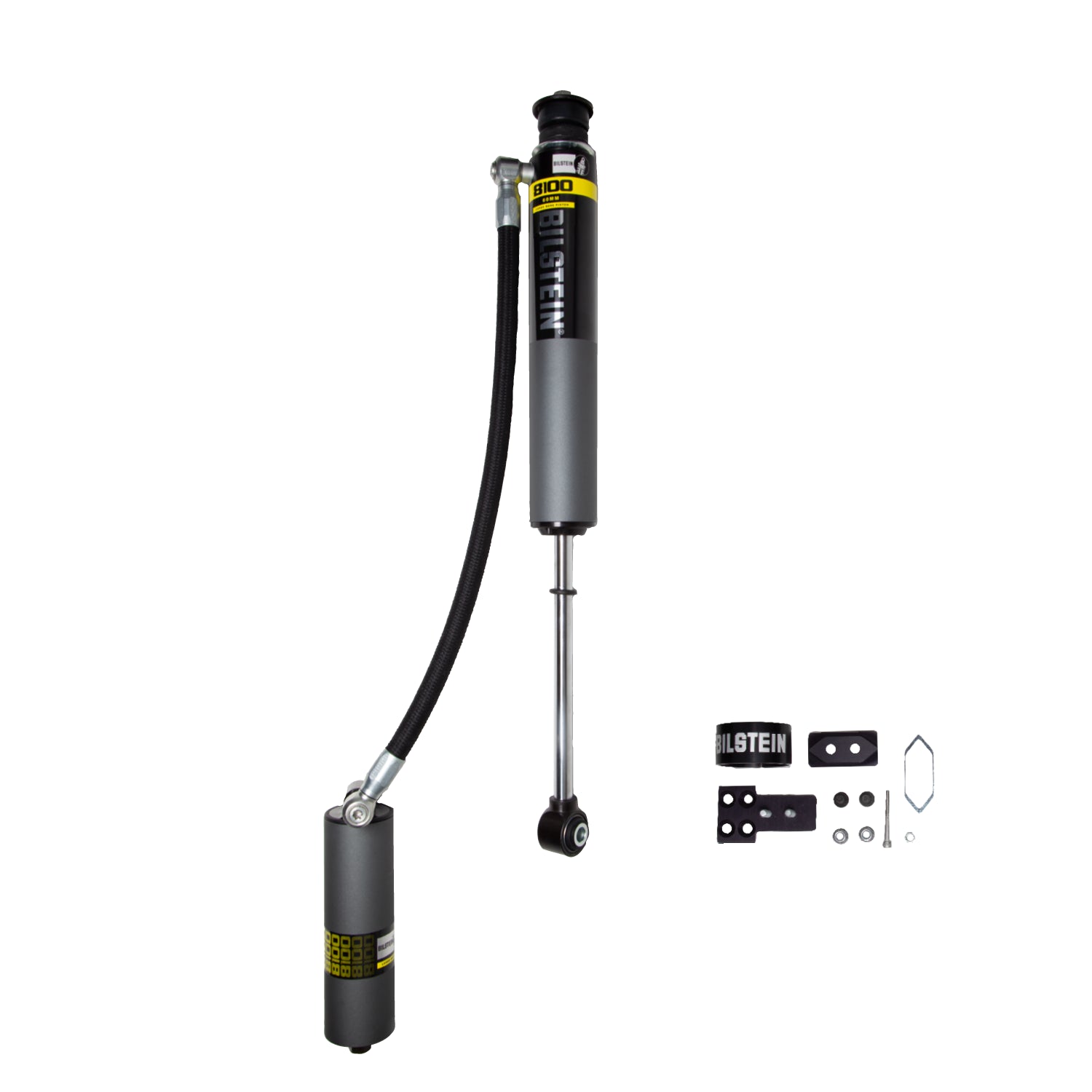

Bilstein B8 8100 reservoir shock absorbers are a large bore 2.65-in OD direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 2.65-in OD shock body shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation
- 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
| Segment | Light Truck |
| Boot Included | No |
| Extended Length (IN) | 25.76 |
| Lower Mount Type | Eye 14.1mm |
| Finish | EVO Grey |
| Upper Mount Type | Stem |
| Extended Length (MM) | 654.3 |
| Internal Design | Monotube |
| Series | B8 8100 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Reservoir | Yes |
| Collapsed Length (MM) | 398.5 |
| Spring Seat Included | No |
| Piston Diameter | 60mm |
| Collapsed Length (IN) | 15.69 |
| Shaft Diameter | 18mm |
Packaging Information
Weight: 20.85 lbs
Dimensions: 40.5 x 11.75 x 6.75 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
24 Month Warranty
⚠ Fitment Notes
- Fits Vehicles With 0-1" Rear Lift; Without Air Suspension
- Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; Without Air Suspension
- Fits Trucks with 0-1" Rear Lift; Without Air Suspension
Share
Vehicle Fitment
Vehicle Fitment
- 2019-2026 Ram 1500 Big Horn — Rear Left
- 2026 Ram 1500 Express — Rear Left
- 2019-2024 Ram 1500 Laramie — Rear Left
- 2026 Ram 1500 Laramie — Rear Left
- 2019-2021 Ram 1500 Laramie Longhorn — Rear Left
- 2021-2024 Ram 1500 Limited Longhorn — Rear Left
- 2019-2026 Ram 1500 Lone Star — Rear Left
- 2021 Ram 1500 Longhorn — Rear Left
- 2019-2026 Ram 1500 Rebel — Rear Left
- 2019-2026 Ram 1500 Tradesman — Rear Left
- 2025-2026 Ram 1500 Warlock — Rear Left
