Bilstein

Bilstein 25-325096 B8 5160 - Suspension Shock Absorber

$310.00 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Bilstein 25-325096 B8 5160 - Suspension Shock Absorber

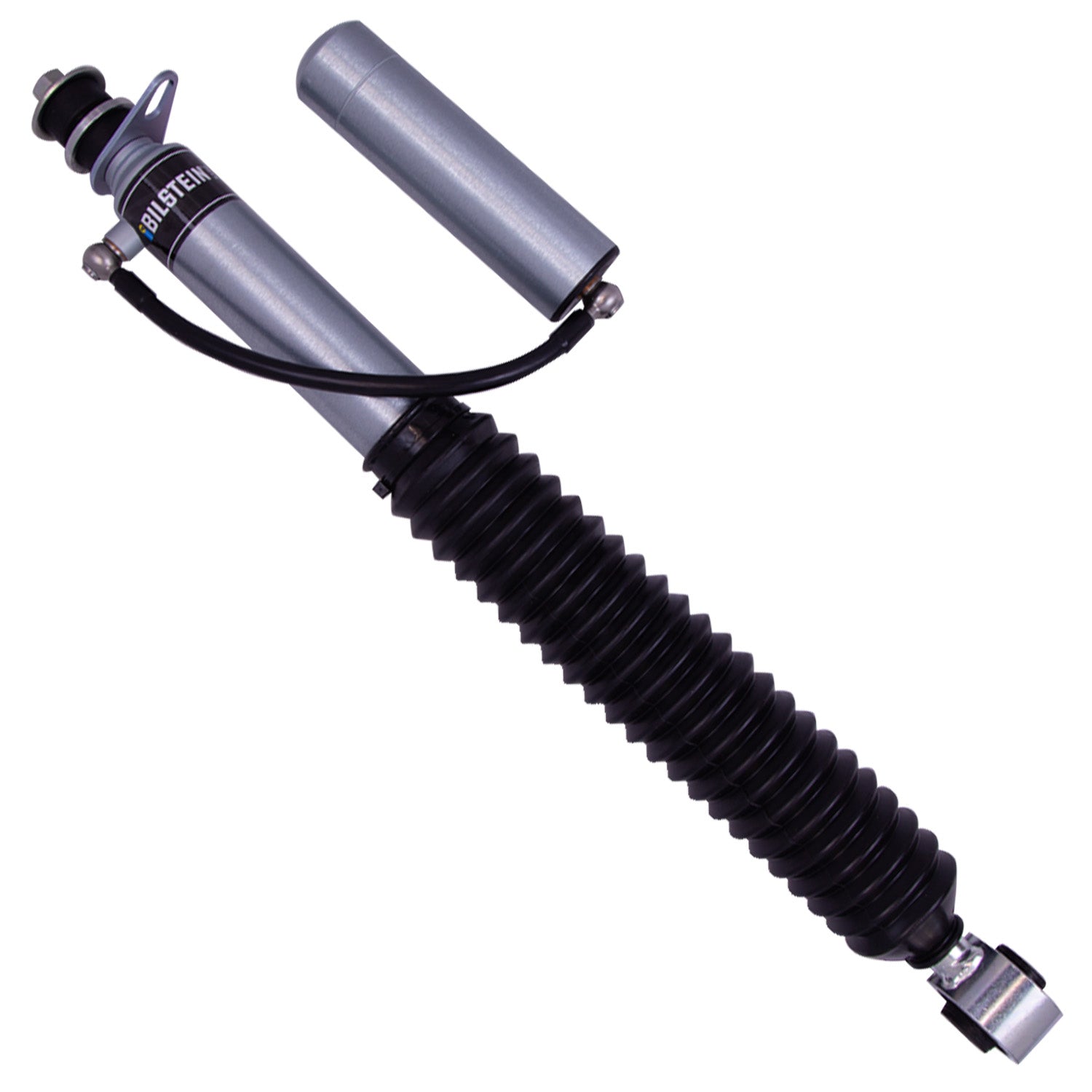

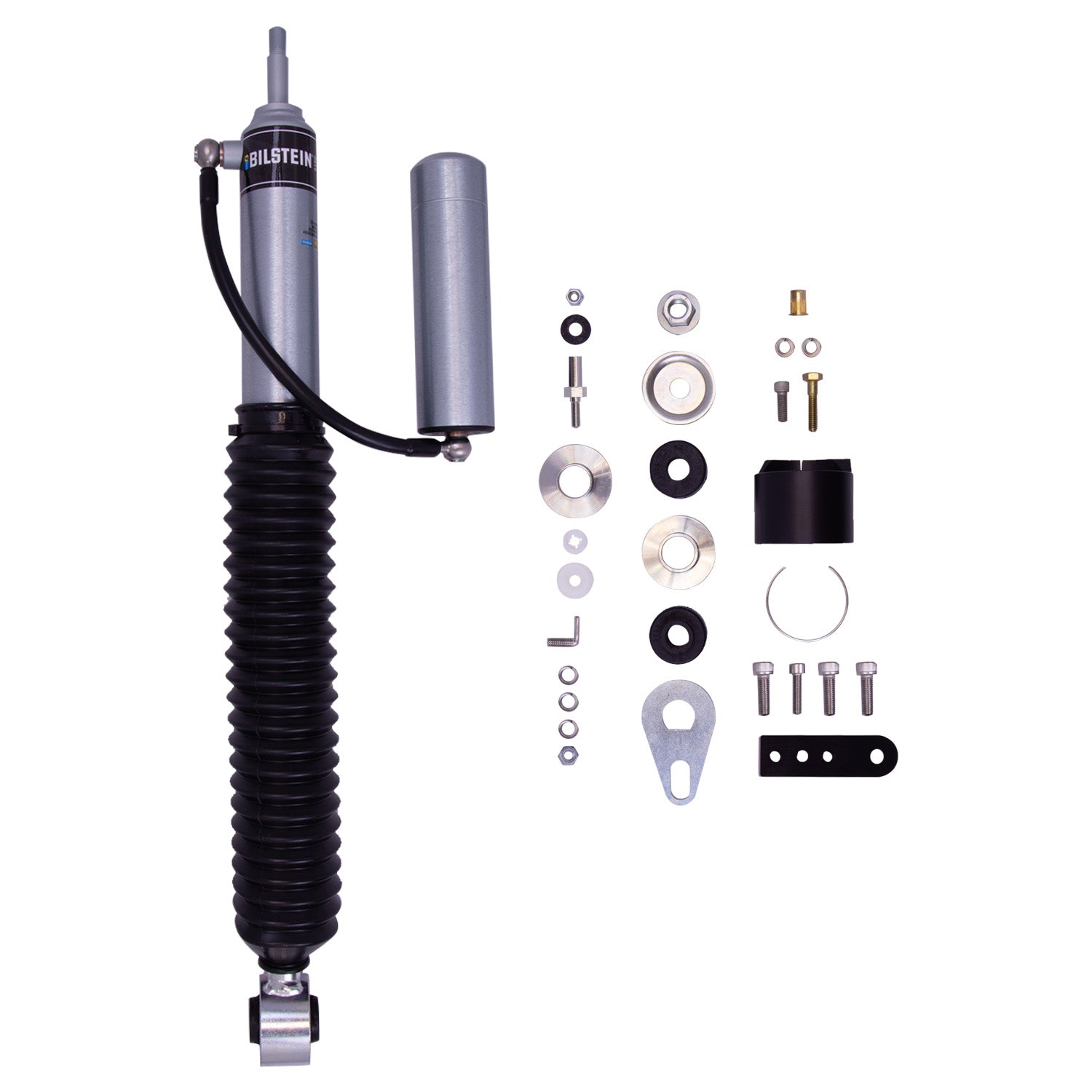

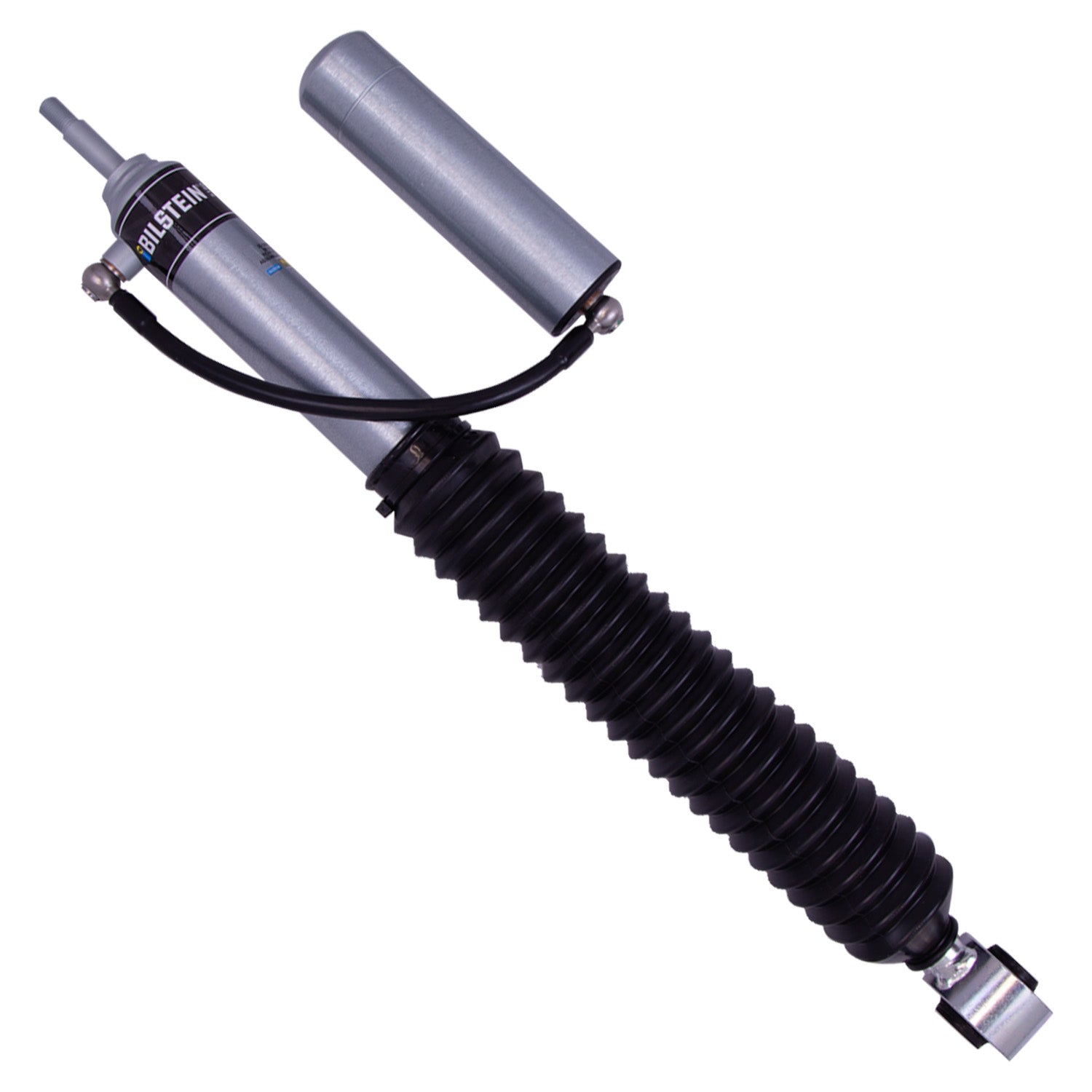

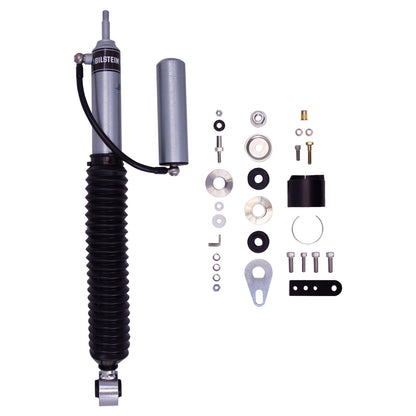

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

46mm monotube design ensures consistent, fade-free performance in all conditions
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Remote reservoir increases shock oil capacity for greater heat dissipation

Specifications

Segment	Light Truck
Stroke/Travel Length (IN)	9.00
Boot Included	Black Bellows
Extended Length (IN)	23.50
Lower Mount Type	Eye 19.25mm
Finish	Zinc Plated
Upper Mount Type	Stem
Stroke/Travel Length (mm)	228.6
Extended Length (MM)	597.0
Billet Reservoir Clamp Included	Yes
Internal Design	Monotube
Series	B8 5160
Adjustable Damping	Non-Adjustable
Body Design	Smooth Body (Non-Coilover)
Reservoir	Yes
Collapsed Length (MM)	368.3
Spring Seat Included	No
Piston Diameter	46mm
Collapsed Length (IN)	14.50
Shaft Diameter	14mm
