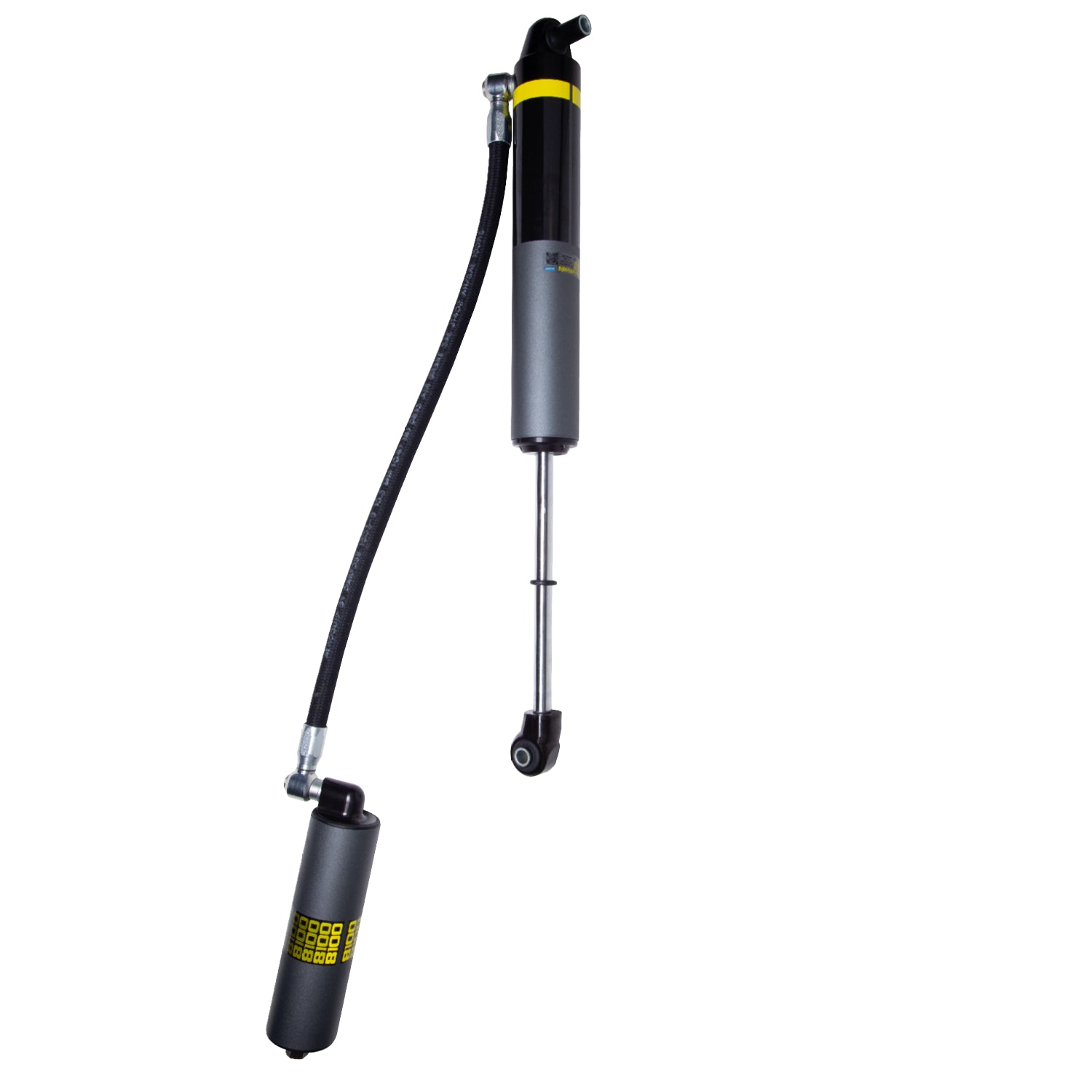

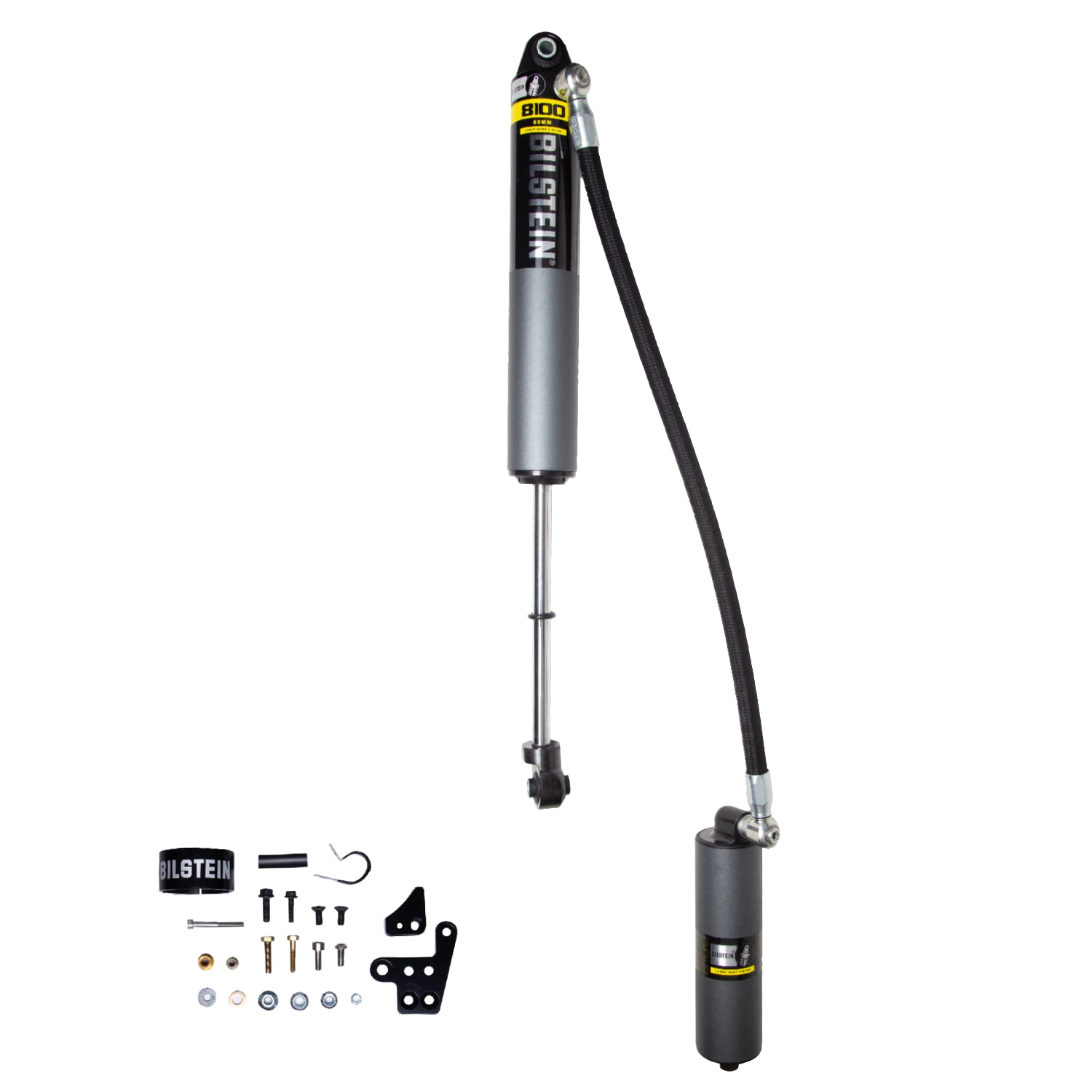

Bilstein 25-330748 B8 8100 - Suspension Shock Absorber
Bilstein 25-330748 B8 8100 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 25-330748 B8 8100 - Suspension Shock Absorber
Bilstein B8 8100 reservoir shock absorbers are a large bore 2.65-in OD direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 2.65-in OD shock body shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation
- 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
| Shaft Diameter | 18mm |
| Boot Included | No |
| Lower Mount Type | Eye 12.8mm |
| Finish | EVO Grey |
| Extended Length (MM) | 691.0 |
| Series | B8 8100 |
| Body Design | Bypass Body (Non-Coilover) |
| Reservoir | Yes |
| Spring Seat Included | No |
| Collapsed Length (IN) | 17.38 |
| Segment | Light Truck |
| Extended Length (IN) | 27.20 |
| Upper Mount Type | Eye 12.8mm |
| Internal Design | Monotube |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (MM) | 441.4 |
| Piston Diameter | 60mm |
Packaging Information
Weight: 22.5 lbs
Dimensions: 40.5 x 11.75 x 6.75 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
24 Month Warranty
⚠ Fitment Notes
- Fits Vehicles With 2-3" Front Lift
Share
Vehicle Fitment
Vehicle Fitment
- 2021 Jeep Gladiator 80th Anniversary — Front Left
- 2020 Jeep Gladiator Altitude — Front Left
- 2022 Jeep Gladiator Altitude — Front Left
- 2023 Jeep Gladiator Freedom — Front Left
- 2021-2023 Jeep Gladiator High Altitude — Front Left
- 2024-2025 Jeep Gladiator High Tide — Front Left
- 2024 Jeep Gladiator Jeep Beach — Front Left
- 2020 Jeep Gladiator Launch Edition — Front Left
- 2024-2025 Jeep Gladiator NightHawk — Front Left
- 2020-2023 Jeep Gladiator Overland — Front Left
- 2020-2026 Jeep Gladiator Rubicon — Front Left
- 2024-2026 Jeep Gladiator Rubicon X — Front Left
- 2020-2026 Jeep Gladiator Sport — Front Left
- 2020-2026 Jeep Gladiator Sport S — Front Left
- 2022-2026 Jeep Gladiator Texas Trail — Front Left
- 2021-2026 Jeep Gladiator Willys — Front Left
- 2021-2023 Jeep Gladiator Willys Sport — Front Left
