Bilstein 25-332315 B8 8100 Black Hawk - Suspension Shock Absorber
Bilstein 25-332315 B8 8100 Black Hawk - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 25-332315 B8 8100 Black Hawk - Suspension Shock Absorber

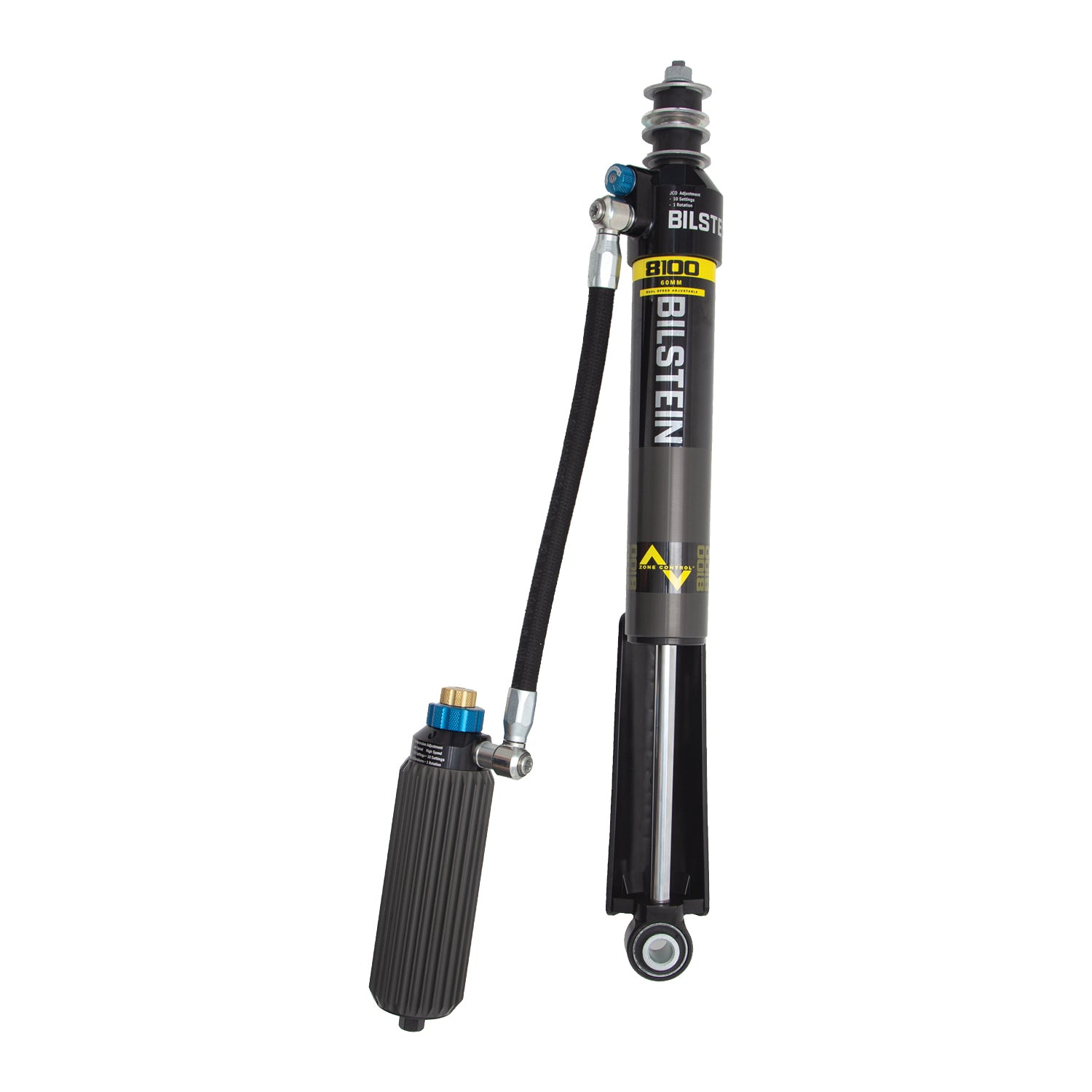

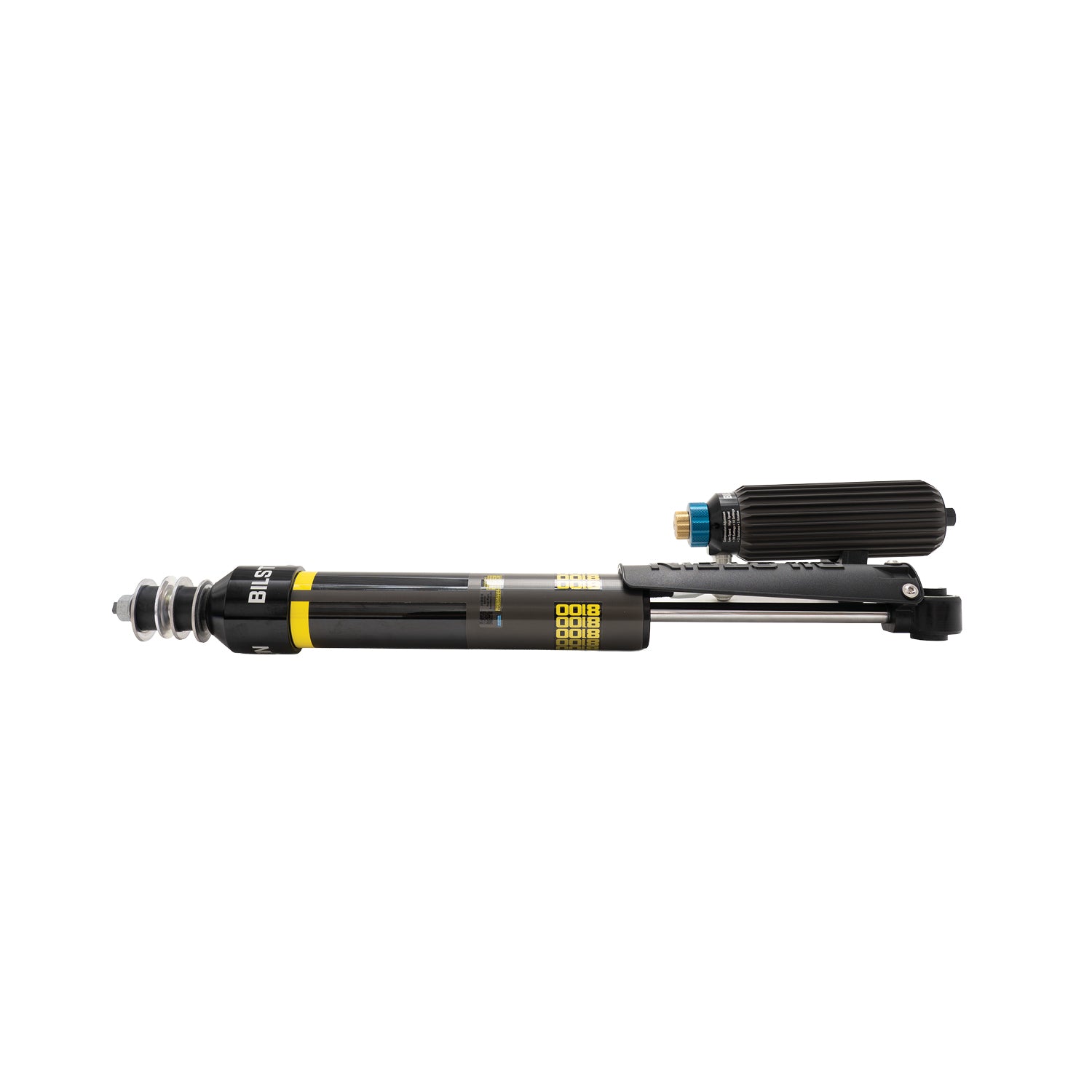

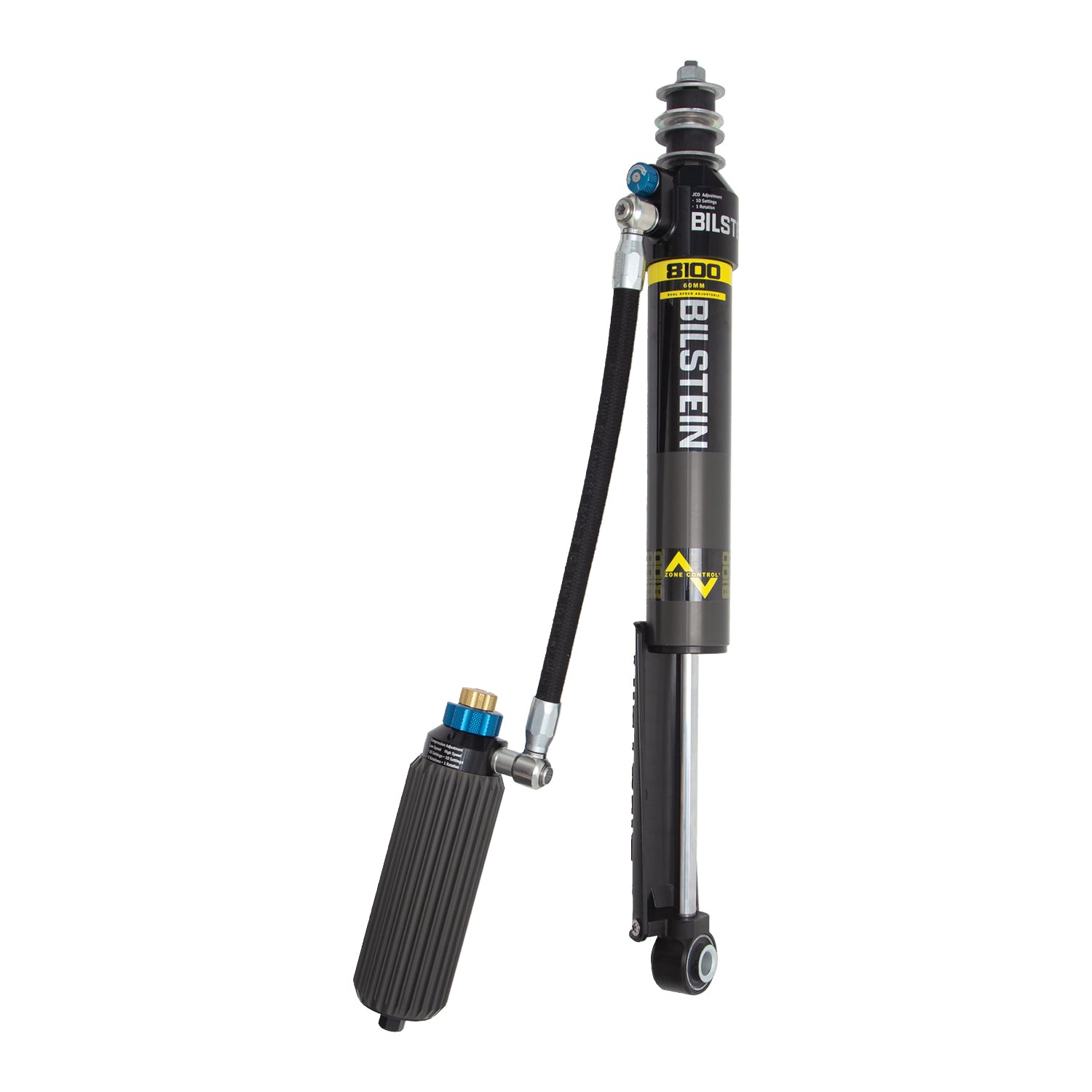

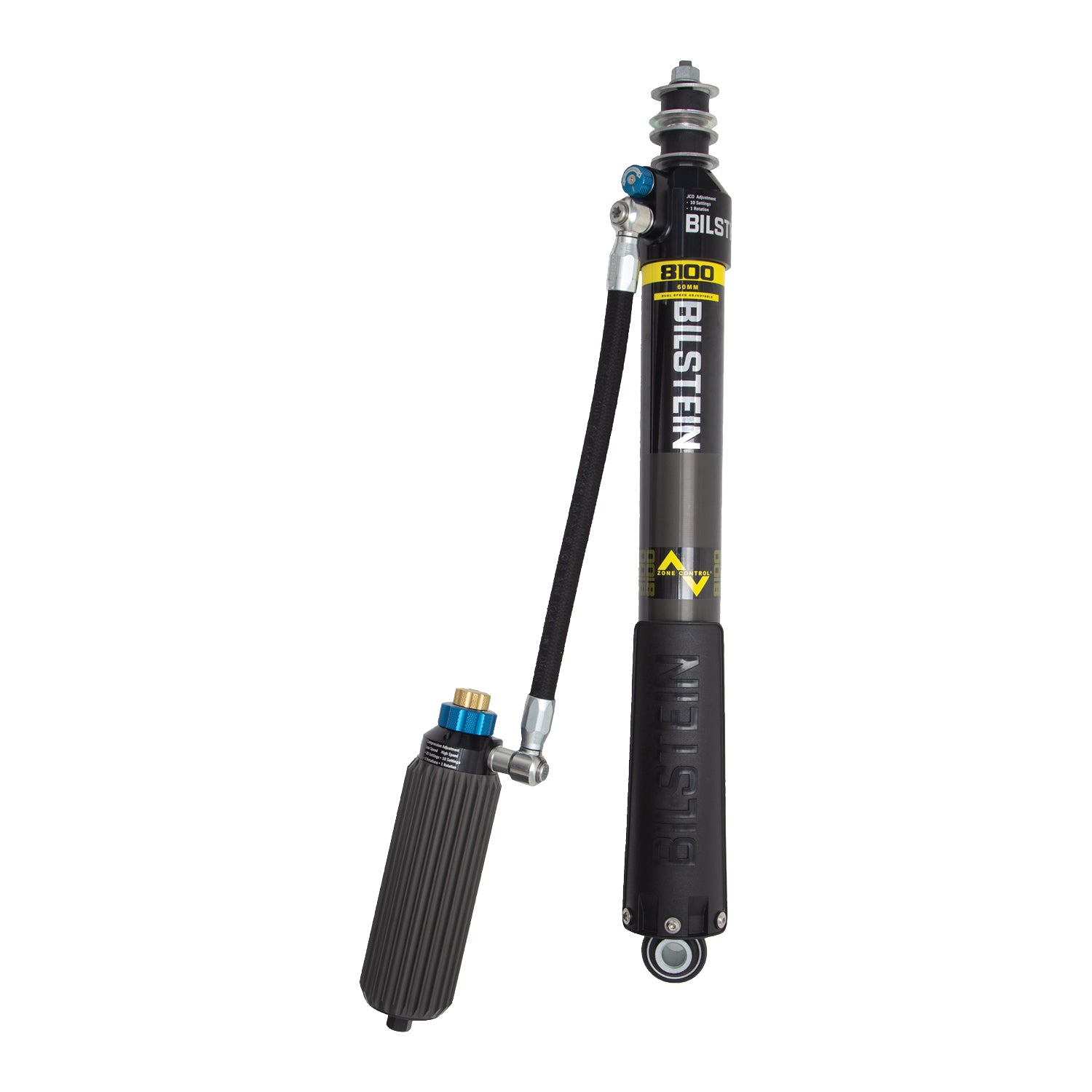

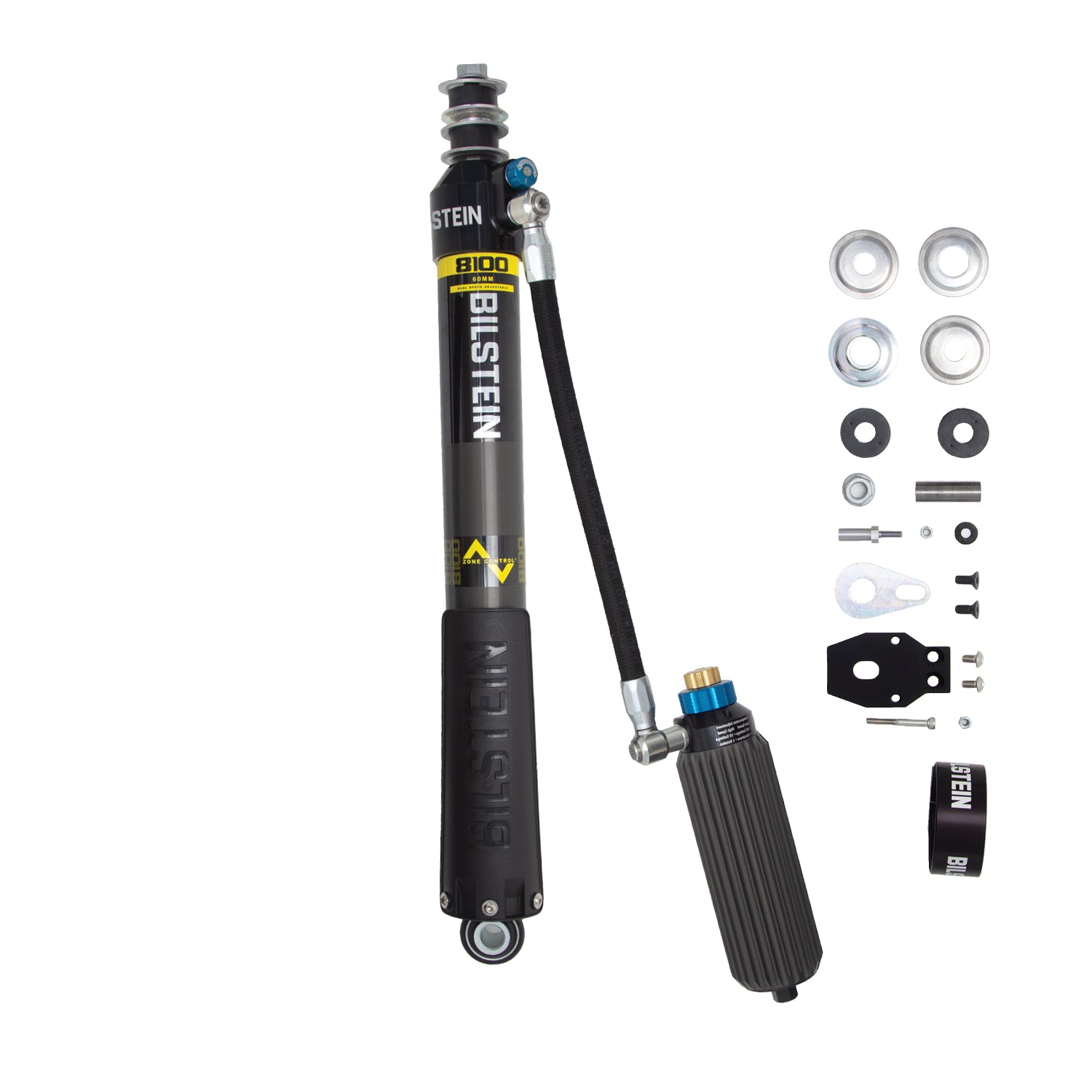

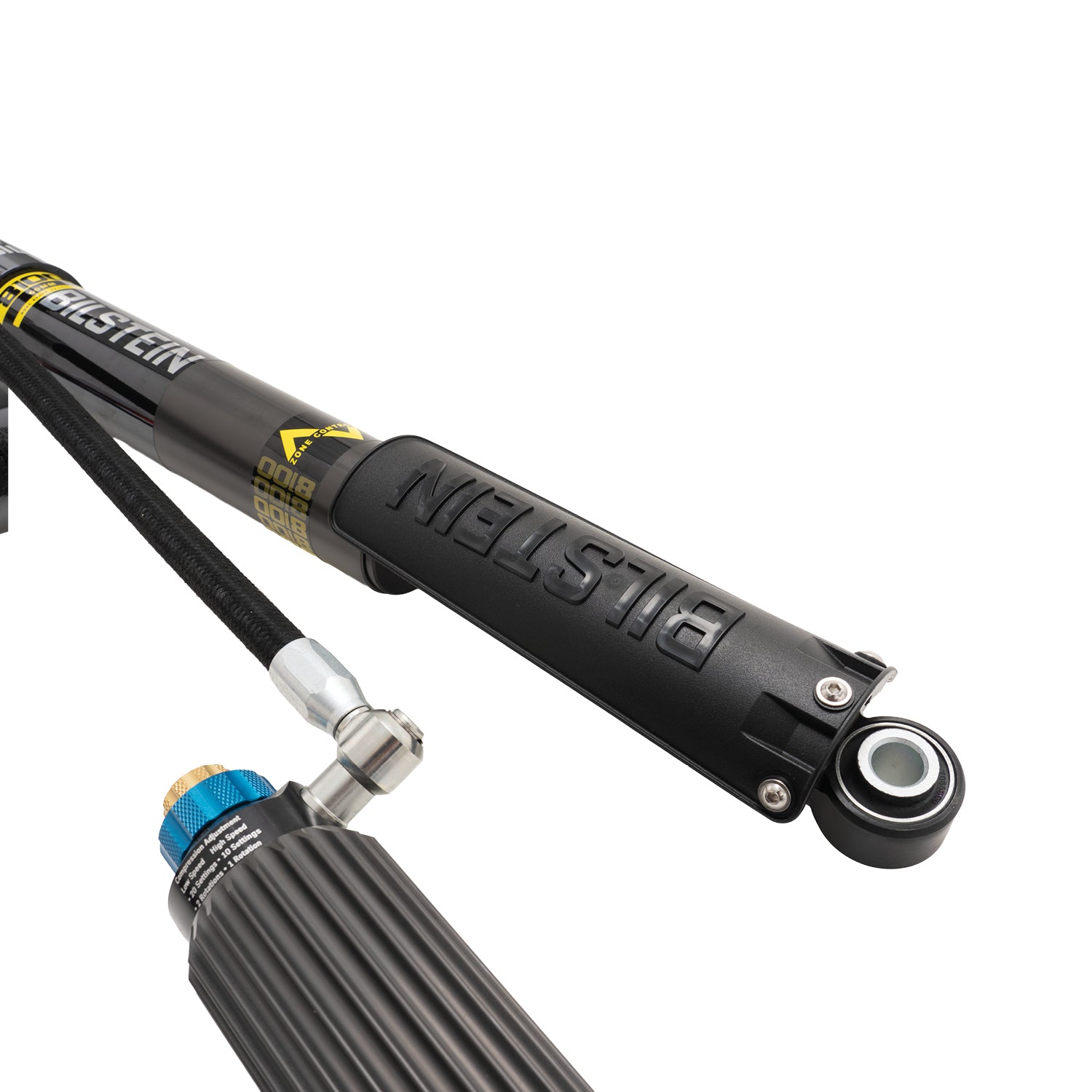

BILSTEIN B8 8100 Black Hawk 3-Way adjustable shock absorbers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8100 Black Hawk offers the “best in class” ride experience.
- Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
- ZoneControl®: Position sensitive damping controlled by independent pistons

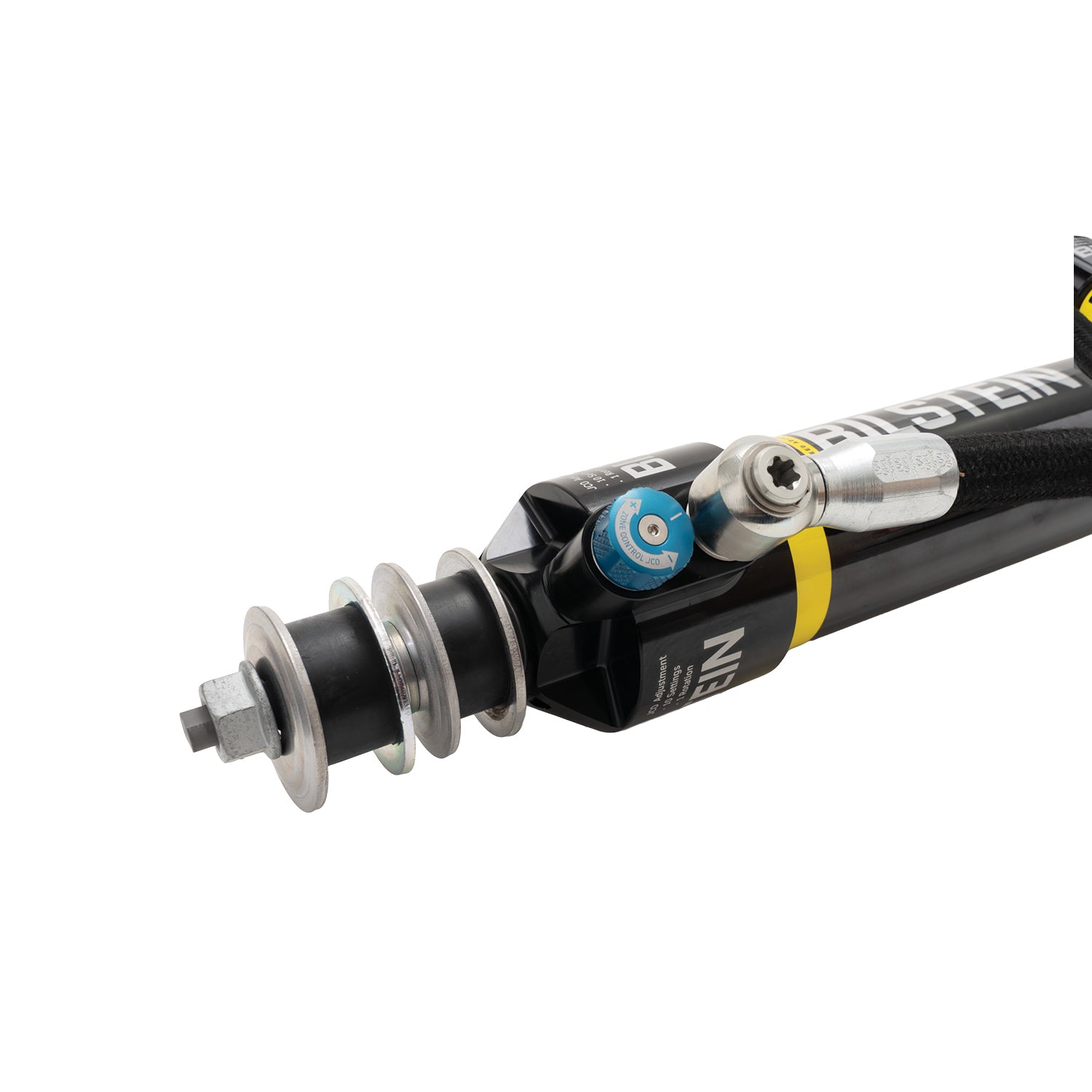

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
Specifications
| Extended Length (IN) | 25.18 |
| Lower Mount Type | Eye 19.1mm |
| Finish | EVO Grey |
| Extended Length (mm) | 639.5 |
| Internal Design | Monotube |
| Body Material | Aluminum |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Reservoir | Yes - Finned Aluminum |
| Rock Shield Included | Yes |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
| Segment | Light Truck |
| Boot Included | No |
| Upper Mount Type | Stem |
| Collapsed Length (mm) | 426.3 |
| Series | B8 8100 Black Hawk |
| Body Design | 60mm ID Smooth Body (Non-Coilover) |
| Spring Seat Included | No |
| Collapsed Length (IN) | 16.78 |
Packaging Information
Weight: 20 lbs
Dimensions: 40.5 x 11.75 x 6.75 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
24 Month Warranty
⚠ Fitment Notes
- Fits Vehicles With 0-1" Rear Lift; Without Rear Air Suspension; Without Adaptive Variable Suspension (AVS)
- Fits Vehicles With 0-1" Rear Lift; Without Rear Air Suspension
Share
Vehicle Fitment
Vehicle Fitment
- 2022-2026 Toyota Tundra 1794 Edition — Rear Left
- 2022-2026 Toyota Tundra Capstone — Rear Left
- 2022-2026 Toyota Tundra Limited — Rear Left
- 2022-2026 Toyota Tundra Platinum — Rear Left
- 2022-2026 Toyota Tundra SR — Rear Left
- 2022-2026 Toyota Tundra SR5 — Rear Left
