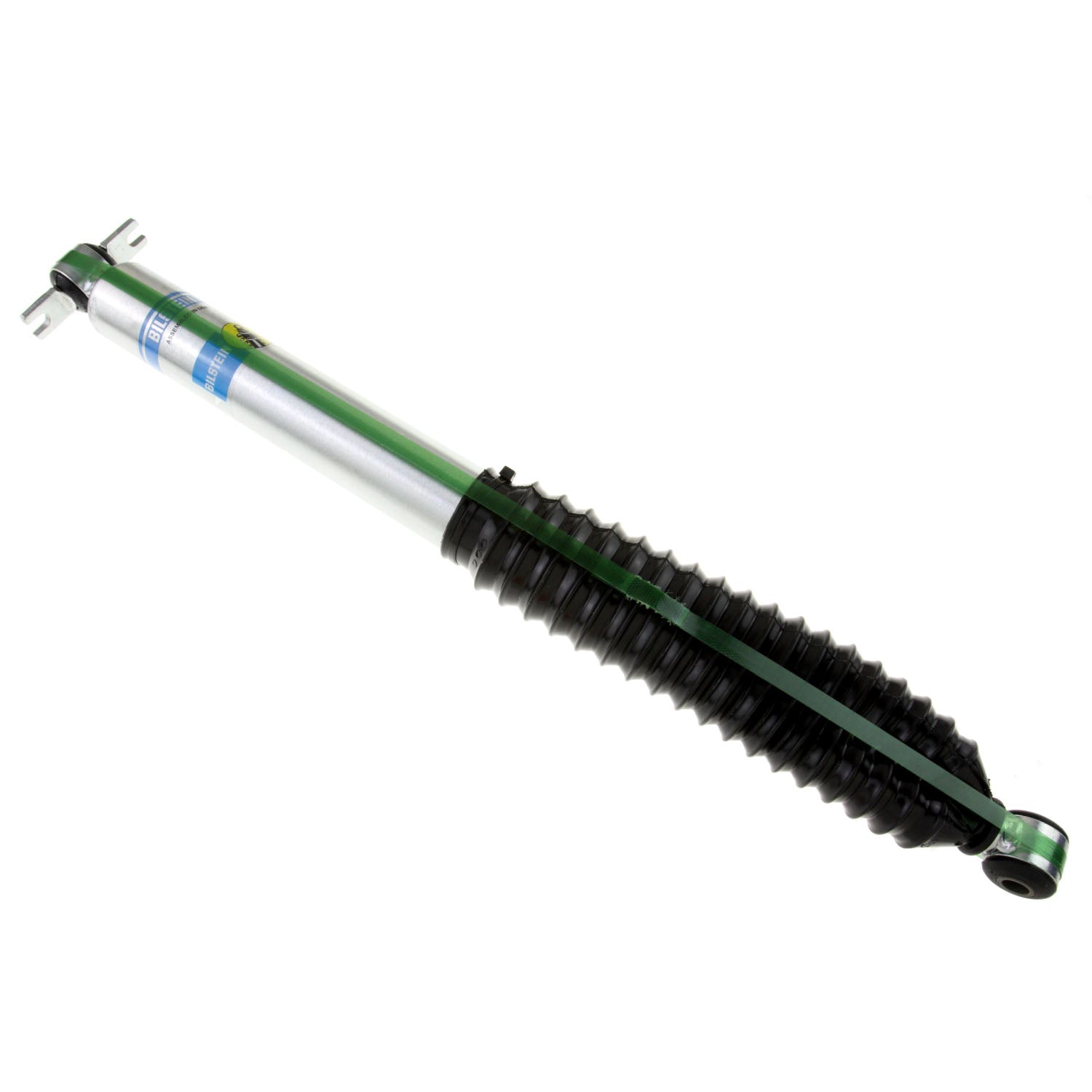

Bilstein 33-185514 B8 5100 - Suspension Shock Absorber
Bilstein 33-185514 B8 5100 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 33-185514 B8 5100 - Suspension Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Upper Mount Type | Bar Pin |
| Stroke/Travel Length (mm) | 243.6 |
| Collapsed Length (MM) | 391.5 |
| Extended Length (MM) | 635.0 |
| Internal Design | Monotube |
| Series | B8 5100 |
| Collapsed Length (IN) | 15.41 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Spring Seat Included | No |
| Shaft Diameter | 14mm |
| Reservoir | No |
| Piston Diameter | 46mm |
| Segment | Light Truck |
| Stroke/Travel Length (IN) | 9.59 |
| Extended Length (IN) | 25.00 |
| Boot Included | Blue Bellows |
| Lower Mount Type | Eye 12.7mm |
| Finish | Zinc Plated |
Packaging Information
Weight: 5.2 lbs
Dimensions: 26.8 x 3.55 x 3.55 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Fits Vehicles With 3.5-4" Rear Lift; With Short Arm Lift Kit
Share
Vehicle Fitment
Vehicle Fitment
- 2006 Jeep Wrangler 65th Anniversary Edition — Rear
- 2003-2006 Jeep Wrangler Rubicon — Rear
- 1997-2004 Jeep Wrangler Sahara — Rear
- 1997-2006 Jeep Wrangler SE — Rear
- 1997-2006 Jeep Wrangler Sport — Rear
- 2004-2006 Jeep Wrangler Unlimited — Rear
- 2005-2006 Jeep Wrangler Unlimited Rubicon — Rear
- 2002-2006 Jeep Wrangler X — Rear
