Bilstein 33-185552 B8 5125 - Suspension Shock Absorber

$120.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

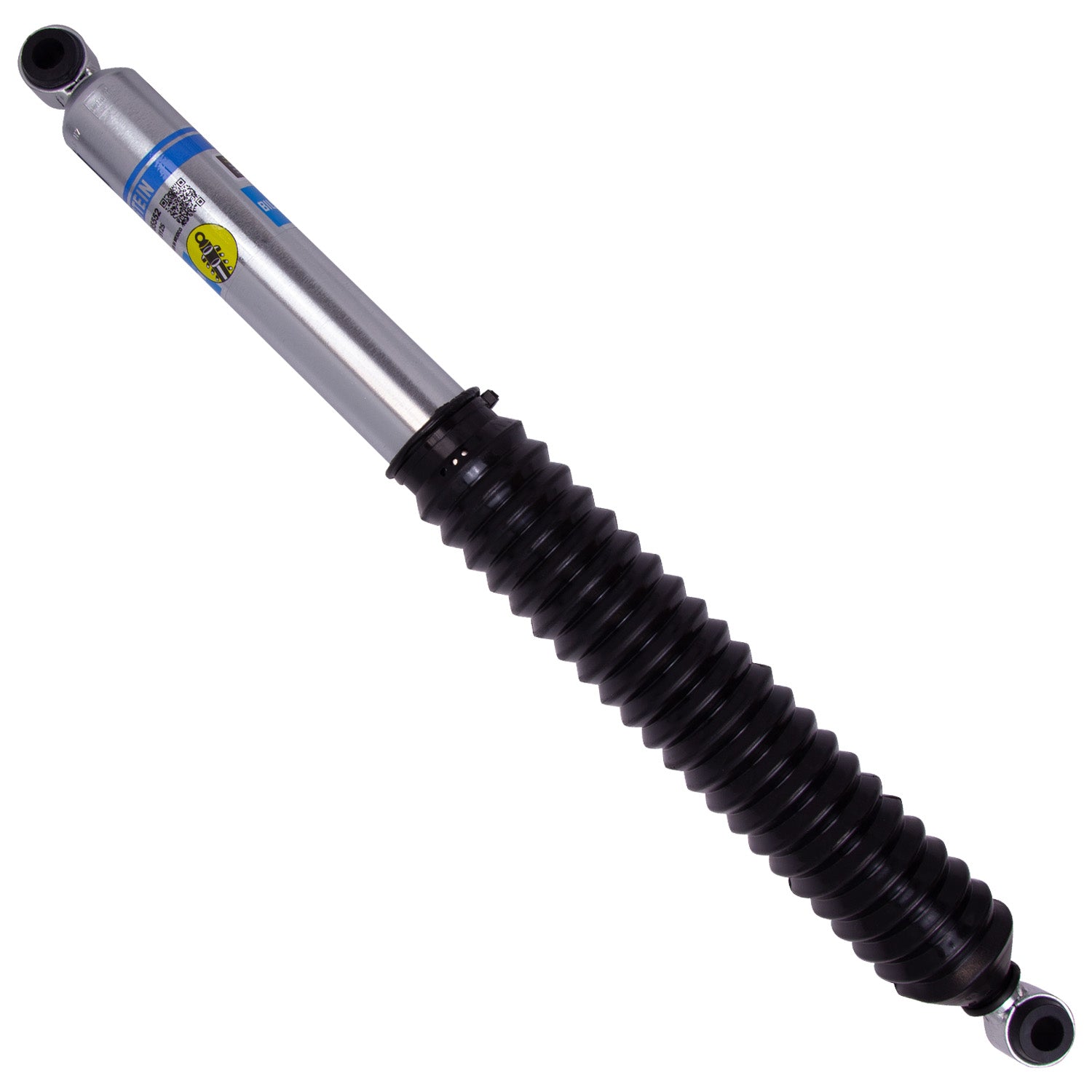

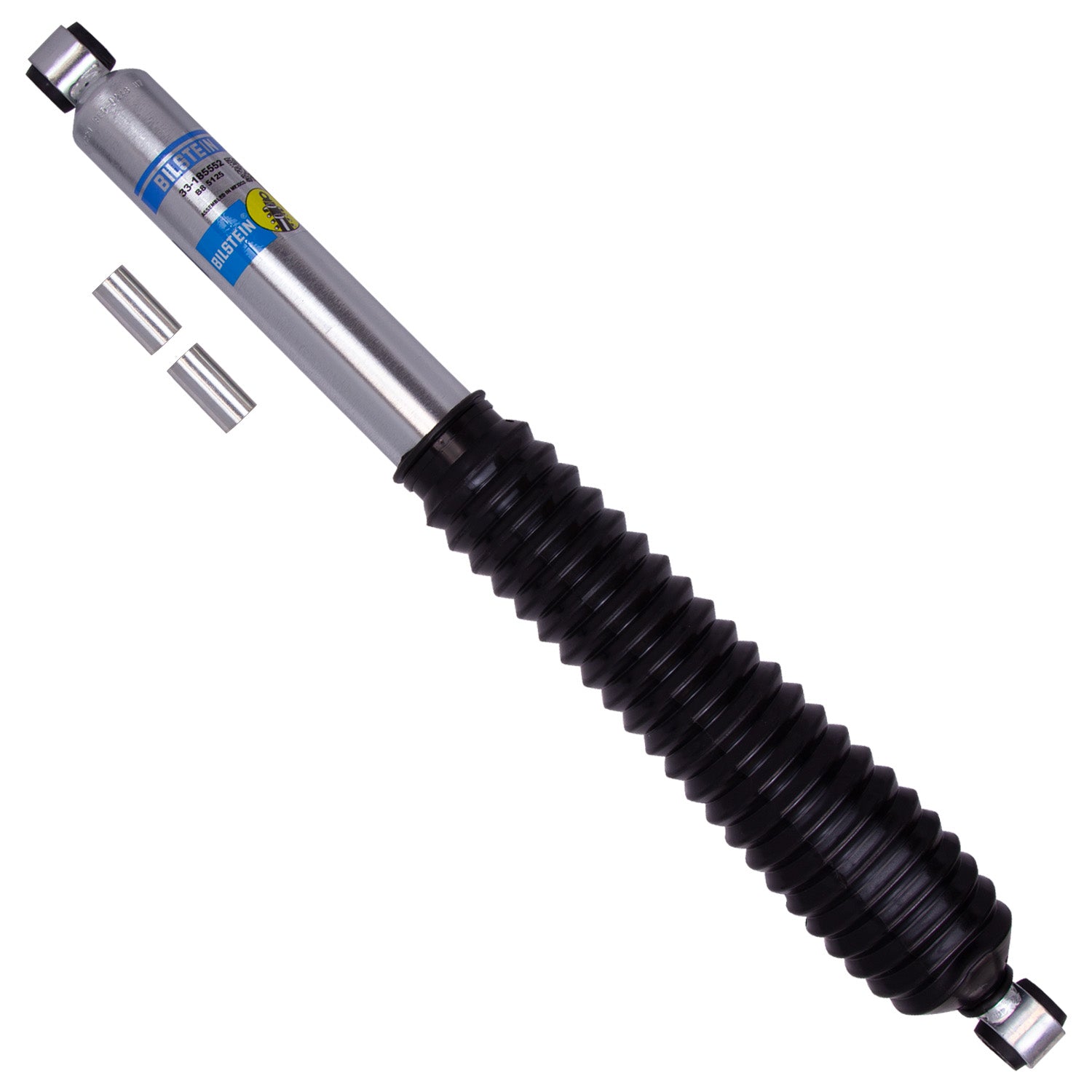

Bilstein 33-185552 B8 5125 - Suspension Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

46mm monotube design ensures consistent, fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

Specifications

Collapsed Length (MM)	404.0
Internal Design	Monotube
Rebound @0.52m/s	2495
Collapsed Length (IN)	15.91
Body Design	Smooth Body (Non-Coilover)
Spring Seat Included	No
Shaft Diameter	14mm
Segment	Light Truck
Extended Length (IN)	25.91
Lower Mount Type	Eye 5/8in
Finish	Zinc Plated
Stroke/Travel Length (mm)	254.3
Extended Length (MM)	658.2
Series	B8 5125
Compression @0.52m/s	620
Adjustable Damping	Non-Adjustable
Mount Type	Eye-to-Eye
Reservoir	No
Piston Diameter	46mm
Stroke/Travel Length (IN)	10.01
Boot Included	Black Bellows
Upper Mount Type	Eye 5/8in
