Bilstein
Bilstein 33-185606 B8 5125 - Suspension Shock Absorber
Bilstein 33-185606 B8 5125 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features

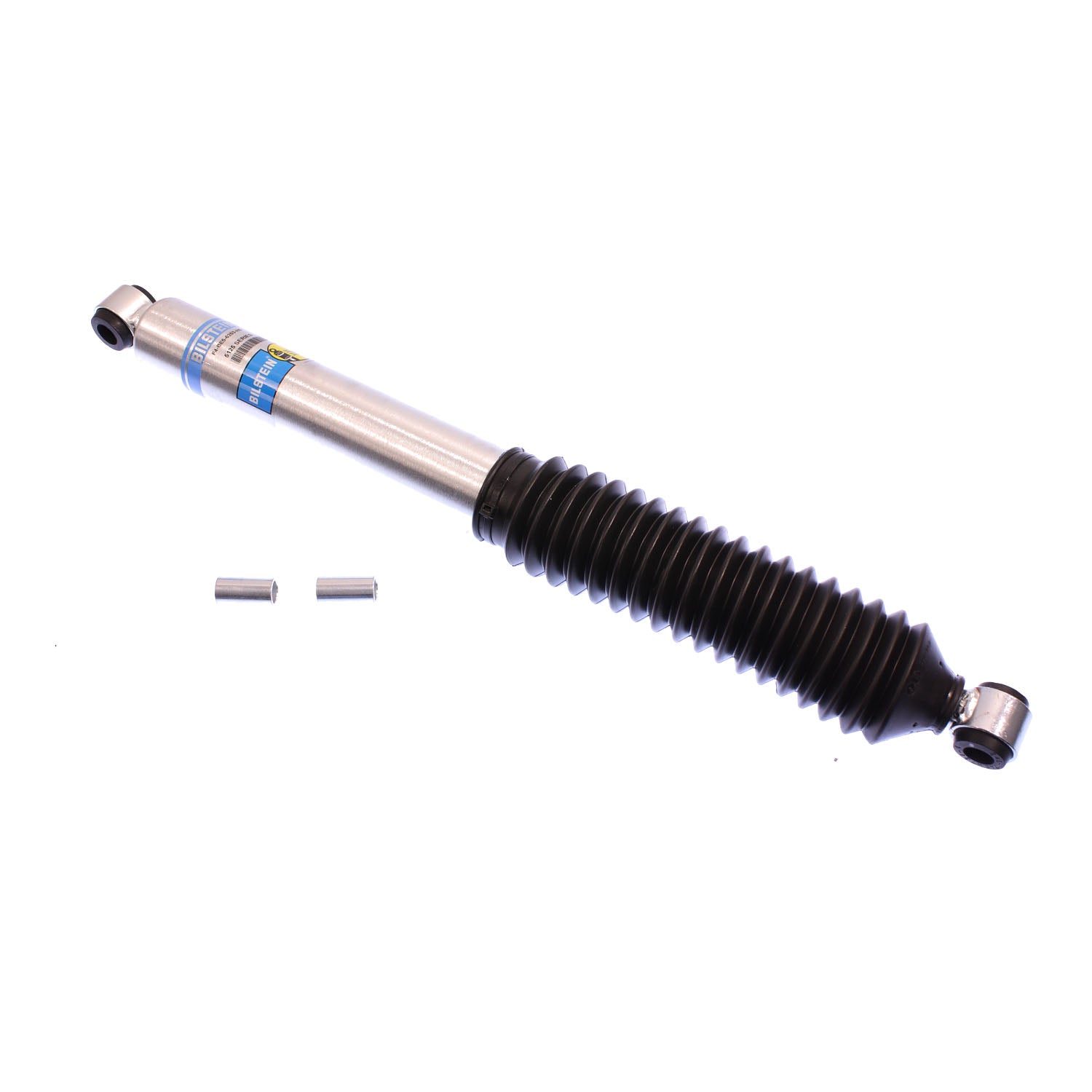

Bilstein 33-185606 B8 5125 - Suspension Shock Absorber
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Segment | Light Truck |
| Boot Included | Black Bellows |
| Lower Mount Type | Eye 5/8in |
| Finish | Zinc Plated |
| Stroke/Travel Length (mm) | 214.1 |
| Extended Length (MM) | 573.2 |
| Series | B8 5125 |
| Compression @0.52m/s | 620 |
| Adjustable Damping | Non-Adjustable |
| Mount Type | Eye-to-Eye |
| Reservoir | No |
| Piston Diameter | 46mm |
| Stroke/Travel Length (IN) | 8.43 |
| Extended Length (IN) | 22.57 |
| Upper Mount Type | Eye 5/8in |
| Collapsed Length (MM) | 359.0 |
| Internal Design | Monotube |
| Rebound @0.52m/s | 2495 |
| Collapsed Length (IN) | 14.13 |
| Body Design | Smooth Body (Non-Coilover) |
| Spring Seat Included | No |
| Shaft Diameter | 14mm |
Packaging Information
Weight: 4.63 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
3 Month Warranty
⚠ Fitment Notes
- Fits Vehicles With 3-4" Front Lift
- Fits Vehicles With 4" Front Lift
- Fits Vehicles With 2-2.5" Front Lift
- Fits Vehicles With 0-2" Rear Lift
Share
Vehicle Fitment
Vehicle Fitment
- 1959-1983 Jeep CJ5 Base — Front
- 1977-1980 Jeep CJ5 Golden Eagle — Front
- 1980-1983 Jeep CJ5 Laredo — Front
- 1982-1983 Jeep CJ5 Limited — Front
- 1975-1983 Jeep CJ5 Renegade — Front
- 1966-1968 Jeep CJ5A Base — Front
- 1976-1986 Jeep CJ7 Base — Front
- 1977-1979 Jeep CJ7 Golden Eagle — Front
- 1980 Jeep CJ7 Golden Hawk — Front
- 1980-1983 Jeep CJ7 Laredo — Front
- 1985-1986 Jeep CJ7 Laredo — Front
- 1982-1983 Jeep CJ7 Limited — Front
- 1976-1986 Jeep CJ7 Renegade — Front
- 1960-1982 Toyota Land Cruiser Base — Front
- 1960-1982 Toyota Land Cruiser Base — Rear
