Bilstein

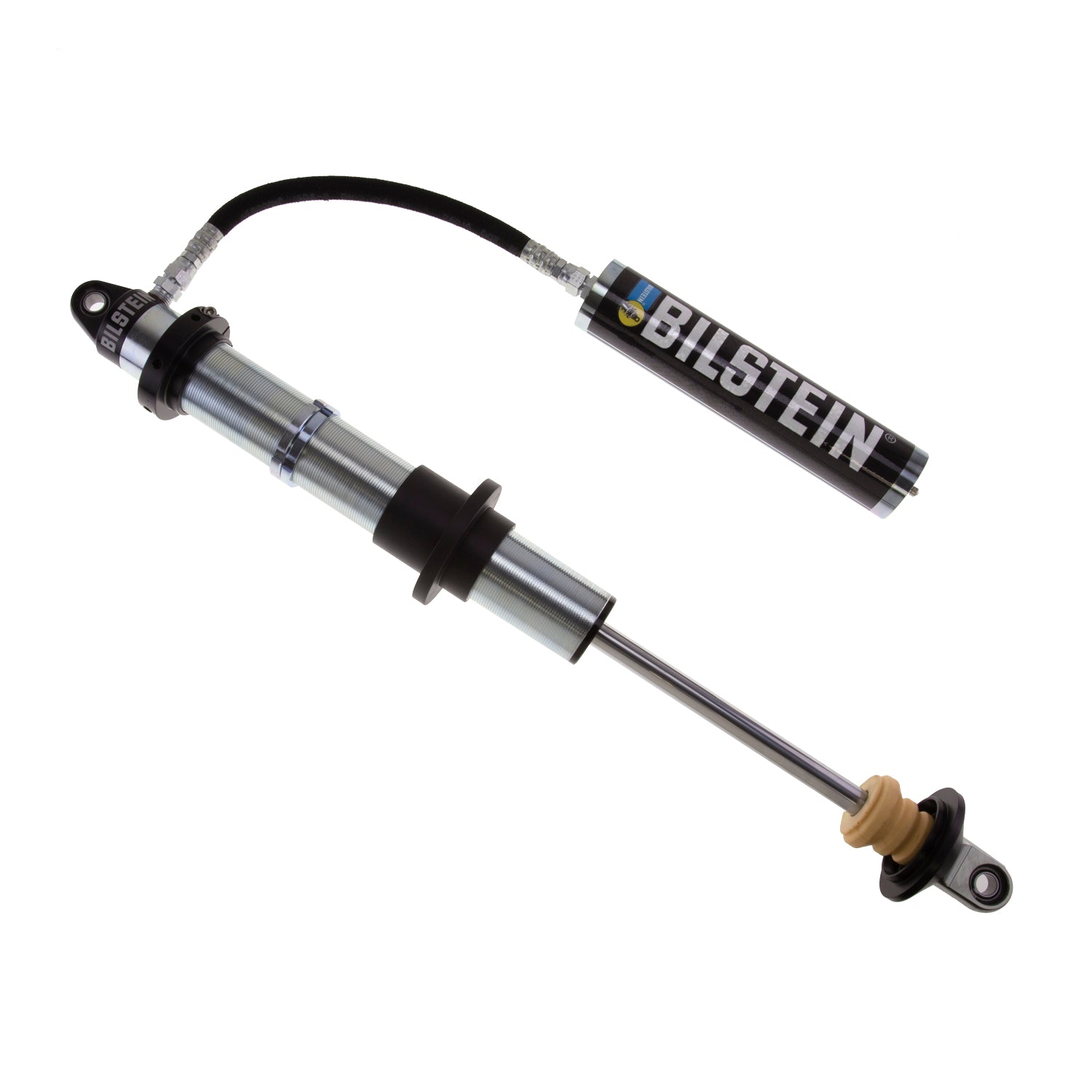

Bilstein 33-225616 B8 8125 - Suspension Shock Absorber

Bilstein 33-225616 B8 8125 - Suspension Shock Absorber

Regular price $604.00 USD
Regular price Sale price $604.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 4 left

Quantity
Description & Features

Bilstein 33-225616 B8 8125 - Suspension Shock Absorber

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

  • Available in 46mm and 60mm monotubes for consistent, fade-free performance
  • Threaded body with dual-rate coilover hardware
  • Remote reservoir for greater resistance to heat and increased travel length
Specifications
Shaft Diameter (mm) 22.0
Extended Length (IN) 33.50
Upper Mount Type Eye .5x1.5in
Collapsed Length (MM) 546.1
Optional Reservoir Clamp B4-KT1-Z292A00
Series B8 8125
Collapsed Length (IN) 21.50
Mount Type Eye-to-Eye
Reservoir Yes
Piston Diameter 60mm
Segment Motorsports
Stroke/Travel Length (IN) 12.00
Lower Mount Type Eye .5x1.5in
Finish Zinc Plated
Stroke/Travel Length (mm) 304.8
Extended Length (MM) 850.9
Internal Design Monotube
Rebound @0.52m/s 3700
Body Design Threaded Body Screw Top (Coilover)
Spring Seat Included Yes
Compression @0.52m/s 1100
Packaging Information

Weight: 20.48 lbs
Dimensions: 40.5 x 11.75 x 6.75 IN

Safety

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Warranty

3 Month Warranty
