Bilstein
Bilstein 33-230436 B8 5125 - Suspension Shock Absorber
Bilstein 33-230436 B8 5125 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features

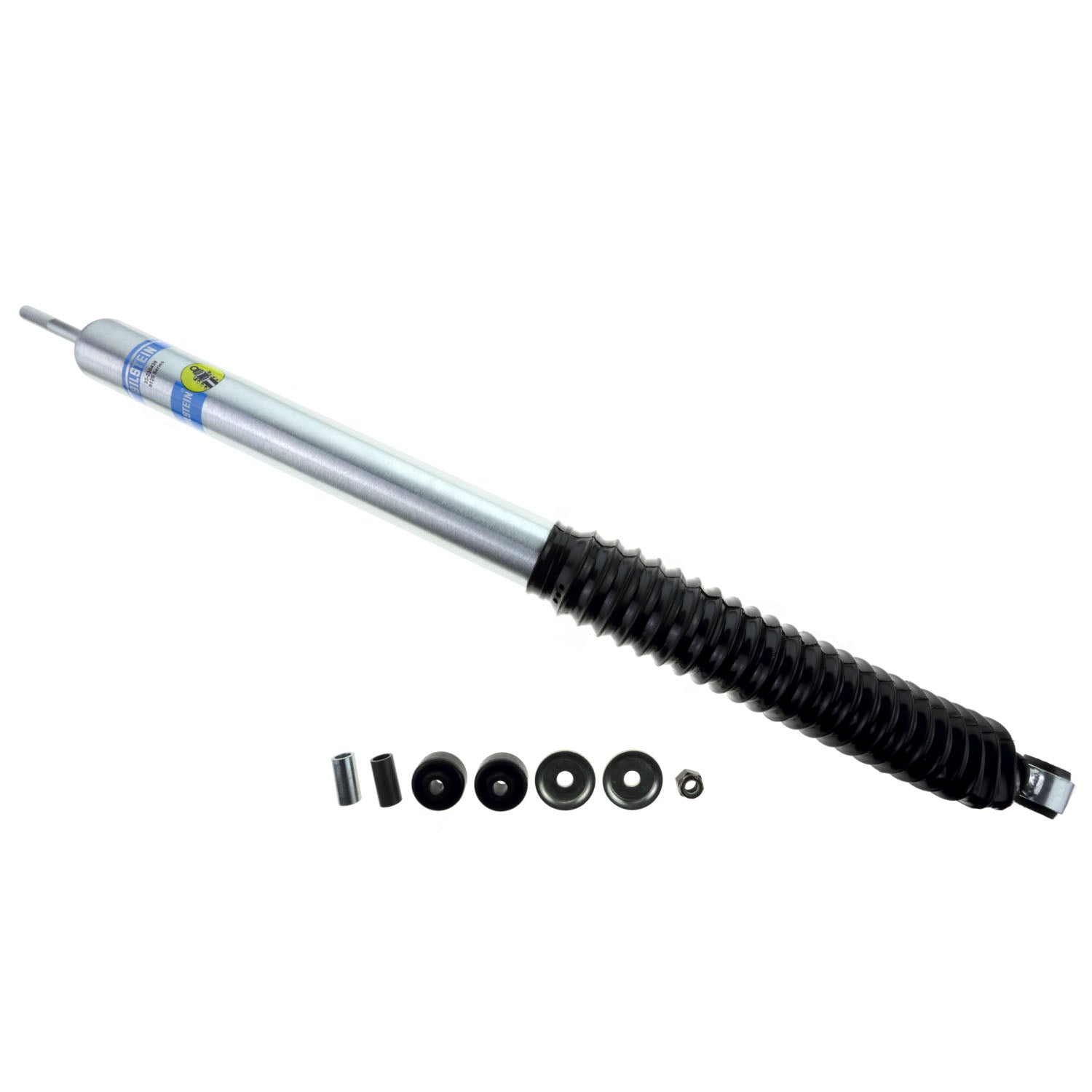

Bilstein 33-230436 B8 5125 - Suspension Shock Absorber

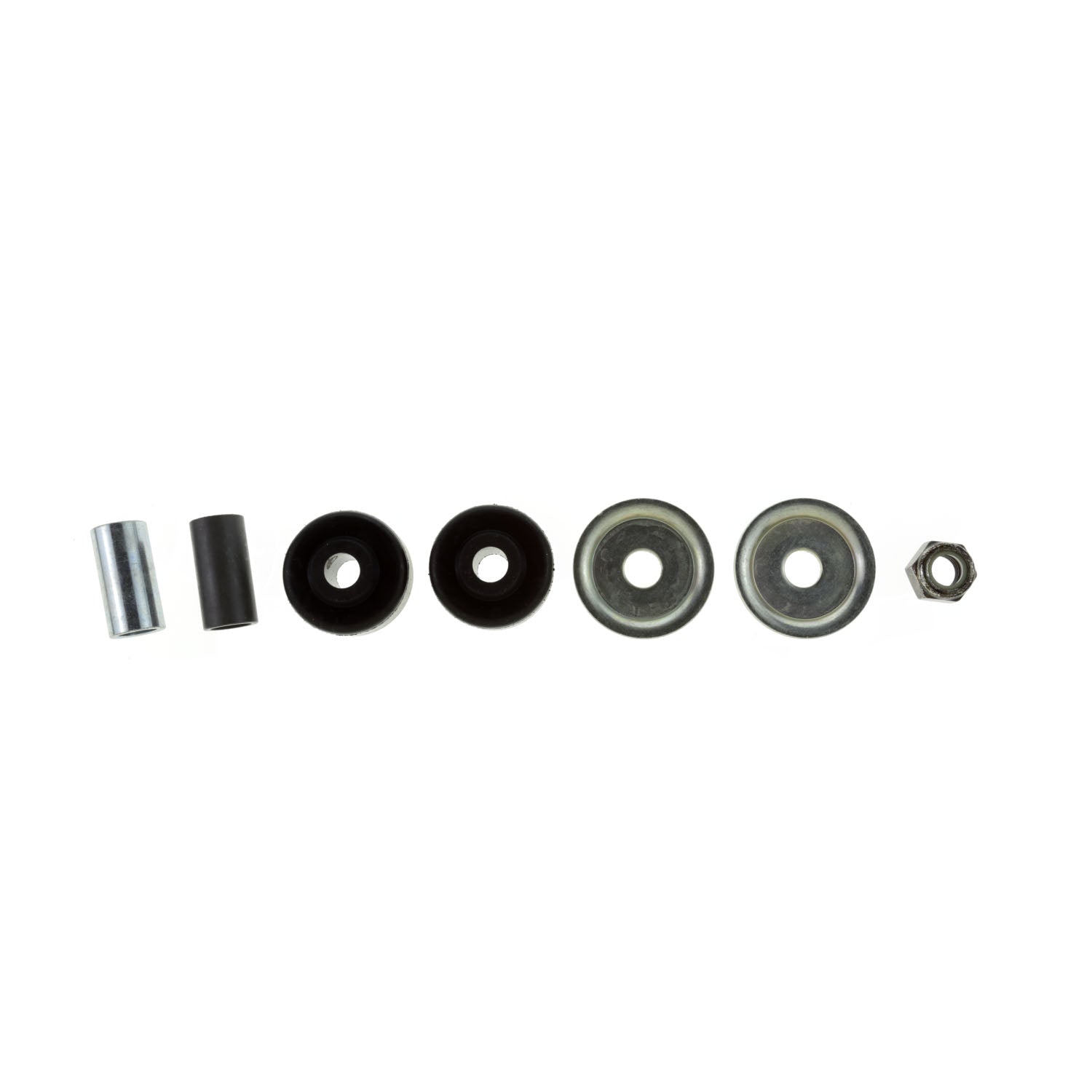

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Stroke/Travel Length (mm) | 309.1 |
| Collapsed Length (MM) | 475.9 |
| Extended Length (MM) | 785.1 |
| Internal Design | Monotube |
| Series | B8 5125 |
| Rebound @0.52m/s | 2495 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Mount Type | Stem-to-Eye |
| Reservoir | No |
| Spring Seat Included | No |
| Piston Diameter | 46mm |
| Compression @0.52m/s | 620 |
| Collapsed Length (IN) | 18.74 |
| Segment | Light Truck |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 12.17 |
| Boot Included | Black Bellows |
| Extended Length (IN) | 30.91 |
| Lower Mount Type | Eye 5/8in |
| Finish | Zinc Plated |
| Upper Mount Type | Stem |
Packaging Information
Weight: 6.15 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
