Bilstein 33-247717 B8 5100 - Suspension Shock Absorber
Bilstein 33-247717 B8 5100 - Suspension Shock Absorber
Low stock: 4 left
Couldn't load pickup availability
Description & Features

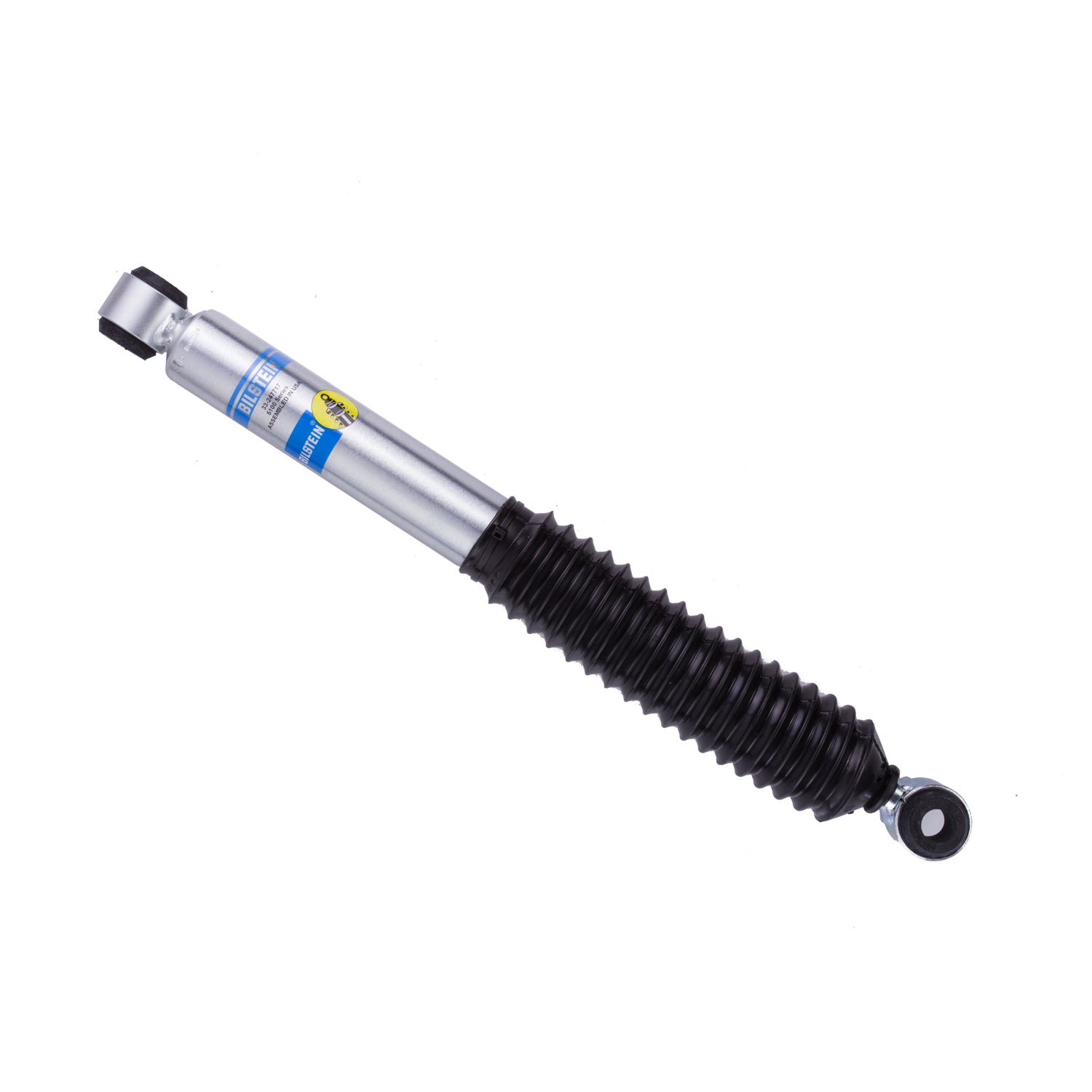

Bilstein 33-247717 B8 5100 - Suspension Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 8.02 |
| Extended Length (IN) | 22.09 |
| Stroke/Travel Length (mm) | 203.7 |
| Collapsed Length (MM) | 357.5 |
| Lower Mount Type | Eye 19mm |
| Reservoir | No |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (IN) | 14.07 |
| Segment | Light Truck |
| Boot Included | Black Bellows |
| Finish | Zinc Plated |
| Upper Mount Type | Eye 19mm |
| Extended Length (MM) | 561.0 |
| Internal Design | Monotube |
| Series | B8 5100 |
| Body Design | Smooth Body (Non-Coilover) |
| Spring Seat Included | No |
| Piston Diameter | 46mm |
Packaging Information
Weight: 4.89 lbs
Dimensions: 26.8 x 3.55 x 3.55 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Fits Vehicles With 1-1.5" Rear Lift; A minimum 1" lift block is required for this application
Share
Vehicle Fitment
Vehicle Fitment
- 1996-2004 Toyota Tacoma Base — Rear Right
- 1998-2000 Toyota Tacoma Limited — Rear Right
- 1998-2004 Toyota Tacoma Pre Runner — Rear Right
- 1996-2000 Toyota Tacoma SR5 — Rear Right
