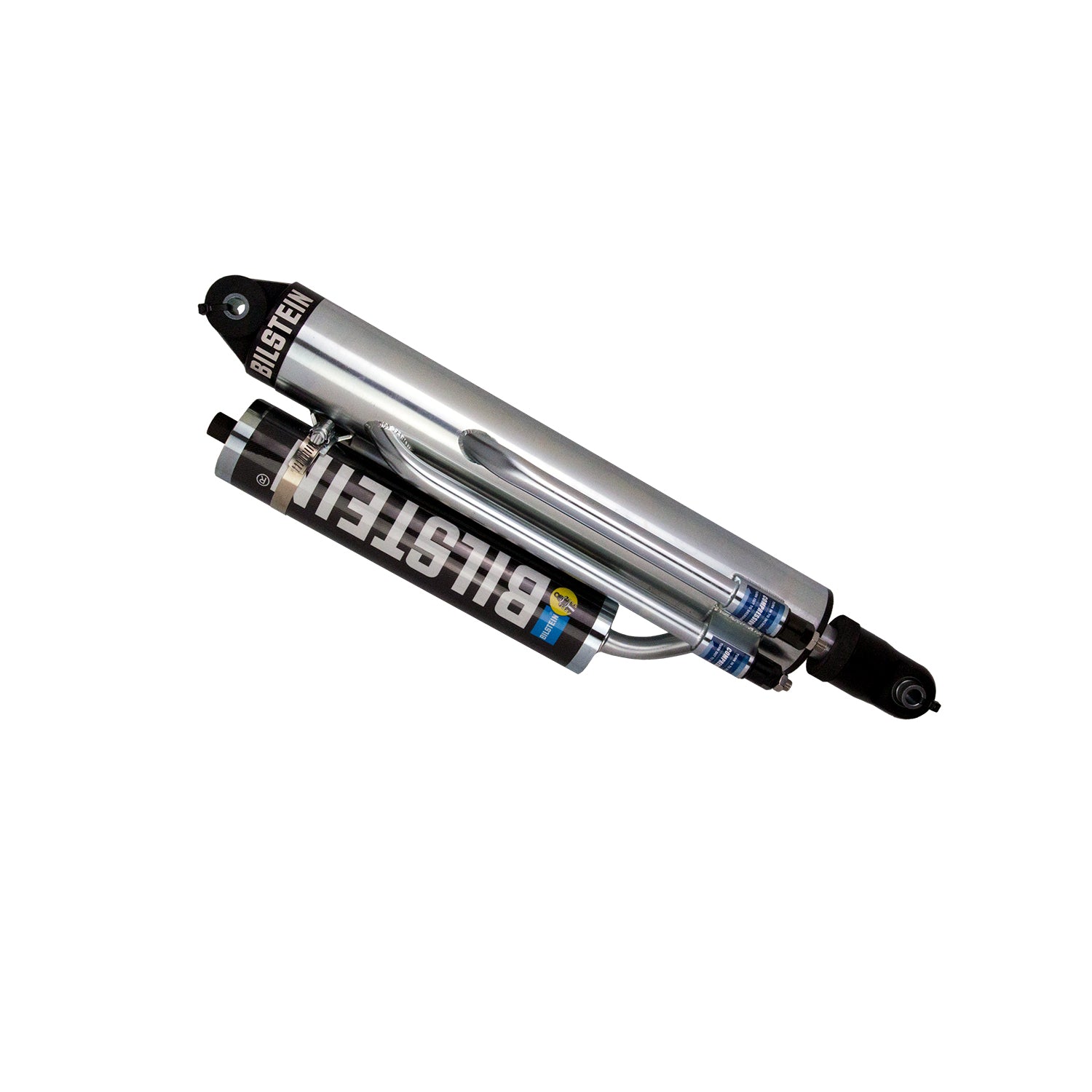

Bilstein 33-250779 M 9200 (Bypass) - Suspension Shock Absorber
Bilstein 33-250779 M 9200 (Bypass) - Suspension Shock Absorber
Low stock: 2 left
Couldn't load pickup availability
Description & Features
Bilstein 33-250779 M 9200 (Bypass) - Suspension Shock Absorber
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
Specifications
| Collapsed Length (IN) | 21.50 |
| Shaft Diameter | 1-1/8 in. |
| Shaft Diameter (mm) | 28.6 |
| Segment | Motorsports |
| Position | Right |
| Boot Included | N/A |
| Finish | Zinc Plated |
| Upper Mount Type | Eye .5x1.5in |
| Collapsed Length (MM) | 546.1 |
| Optional Reservoir Clamp | N/A |
| Lower Mount Type | Eye .5x1.5in |
| Rebound @0.52m/s | Custom |
| Body Design | 4-Tube Bypass Screw Top |
| Compression @0.52m/s | Custom |
| Piston Diameter | 70mm |
| Stroke/Travel Length (IN) | 12.00 |
| Extended Length (IN) | 33.50 |
| Stroke/Travel Length (mm) | 304.8 |
| Extended Length (MM) | 850.9 |
| Internal Design | Monotube |
| Series | M 9200 (Bypass) |
| Mount Type | Eye-to-Eye |
| Reservoir | Yes |
| Spring Seat Included | No |
Packaging Information
Weight: 31.04 lbs
Dimensions: 33.5 x 11.88 x 8.88 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
3 Month Warranty
