Bilstein

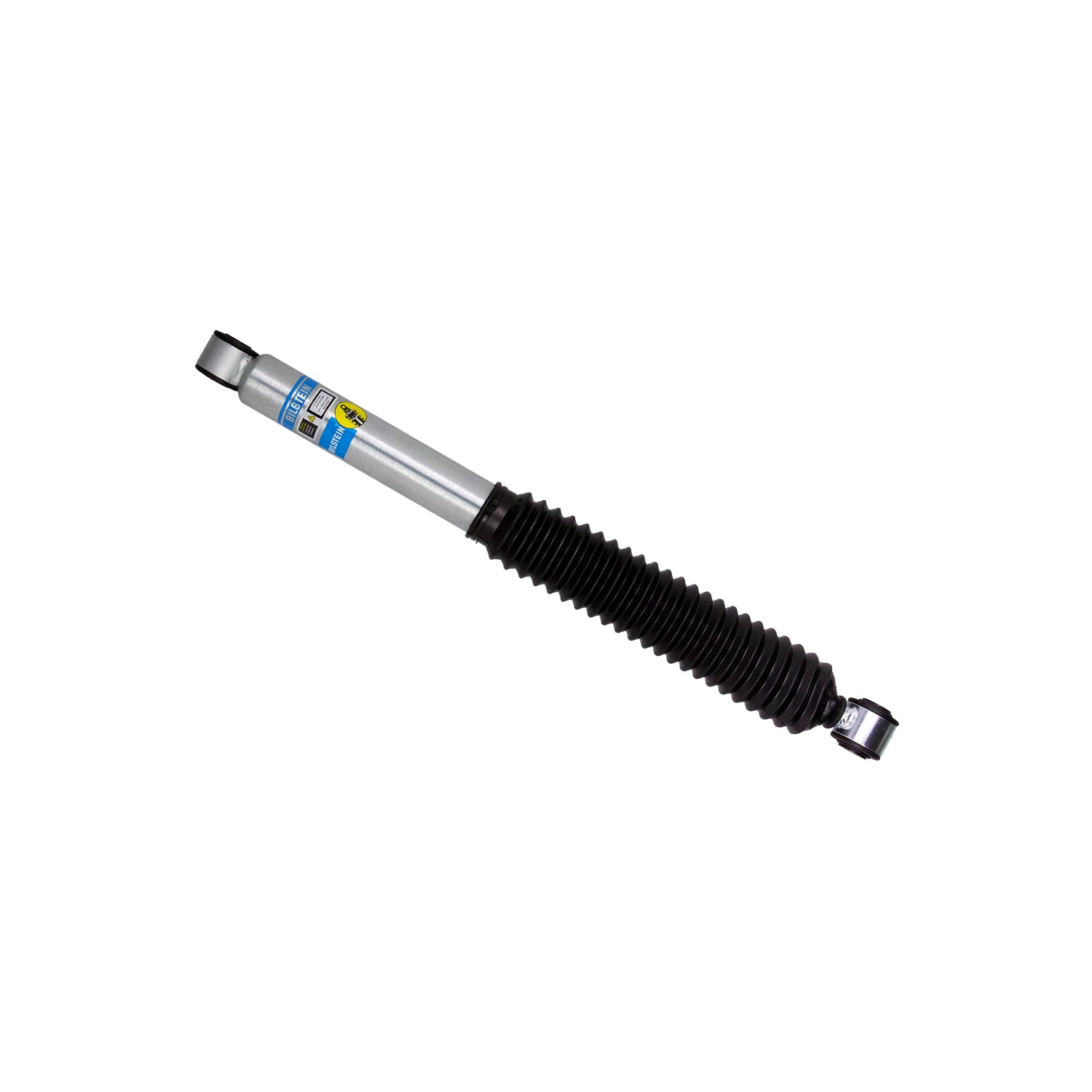

Bilstein 33-268996 B8 5100 - Suspension Shock Absorber
Bilstein 33-268996 B8 5100 - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 33-268996 B8 5100 - Suspension Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Collapsed Length (IN) | 16.20 |
| Shaft Diameter | 14mm |
| Segment | Light Truck |
| Boot Included | Black Bellows |
| Stroke/Travel Length (IN) | 9.59 |
| Extended Length (IN) | 25.81 |
| Lower Mount Type | Eye 14mm |
| Finish | Zinc Plated |
| Upper Mount Type | Eye 14mm |
| Stroke/Travel Length (mm) | 243.6 |
| Collapsed Length (MM) | 411.5 |
| Internal Design | Monotube |
| Extended Length (MM) | 655.7 |
| Series | B8 5100 |
| Body Design | Smooth Body (Non-Coilover) |
| Adjustable Damping | Non-Adjustable |
| Reservoir | No |
| Piston Diameter | 46mm |
| Spring Seat Included | No |
Packaging Information
Weight: 5.2 lbs
Dimensions: 26.8 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Fits Vehicles With 0-1" Rear Lift
Share
Vehicle Fitment
Vehicle Fitment
- 2016-2024 Nissan TITAN XD Platinum Reserve — Rear
- 2016-2024 Nissan TITAN XD PRO-4X — Rear
- 2016-2023 Nissan TITAN XD S — Rear
- 2016-2021 Nissan TITAN XD SL — Rear
- 2016-2024 Nissan TITAN XD SV — Rear
