Bilstein 33-286525 B8 5100 - Suspension Shock Absorber

$123.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 2 left

Description & Features

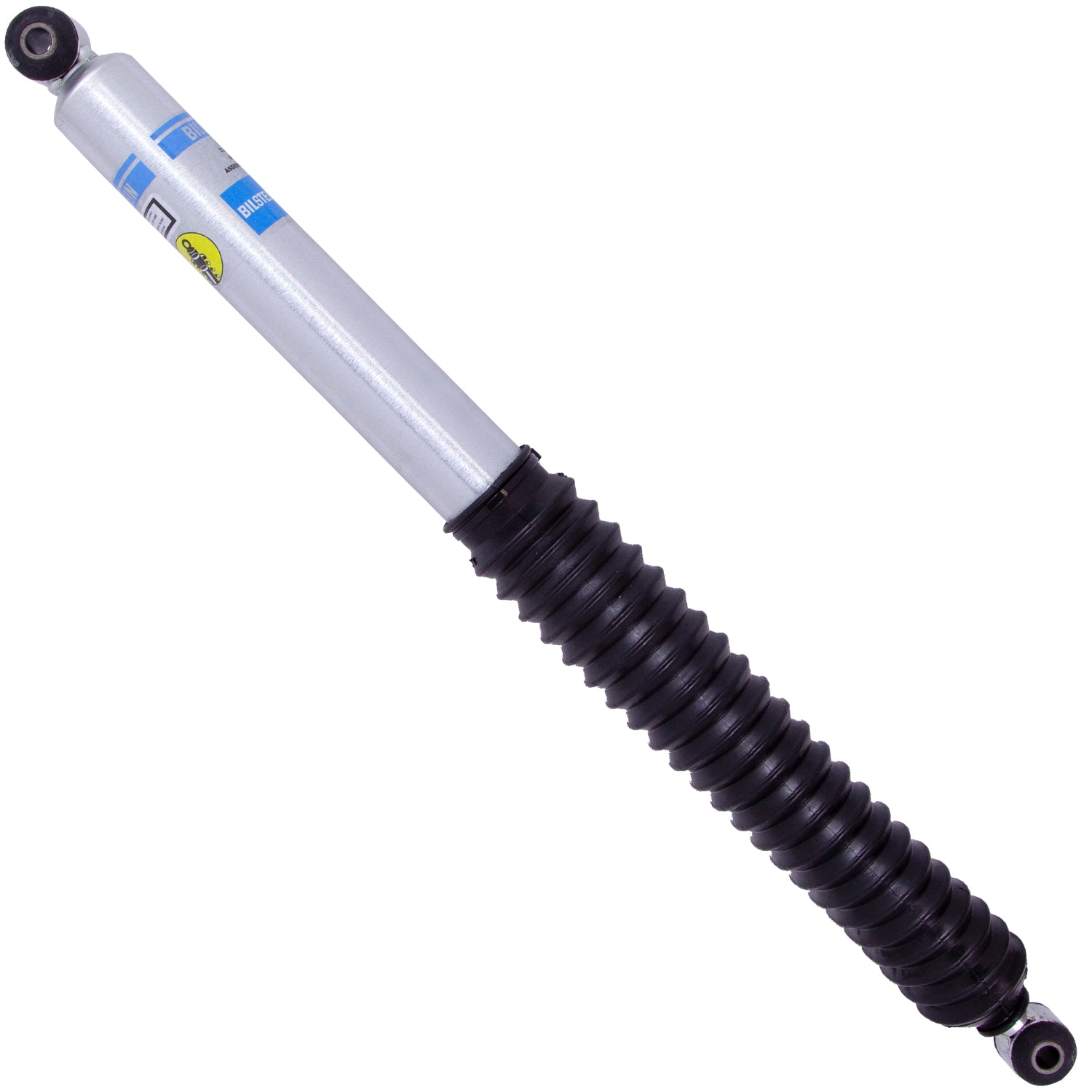

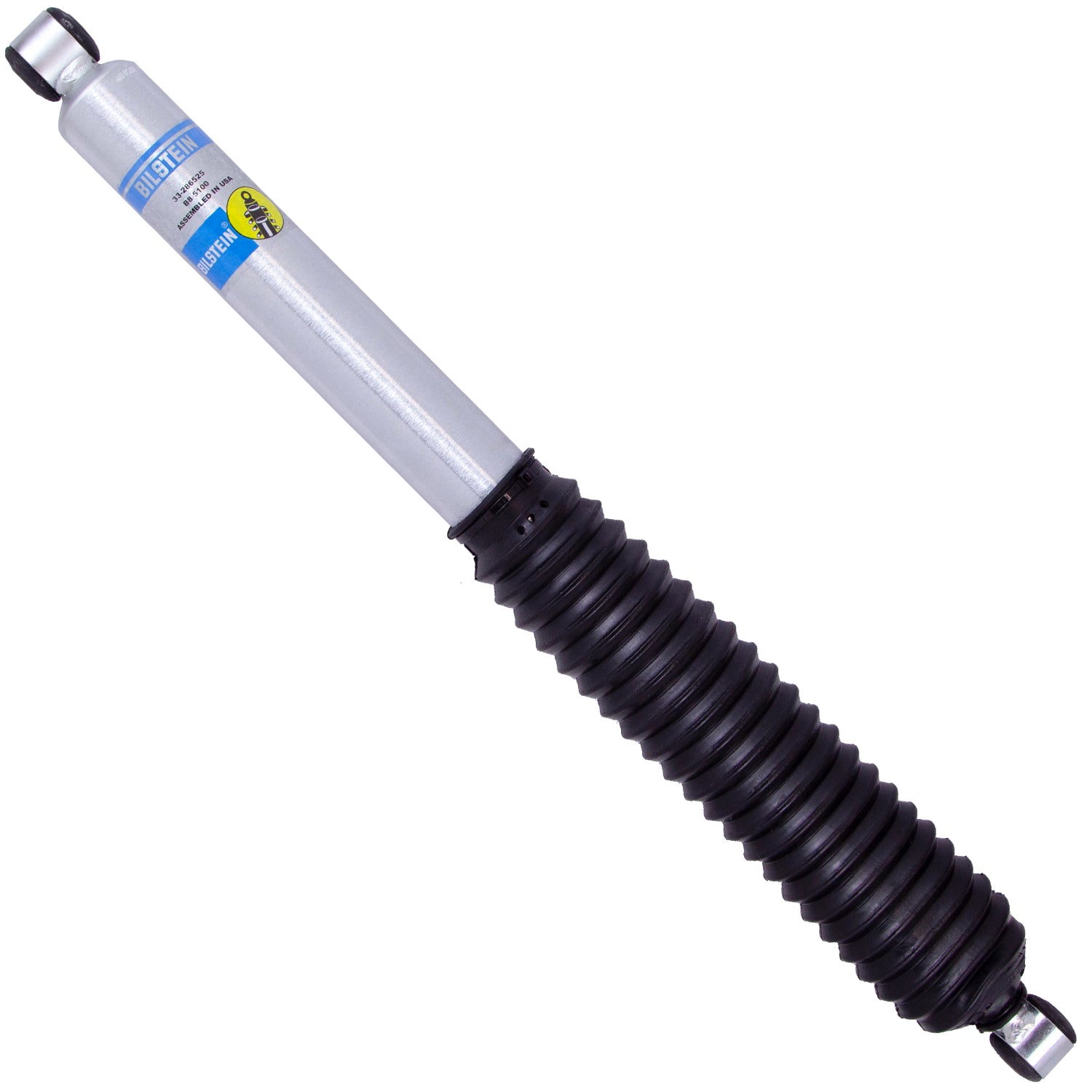

Bilstein 33-286525 B8 5100 - Suspension Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

46mm monotube design ensures consistent, fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

Specifications

Finish	Zinc Plated
Upper Mount Type	Eye 12mm
Stroke/Travel Length (mm)	264.2
Internal Design	Monotube
Series	B8 5100
Body Design	Smooth Body (Non-coilover)
Adjustable Damping	Non-Adjustable
Piston Diameter	46mm
Collapsed Length (IN)	16.97
Segment	Light Truck
Stroke/Travel Length (IN)	10.40
Lower Mount Type	Eye 12mm
Collapsed Length (MM)	431.0
Extended Length (MM)	695.2
Reservoir	No
Spring Seat Included	No
Shaft Diameter	14mm
Boot Included	Black Bellows
Extended Length (IN)	27.37
