Bilstein

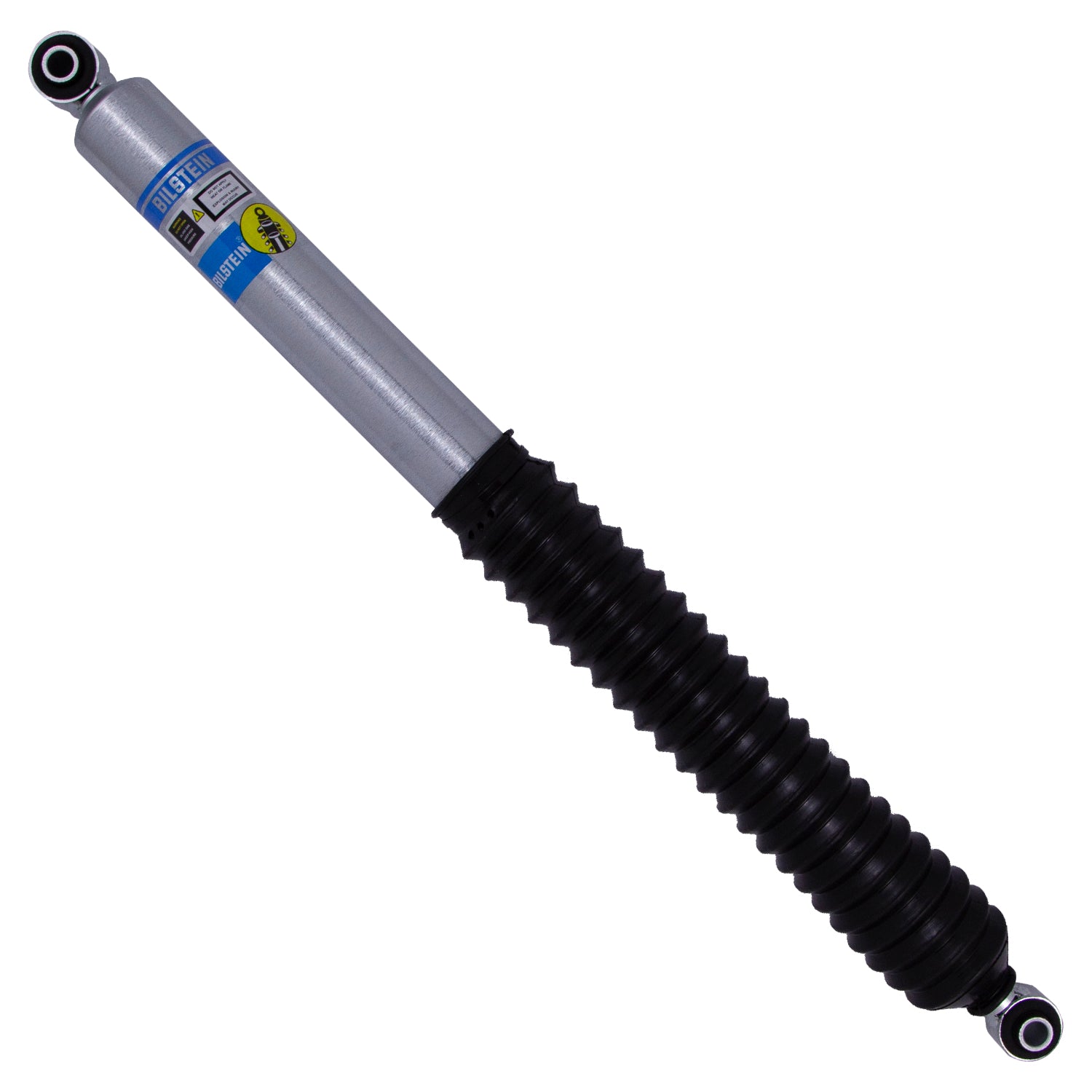

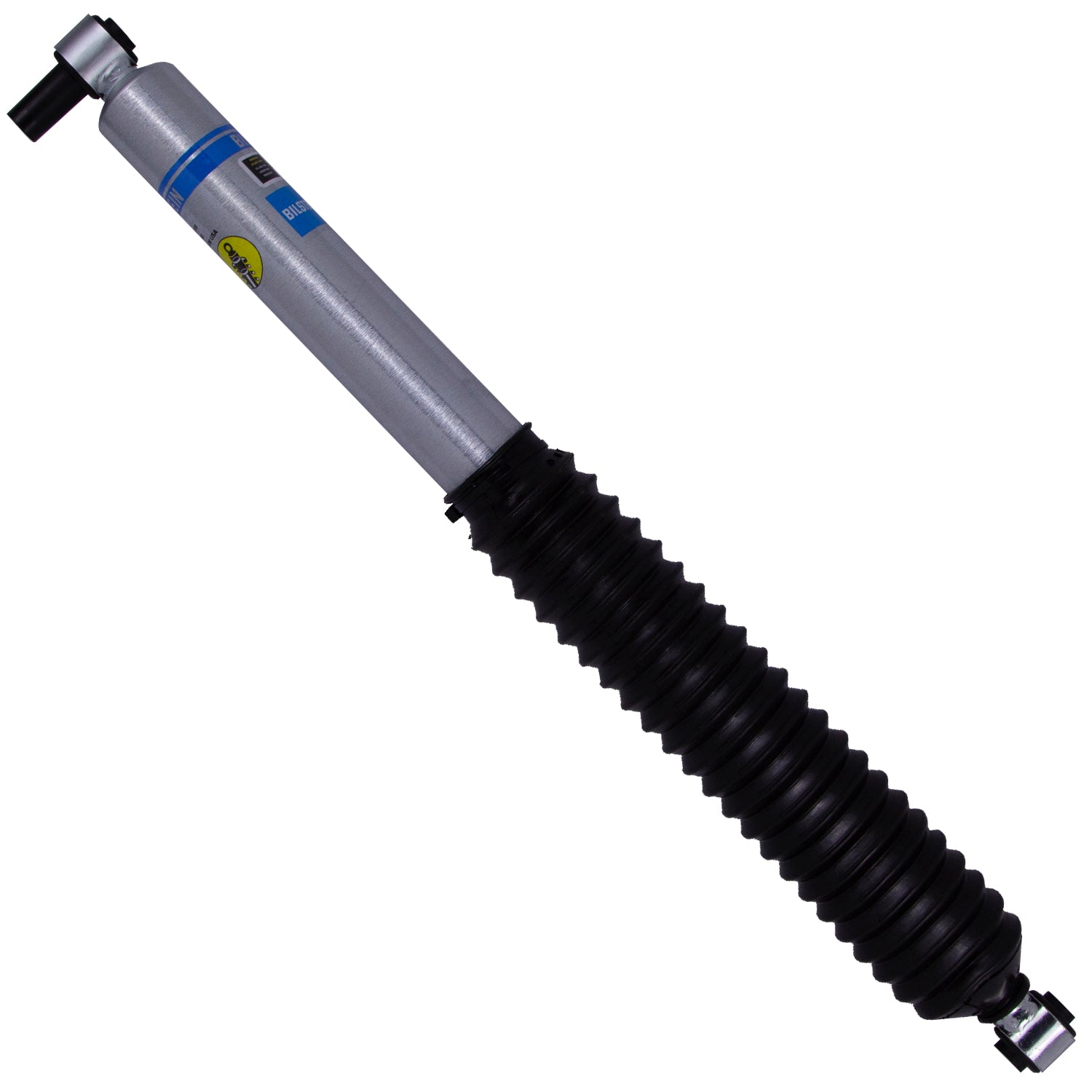

Bilstein 33-305219 B8 5100 - Suspension Shock Absorber

$123.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Bilstein 33-305219 B8 5100 - Suspension Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

46mm monotube design ensures consistent, fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

Specifications

Spring Seat Included	No
Collapsed Length (IN)	17.07
Shaft Diameter	14mm
Segment	Light Truck
Boot Included	Black Bellows
Stroke/Travel Length (IN)	9.81
Extended Length (IN)	26.88
Finish	Zinc Plated
Upper Mount Type	Eye 12.8mm
Stroke/Travel Length (mm)	249.2
Collapsed Length (MM)	433.5
Internal Design	Monotube
Adjustable Damping	Non-Adjustable
Extended Length (MM)	682.7
Lower Mount Type	Eye 12.8mm
Series	B8 5100
Body Design	Smooth Body (Non-coilover)
Reservoir	No
Piston Diameter	46mm
