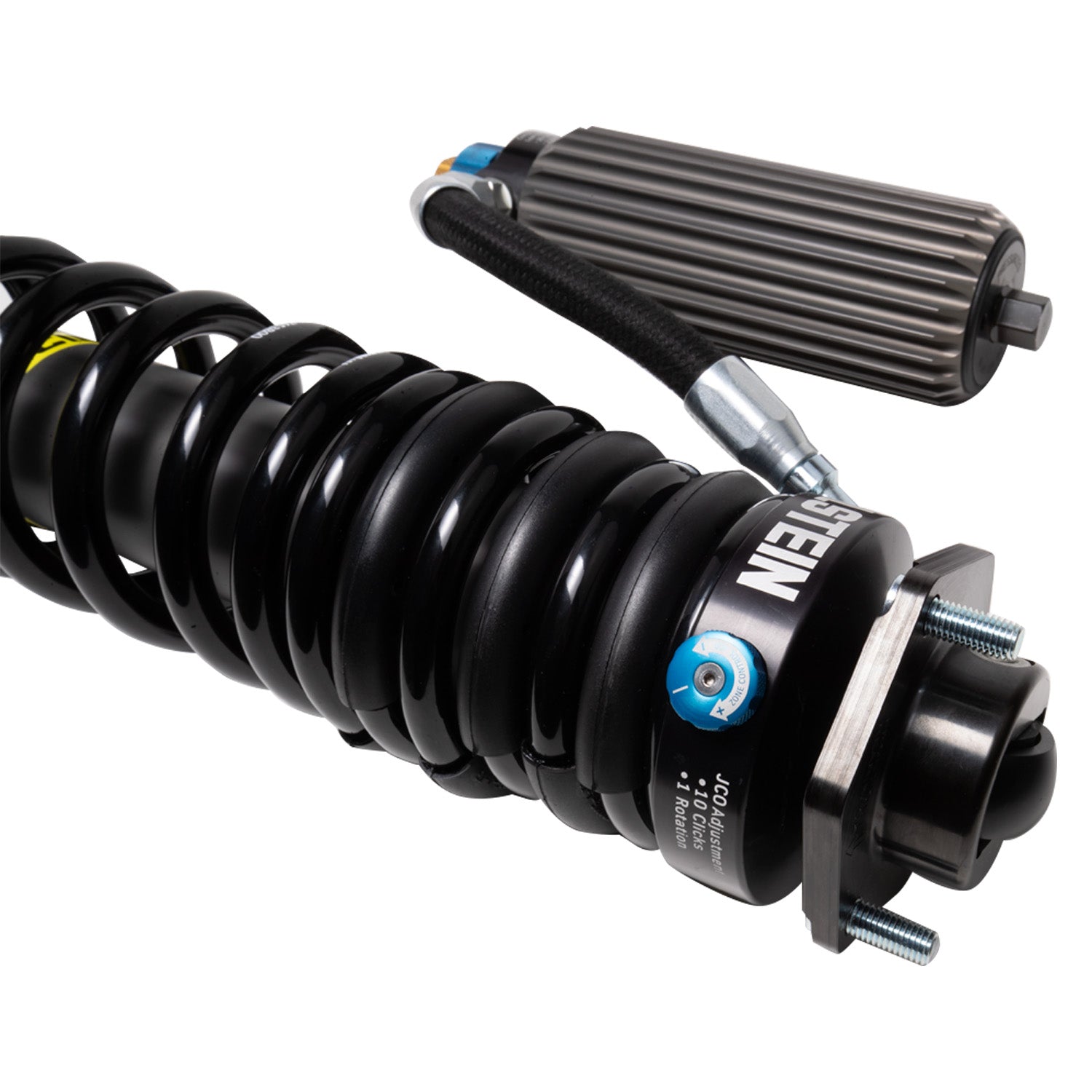

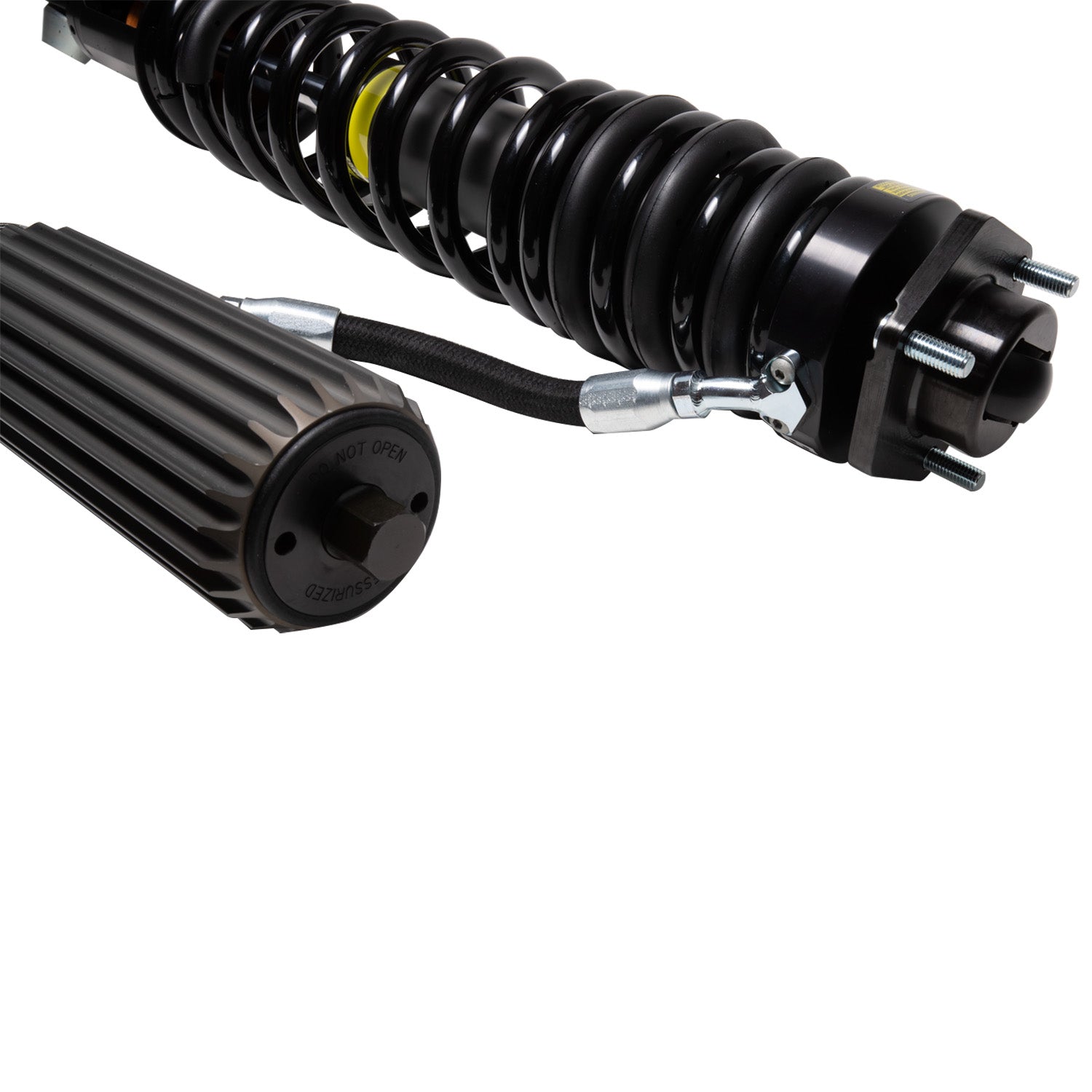

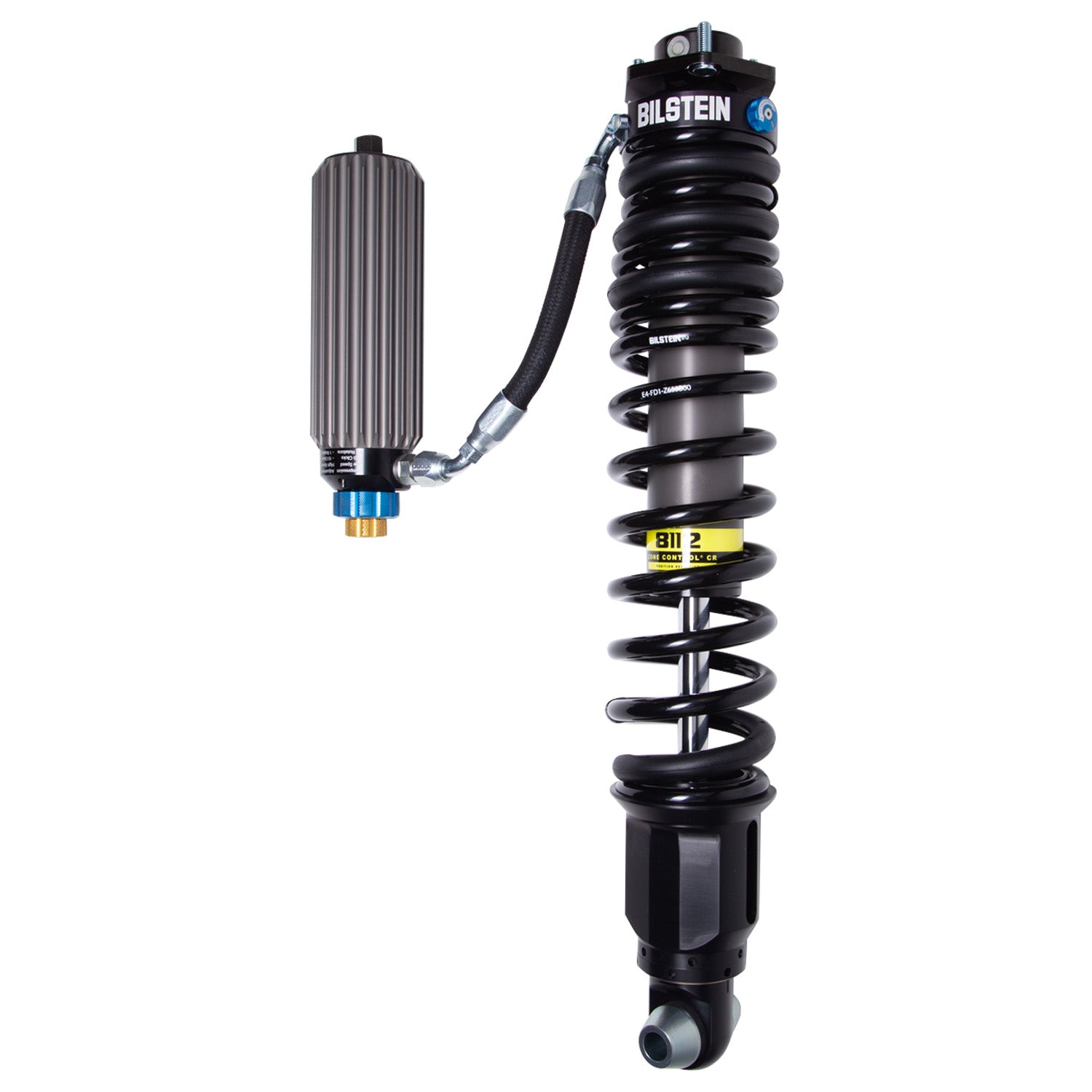

Bilstein 41-314326 B8 8112 Black Hawk - Rear Left Corner Module

$1,584.00 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

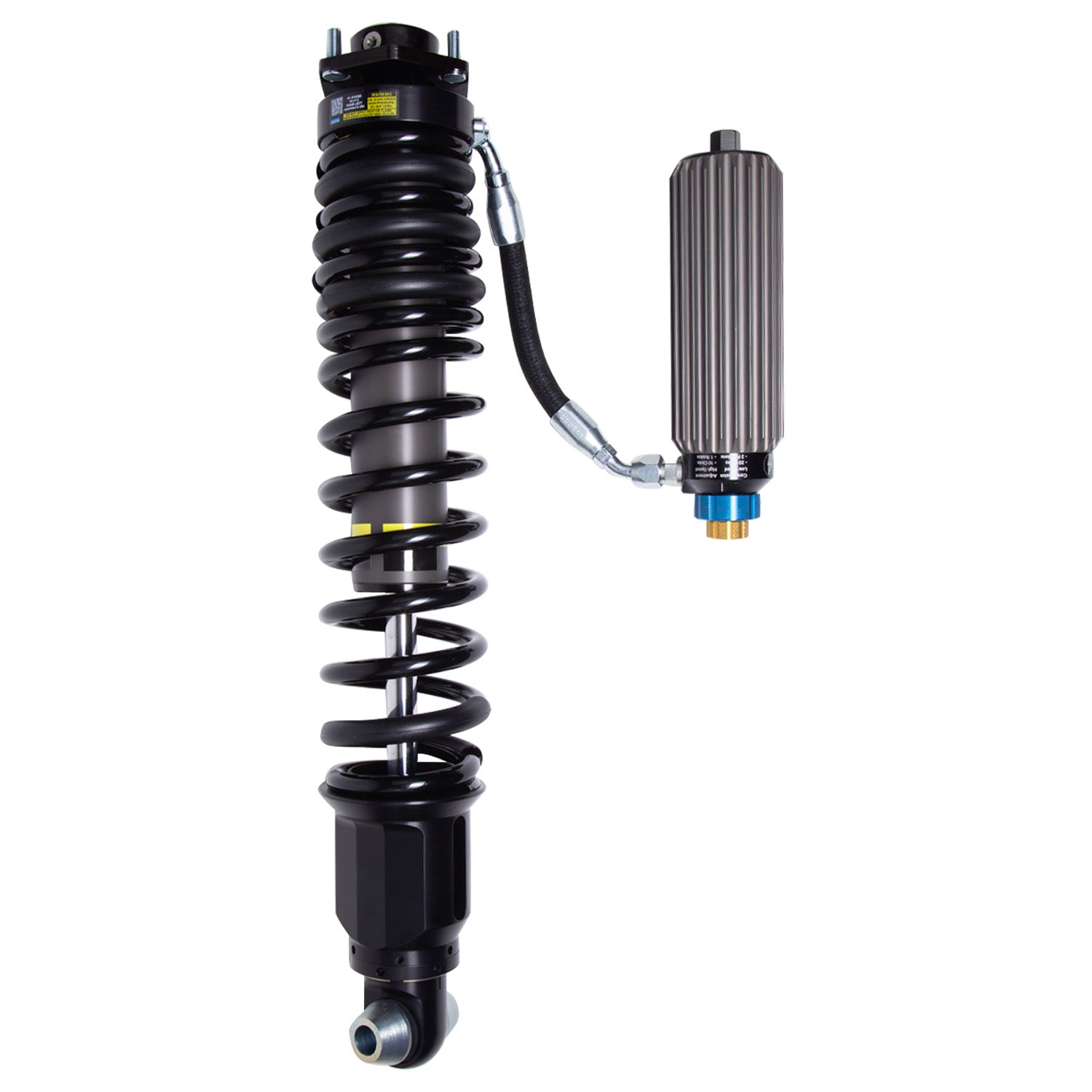

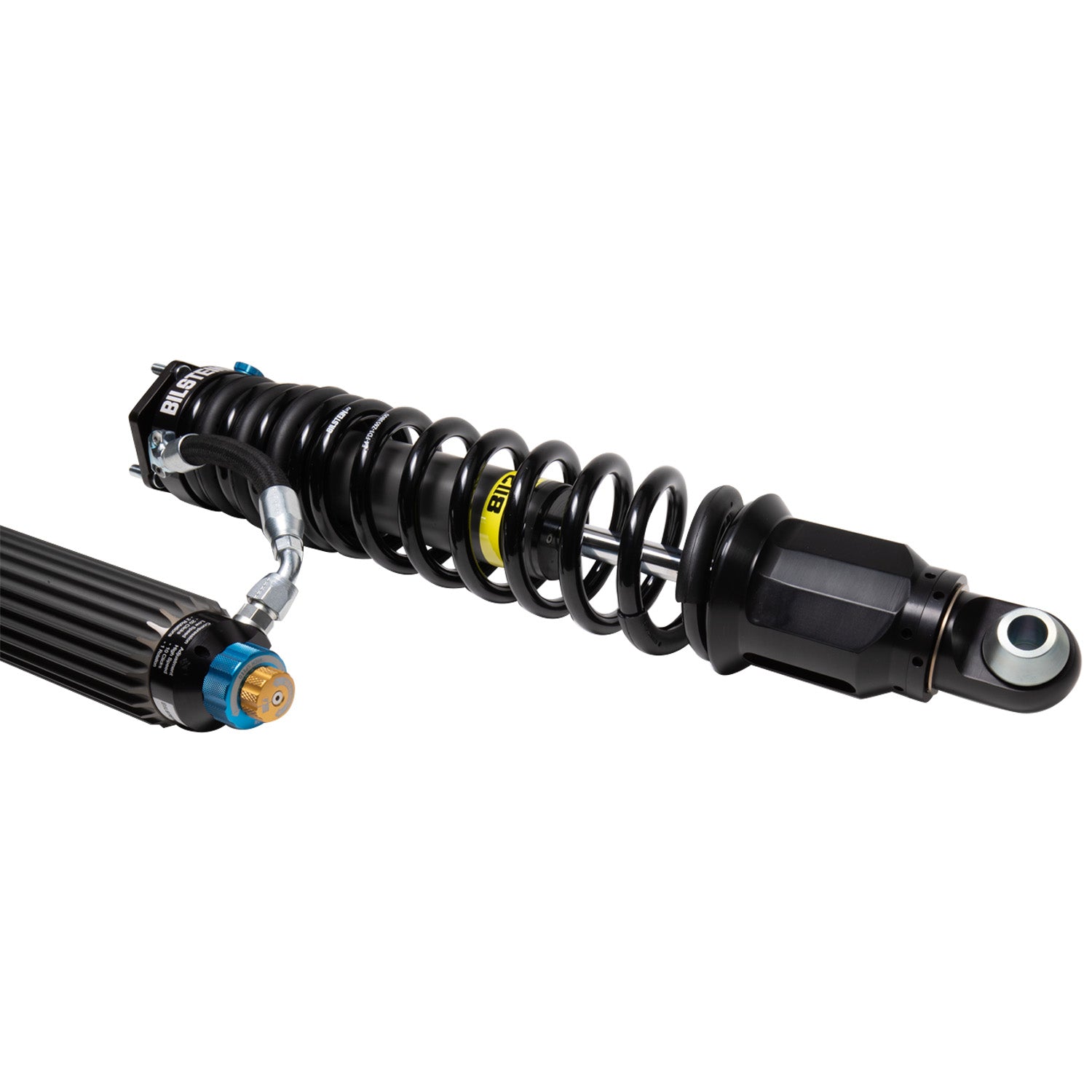

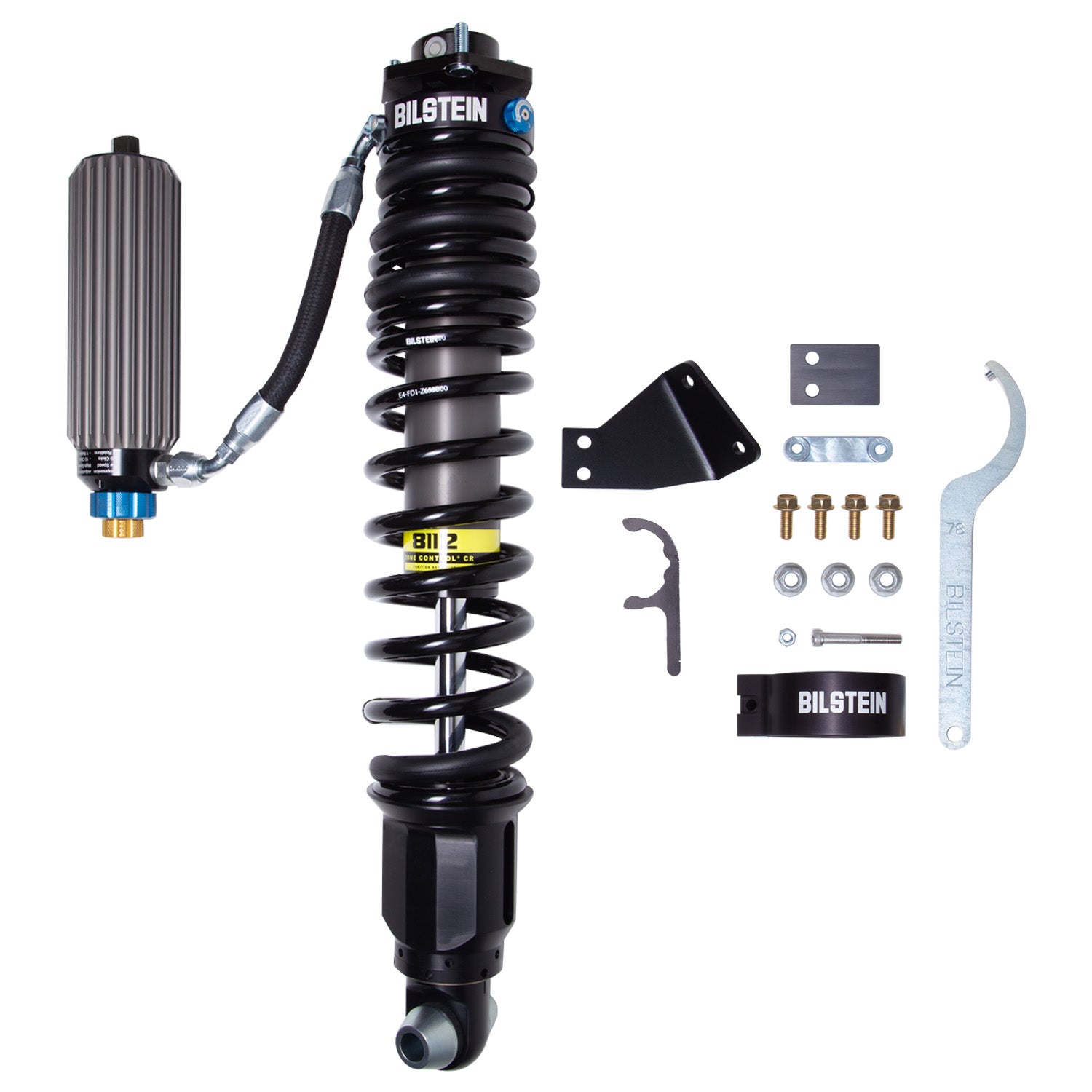

Bilstein 41-314326 B8 8112 Black Hawk - Rear Left Corner Module

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.

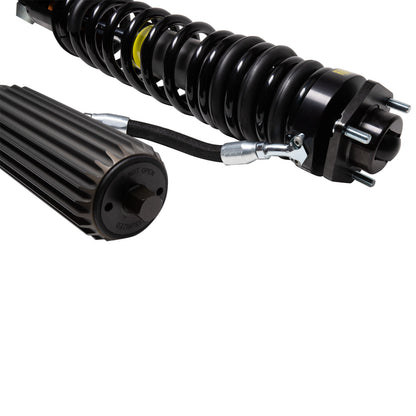

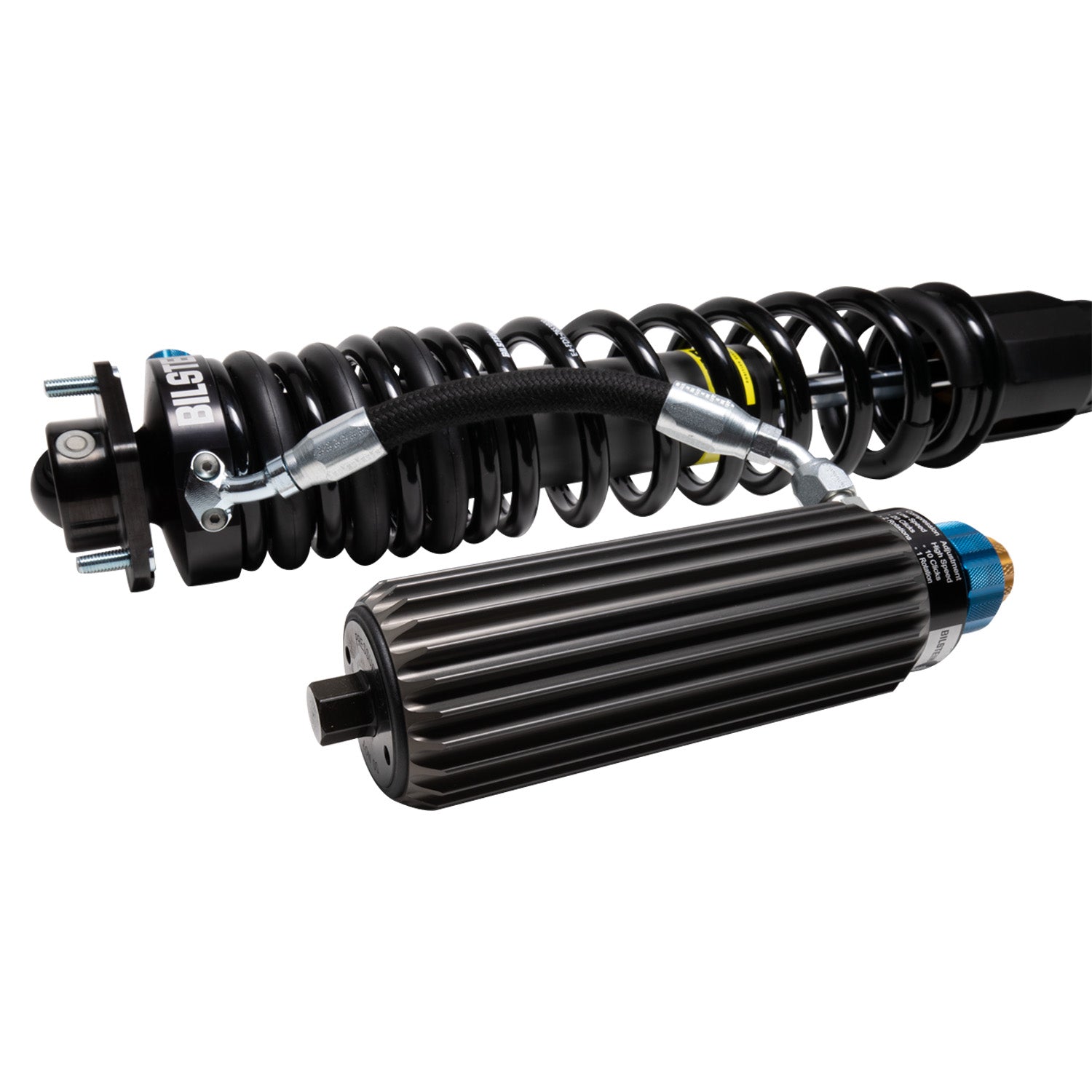

Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

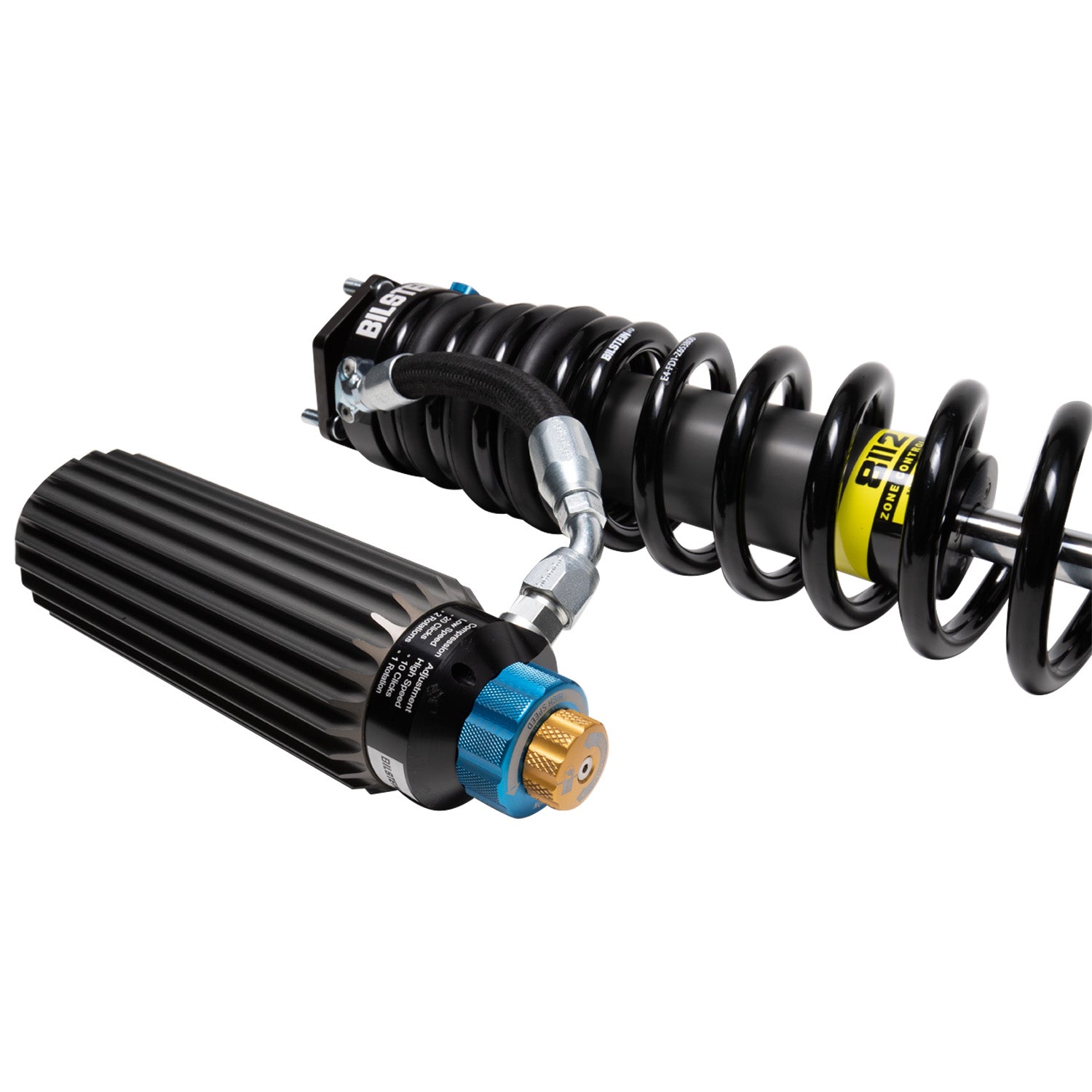

Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop

Specifications

Collapsed Length (IN)	18.40
Boot Included	No
Rear Main Spring Rate (lbs/in)	288
Extended Length (IN)	26.60
Series	B8 8112 Black Hawk
Reservoir	Yes - Finned Aluminum
Collapsed Length (MM)	467.1
Adjustable Damping	Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Piston Diameter	60mm
Shaft Diameter (mm)	22.0
Spring Seat Included	Yes
Extended Length (MM)	674.6
Segment	Light Truck
Upper Mount Type	Special
Body Design	Smooth Body (Coilover)

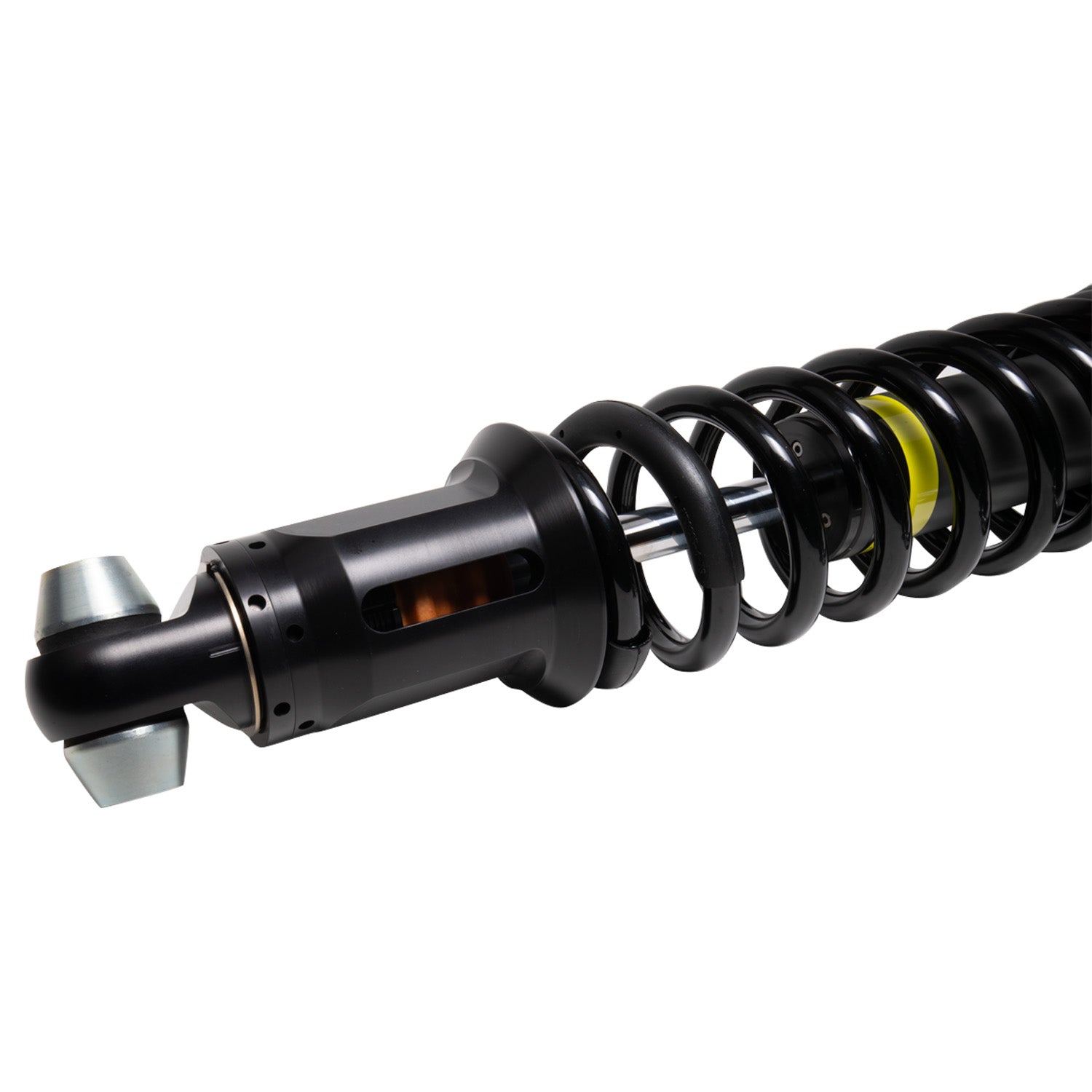

Lower Mount Type	Eye 25.4mm with Heim Spacers
Body Material	Aluminum
Finish	Dampers: EVO Grey/Springs: Black
Internal Design	Monotube

Packaging Information

Weight: 41.9 lbs
Dimensions: 49.2 x 15.75 x 8.27 IN

Safety

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Warranty

24 Month Warranty

⚠ Fitment Notes

Provides 0.5-1.1" Rear Lift
Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package
Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package
Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package
Provides 1.0-1.7" Rear Lift
Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package
