Bilstein

Bilstein 41-319574 B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module

$1,460.00 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 4 left

Description & Features

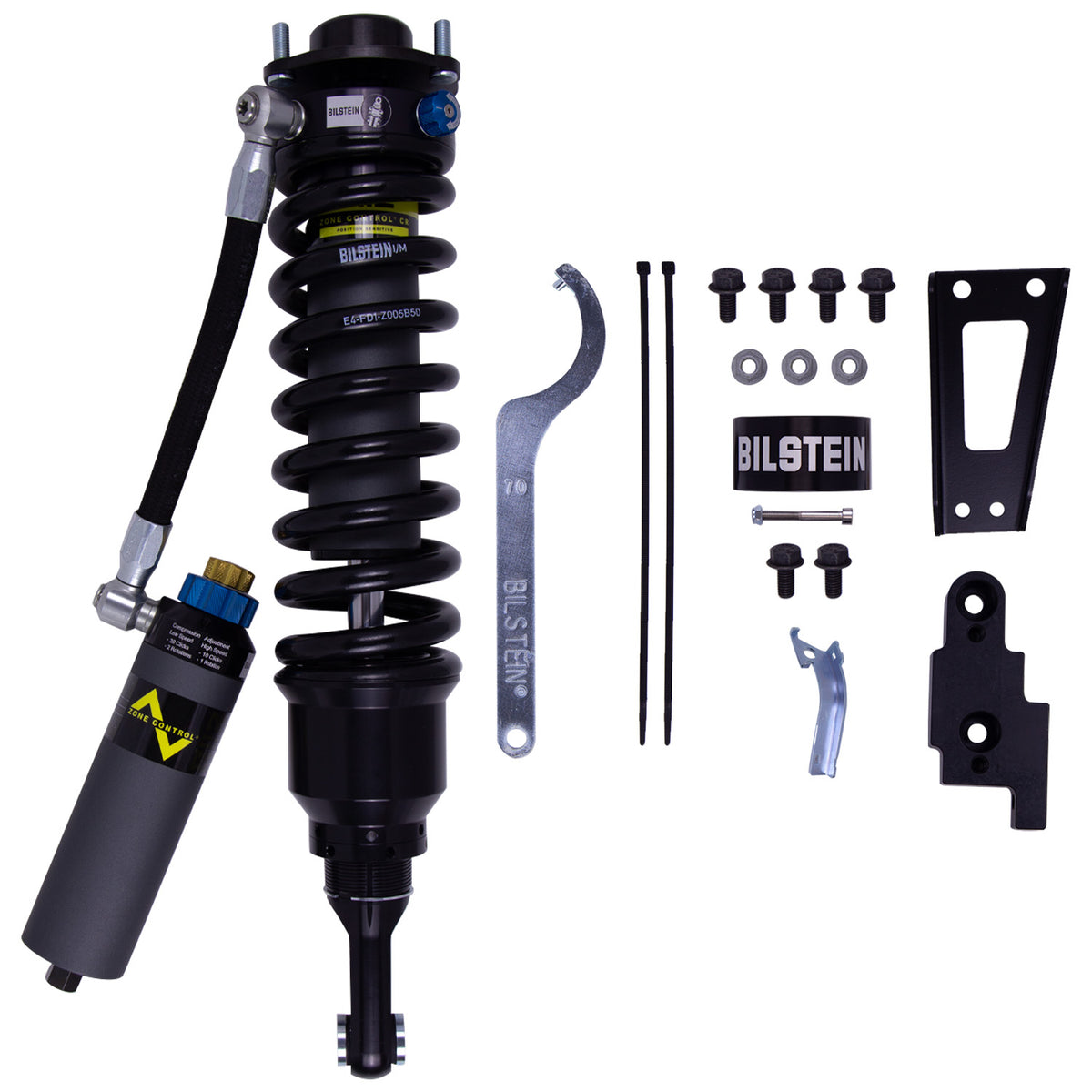

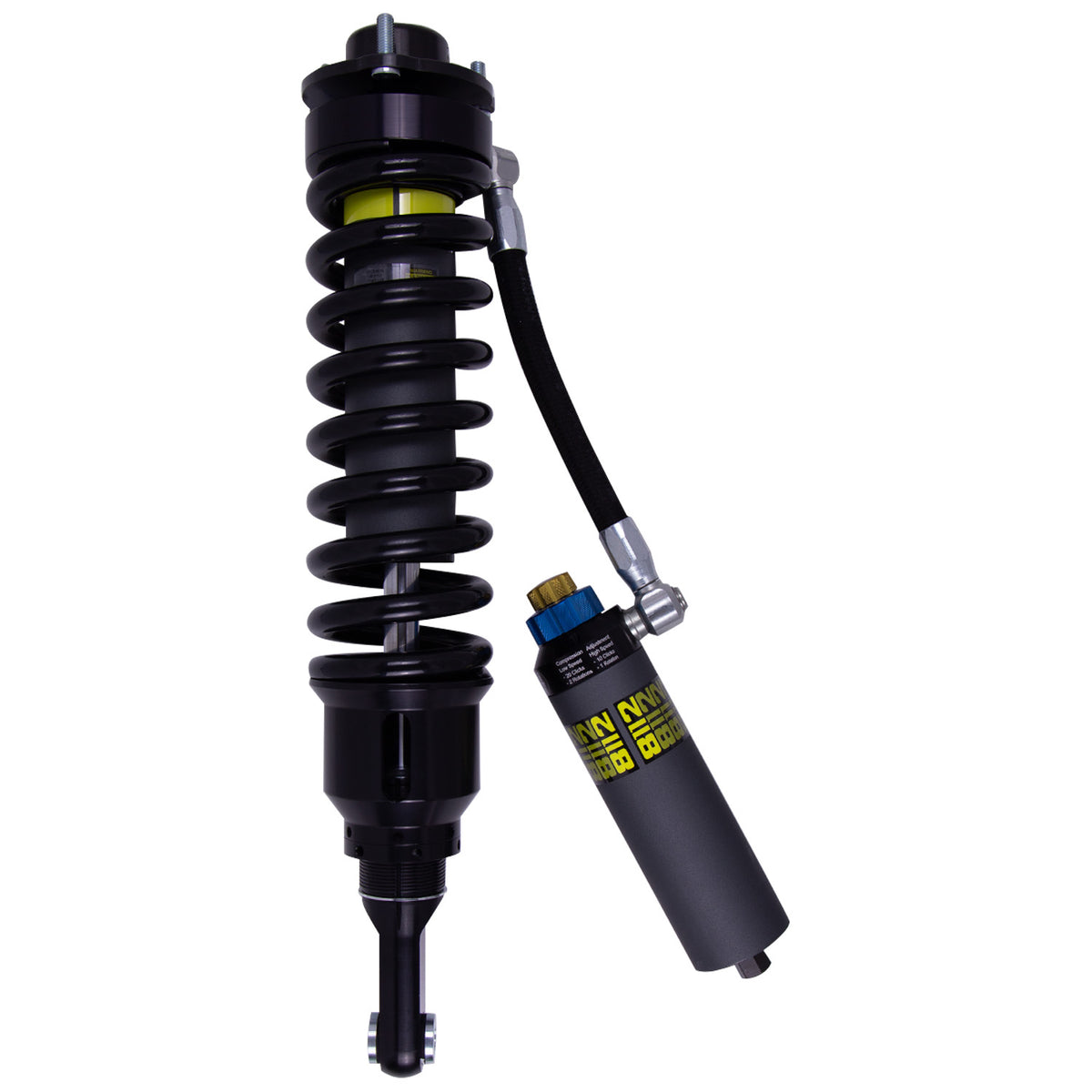

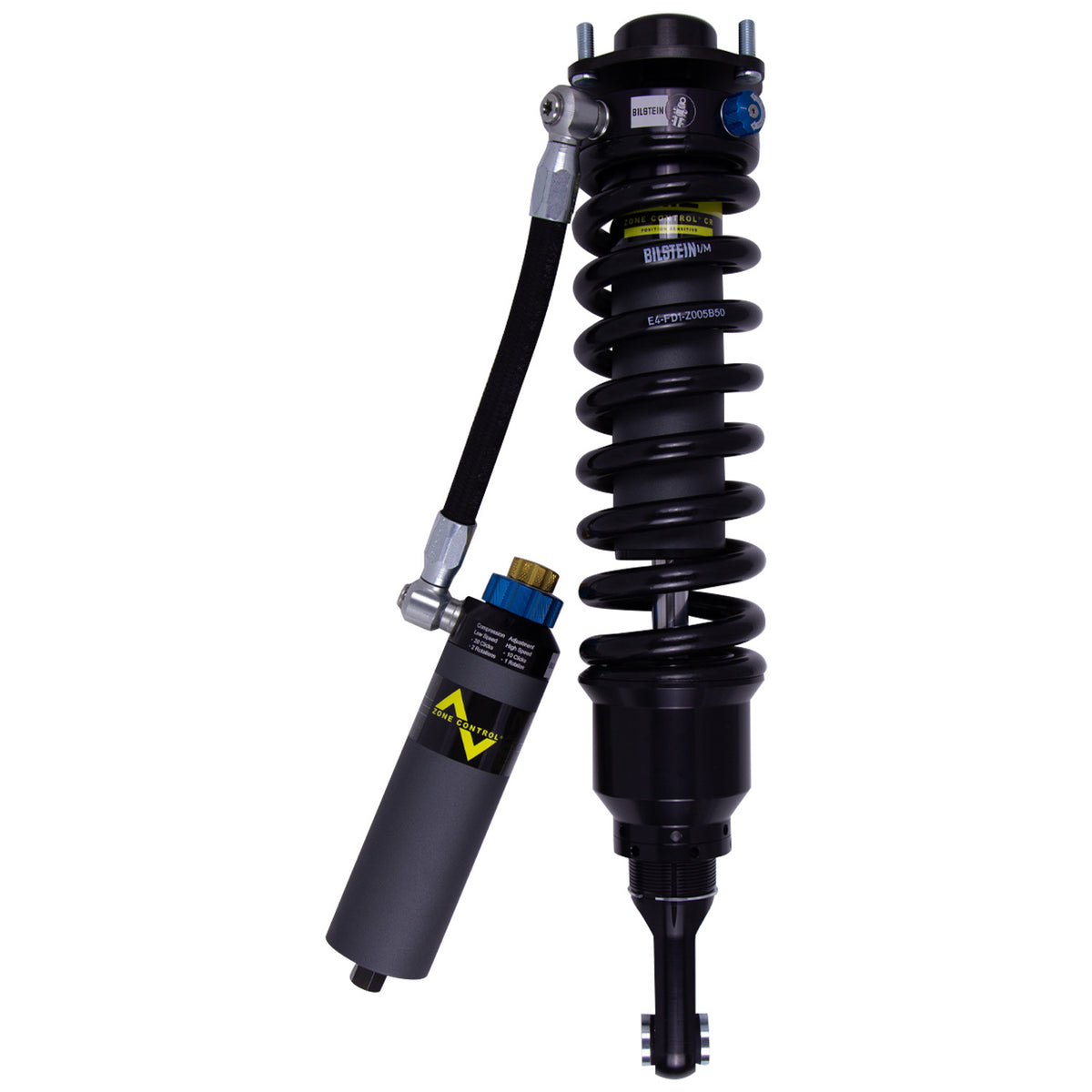

Bilstein 41-319574 B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

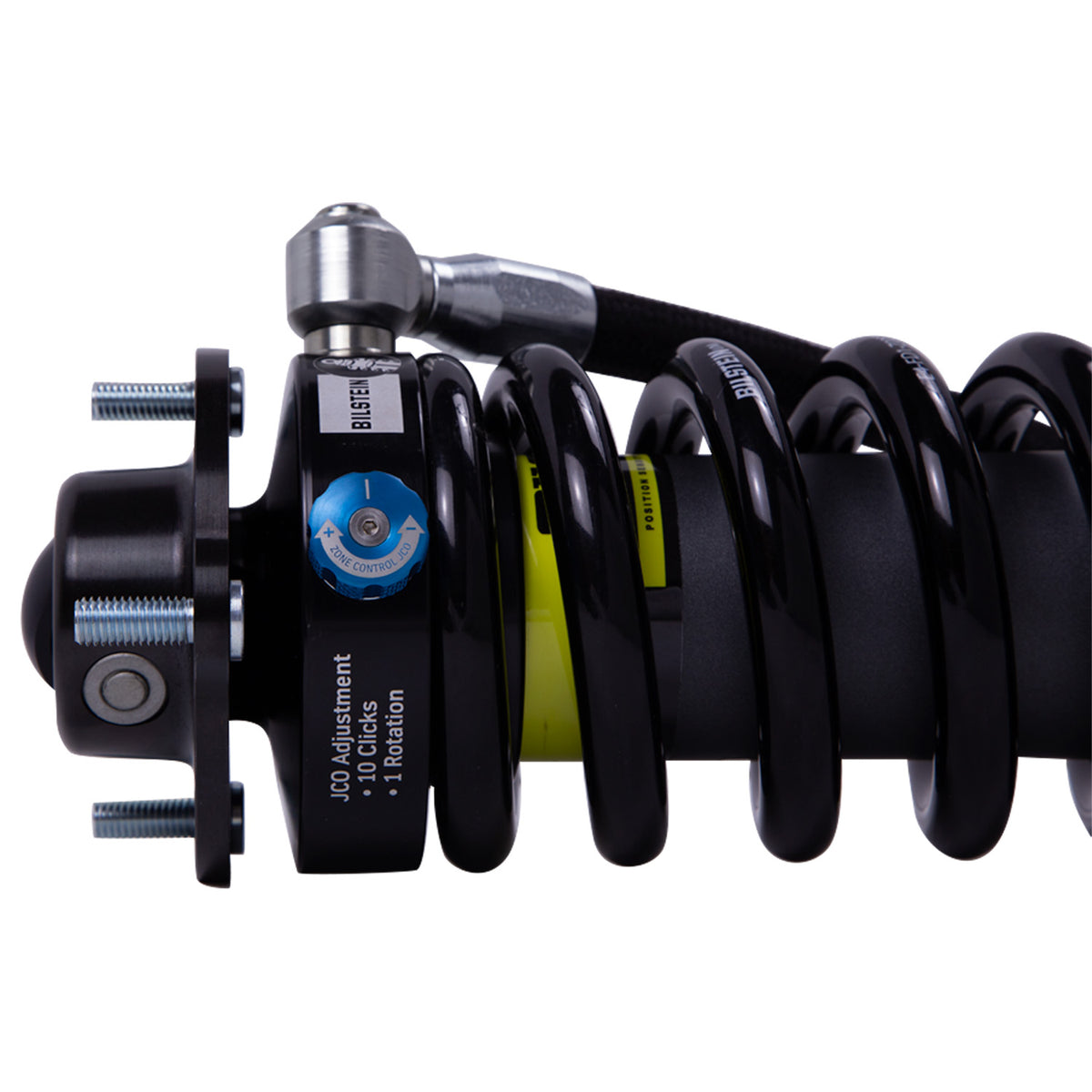

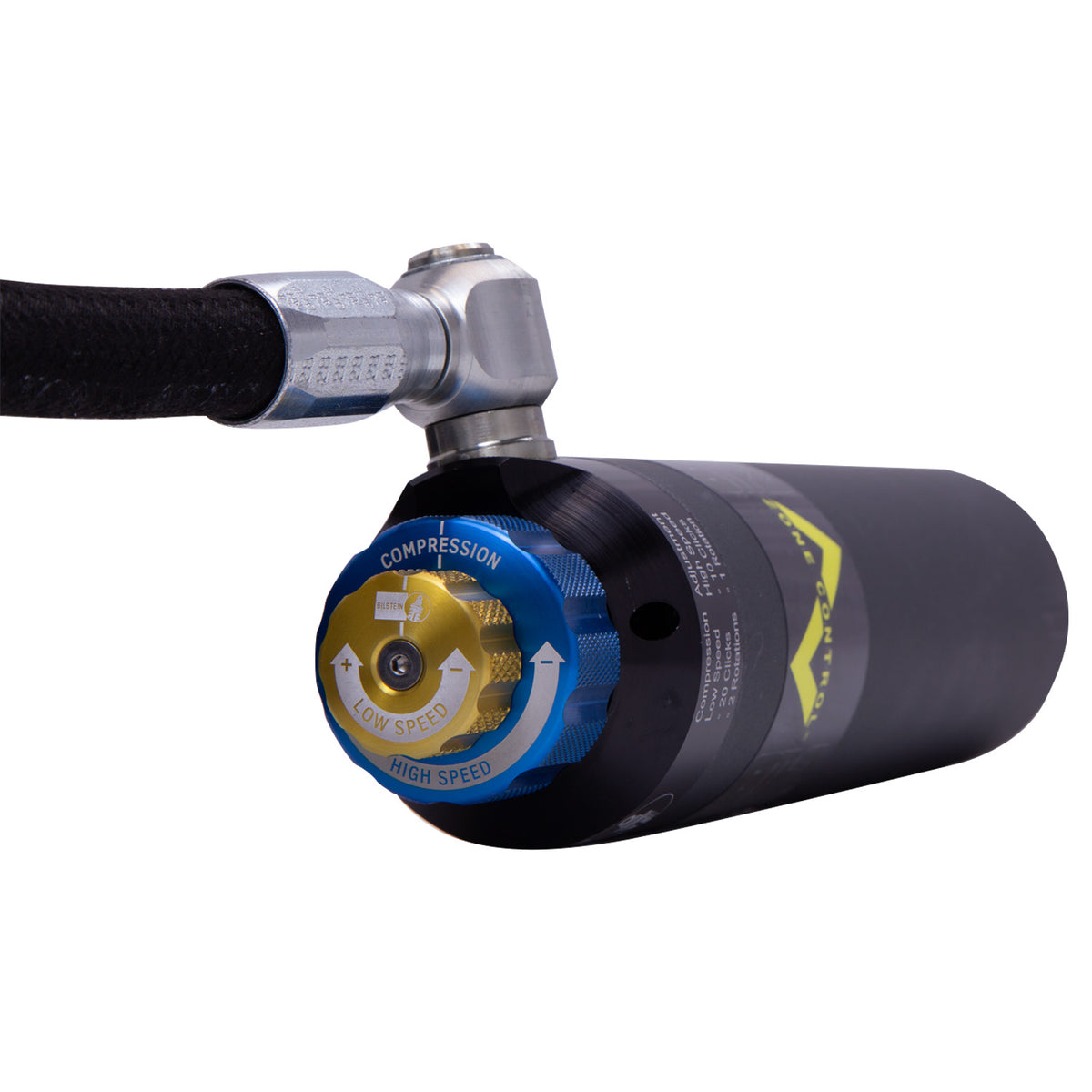

Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
60mm remote reservoir for increased oil capacity and cooling

Specifications

Front Main Spring Rate (lbs/in)	600 lbs
Extended Length (MM)	568.8
Segment	Light Truck
Optional Heavy Load Springs	53-291387, 53-332837
Body Design	Smooth Body (Coilover)
Lower Mount Type	Eye 15.88mm
Body Material	Steel
Aftermarket Upper Arms Required	Yes
Reservoir	Yes
Collapsed Length (MM)	442.6
Adjustable Damping	Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Piston Diameter	60mm
Shaft Diameter (mm)	22.0
Spring Seat Included	Yes
Boot Included	No
Upper Mount Type	Special
Extended Length (IN)	22.39
Series	B8 8112 (ZoneControl CR DSA+)
Finish	Dampers: EVO Grey/Springs: Black
Internal Design	Monotube
Collapsed Length (IN)	17.43

Packaging Information

Weight: 37.4 lbs
Dimensions: 33.5 x 11.88 x 8.88 IN

Safety

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Warranty

24 Month Warranty

View Warranty (PDF)

Installation Instructions

View Installation Instructions (PDF)

⚠ Fitment Notes

Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended
Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended
Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended
Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended
Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended
Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended
