Bilstein 41-326091 B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module

$1,366.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

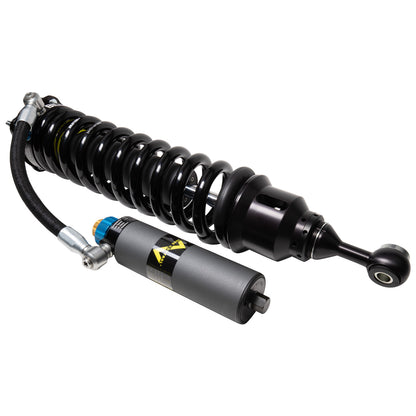

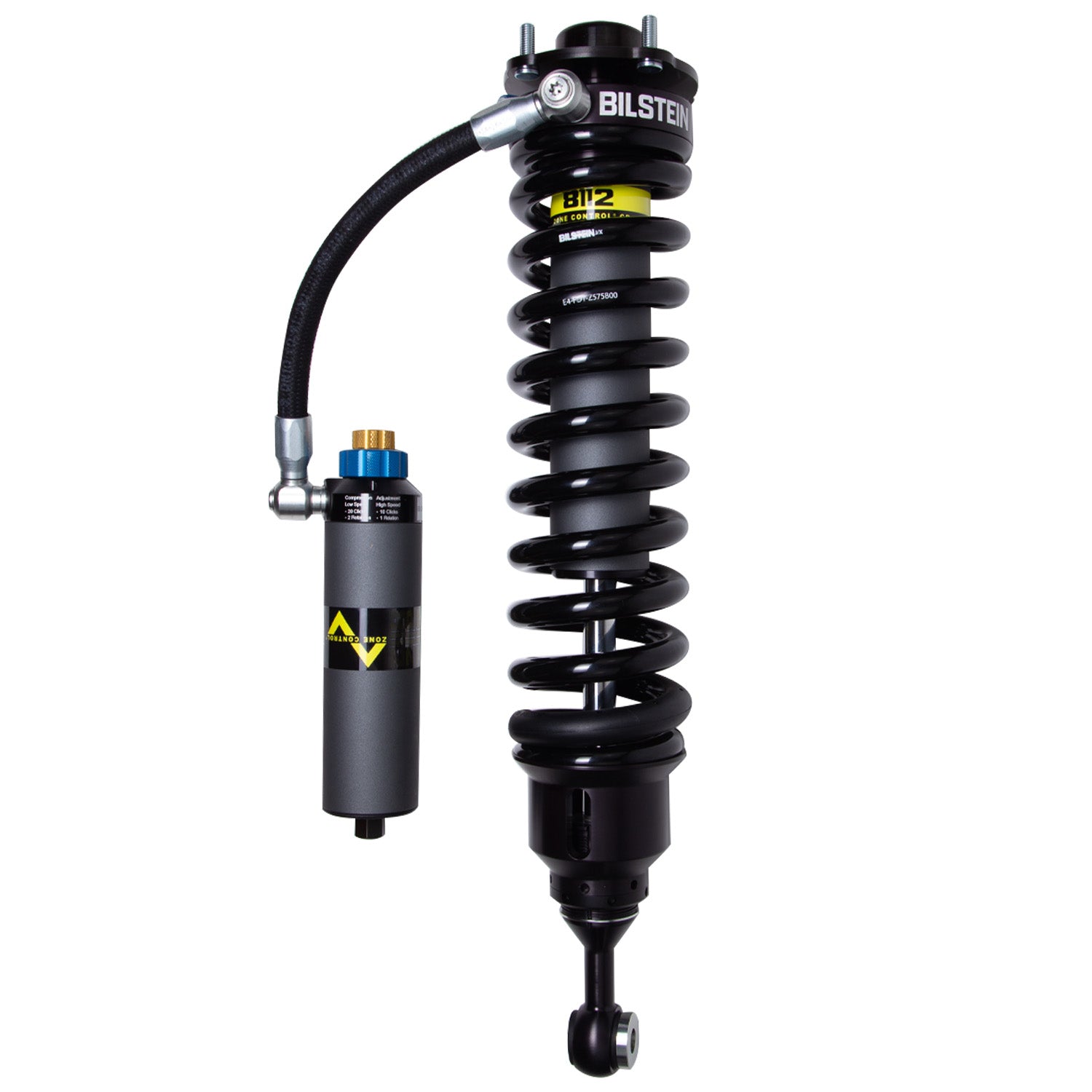

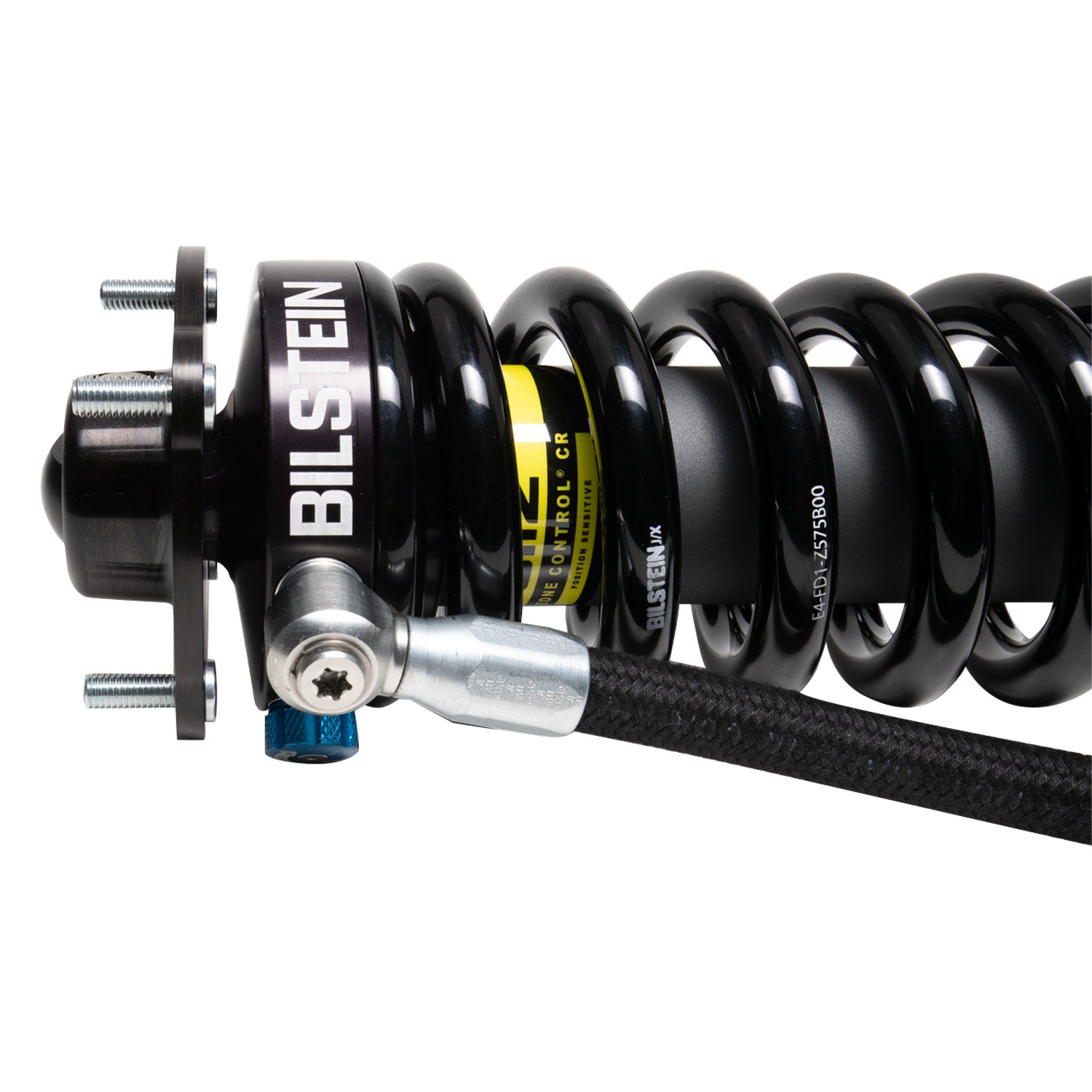

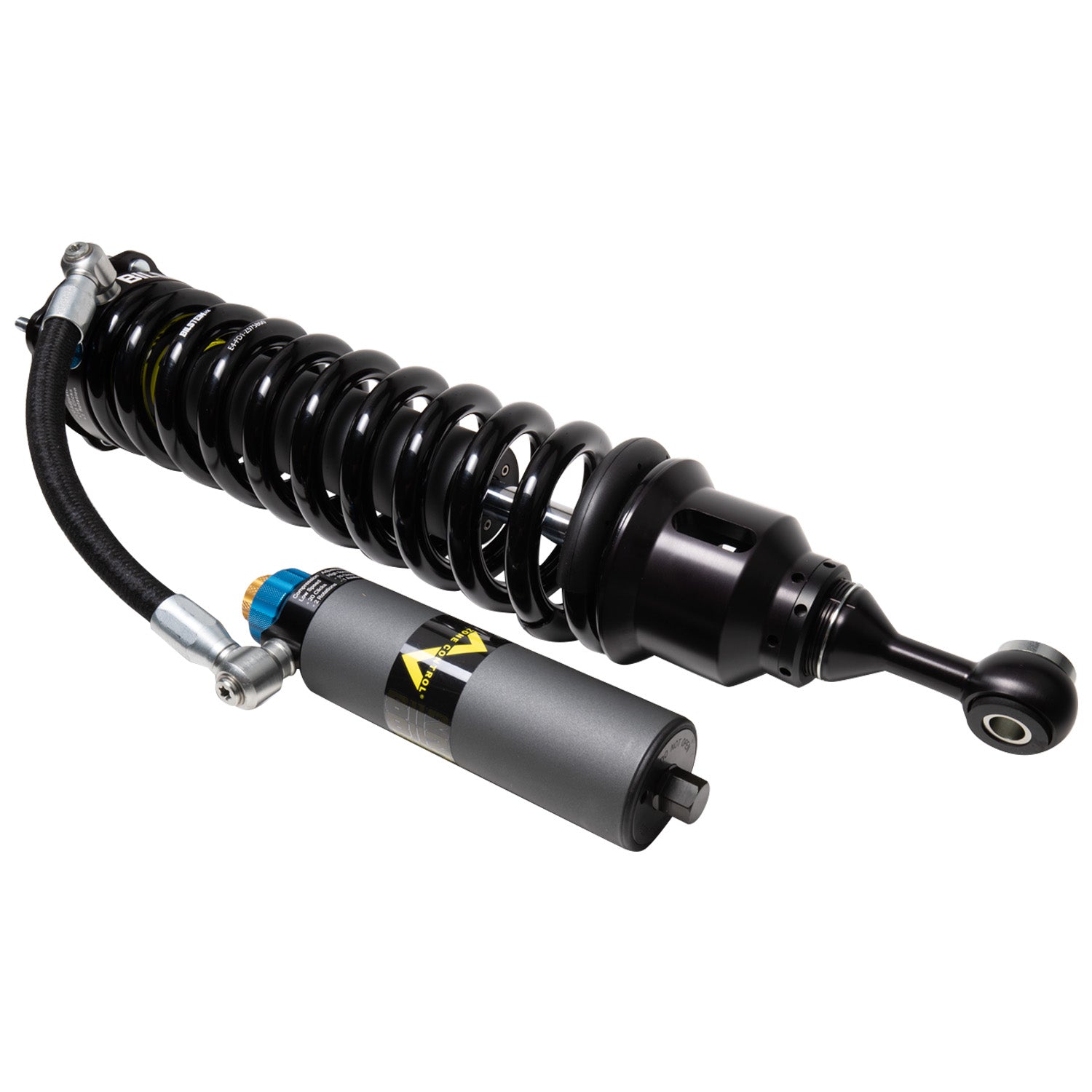

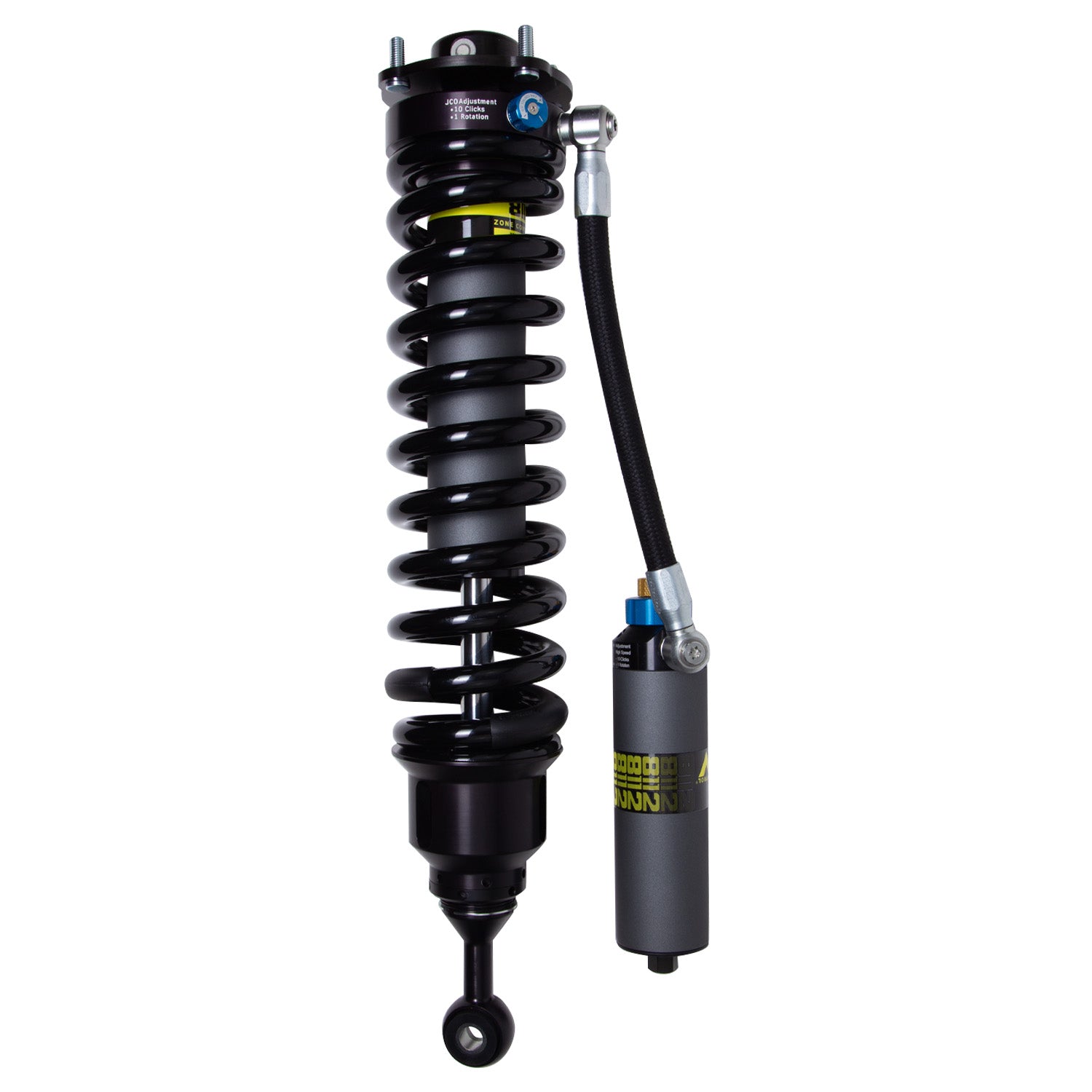

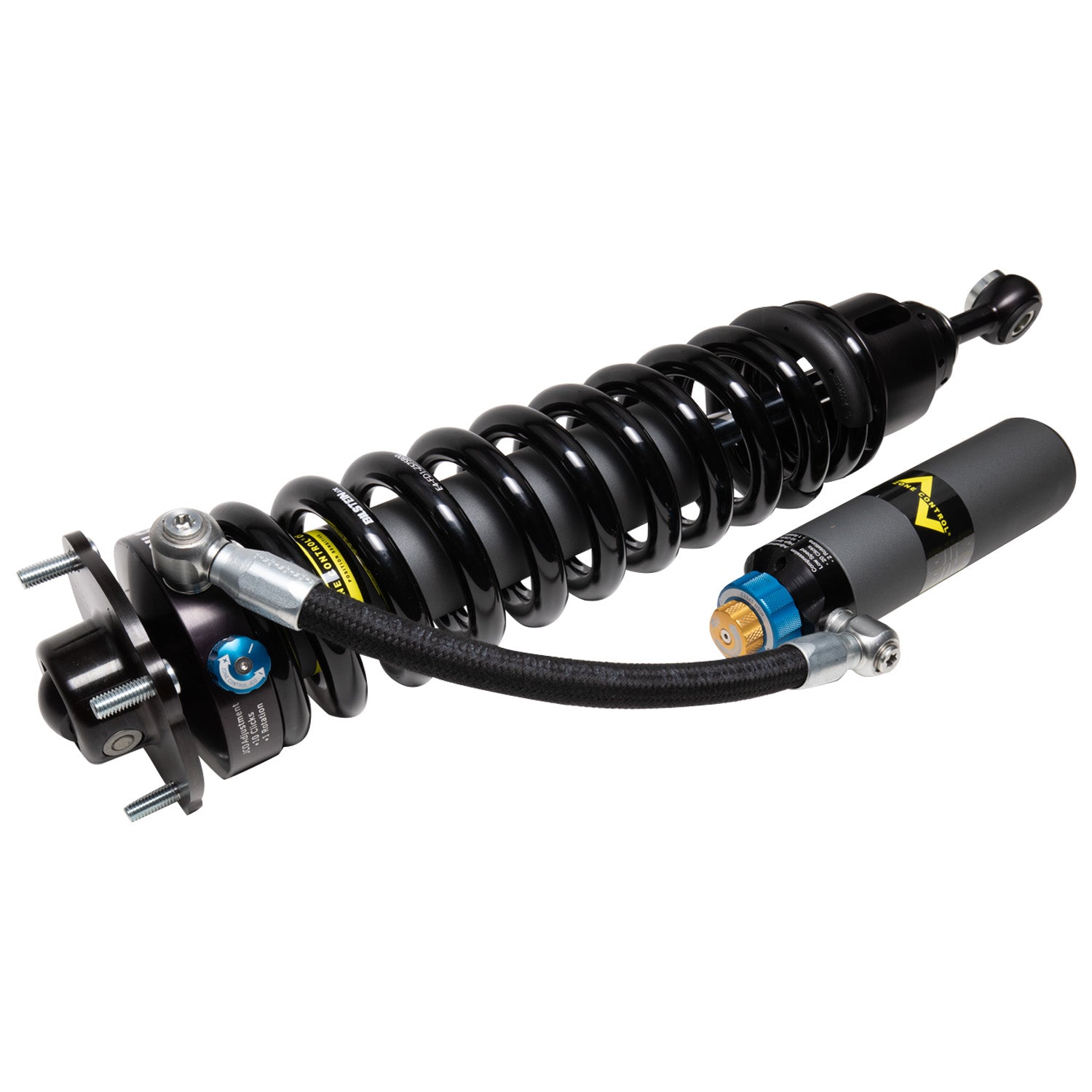

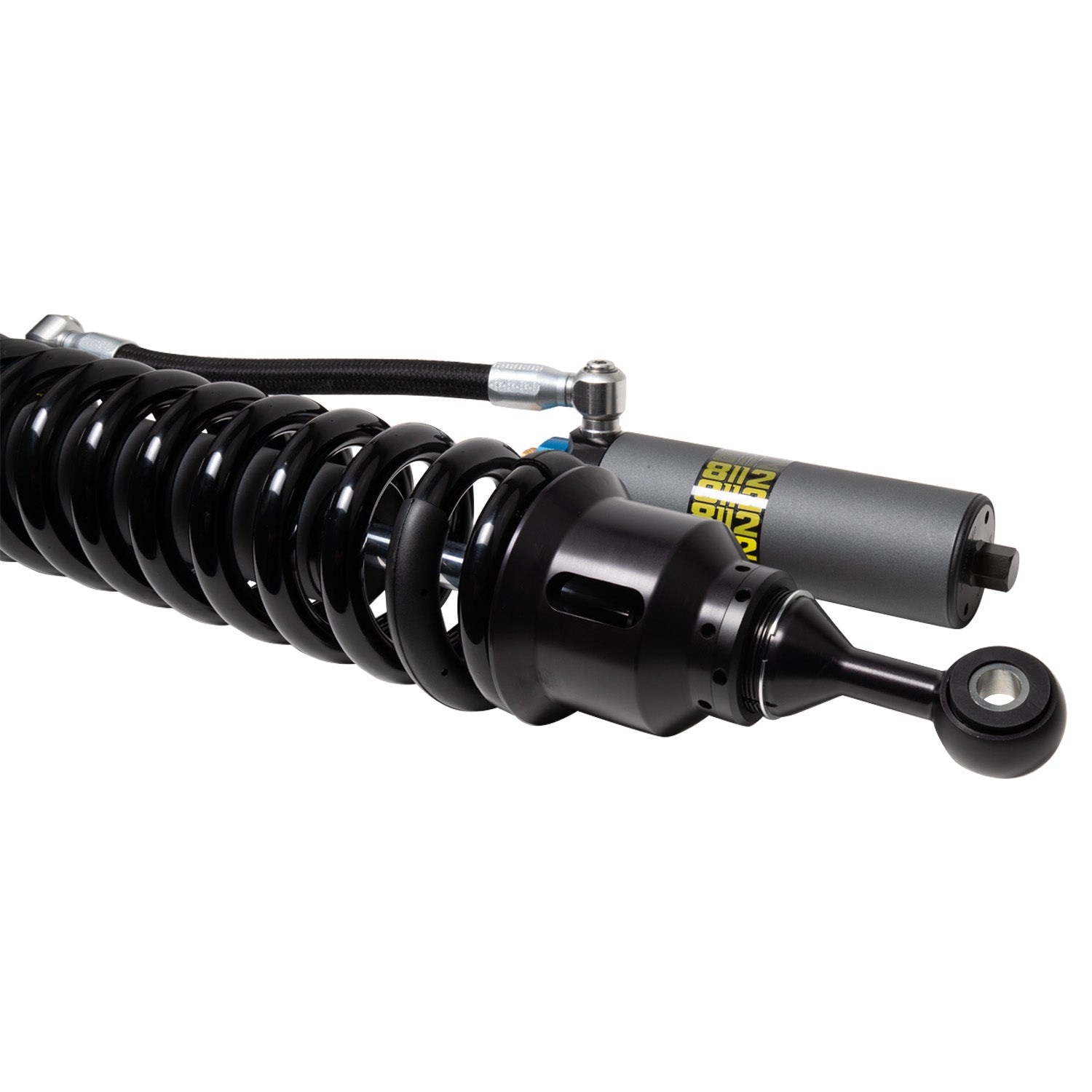

Bilstein 41-326091 B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module

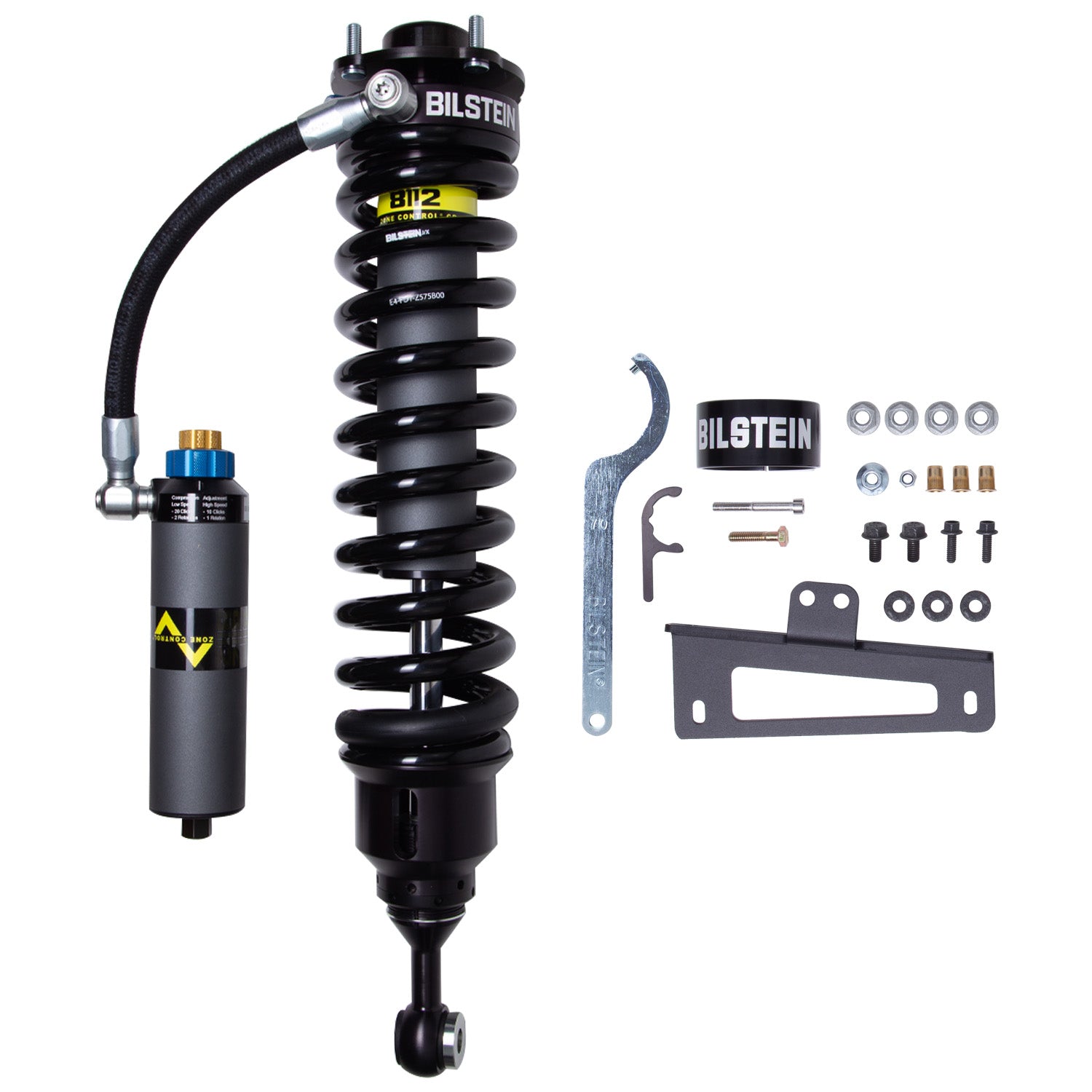

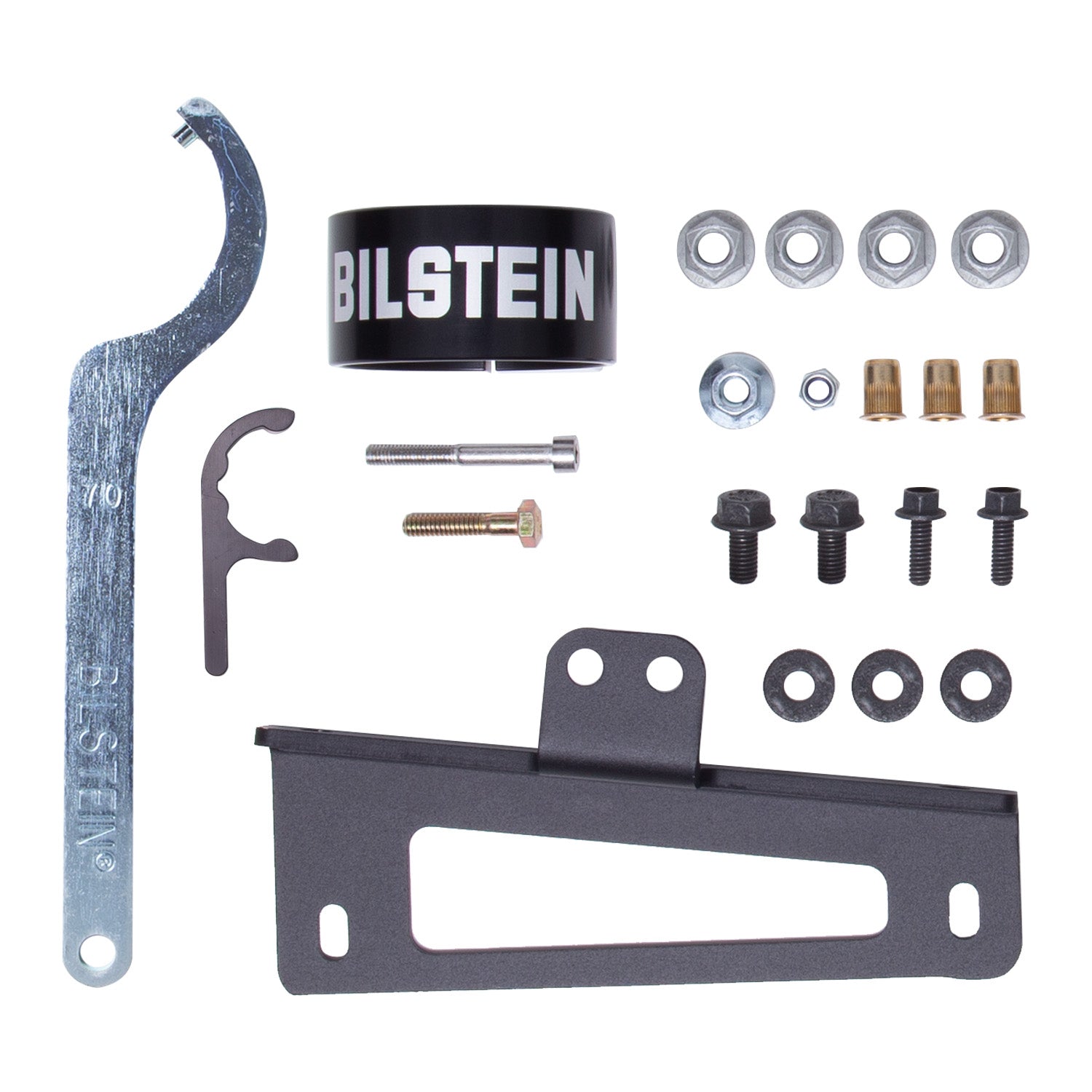

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

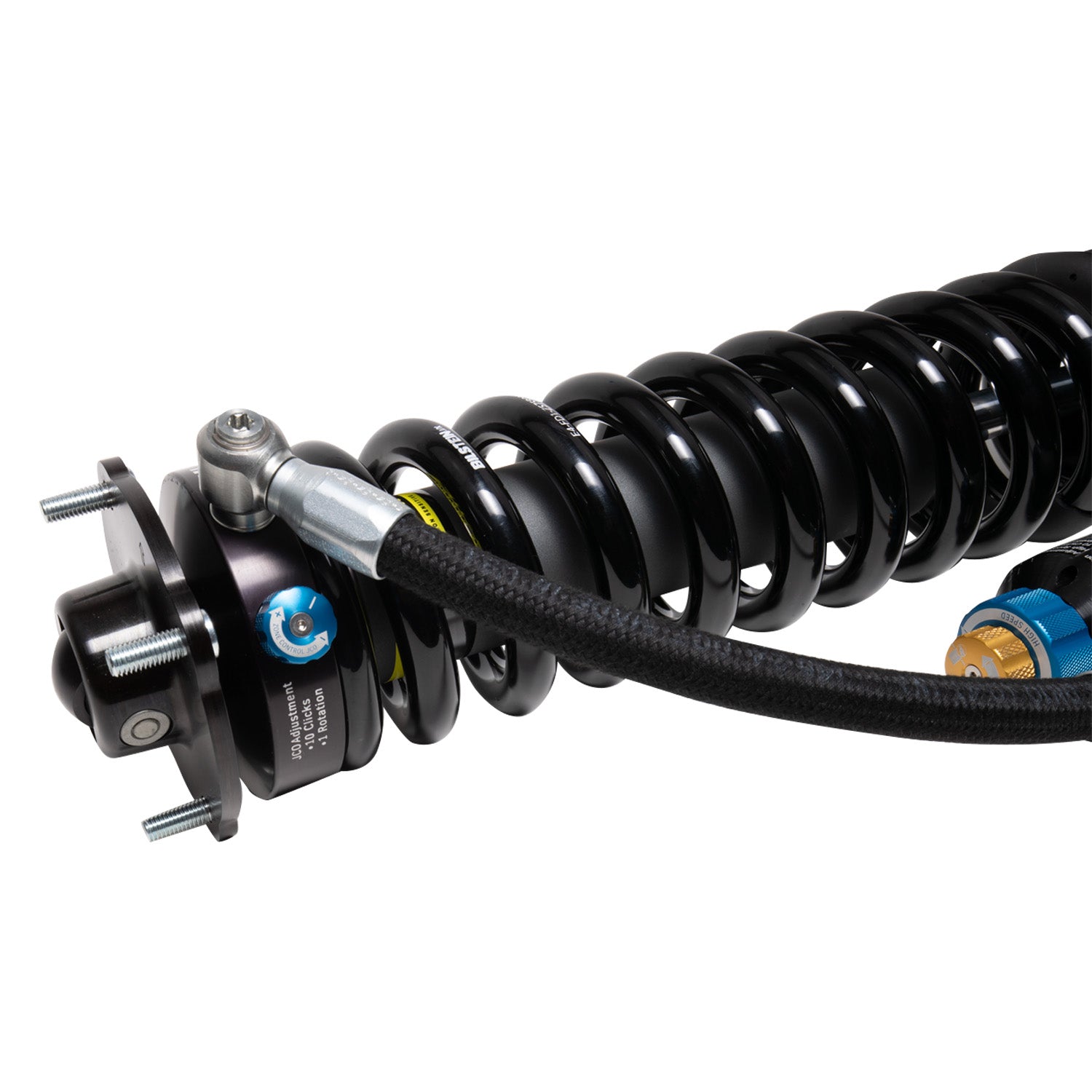

Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)

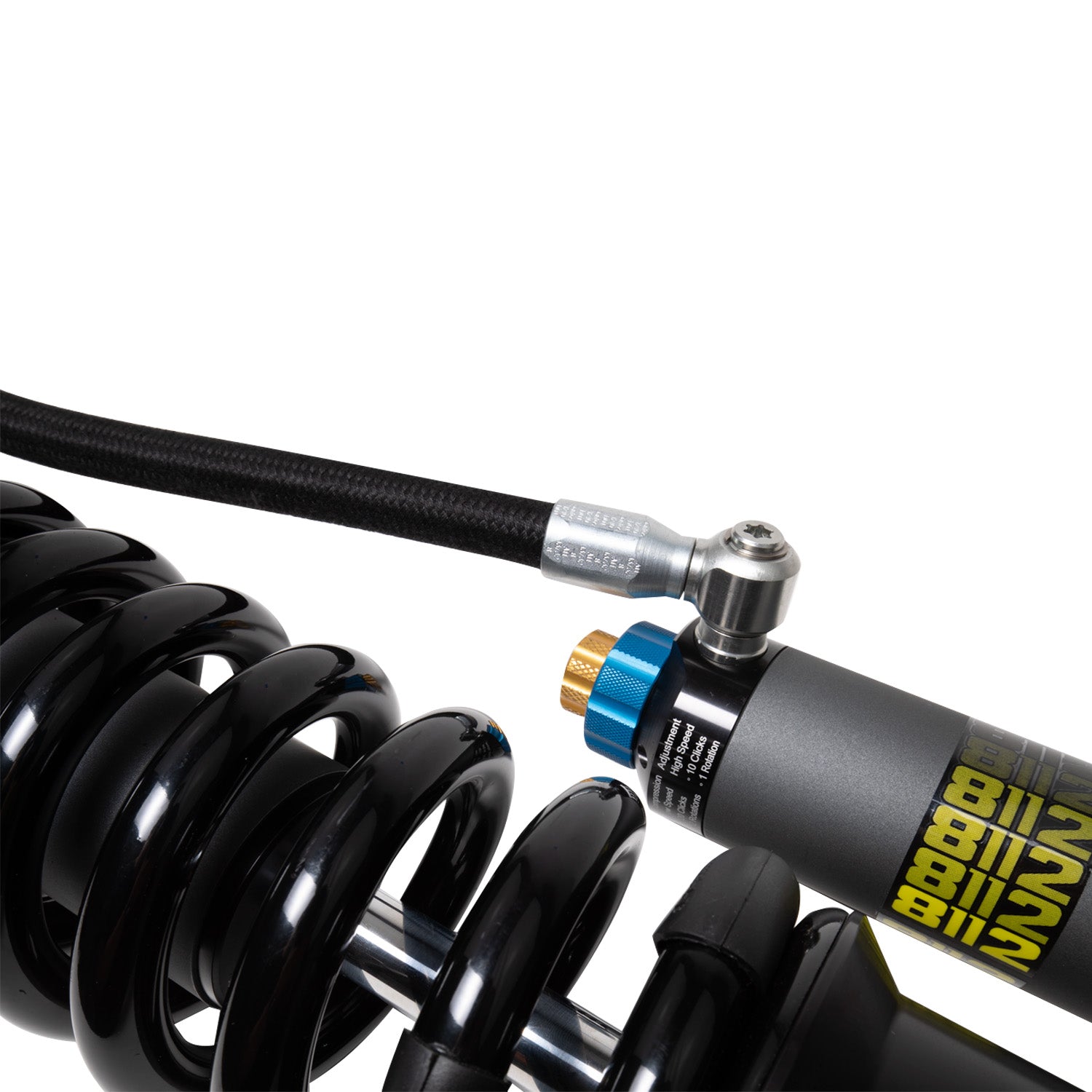

60mm remote reservoir for increased oil capacity and cooling

Specifications

Shaft Diameter (mm)	22.0
Front Main Spring Rate (lbs/in)	650
Spring Seat Included	Yes
Extended Length (MM)	640.8
Boot Included	No
Segment	Light Truck
Aftermarket Upper Arms Required	Yes
Upper Mount Type	Special
Body Design	Smooth Body (Coilover)
Adjustable Damping	Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Extended Length (IN)	25.20
Lower Mount Type	Eye 19.05mm
Series	B8 8112 (ZoneControl CR DSA+)
Body Material	Steel
Reservoir	Yes
Finish	Dampers: EVO Grey/Springs: Black
Collapsed Length (MM)	479.3
Internal Design	Monotube
Collapsed Length (IN)	18.90
Piston Diameter	60mm

Packaging Information

Weight: 44.8 lbs
Dimensions: 33.5 x 11.88 x 8.88 IN

Safety

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Warranty

24 Month Warranty

⚠ Fitment Notes

Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended
Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended
