Bilstein 41-326343 B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module
Bilstein 41-326343 B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein 41-326343 B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module

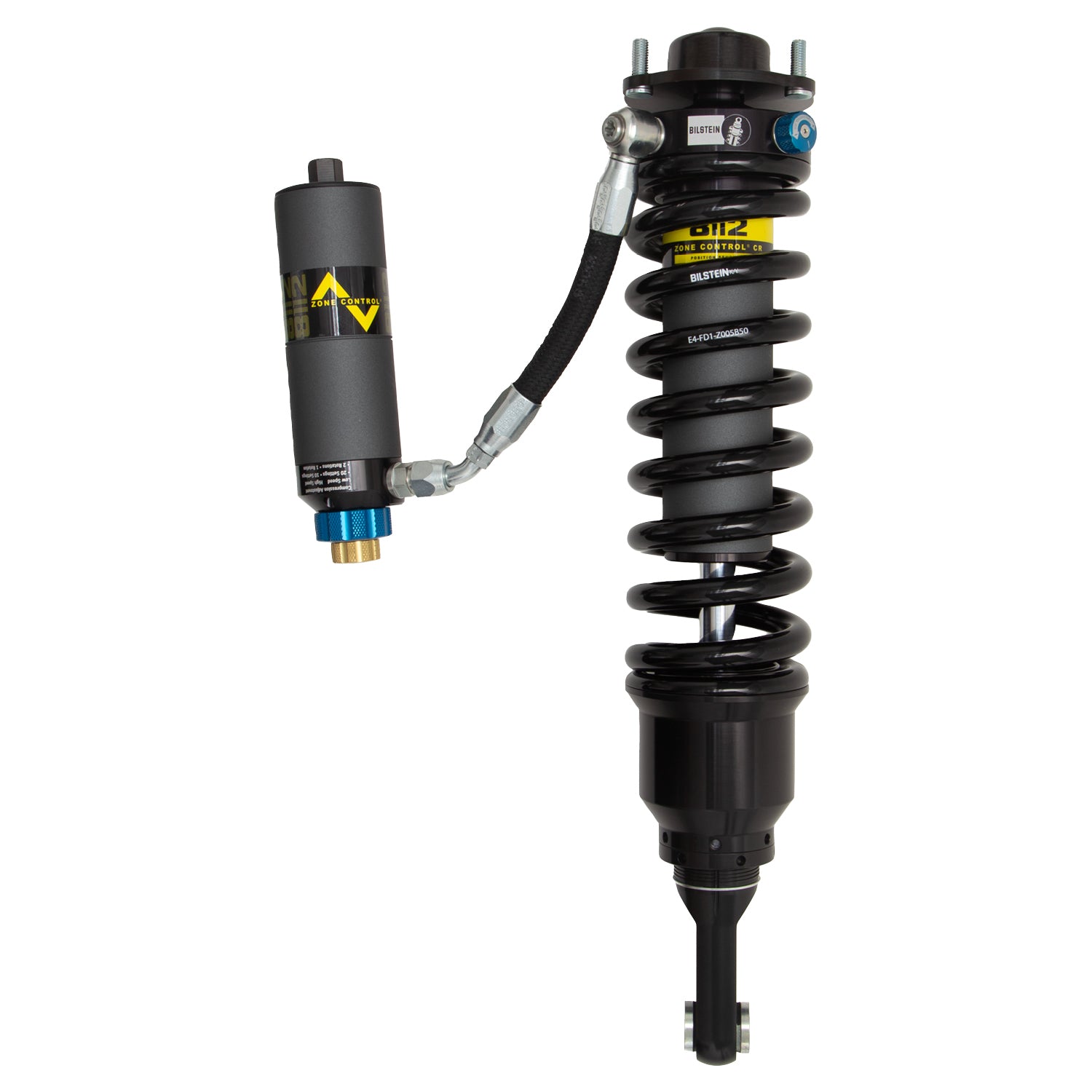

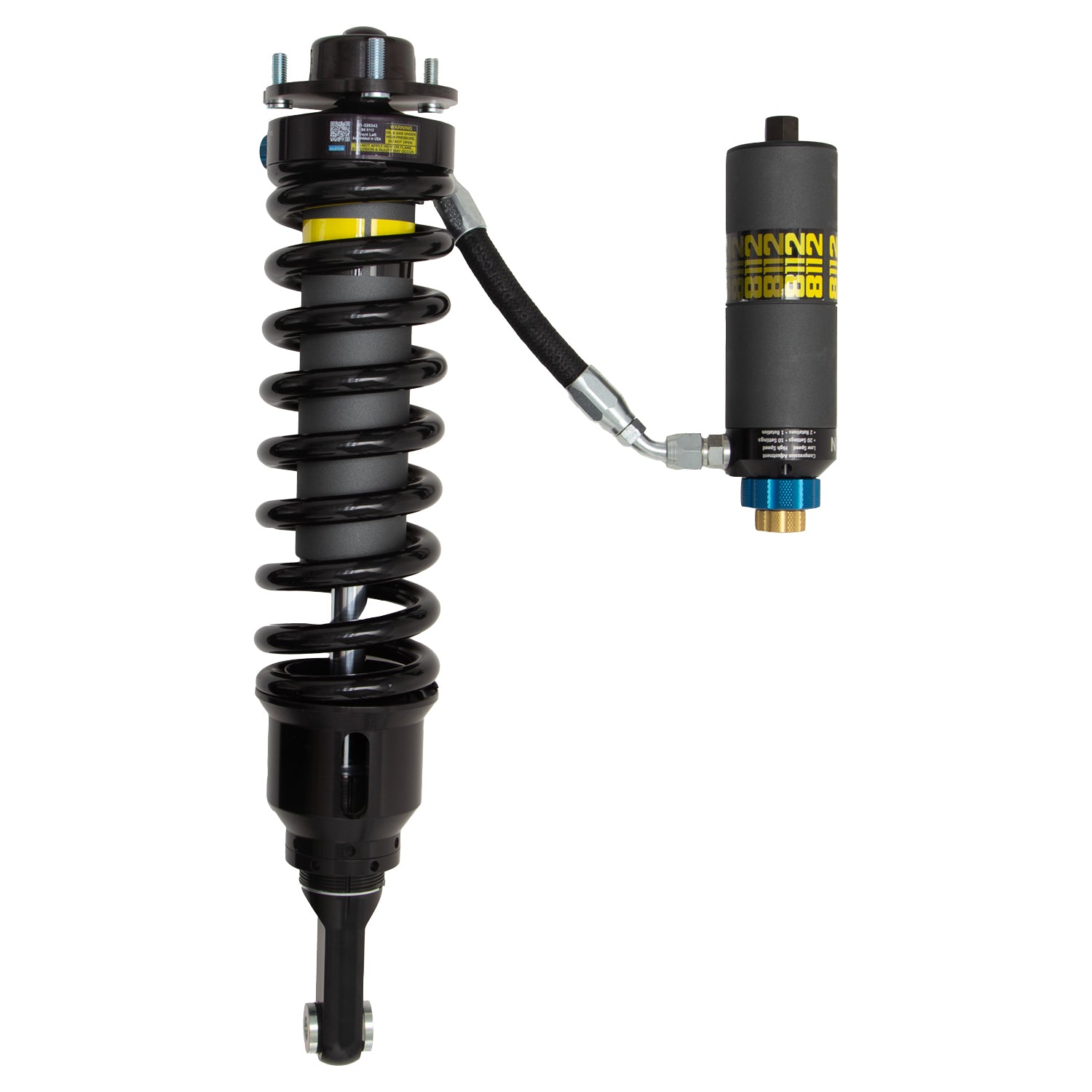

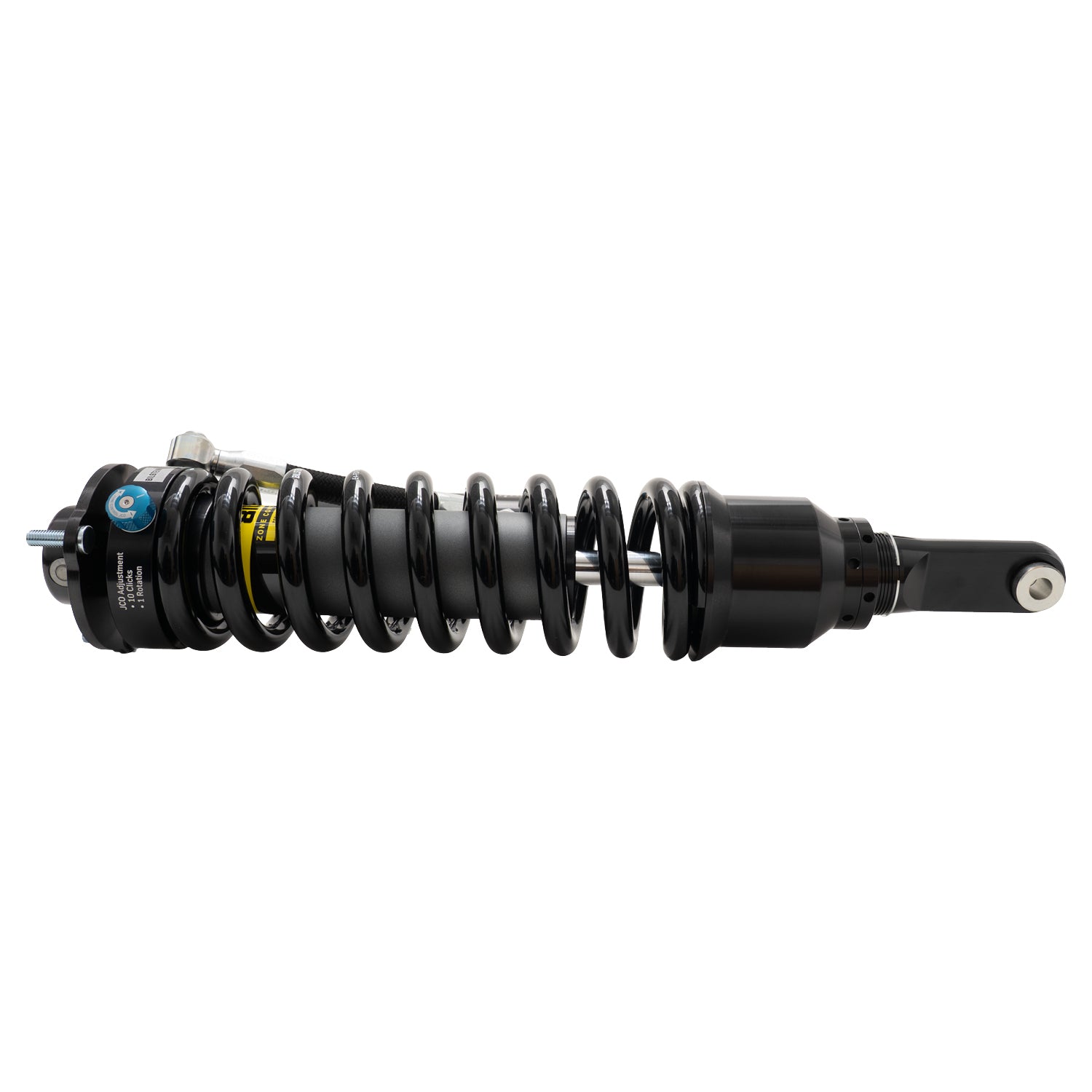

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

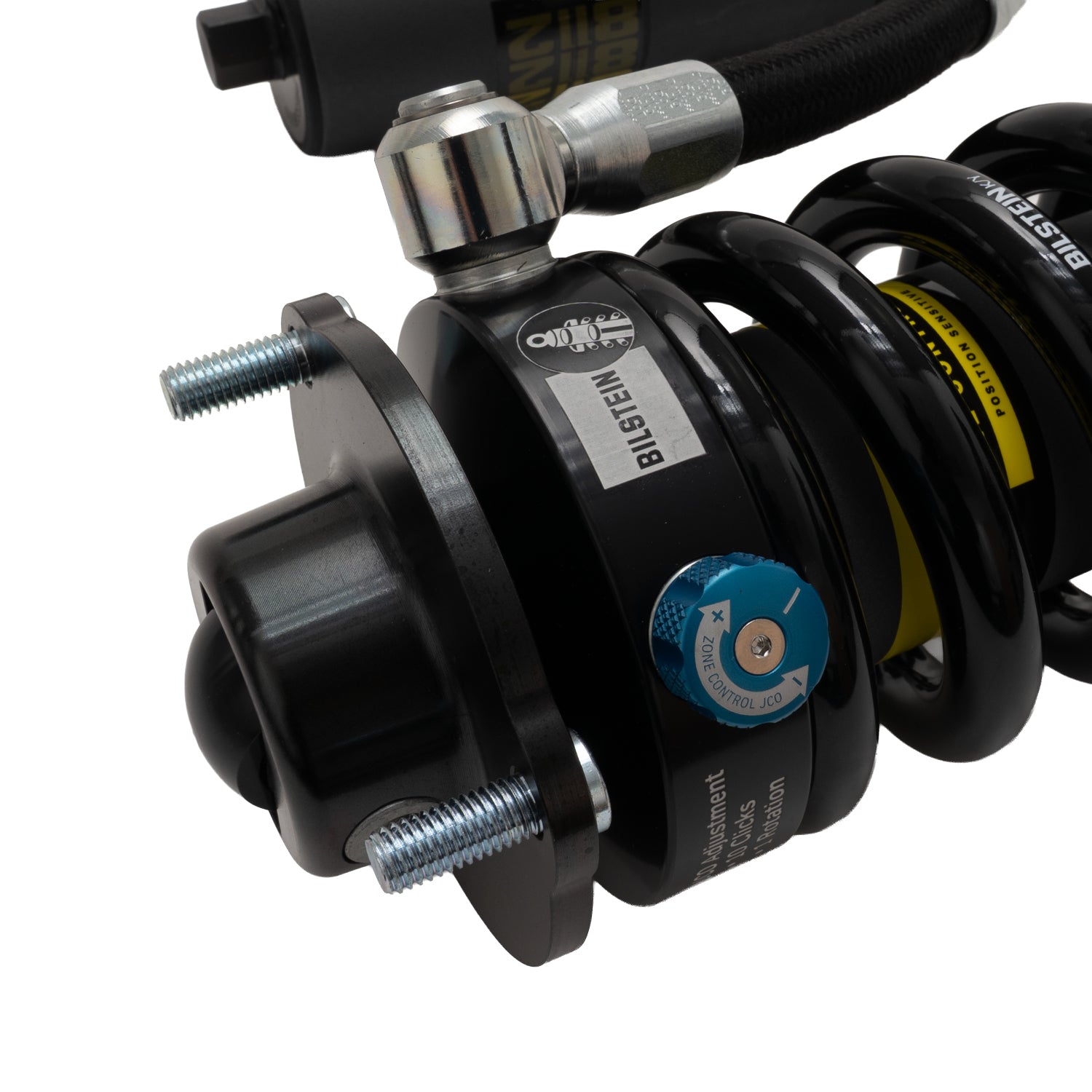

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Extended Length (mm) | 564.8 |
| Segment | Light Truck |
| Upper Mount Type | Special |
| Body Design | Smooth Body (Coilover) |
| Lower Mount Type | Eye 14.1mm |
| Body Material | Steel |
| Finish | Dampers: EVO Grey/Springs: Black |
| Internal Design | Monotube |
| Piston Diameter | 60mm |
| Front Main Spring Rate (lbs/in) | 600 |
| Spring Seat Included | Yes |
| Boot Included | No |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Extended Length (IN) | 22.24 |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Reservoir | Yes |
| Collapsed Length (mm) | 442.6 |
| Collapsed Length (IN) | 17.43 |
| Shaft Diameter (mm) | 22.0 |
Packaging Information
Weight: 39.5 lbs
Dimensions: 33.5 x 11.88 x 8.88 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
24 Month Warranty
⚠ Fitment Notes
- Provides 1.3-3.4" Front Lift; Requires wheels with maximum 4.5" backspacing
- Provides 2.2-3.3" Front Lift; Without X-REAS Suspension; Requires wheels with maximum 4.5" backspacing
- Provides 2.8-4" Front Lift; Requires wheels with maximum 4.5" backspacing
- Provides 1.3-3.4" Front Lift; Without X-REAS Suspension; Requires wheels with maximum 4.5" backspacing
- Provides 2.2-3.3" Front Lift; Requires wheels with maximum 4.5" backspacing
- Provides 2.8-4" Front Lift; Without X-REAS Suspension; Requires wheels with maximum 4.5" backspacing
- Provides 1.3-3" Front Lift; Requires wheels with maximum 4.5" backspacing
Share
Vehicle Fitment
Vehicle Fitment
- 2003-2009 Lexus GX470 Base — Front Left
- 2003-2009 Toyota 4Runner Limited — Front Left
- 2003-2009 Toyota 4Runner SR5 — Front Left
- 2007-2009 Toyota FJ Cruiser Base — Front Left
- 2008 Toyota FJ Cruiser Trail Teams Special Edition — Front Left
- 2007 Toyota FJ Cruiser TRD Special Edition — Front Left
