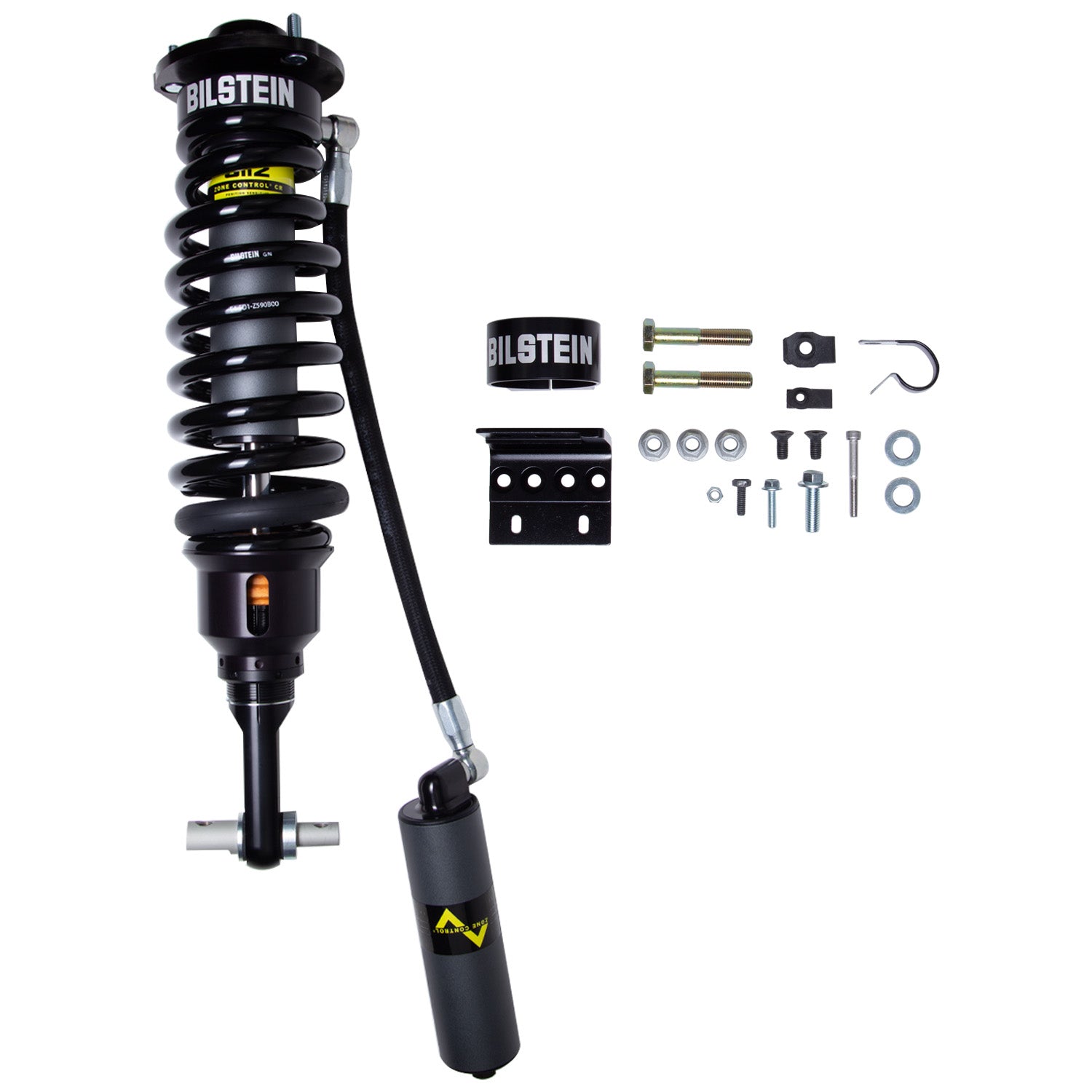

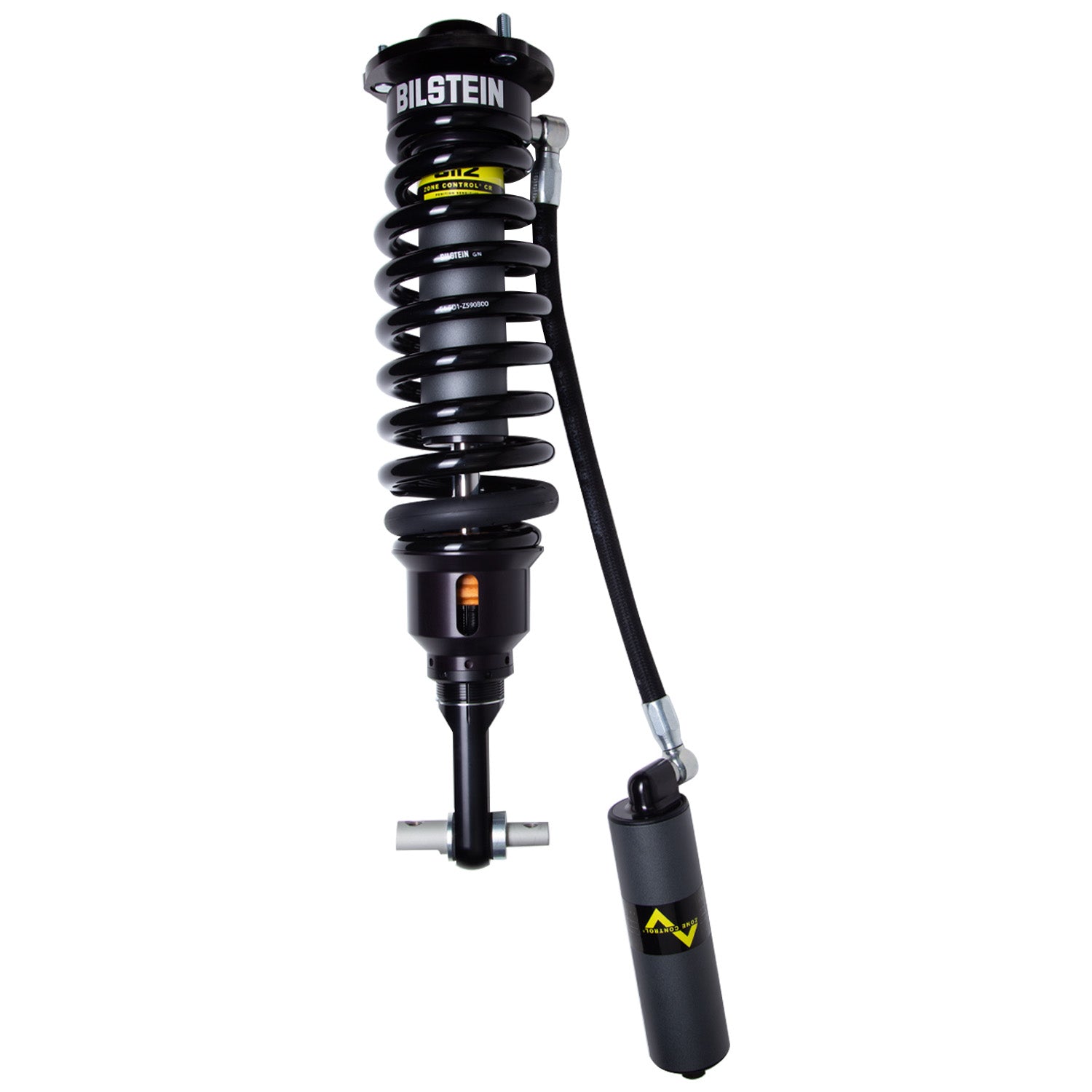

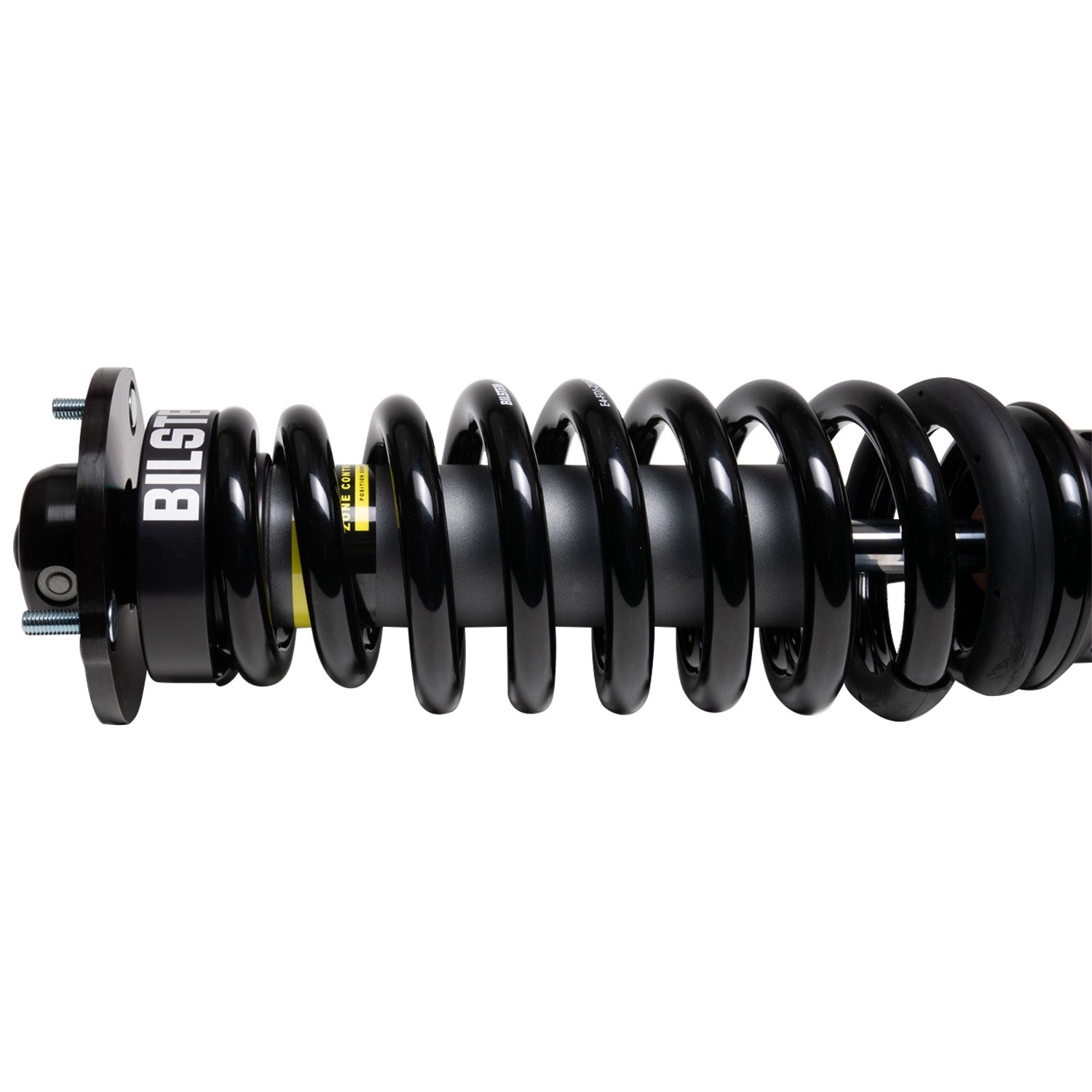

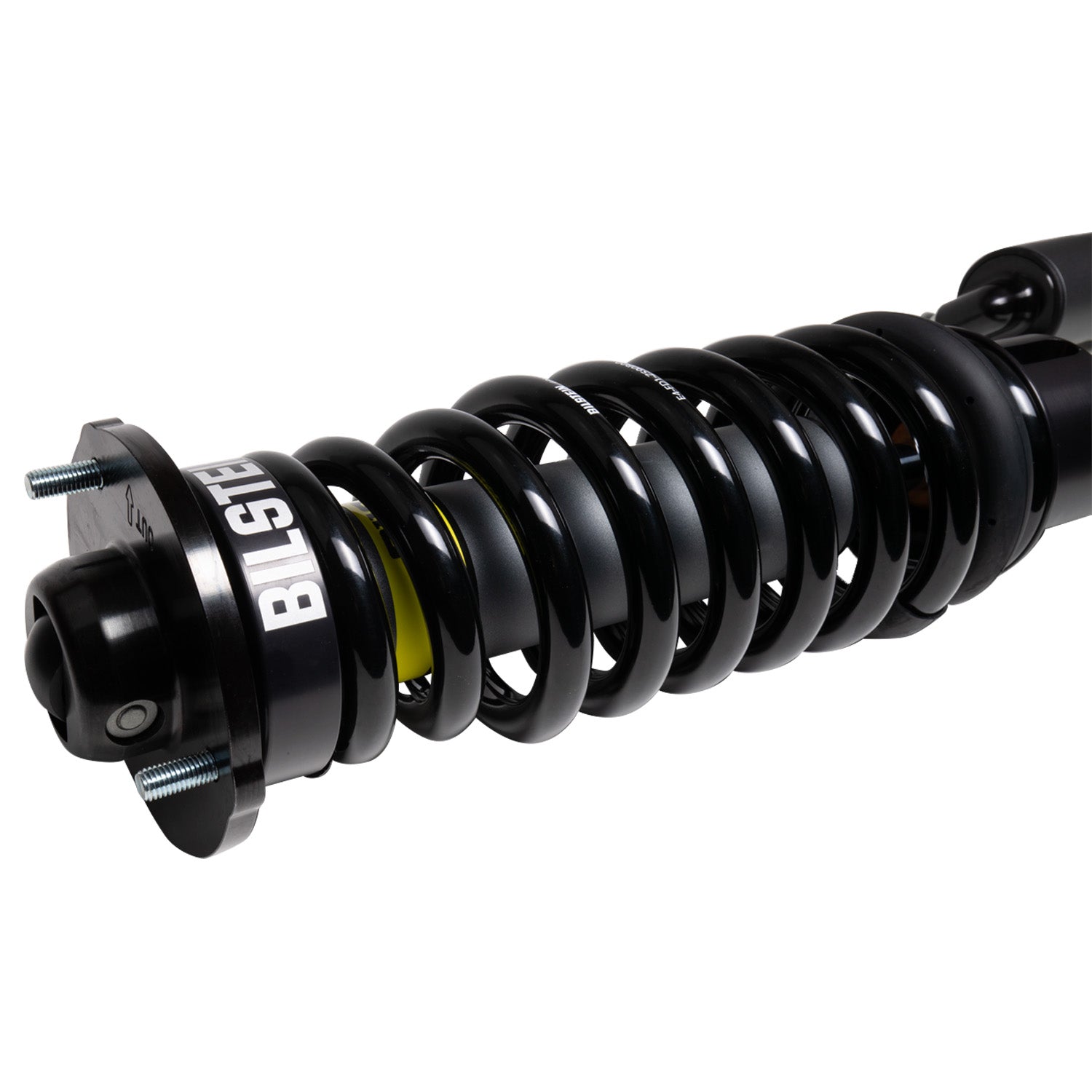

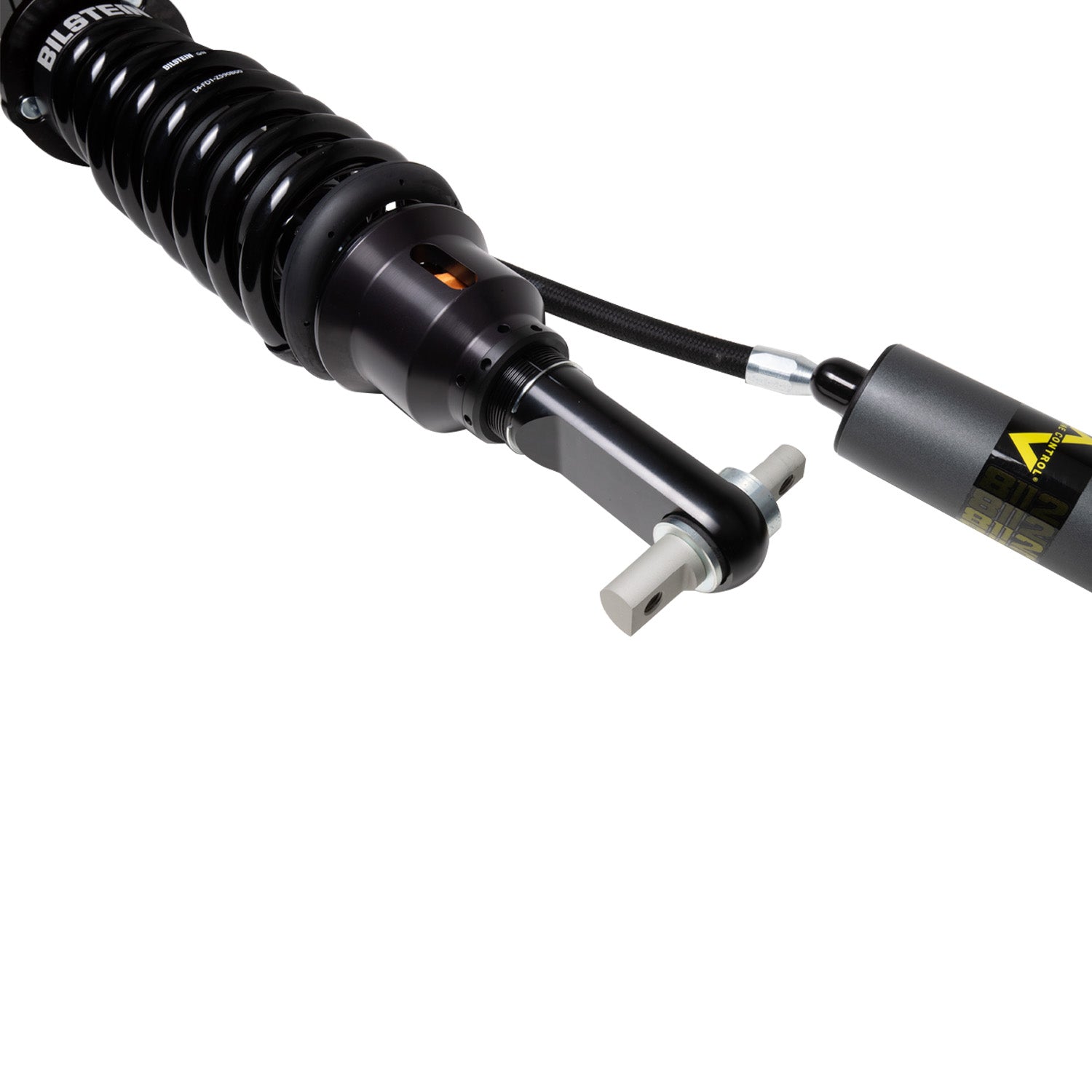

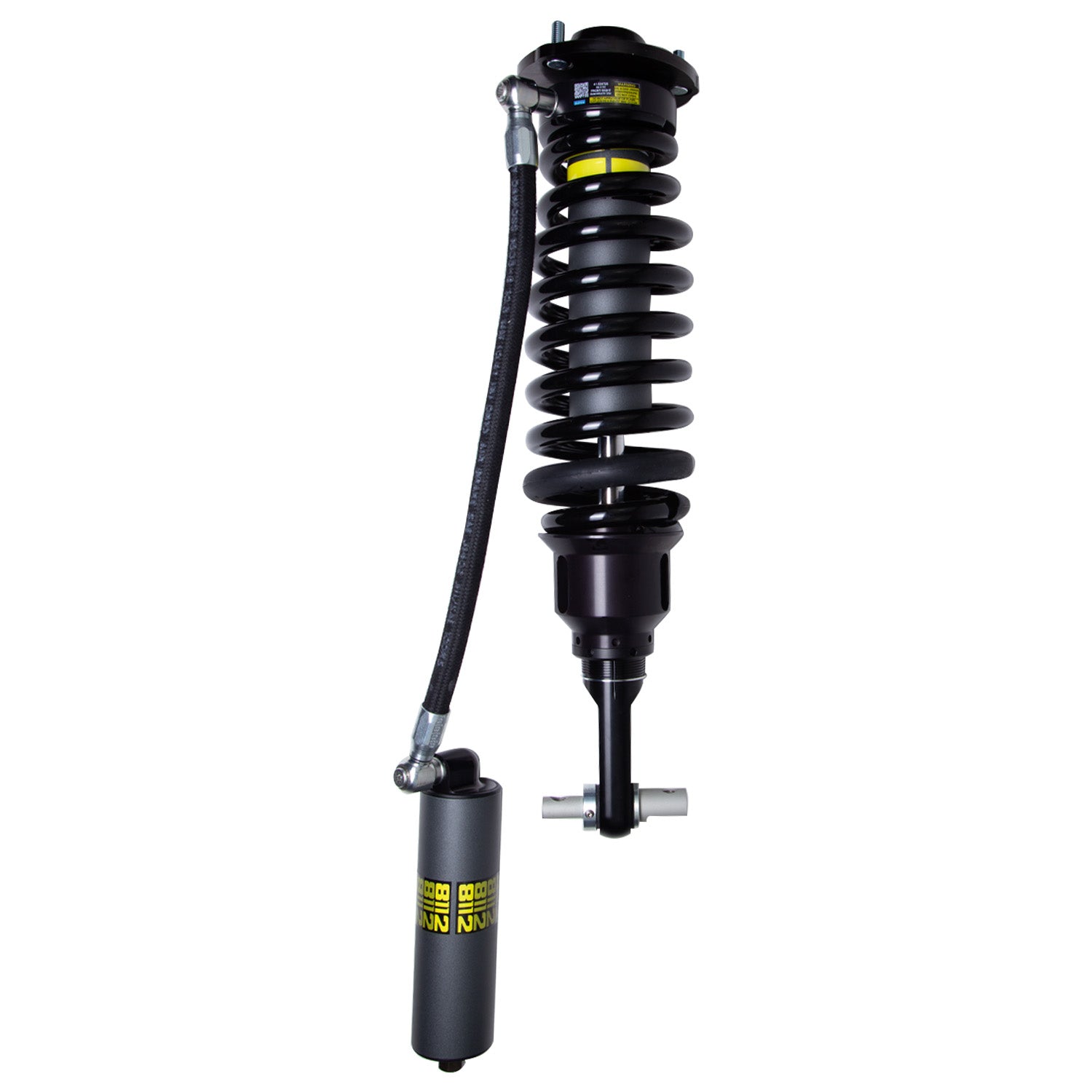

Bilstein 41-326725 B8 8112 (ZoneControl CR) - Front Right Corner Module

Bilstein 41-326725 B8 8112 (ZoneControl CR) - Front Right Corner Module

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs

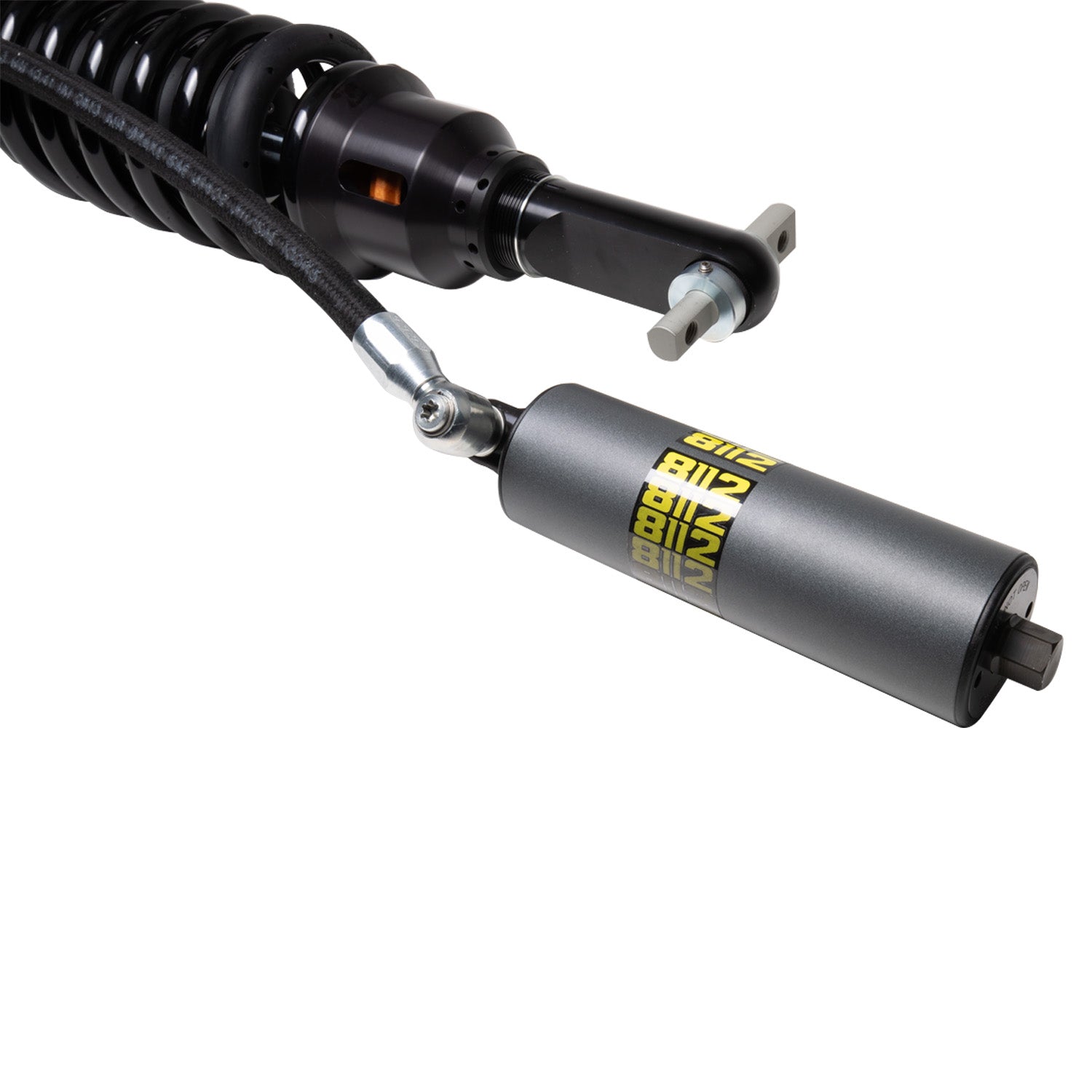

• 60mm remote reservoir for increased oil capacity and cooling

Weight: 44.65 lbs
Dimensions: 33.5 x 11.88 x 8.88 IN

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

24 Month Warranty

• Provides 1.5-2.3" Front Lift
• Provides 1.5-2.2" Front Lift
• Provides 1.6-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required
• Provides 1.6-2.7" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required
• Provides 1.8-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required
• Provides 0-2.1" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine
• Provides 0-2.1" Front Lift; Without Continuously Controlled Damping
