Bilstein 41-338131 Black Hawk Powersports - Rear Left Corner Module

$1,625.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

Bilstein 41-338131 Black Hawk Powersports - Rear Left Corner Module

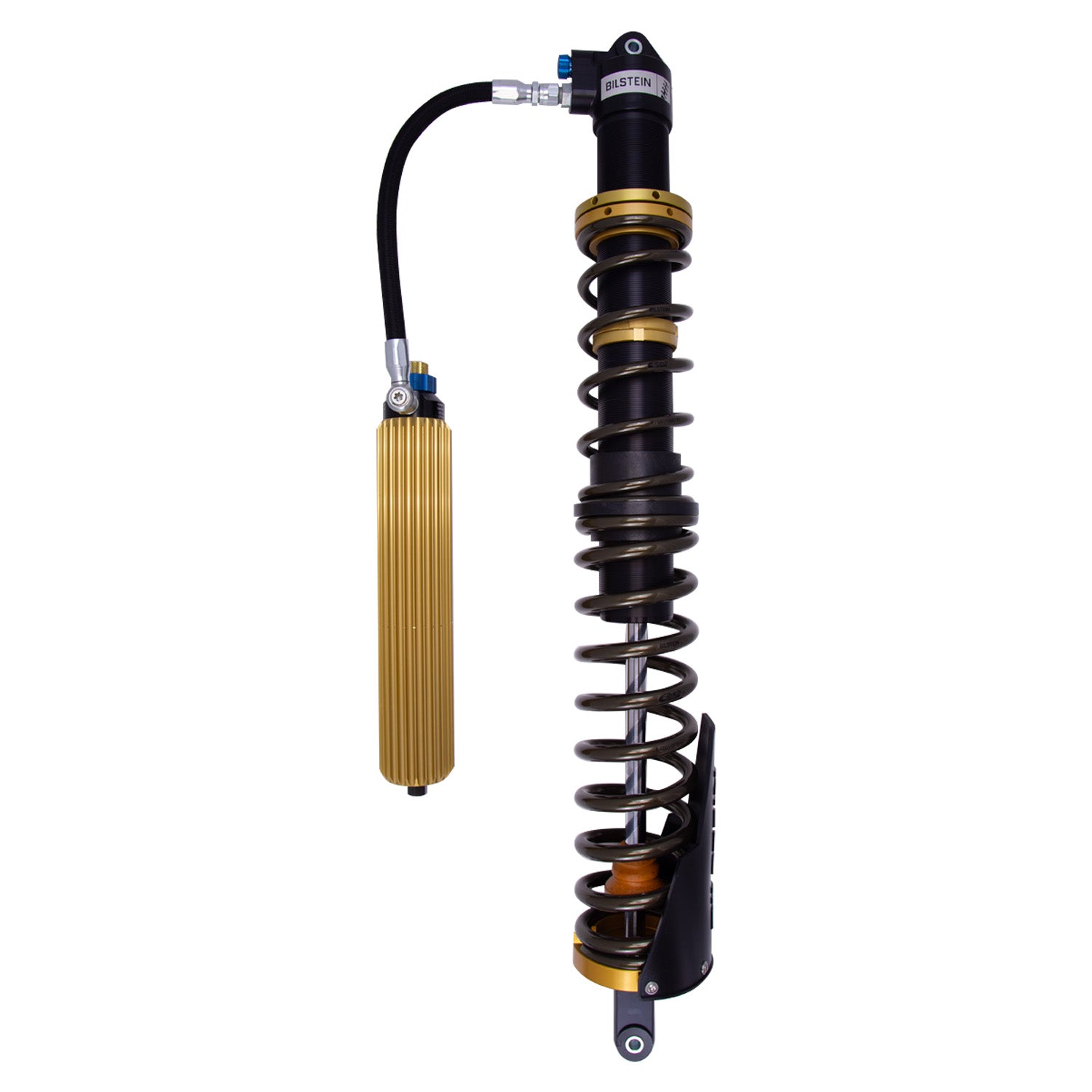

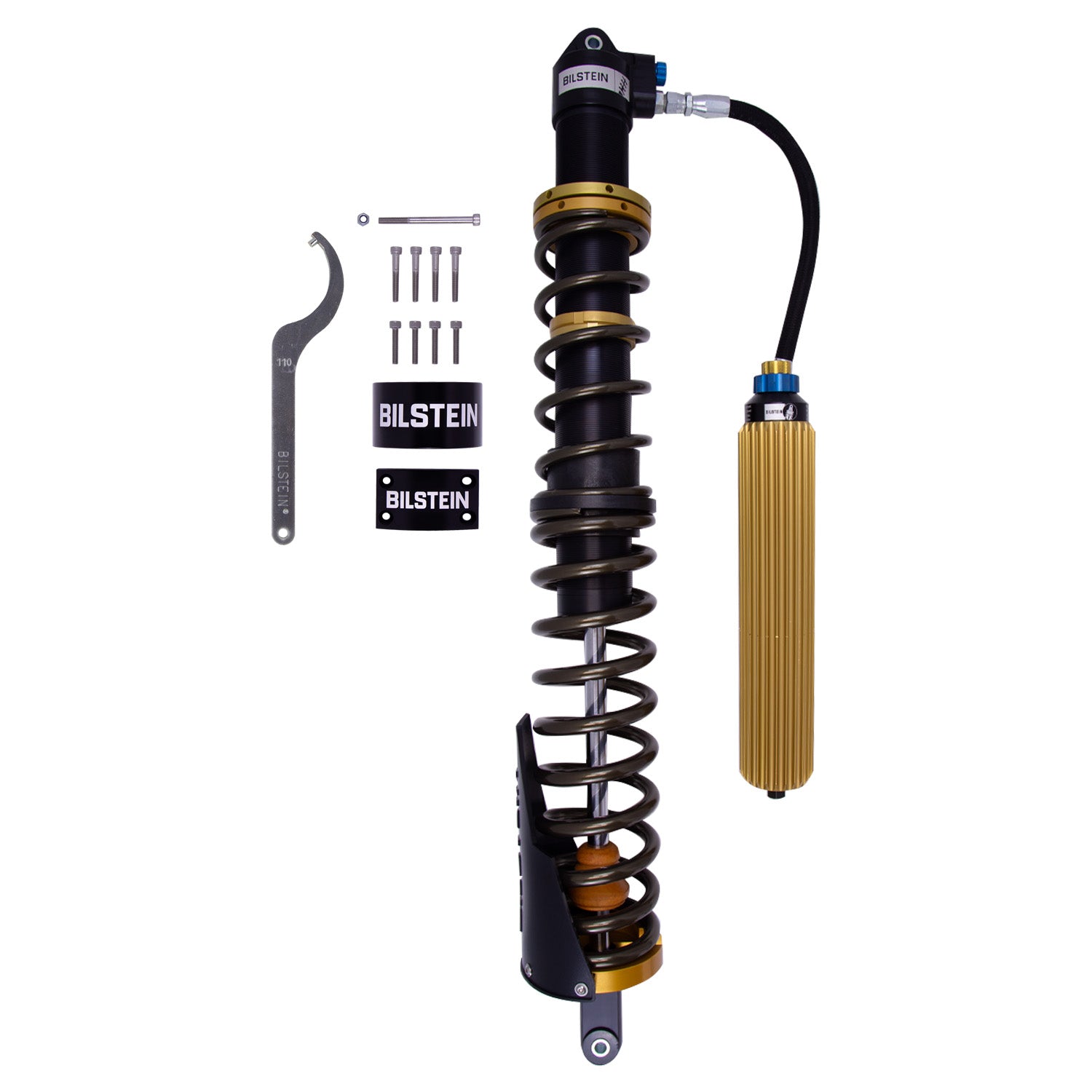

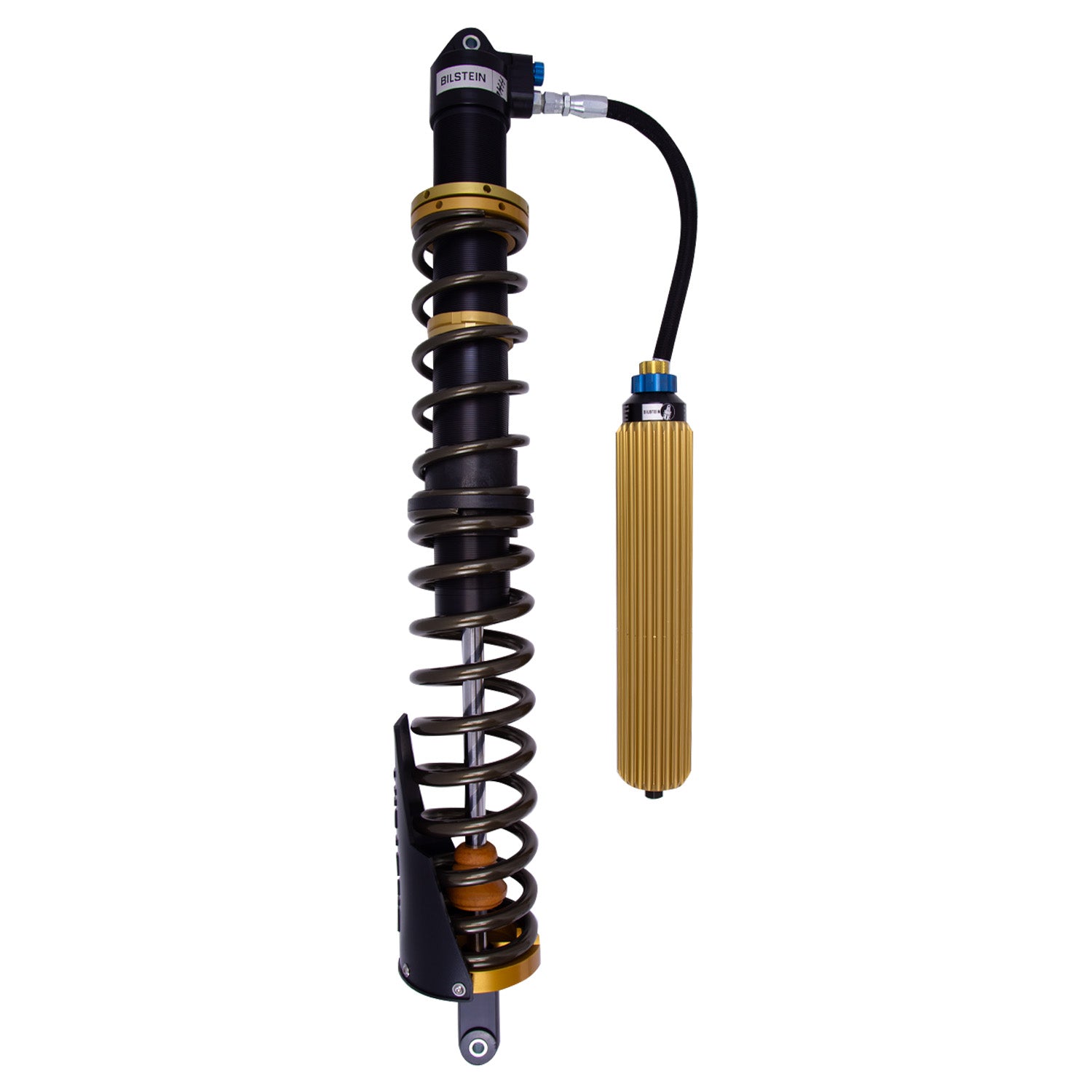

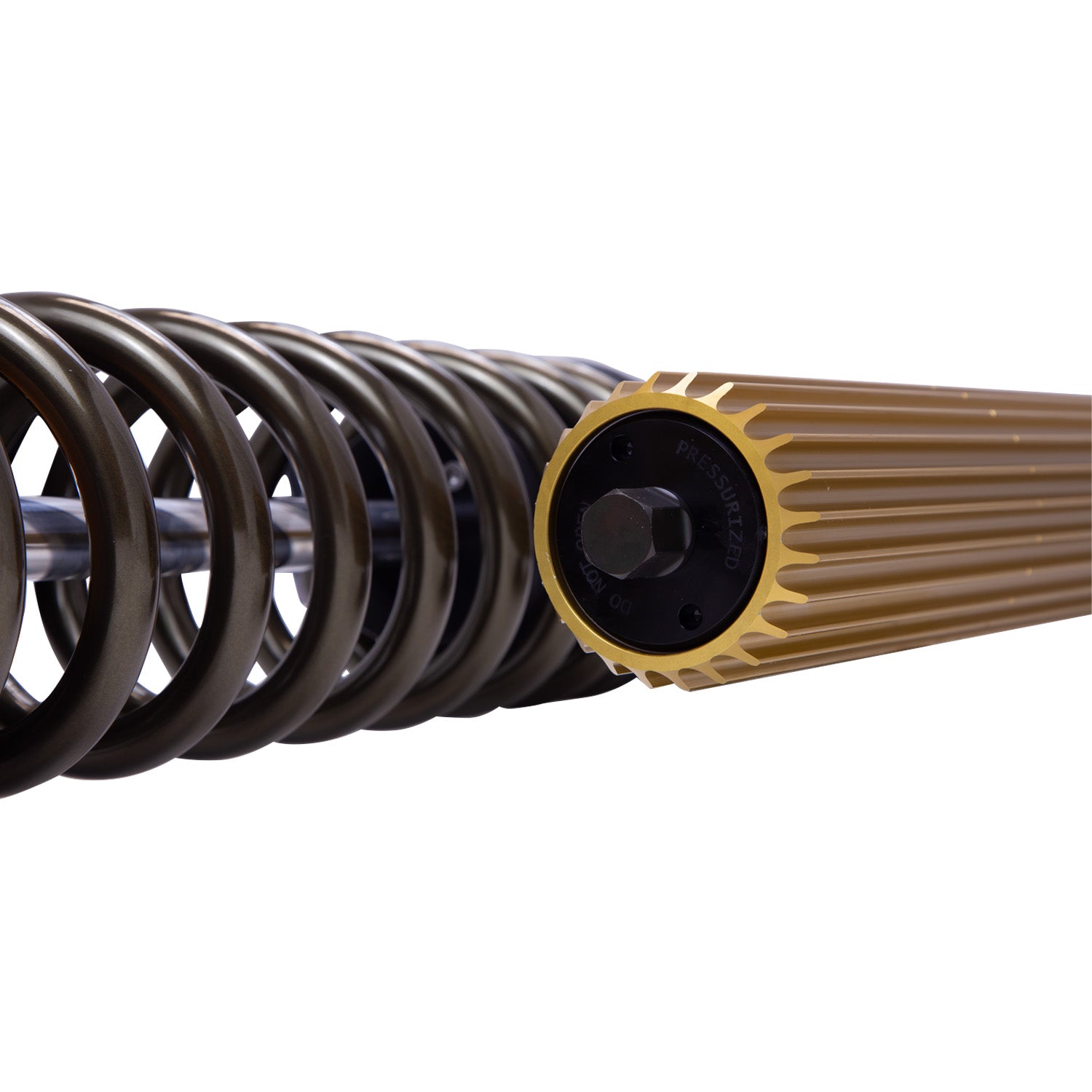

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.

Zone Control CR - Position Sensitive Damping

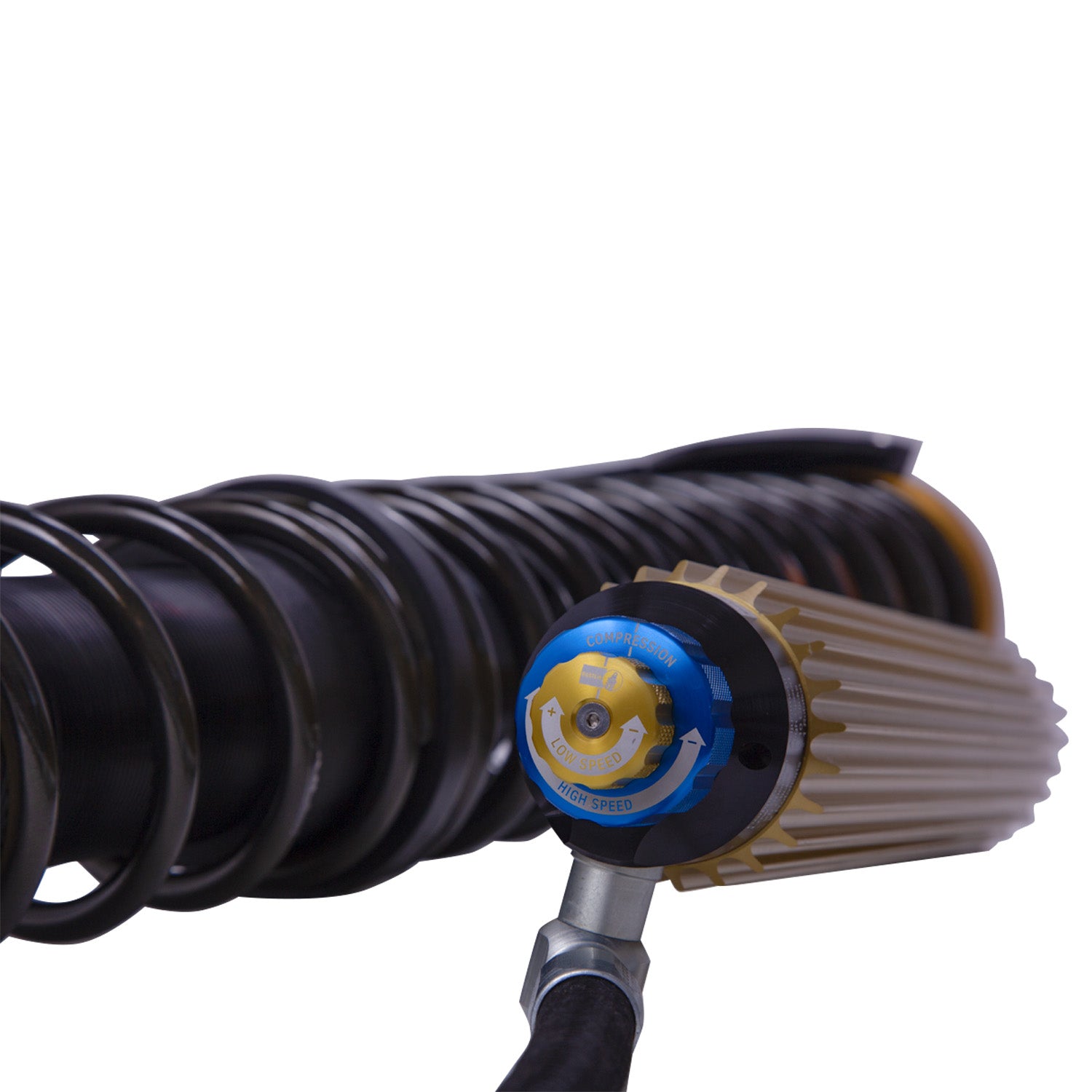

4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed); Adjustable Internal Hydraulic Bump Stop (JCO); Adjustable Rebound
Direct Fit Motorsports Package

Specifications

Upper Mount Type	Eye 12mm (ID)
Adjustable Damping	4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
Extended Length (IN)	41.61
Rebound @0.52m/s	Adjustable
Make	Can-Am
Series	Black Hawk Powersports
Body Material	Aluminum alloy
Collapsed Length (MM)	710.8
Collapsed Length (IN)	27.98
Shaft Diameter (mm)	22.0
Stroke/Travel Length (IN)	13.63
Segment	Motorsports
Billet Reservoir Clamp Included	Yes
Body Design	Threaded Body
Stroke/Travel Length (mm)	346.2
Compression @0.52m/s	Adjustable
Lower Mount Type	Eye 12mm (ID)
Model	Maverick X3
Reservoir	Yes
Finish	Type III Hard Anodized
Internal Design	Monotube
Piston Diameter	70mm
Position	Rear Left
Extended Length (MM)	1056.8
Boot Included	No
