Bilstein 47-121225 B14 (PSS) - Suspension Kit
Bilstein 47-121225 B14 (PSS) - Suspension Kit
Low stock: 4 left
Couldn't load pickup availability
Description & Features

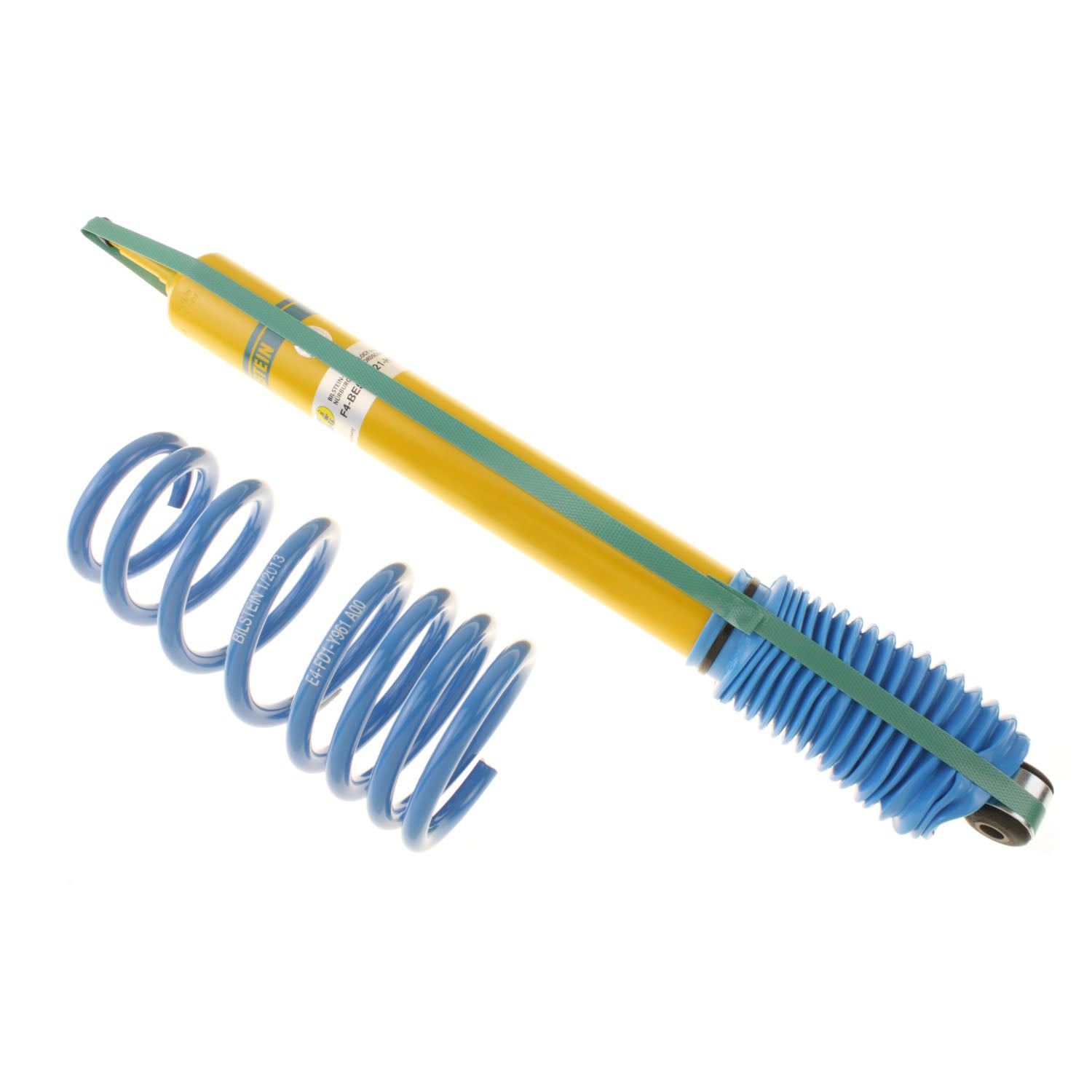

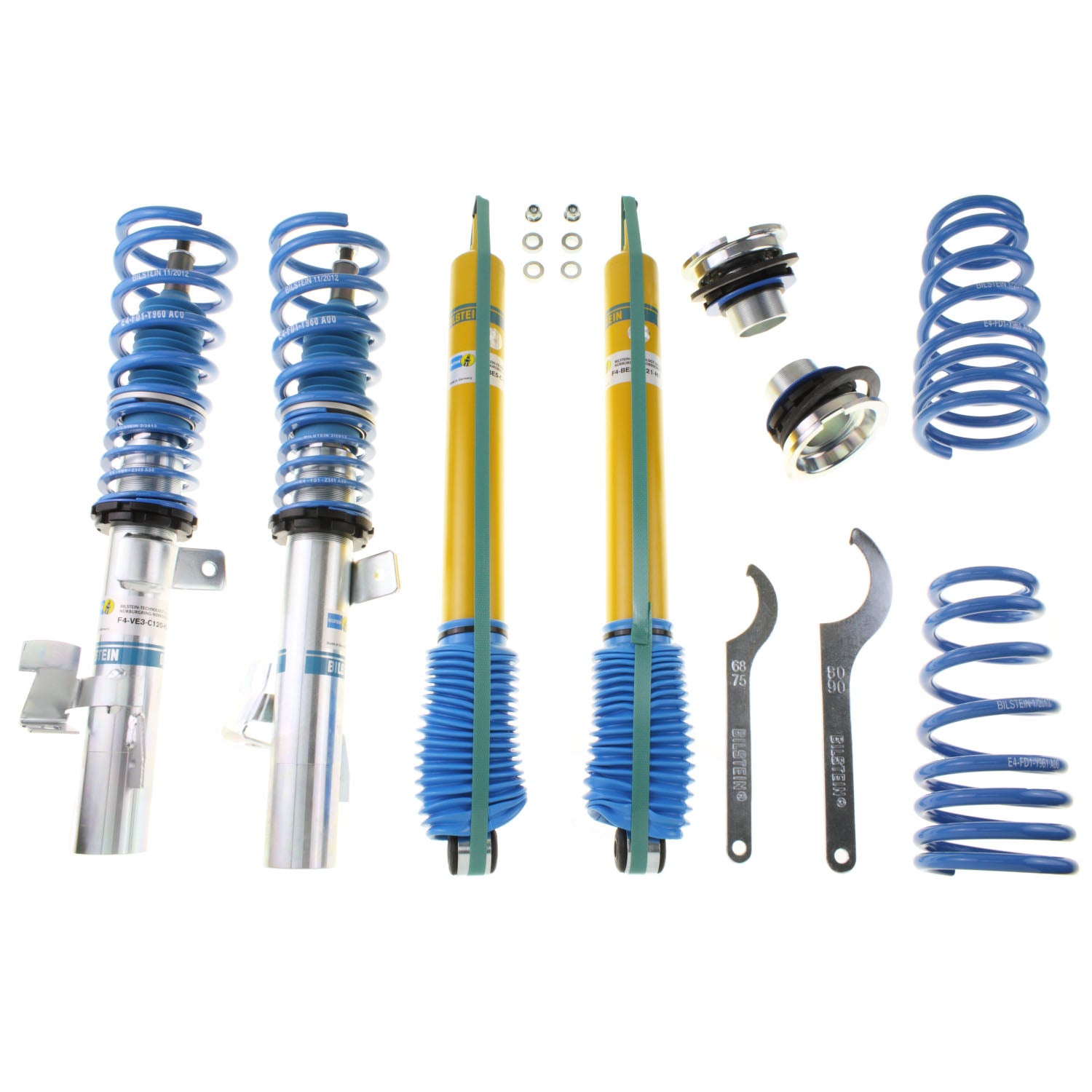

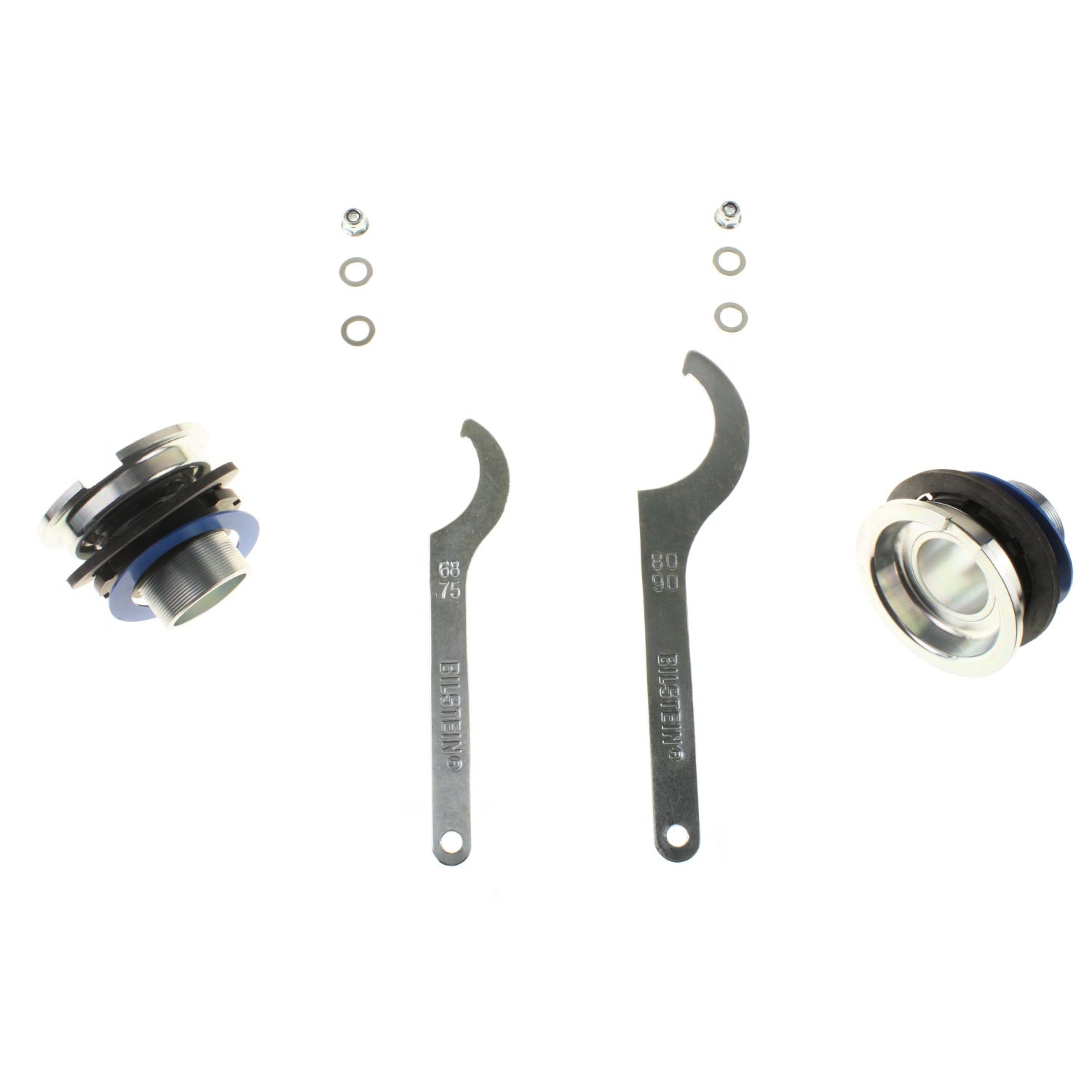

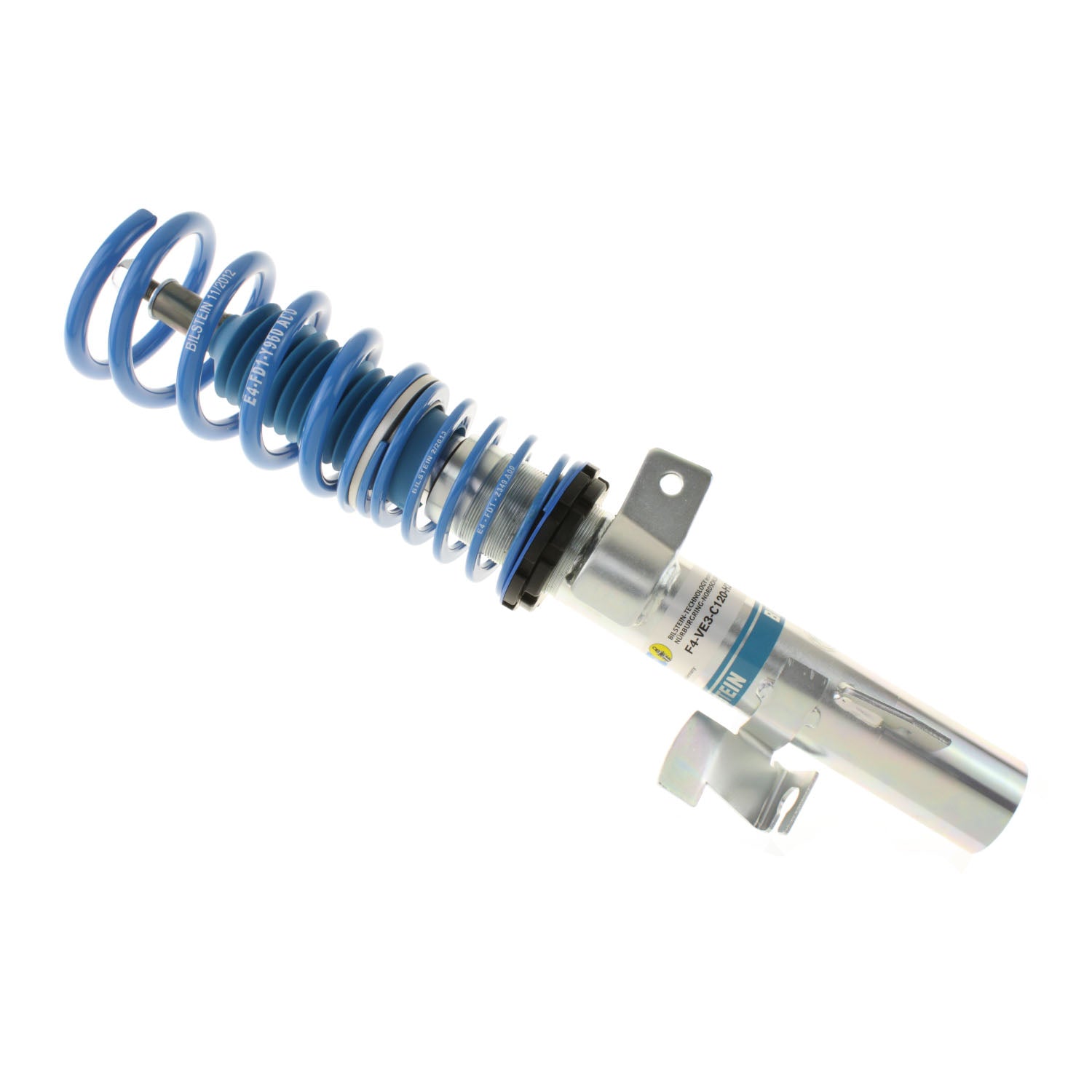

Bilstein 47-121225 B14 (PSS) - Suspension Kit
Bilstein B14 (PSS) suspension kits feature ride height adjustability in an OE quality, direct fit package. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B14 (PSS) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.
- Threaded body allows lowering of approximately 30mm to 50mm
- Tested by our engineers under motorsport conditions
- Triple-C-Technology surface coating for long lasting corrosion resistance
Specifications
| Internal Design | Monotube |
| Front Main Spring Rate (lbs/in) | 377 |
| Front Tender Spring Rate (lbs/in) | 114 |
| Segment | Tuning |
| Rear Main Spring Type | Progressive |
| Series | B14 (PSS) |
| Finish | Dampers: Zinc Front Yellow Rear/Springs: Blue |
| Front Main Spring Type | Linear |
| Rear Main Spring Rate (lbs/in) | 378 |
| Rear Tender Spring Rate (lbs/in) | N/A |
Packaging Information
Weight: 49.76 lbs
Dimensions: 30.3 x 11 x 8.3 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
60 Month Warranty
⚠ Fitment Notes
- Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
- Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
- Front Lowered Height: 15-30mm, up to 1100kg Axle Load; Rear Lowered Height: 10-20mm, up to 1090kg Axle Load
- Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
- Front Lowered Height: 10-25mm, up to 1100kg Axle Load; Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
Share
Vehicle Fitment
Vehicle Fitment
- 2004-2013 Mazda 3 i — Front and Rear
- 2007-2013 Mazda 3 Mazdaspeed — Front and Rear
- 2004-2013 Mazda 3 S — Front and Rear
- 2005 Mazda 3 SP23 — Front and Rear
- 2008-2013 Volvo C30 T5 — Front and Rear
- 2012-2013 Volvo C30 T5 R-Design — Front and Rear
- 2006-2010 Volvo S40 2.4i — Front and Rear
- 2004-2005 Volvo S40 i — Front and Rear
- 2004-2009 Volvo S40 T5 — Front and Rear
- 2011 Volvo S40 T5 — Front and Rear
- 2006-2010 Volvo V50 2.4i — Front and Rear
- 2005 Volvo V50 i — Front and Rear
- 2005-2008 Volvo V50 T5 — Front and Rear
- 2011 Volvo V50 T5 — Front and Rear
